Parts for 200 (2 BBL.) GM 305 V-8 5.0L (305 Cu In) V8 GM MerCruiser Engines - Gas Standard Cooling System (Design II)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 16413A9 | MCM PART BUL.99-2 (USE W/O CHECK BALLS) (1 required per assembly) |
  |
|
16413A 9 - SEE MCM PART BUL.99-2 [ More info ] Unavailable |
| #1 | 16413A3 | MCM PART BUL.99-2 USE WITH CHECK BALLS REF. #5 (1 required per assembly) |
  |
|
16413A 3 - Thermostat Housing, NLA, MCM PART BUL.99-2 [ More info ] Unavailable |
| #3 | 17989 | SCREW (#10-32 X 8.600) USE WITH CHECK BALLS REF. #5 (1 required per assembly) |
  |
|
10-17989 - Screw [ More info ]
|
| #4 | 75533 | SPRING USE WITH CHECK BALLS REF. #5 (2 required per assembly) |
  |
|
24-75533 - Spring, Brush [ More info ]
|
| #5 | 98475 | BALL NYLON USE WITH CHECK BALLS REF. #5 (2 required per assembly) |
  |
|
30-98475 - Ball - Priced Individually [ More info ]
|
| #6 | 8M0204718 | NUT USE WITH CHECK BALLS REF. #5 (1 required per assembly) — Replaces: 29488, 826709106 |
  |
|
11-8M0204718 - NUT [ More info ]
|
| #7 | 8M0204651 | O RING @5 (1 required per assembly) — Replaces: 30224 |
  |
|
25-8M0204651 - O RING Note: Priced Individually [ More info ]
|
| #8 | 530451 | GASKET @5 (1 required per assembly) |
  |
|
27-53045 1 - Gasket - Priced Individually [ More info ]
|
  |
|
18-2917-9 - Gasket 27-530451 2-Pack [ More info ]
|
  |
|
27-53045Q01 - Gasket [ More info ]
|
| #9 | 8M0089715 | THERMOSTAT-140 (140 DEGREES) (1 required per assembly) — Replaces: 8072521, 807252T1 |
  |
|
8M0089715 - Thermostat, 140 Degrees [ More info ]
|
  |
|
18-3551 - Thermostat, 142 Degrees, 807252T1, 59137 [ More info ]
|
  |
|
807252Q 4 - Thermostat Kit, 140 Degrees [ More info ]
|
  |
|
75-03057 - Thermostat 142 Degree, 8M0089715 [ More info ]
|
| #9 | 8M0091470 | THERMOSTAT-160 BODENSEE (1 required per assembly) — Replaces: 8072522, 807252T2 |
  |
8M0091470 - Thermostat, 160 Degrees [ More info ] Unavailable |
|
  |
|
18-3649 - Thermostat, 160 Degree, 807252T2 [ More info ]
|
  |
|
8M0109441 - Thermostat, 160 Degree [ More info ]
|
  |
|
75-03058 - Thermostat 807252T2, 8M0109441 160 Degree [ More info ]
|
| #10 | 806922 | SLEEVE (1 required per assembly) |
  |
23-806922 - Sleeve [ More info ] Unavailable |
|
  |
|
23-8M0214947 - Thermostat Housing Sleeve, Plastic [ More info ]
|
| #11 | 331792 | GASKET @2 (1 required per assembly) |
  |
27-33179 2 - Gasket - Priced Individually [ More info ] Unavailable |
|
  |
|
18-2552-9 - Gasket 27-33179 2-Pack [ More info ]
|
  |
|
27-33179Q02 - Gasket [ More info ]
|
  |
|
27-01477 - Gasket [ More info ]
|
  |
|
27-8M0214924 - Thermostat Housing Gasket Note: Priced Individually [ More info ]
|
| #12 | 17494A1 | COVER KIT (BLACK) (1 required per assembly) |
  |
|
17494A 1 - Cover Kit [ More info ]
|
| #13 | 60410 | SCREW (2 required per assembly) |
  |
|
10-60410 - Screw [ More info ]
|
| #14 | 29250 | NUT @5 (1 required per assembly) |
  |
|
11-29250 - Nut (5/16-24) [ More info ]
|
| #15 | 12552 | LIFTING EYE (1 required per assembly) |
  |
|
12552 - Lifting Eye [ More info ]
|
| #16 | 8M0062614 | HOSE-WATER (STARBOARD) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW) (1 required per assembly) — Replaces: 3322070 |
  |
|
32-8M0062614 - Water Hose [ More info ] Unavailable |
| #16 | 817435 | HOSE (PORT) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW) (1 required per assembly) |
  |
|
32-817435 - Hose [ More info ] Unavailable |
| #17 | 815504220 | CLAMP (AR required per assembly) |
  |
|
54-815504220 - Clamp [ More info ]
|
| #18 | 160211 | HOSE (PORT) (1 required per assembly) |
  |
|
32-16021 1 - Hose [ More info ]
|
| #19 | 871171 | HOSE (STARBOARD) (1 required per assembly) |
  |
|
32-87117 1 - Hose [ More info ]
|
| #20 | 47715 | CLIP (1 required per assembly) |
  |
|
54-47715 - Clip [ More info ] Unavailable |

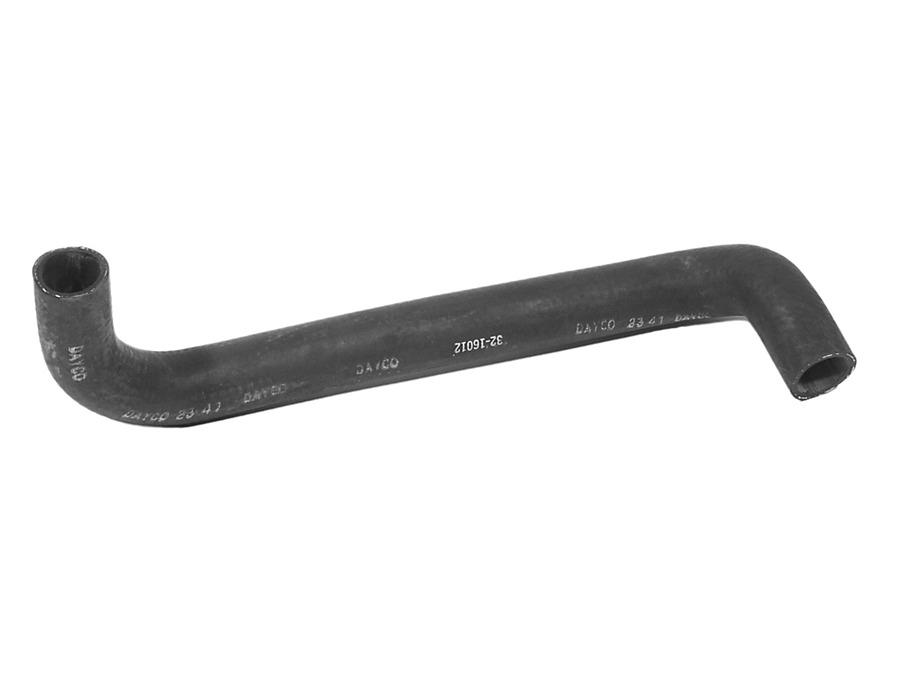

| #21 | 16012 | HOSE (1 required per assembly) |
  |
|
32-16012 - Hose, Thermostat Housing To Oil Cooler [ More info ]
|
| #22 | 8M0181740 | OIL COOLER (1 required per assembly) — Replaces: 99356A2, 8M0152028 |
  |
|
8M0181740 - Oil Cooler POWER STEERING [ More info ]
|
  |
|
18-2587 - Oil Cooler [ More info ]
|
| #23 | 65970T1 | BRACKET (1 required per assembly) |
  |
|
65970T 1 - Bracket [ More info ]
|
| #24 | 41408 | SCREW (1 required per assembly) |
  |
|
10-41408 - Screw [ More info ]
|
| #25 | 861590A05 | HOSE ASSY-DRAIN (1 required per assembly) — Replaces: 806825 |
  |
|
32-861590A05 - Drain Hose Assembly [ More info ]
|
  |
|
18-71337 - Hose, 32-87108, 32-806825 [ More info ]
|
| #26 | 815504232 | CLAMP (2 required per assembly) |
  |
|
54-815504232 - Clamp [ More info ]
|
| #27 | 96246A4 | HOSE ALPHA (1 required per assembly) |
  |
|
32-96246A 4 - Hose - Oil Cooler To Drive Unit [ More info ]
|
  |
|
18-70958 - Hose, 32-96246A4 (5/8ID) [ More info ]
|
| #28 | 64489 | CLIP ALPHA (1 required per assembly) |
  |
|
54-64489 - Clip, NLA [ More info ]
|
| #29 | 887952 | HOSE BRAVO (1 required per assembly) |
  |
|
32-88795 2 - Hose [ More info ]
|
| #30 | 865672079 | HOSE-96 INCH BRAVO (1 required per assembly) — Replaces: 1743579, 86334379 |
  |
32-865672079 - Hose-96 Inch [ More info ] Unavailable |
|
  |
|
32-8M0062666 - Water Hose Bulk -96" [ More info ]
|
| #31 | 98261 | SCREW (1 required per assembly) |
  |
|
10-98261 - Screw [ More info ]
|
| #32 | 815504222 | CLAMP @5 (2 required per assembly) |
  |
54-815504222 - Clamp - See Note On Detail Page [ More info ] Unavailable |
|
  |
|
54-8M0188622 - CLAMP [ More info ] Unavailable |
