Parts for 4.5L MPI 250 Alpha / Bravo Ec 4.5L (274 Cu In) V6 Mercury MerCruiser Engines - Gas Front Cover & Circulating Pump

Revise Search: Sterndrive > MerCruiser Engines - Gas > 4.5L (274 Cu In) V6 Mercury > 4.5L MPI 250 Alpha / Bravo Ec > 2A441953 - 2A530777 > Front Cover & Circulating Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

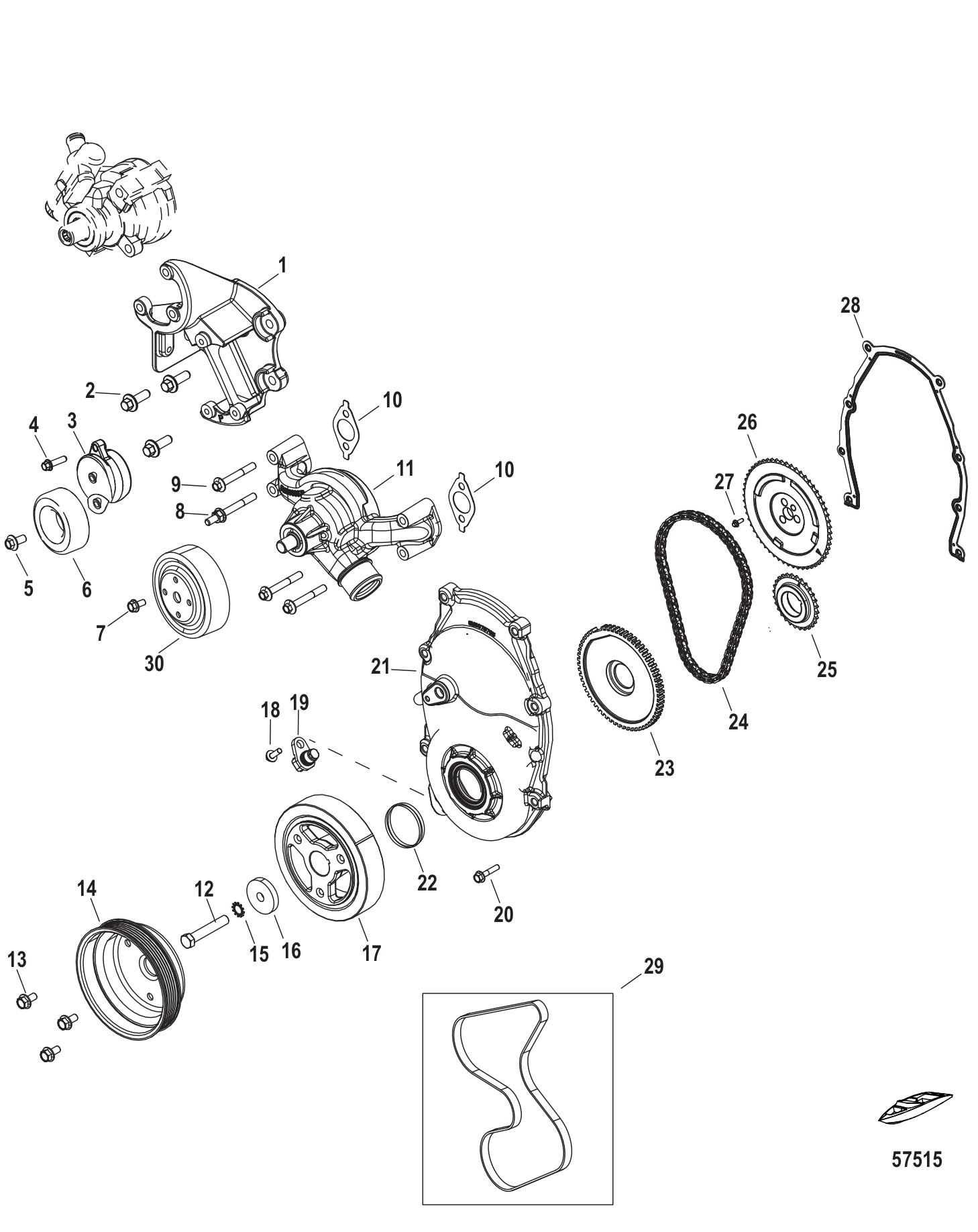

Front Cover & Circulating Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0172277	TIMING CHAIN SET (1 required per assembly) — Replaces: 8M0095942
		8M0172277 - Timing Chain Set [ More info ] $129.99 Available to Order: Shipping delay up to 10 days.
#1	8M0116637	BRACKET STEERING PUMP (1 required per assembly) — Replaces: 8M0095441, 8M0107031
		8M0116637 - Bracket [ More info ] $212.99 Available to Order: Shipping delay up to 10 days.
#2	88441430	SCREW (3 required per assembly)
		1088441430 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#3	865597T	TENSIONER-BELT (1 required per assembly)
		865597T - Belt Tensioner [ More info ] $147.49 Available to Order: Shipping delay up to 10 days.
#4	8M0103813	SCREW (2 required per assembly) — Replaces: 88552630
		108M0103813 - Screw [ More info ] $4.09 1 In Stock.
#5	4010820	SCREW @5 (1 required per assembly)
		10-40108 20 - Screw - Priced Individually [ More info ] $4.79 2 In Stock.
#6	865777	PULLEY (1 required per assembly)
		865777 - Idler Pulley [ More info ] $53.99 $51.49 In Stock
#7	8M0140918	SCREW @5 (4 required per assembly) — Replaces: 8M0108016
		10-8M0140918 - SCREW @5 [ More info ] Unavailable
#8	8M0086354	STUD (1 required per assembly)
		168M0086354 - Stud [ More info ] Unavailable
		168M0143753 - Stud [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#9	88552660	SCREW @2 (3 required per assembly) — Replaces: 4009560, 4010760
		10-885526 60 - Screw - Priced Individually [ More info ] Unavailable
		108M0103817 - Screw - Priced Individually [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#10	8M0082419	GASKET (2 required per assembly)
		278M0082419 - Gasket [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#11	8M0116534	PUMP ASSEMBLY (1 required per assembly) — Replaces: 8M0095436
		46-8M0116534 - Pump Assembly [ More info ] $386.49 Available to Order: Shipping delay up to 10 days.
#12	8M2021674	SCREW (1 required per assembly)
		10-8M2021674 - Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#13	8M0140918	SCREW @5 (3 required per assembly) — Replaces: 8M0108016
#14	8M0095438	PULLEY-CRANKSHAFT (1 required per assembly)
		8M0095438 - Crankshaft Pulley [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#15	39131	LOCKWASHER @2 (1 required per assembly)
		13-39131 - LockWasher [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#16	8M0082947	WASHER (1 required per assembly)
		128M0082947 - Washer [ More info ] Unavailable
		128M0109819 - Washer [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#17	8M0095437	DAMPER ASSY-HARM. (1 required per assembly)
		8M0095437 - Damper ASSY-HARM. [ More info ] $236.49 Available to Order: Shipping delay up to 10 days.
#18	4010618	SCREW (1 required per assembly)
		10-40106 18 - Screw [ More info ] $3.80 Available to Order: Shipping delay up to 10 days.
#20	8M2106030	SCREW (6 required per assembly) — Replaces: 8M0106030
		108M2106030 - Screw [ More info ] Unavailable
		10-8M0145284 - SCREW [ More info ] Unavailable
#21	8M0095944	TIMING COVER (1 required per assembly)
		8M0095944 - TIMING Cover [ More info ] $121.49 Available to Order: Shipping delay up to 10 days.
#22	8M6002623	SEAL FRONT (1 required per assembly)
		268M6002623 - Seal [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#23	8M0095943	WHEEL-RELUCTOR (1 required per assembly)
		8M0095943 - 8M0095943 - RELUCTOR WHEEL [ More info ] Unavailable Replaced by -8M0123903
		8M0123903 - WHEEL-RELUCTOR [ More info ] $54.99 Available to Order: Shipping delay up to 10 days.
#24	NSS	NOT SOLD SEPARATE TIMING CHAIN (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#25	NSS	NOT SOLD SEPARATE CAMSHAFT GEAR (1 required per assembly)
#26	NSS	NOT SOLD SEPARATE CRANKSHAFT GEAR (1 required per assembly)
#27	8M0081450	SCREW (3 required per assembly)
		108M0081450 - Screw [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
#28	8M0069696	GASKET (1 required per assembly)
		278M0069696 - Gasket [ More info ] $47.99 Available to Order: Shipping delay up to 10 days.
#29	8M0087881	BELT-SERPENTINE Alpha RWC (1 required per assembly)
		578M0087881 - Serpentine Belt [ More info ] Unavailable
		57-8M0220621 - BELT-SERPENTINE [ More info ] Unavailable
#29	8M0097728	SERPENTINE BELT Bravo RWC (1 required per assembly) — Replaces: 8M0074767
		57-8M0097728 - Serpentine Belt [ More info ] Unavailable
		57-8M0220620 - BELT-SERPENTINE [ More info ] Unavailable
#29	8M0088876	SERPENTINE BELT FWC (1 required per assembly)
		57-8M0088876 - Serpentine Belt [ More info ] Unavailable
		57-8M0220622 - BELT-SERPENTINE [ More info ] Unavailable
#30	8M0095458	PULLEY RWC (1 required per assembly)
		8M0095458 - Pulley [ More info ] $24.79 Available to Order: Shipping delay up to 10 days.
#30	8M0141494	PULLEY FWC (1 required per assembly) — Replaces: 8M0095461
		8M0141494 - Pulley [ More info ] $103.99 Available to Order: Shipping delay up to 10 days.
#198	879194363	SENSOR-CRANK POS (1 required per assembly) — Replaces: 8M0095945, 8M0108968
		879194363 - Crank Position Sensor [ More info ] $157.49 Available to Order: Shipping delay up to 10 days.
