Parts for 4.3L MPI Alpha / Bravo 4.3L (262 Cu In) V6 GM MerCruiser Engines - Gas Throttle Body

Revise Search: Sterndrive > MerCruiser Engines - Gas > 4.3L (262 Cu In) V6 GM > 4.3L MPI Alpha / Bravo > 0W658584 - 1A030367 > Throttle Body

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

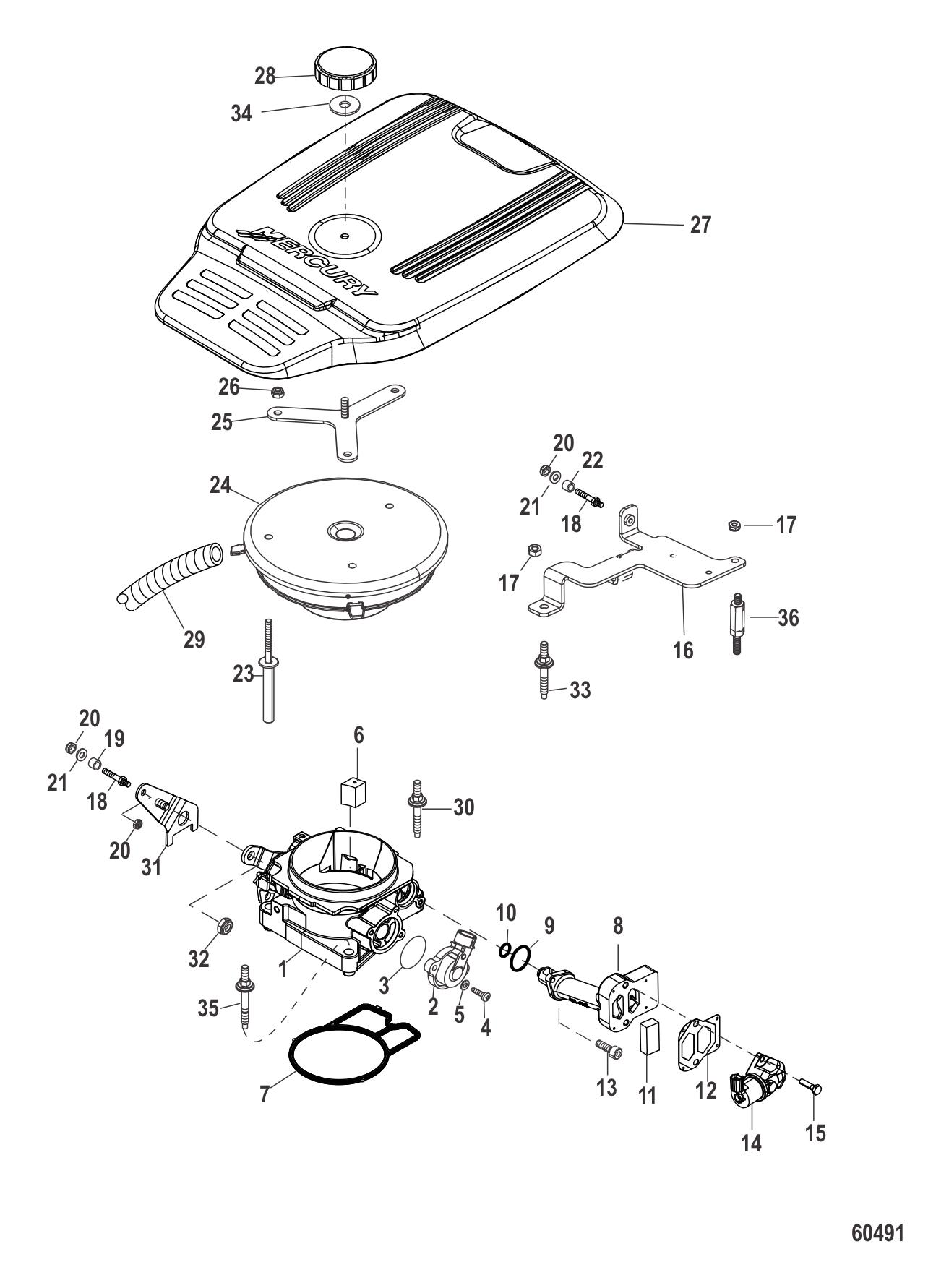

Throttle Body

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M4502084	TBU (1 required per assembly) — Replaces: 885170001
		8M4502084 - Throttle Body Assembly [ More info ] $699.99 Available to Order: Shipping delay up to 10 days.
#2	8M0097035	SENSOR TPS (1 required per assembly) — Replaces: 853678T
		8M0097035 - Throttle Position Sensor [ More info ] Unavailable
		18-7700 - Throttle Position Sensor, 853678T [ More info ] $143.09 $130.04 1 In Stock.
		8M0221731 - Throttle Position Sensor TPS [ More info ] $128.99 In Stock
#3	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	853680	SCREW KIT (2 required per assembly)
		10-853680 - SCREW KIT,NLA [ More info ] Unavailable
#5	NSS	NOT SOLD SEPARATE WASHER (1 required per assembly)
#6	863829	MUFFLER INTAKE AIR CONTROL (1 required per assembly)
		35-863829 - Muffler - IAC [ More info ] Unavailable
		35-8M0188224 - IAC Filter, Priced Individually [ More info ] $6.79 5 In Stock.
#7	8M0162949	GASKET THROTTLE BODY (1 required per assembly) — Replaces: 885172, 8M4502066
		27-8M0162949 - Gasket [ More info ] $83.99 Available to Order: Shipping delay up to 10 days.
#8	866295A02	IAC ADAPTOR KIT (1 required per assembly)
		866295A02 - Iac Adaptor Kit [ More info ] $259.99 Available to Order: Shipping delay up to 10 days.
#9	863006	O-RING (10.82 X 1.78) (1 required per assembly)
		25-863006 - O-ring, Throttle Body [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#10	808547	O-RING (1 required per assembly)
		25-808547 - O-Ring [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#11	865266	FILTER (1 required per assembly)
		35-865266 - IAC Filter - Priced Individually [ More info ] $11.59 1 In Stock.
#12	NSS	NOT SOLD SEPARATE GASKET (1 required per assembly)
#13	4008612	SCREW (2 required per assembly)
		10-40086 12 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#14	862998	VALVE-IDLE AIR (1 required per assembly)
		862998 - Idle Air Valve [ More info ] Unavailable
		18-7701 - IAC Idle Air Control Valve, 862998 [ More info ] $147.99 $140.20 3 In Stock.
		1300-36067 - Idle Air Control Valve Sensor [ More info ] $149.99 $114.69 2 In Stock.
		8M0181068 - IAC Idle Air Control Valve [ More info ] $231.49 $222.49 In Stock
#15	4008820	SCREW (2 required per assembly)
		10-40088 20 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#16	863421T1	BRACKET-IDLE AIR (1 required per assembly)
		863421T 1 - Bracket - Idle Air [ More info ] $78.49 Available to Order: Shipping delay up to 10 days.
#17	401366	NUT @5 (3 required per assembly)
		11-40136 6 - Nut - Priced Individually [ More info ] $3.59 2 In Stock.
#18	97477A3	STUD KIT THROTTLE ANCHOR (2 required per assembly)
		16-97477A 3 - Stud Kit [ More info ] $33.19 Available to Order: Shipping delay up to 10 days.
#19	NSS	NOT SOLD SEPARATE SPACER (1 required per assembly)
#20	8267139	NUT (.250-28) (3 required per assembly)
		11-826713 9 - Nut [ More info ] $2.59 4 In Stock.
#21	20533	WASHER (2 required per assembly)
		12-20533 - Washer, 9/16 Inch O.D. [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#22	31866	SPACER (.256 X .313 X .625) (2 required per assembly)
		23-31866 - Spacer - .26 X .31 X .64 [ More info ] $5.69 10+ In Stock.
#22	11284	SPACER (.62 DIAMETER) (1 required per assembly)
		23-11284 - Spacer - .62 Diameter [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#23	864338	STUD SPECIAL (3 required per assembly)
		16-864338 - Stud -Special [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#24	863416T	ARRESTOR-FLAME (1 required per assembly)
		863416T - Flame Arrestor [ More info ] $245.49 In Stock
#25	863423	BRACKET COVER MOUNT (1 required per assembly)
		863423 - Bracket [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#26	401386	NUT @5 (3 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#27	879288T66	COVER BLACK ENGINE (1 required per assembly) — Replaces: 863681T
		879288T66 - Engine Cover Black [ More info ] $176.99 Available to Order: Shipping delay up to 10 days.
#28	863701	KNOB ENGINE COVER (1 required per assembly)
		11-863701 - Knob Nut [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#29	8M0086022	HOSE BREATHER (1 required per assembly) — Replaces: 1589424
		32-8M0086022 - Tube-20 Inch [ More info ] $36.49 In Stock
#30	8M0088142	STUD (1 required per assembly) — Replaces: 885171
		168M0088142 - Stud [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#31	863417	BRACKET THROTTLE (1 required per assembly)
		863417 - Bracket [ More info ] $23.29 Available to Order: Shipping delay up to 10 days.
#32	8267138	NUT (1 required per assembly)
		11-826713 8 - Nut [ More info ] $2.79 1 In Stock.
#33	8M0088142	STUD (3 required per assembly) — Replaces: 885171
#34	86400	WASHER SEAL (1 required per assembly)
		12-86400 - Washer, Flame Arrestor [ More info ] $1.70 4 In Stock.
#35	8M0054510	STUD (2 required per assembly)
		168M0054510 - Stud [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#36	864287	STUD (1 required per assembly)
		16864287 - Stud [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
