Parts for 4.3L MPI Alpha / Bravo 4.3L (262 Cu In) V6 GM MerCruiser Engines - Gas Remote Oil Filter

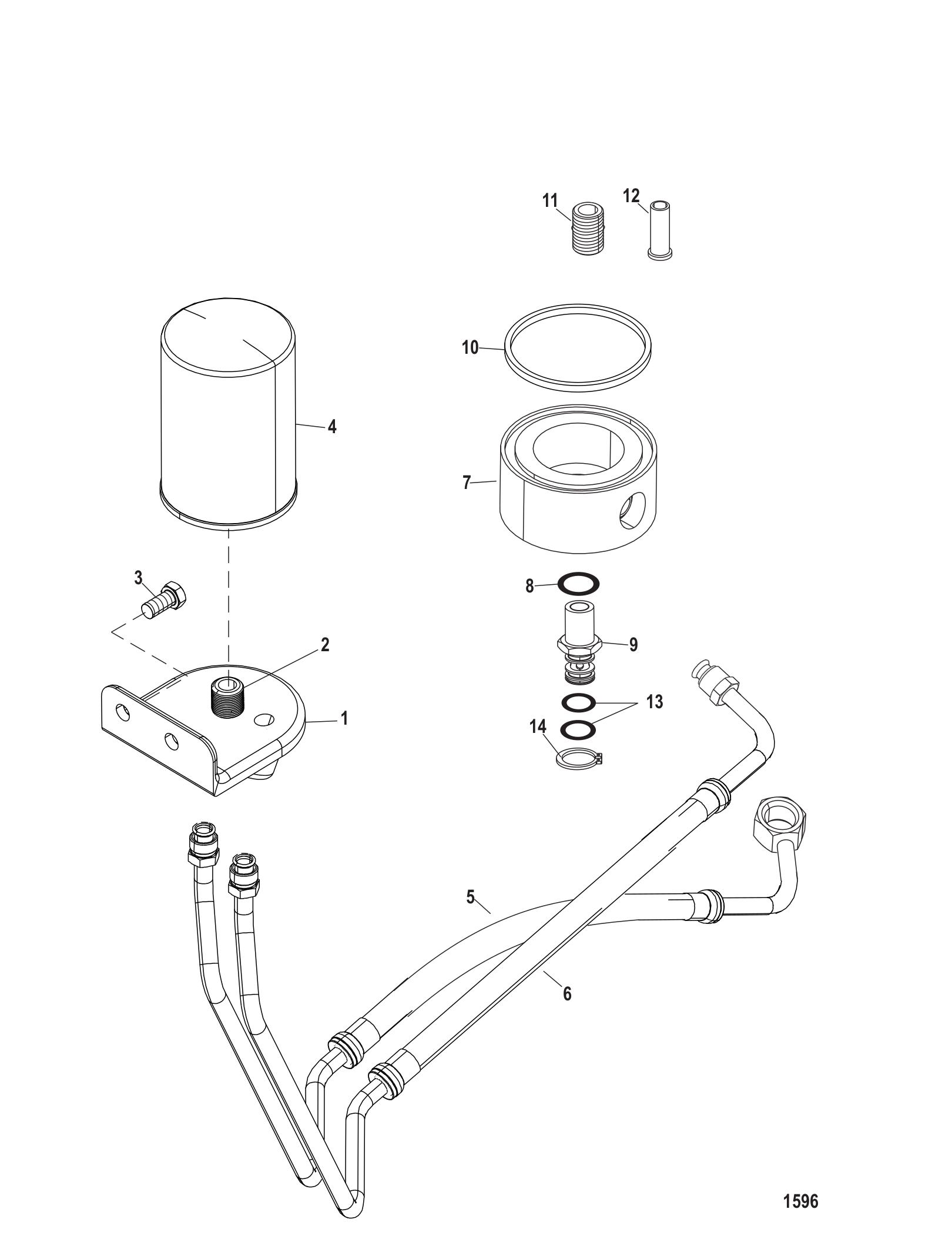

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 863732T1 | BRACKET OIL FILTER (1 required per assembly) |
  |
|
863732T 1 - Bracket Assembly [ More info ]
|
| #2 | 863485 | FITTING (1 required per assembly) |
  |
|
22-863485 - Fitting [ More info ]
|
| #3 | 98261 | SCREW (2 required per assembly) |
  |
|
10-98261 - Screw [ More info ]
|
| #4 | 866340Q03 | FILTER-OIL @6 (Quicksilver Brand) (1 required per assembly) |
  |
|
35-866340Q03 - Oil Filter - Priced Individually [ More info ]
|
  |
|
18-7876-1 - Oil Filter - GM/Chevy Long [ More info ]
|
  |
|
35-866340K01 - Oil Filter [ More info ]
|
  |
|
35-57811 - Oil Filter, Long [ More info ]
|
  |
|
35-57801 - Oil Filter, Standard Length Canister [ More info ]
|
| #4 | 866340K01 | FILTER-OIL (Mercury Brand) (1 required per assembly) |
  |
|
18-7824-2 - Oil Filter, Short [ More info ]
|
| #5 | 864926 | LINE-OIL (To Adaptor) (1 required per assembly) |
  |
|
32-864926 - Oil Line [ More info ]
|
| #6 | 864927 | LINE-OIL (From Adaptor) (1 required per assembly) |
  |
|
32-864927 - Oil Line [ More info ]
|
| #7 | 860091T | ADAPTOR-OIL FILTR (1 required per assembly) |
  |
|
860091T - Oil Filter Adaptor [ More info ]
|
| #8 | 42077 | SEAL (1 required per assembly) |
  |
|
|
| #9 | 8637131 | FITTING (1 required per assembly) |
  |
|
22-863713 1 - Fitting [ More info ] Unavailable |
| #10 | 16779 | GASKET (1 required per assembly) |
  |
|
27-16779 - Adaptor Gasket [ More info ]
|
| #11 | 11972 | FITTING (1 required per assembly) |
  |
|
|
| #12 | 878050 | VALVE BYPASS (1 required per assembly) |
  |
|
22-878050 - Valve - Bypass [ More info ]
|
| #13 | 843353 | O RING (2 required per assembly) |
  |
|
25-843353 - O-Ring [ More info ]
|
| #14 | 62750 | SNAP RING (1 required per assembly) |
  |
|
53-62750 - Snap Ring [ More info ]
|
