Parts for 4.3L MPI Alpha / Bravo 4.3L (262 Cu In) V6 GM MerCruiser Engines - Gas Mercathode Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 4.3L (262 Cu In) V6 GM > 4.3L MPI Alpha / Bravo > 0M615000 - 0W309999 > Mercathode Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

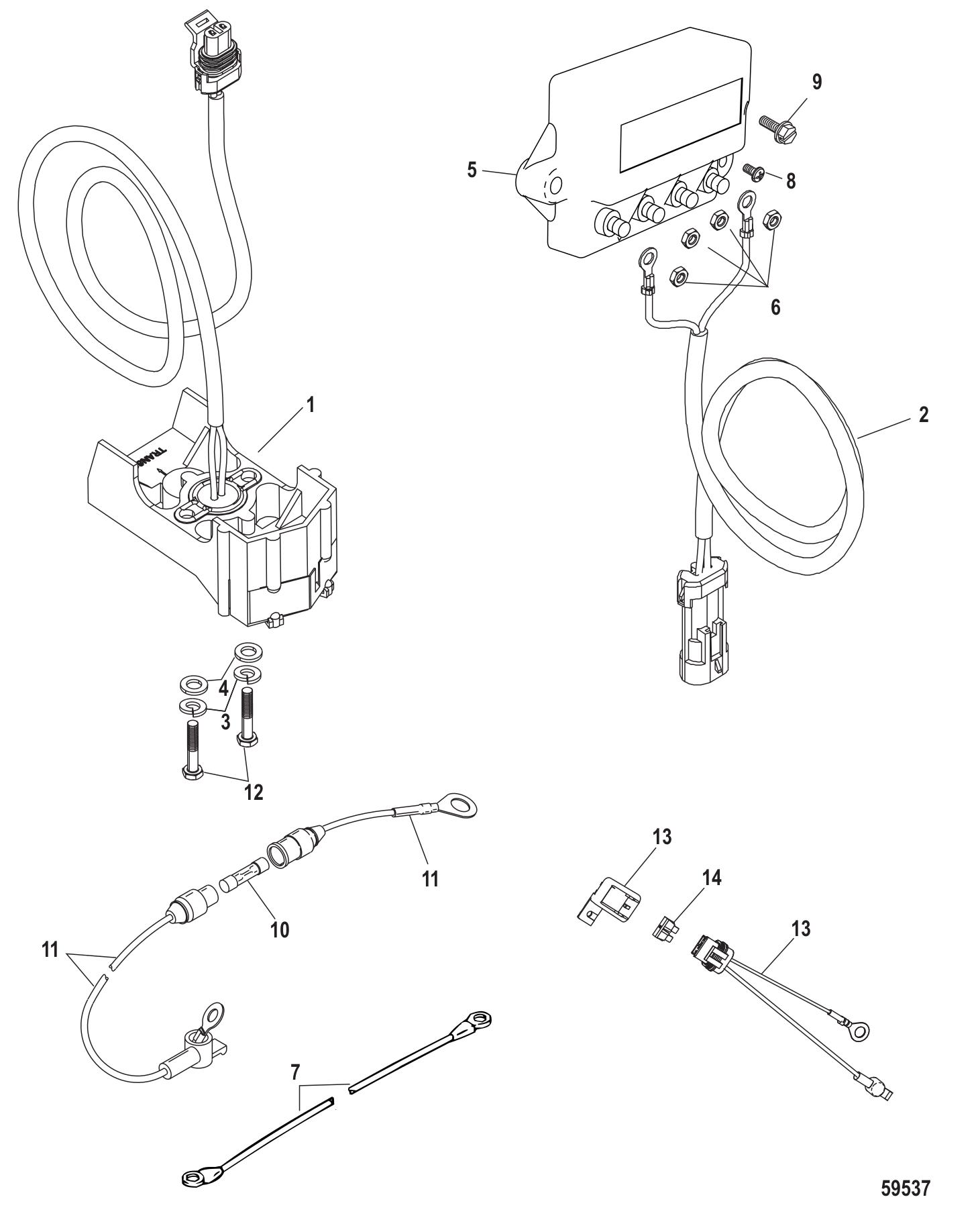

Mercathode Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0085692	MERCATHODE KIT (With Quick Connectors) [0M640000] & Up (1 required per assembly) — Replaces: 98869A11, 98869A17, 98869A16
		8M0085692 - Mercathode System [ More info ] $316.99 In Stock
#2	865181T01	HARNESS ASSY (1 required per assembly) — Replaces: 865181A01
		84-865181T01 - Harness Assembly [ More info ] $43.49 $41.60 5 In Stock.
#3	26992	LOCKWASHER @5 (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#4	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#5	42600A09	MERCATHODE KIT (1 required per assembly) — Replaces: 42600A3
		42600A09 - Mercathode Kit [ More info ] $164.99 $162.58 Available to Order: Shipping delay up to 10 days.
#6	68219	NUT @5 (4 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#7	88543A3	CABLE ASSY (1 required per assembly)
		84-88543A 3 - Cable Assembly [ More info ] $16.29 Available to Order: Shipping delay up to 10 days.
#8	62568	SCREW @4 (1 required per assembly)
		10-62568 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#9	4010516	SCREW @2 (2 required per assembly)
		10-40105 16 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#10	8M0207796	FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091
		888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ] $9.09 Available to Order: Shipping delay up to 10 days.
#11	95084A9	CABLE ASSY (1 required per assembly)
		84-95084A 9 - Cable Assembly [ More info ] $30.49 Available to Order: Shipping delay up to 10 days.
#11	95084A10	CABLE ASSY (1 required per assembly)
		84-95084A10 - Cable Assembly [ More info ] Unavailable
		84-8M0207788 - CABLE ASSY [ More info ] Unavailable
#12	69067	SCREW @5 (2 required per assembly)
		10-69067 - Screw - Priced Individually [ More info ] $3.19 10+ In Stock.
#13	8M0060271	HARNESS-5 AMP FUS (1 required per assembly)
		848M0060271 - Harness-5 AMP FUS [ More info ] $23.09 Available to Order: Shipping delay up to 10 days.
#14	862646	FUSE TAN - 5 AMPERE (1 required per assembly)
		862646 - Fuse, Tan, 5 Amp [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
