Parts for 4.3L MPI Alpha / Bravo 4.3L (262 Cu In) V6 GM MerCruiser Engines - Gas Shift Bracket (Bravo Engines)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 4.3L (262 Cu In) V6 GM > 4.3L MPI Alpha / Bravo > 0M300000 - 0M614999 > Shift Bracket (Bravo Engines)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

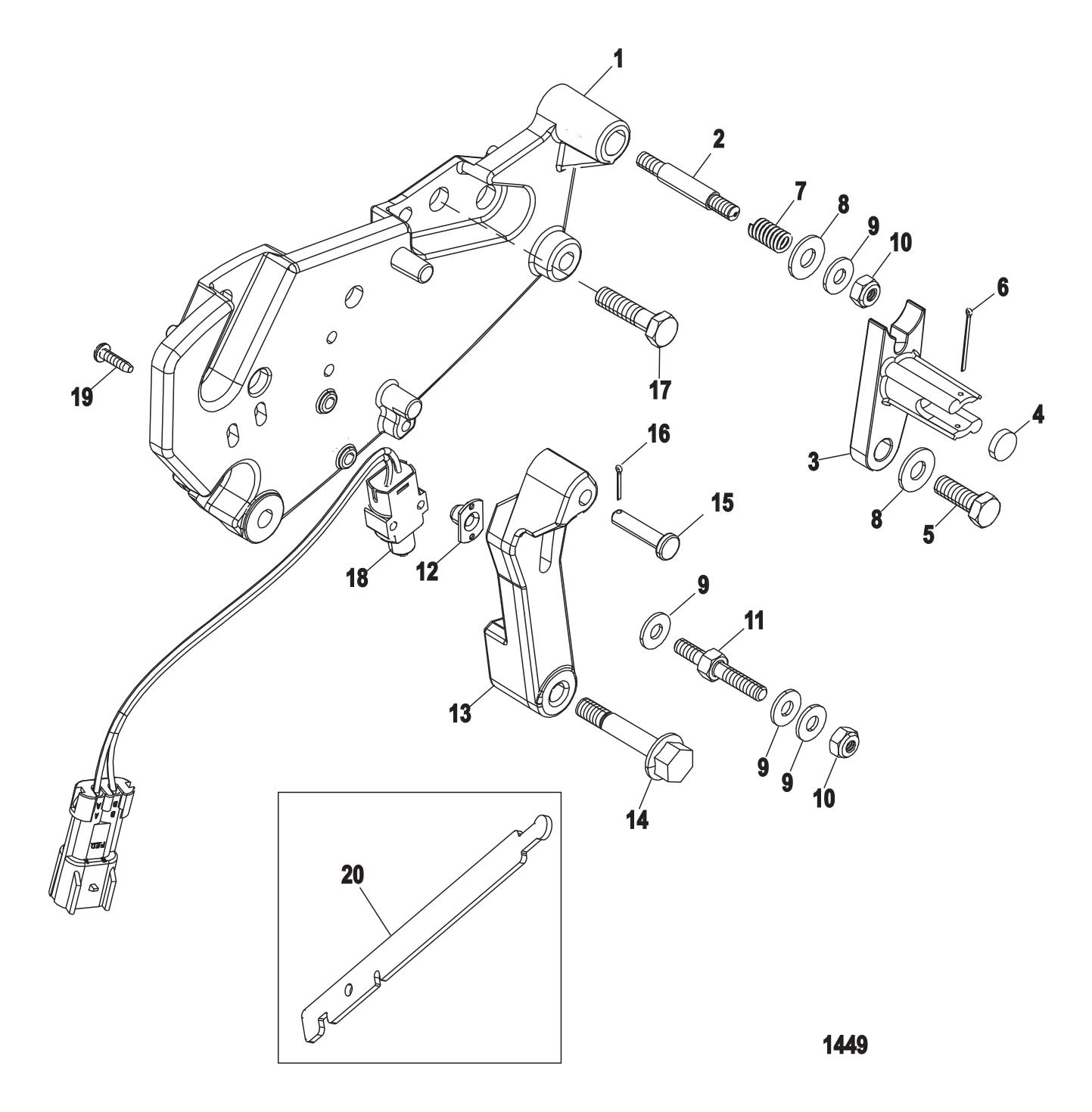

Shift Bracket (Bravo Engines)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	807962A15	PLATE KIT-SHIFT (1 required per assembly) — Replaces: 807962A10, 807962A14
		807962A15 - Shift Plate Kit [ More info ] $166.99 In Stock
#2	865154A02	STUD KIT (.250-20/.250-28 X 2.120) (1 required per assembly) — Replaces: 987981, 865154A01
		16-865154A02 - Stud Kit [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#3	865434A02	RETAINER KIT (1 required per assembly) — Replaces: 12381F1, 865434A01
		865434A02 - Retainer Kit [ More info ] $56.49 Available to Order: Shipping delay up to 10 days.
#4	8M0207783	SPACER (1 required per assembly) — Replaces: 98828
		238M0207783 - SPACER [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#5	53167T	SCREW @16 (1 required per assembly) — Replaces: 53167
		10-53167T - Screw - Priced Individually [ More info ] $1.50 $0.85 10+ In Stock.
#6	328571	PIN-COTTER (1 required per assembly) — Replaces: 32857
		[ More info ] Unavailable
#7	8M0207784	SPRING (1 required per assembly) — Replaces: 98880
		248M0207784 - SPRING [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#8	56720	WASHER (2 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#9	35462	WASHER @2 (4 required per assembly)
		12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ] $1.80 10+ In Stock.
#10	8267119	NUT @2 (2 required per assembly)
		11-826711 9 - Nut [ More info ] $2.59 10+ In Stock.
#11	865393A02	STUD KIT (1 required per assembly) — Replaces: 961123, 865393A01
		16-865393A02 - Stud Kit [ More info ] $8.39 Available to Order: Shipping delay up to 10 days.
#12	63341	NUT-TEE (1 required per assembly)
		11-63341 - Nut -tee [ More info ] $2.79 10+ In Stock.
#13	863911A12	LEVER ASSEMBLY SHIFT (1 required per assembly) — Replaces: 863911A2, 863911A11
		863911A12 - Shift Lever Assembly [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#14	8M0207774	SCREW SHOULDER (1 required per assembly) — Replaces: 13743, 865148
		108M0207774 - SCREW [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#15	68402	PIN (.250 X 1.13) CLEVIS (1 required per assembly)
		17-68402 - Pin, (.250 X 1.13) [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#16	210711	COTTER PIN @2 (1 required per assembly) — Replaces: 21071
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#17	657461	SCREW @5 (3 required per assembly)
		10-65746 1 - Screw [ More info ] $1.70 5 In Stock.
#18	8M0052936	SWITCH ASSEMBLY GEAR INDICATION (1 required per assembly) — Replaces: 808009A3
		87-8M0052936 - Switch Assembly [ More info ] $59.99 In Stock
#19	88904	SCREW (2 required per assembly)
		10-88904 - Screw [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#20	12427T	TOOL-SHIFT ADJUST (1 required per assembly) — Replaces: 12427
		91-12427T - Tool - Shift Adjust [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
		18-9807 - Tool, 91-12427 [ More info ] $11.80 Available to Order: Shipping delay up to 10 days.
