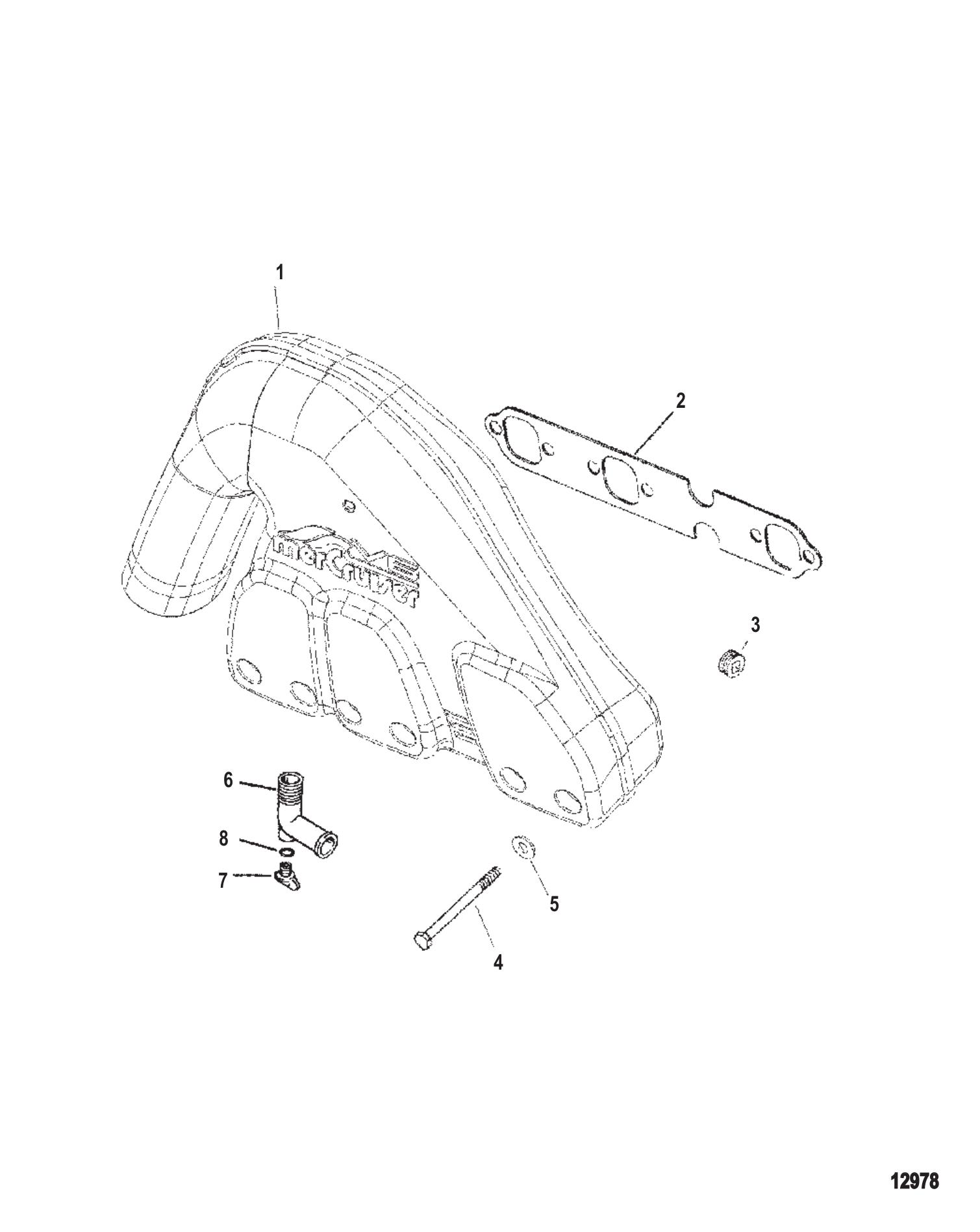

Parts for 4.3L EFI (Gen+) TBI GM 262 V-6 4.3L (262 Cu In) V6 GM MerCruiser Engines - Gas Exhaust Manifold (One Piece)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 807756A96 | GASKET SET (1 required per assembly) |
  |
|
27-807756A96 - Engine Overhaul Gasket Set [ More info ]
|
| #1 | 807293A2 | REF SMC 05-12 (Starboard) (1 required per assembly) |
  |
|
807293A 2 - Manifold Assembly - Stbd [ More info ] Unavailable |
| #1 | 807294A3 | REF SMC 05-12 (Port) (1 required per assembly) |
  |
|
807294A 3 - M FOLD ASSY-PORT,NLA [ More info ] Unavailable |
| #2 | 99757 | GASKET (2 required per assembly) |
  |
27-99757 - Exhaust Manifold Gasket [ More info ] Unavailable |
|
  |
|
27-8M0215011 - Exhaust Manifold Gasket GM V-6 [ More info ]
|
| #3 | 8M0204679 | PLUG-PIPE (4 required per assembly) — Replaces: 861187, 428611 |
  |
|
22-8M0204679 - Exhaust Manifold Pipe Plug [ More info ]
|
| #4 | 53728 | SCREW @5 (12 required per assembly) |
  |
10-53728 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0214937 - SM BLOCK EXH MANI BOLT Note: Priced Individually MZ [ More info ]
|
| #5 | 46132 | WASHER (12 required per assembly) |
  |
|
12-46132 - Washer [ More info ]
|
| #6 | 862210A01 | ELBOW KIT (2 required per assembly) — Replaces: 806926A1 |
  |
|
22-862210A01 - Elbow Kit [ More info ]
|
  |
|
18-4224 - Drain Elbow 22-806926A1 [ More info ]
|
| #7 | 8M0119211 | PLUG ASSEMBLY (.500-13) BLUE (2 required per assembly) — Replaces: 806608A1, 806608A02 |
  |
|
22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ]
|
| #8 | 32509 | O-RING (.489 X .070) (2 required per assembly) |
  |
|
25-32509 - O-ring, (.489 X .070) [ More info ]
|
  |
|
18-7165-9 - O-Ring (PK5) , 0304174 [ More info ]
|
