Parts for 4.3L Carb Alpha / Bravo 4.3L (262 Cu In) V6 GM MerCruiser Engines - Gas Jackshaft Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 4.3L (262 Cu In) V6 GM > 4.3L Carb Alpha / Bravo > 0W310000 - 0W649999 > Jackshaft Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

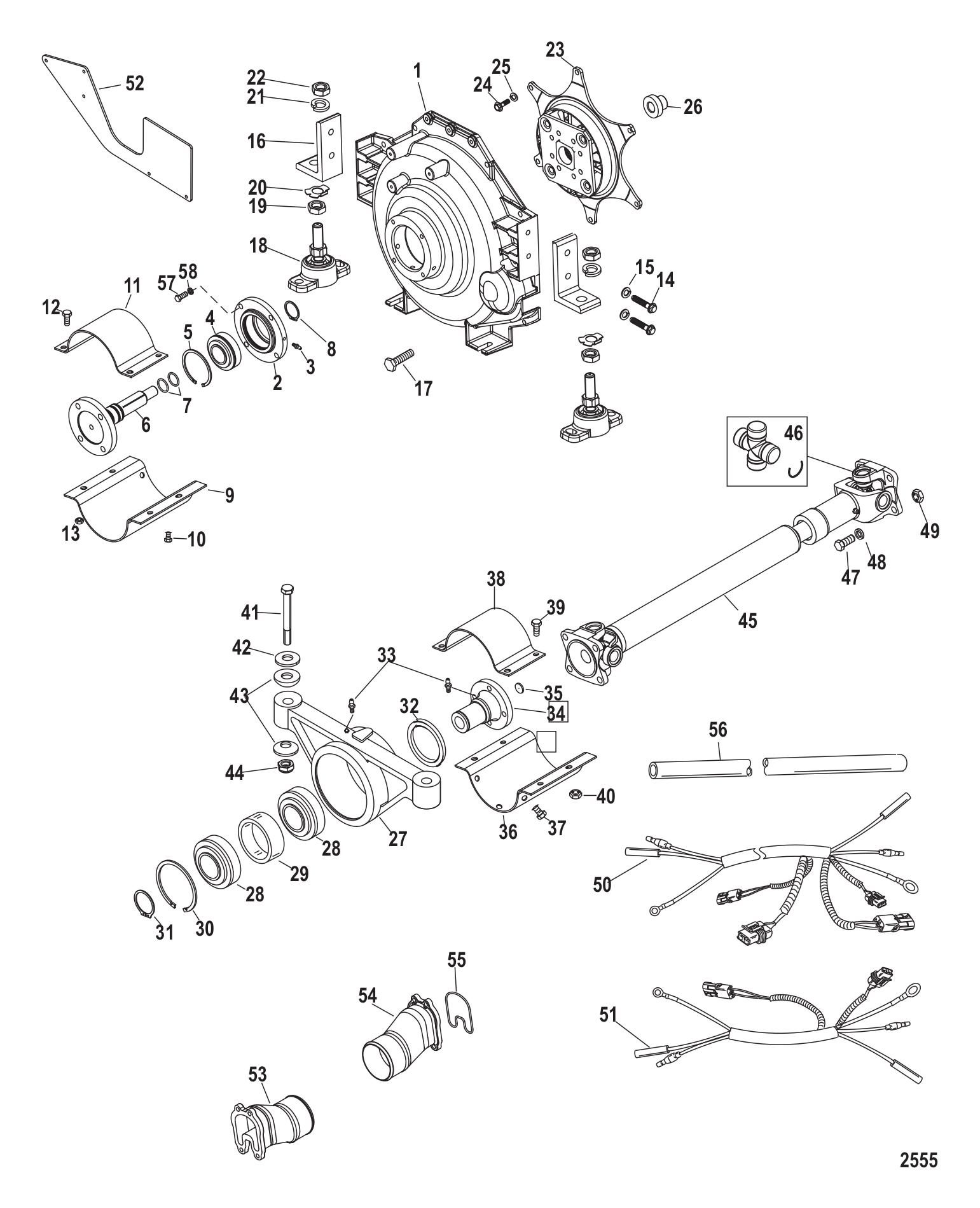

Jackshaft Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	862737	HOUSING-FLYWHEEL (1 required per assembly)
		862737 - Flywheel Housing , NLA [ More info ] Unavailable
#2	862833	BEARING ADAPTER (1 required per assembly)
		862833 - Bearing Adapter [ More info ] Unavailable
#3	8M0169589	FITTING @2 (1 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#4	879194A03	BEARING KIT-GIMBL (1 required per assembly) — Replaces: 62780T
		30-879194A03 - Jackshaft Gimbal Bearing [ More info ] $167.49 Available to Order: Shipping delay up to 10 days.
#5	94104	RING-RETAINING (1 required per assembly)
		53-94104 - Ring - Retaining [ More info ] $10.79 Available to Order: Shipping delay up to 10 days.
#6	862832T	SHAFT-OUTPUT (1 required per assembly)
		862832T - Shaft - Output [ More info ] $462.49 Available to Order: Shipping delay up to 10 days.
#7	8M0204650	O RING @3 (2 required per assembly) — Replaces: 29845
		25-8M0204650 - O RING @3 Q=T [ More info ] Unavailable
#8	841897T	RING-RETAINING (1 required per assembly)
		53-841897T - Ring - Retaining [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
		538M0141818 - RING-RETAINING [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
#9	93918A1	SHIELD LOWER LOWER (1 required per assembly)
		93918A 1 - Shield- Lower [ More info ] $260.99 Available to Order: Shipping delay up to 10 days.
#10	96995	SCREW (3 required per assembly)
		10-96995 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#11	93919A1	SHIELD UPPER UPPER (1 required per assembly)
		93919A 1 - Shield- Upper [ More info ] $325.49 Available to Order: Shipping delay up to 10 days.
#12	96995	SCREW (4 required per assembly)
#13	82670912	NUT @5 (4 required per assembly)
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#14	47651	SCREW (4 required per assembly)
		10-47651 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#15	32993	LOCKWASHER @5 (4 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#16	862738	BRACKET FLYWHEEL HOUSING (2 required per assembly)
		862738 - Bracket [ More info ] Unavailable
#17	37612	SCREW @5 (1 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#17	34353	SCREW @5 (1 required per assembly)
		10-34353 - Screw - Priced Individually [ More info ] $2.59 10+ In Stock.
#17	47688	SCREW (2 required per assembly)
		10-47688 - Screw [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#18	66284A2	BASE ASSEMBLY MOUNT ASSEMBLY (2 required per assembly)
		66284A 2 - Engine Mount Base Assembly [ More info ] $145.99 2 In Stock.
#19	816331	NUT (.750-16) JAM (1 required per assembly)
		11-816331 - Nut, (.750-16) [ More info ] $7.59 10+ In Stock.
#20	12657	TAB WASHER (1 required per assembly)
		14-12657 - Tab Washer [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#21	68102	LOCKWASHER @2 (2 required per assembly)
		13-68102 - LockWasher - Priced Individually [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#22	859126	NUT (.750-16) (1 required per assembly)
		11-859126 - Nut, (.750-16) [ More info ] $17.49 5 In Stock.
#23	862838	DRIVE PLATE (1 required per assembly)
		862838 - Drive Plate, NLA [ More info ] $432.49 $121.04 3 In Stock.
#24	8M0204643	SCREW (6 required per assembly) — Replaces: 14883
		10-8M0204643 - SCREW [ More info ] Unavailable
#25	20572	WASHER (6 required per assembly)
		12-20572 - Washer, (.390 X .750 X .093) [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#26	862834	BUSHING PILOT (1 required per assembly)
		23-862834 - Bushing, NLA Z [ More info ] Unavailable
#27	817416A4	HOUSING ASSEMBLY BEARING (1 required per assembly)
		817416A 4 - Housing Assembly [ More info ] $1,735.99 Available to Order: Shipping delay up to 10 days.
#28	93944A2	BEARING SET BALL (1 required per assembly)
		30-93944A 2 - Jackshaft Gimbal Bearing [ More info ] $138.49 Available to Order: Shipping delay up to 10 days.
#29	817417T	SPACER (1 required per assembly)
		23-817417T - Spacer - Bearing [ More info ] $265.99 Available to Order: Shipping delay up to 10 days.
#30	93914	RING RETAINING (1 required per assembly)
		53-93914 - Ring - Retaining [ More info ] $95.99 Available to Order: Shipping delay up to 10 days.
#31	93915	RING RETAINING (1 required per assembly)
		53-93915 - Ring - Retaining [ More info ] $57.95 10+ In Stock.
#32	93924	SEAL OIL (1 required per assembly)
		26-93924 - Seal [ More info ] $29.39 Available to Order: Shipping delay up to 10 days.
#33	8M0169589	FITTING GREASE (2 required per assembly) — Replaces: 74036
#34	NSS	NOT SOLD SEPARATE SHAFT, INPUT (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#35	93921	EXPANSION PLUG (1 required per assembly)
		19-93921 - Plug [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#36	93918A1	SHIELD LOWER LOWER (1 required per assembly)
#37	76926	SCREW (.375-16 X .875) (3 required per assembly)
		10-76926 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#38	93919A1	SHIELD UPPER UPPER (1 required per assembly)
#39	96995	SCREW (4 required per assembly)
#40	82670912	NUT @5 (4 required per assembly)
#41	57053	SCREW (2 required per assembly)
		10-57053 - Screw [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#42	35777	WASHER @2 (2 required per assembly)
		12-35777 - Washer, (.5156 X 1.375 X .125) Aluminum [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#43	42307	WASHER SPHERICAL (4 required per assembly)
		12-42307 - Washer, Spherical [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#44	898832	NUT @5 (2 required per assembly) — Replaces: 82670817
		11-898832 - Nut, (.500-20) [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#45	94819T5	DRIVESHAFT KIT (1 required per assembly)
		45-94819T 5 - Drive Shaft Kit [ More info ] $1,164.49 Available to Order: Shipping delay up to 10 days.
#46	61221T	CROSS AND BEARING WITH CLIPS (1 required per assembly)
		61221T - Cross & Bearing [ More info ] $242.49 $232.40 2 In Stock.
#47	805159	SCREW (8 required per assembly)
		10-805159 - Screw [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#48	NSS	NOT SOLD SEPARATE (8 required per assembly)
#49	82670815	NUT @5 (8 required per assembly)
		11-826708 15 - Nut, (.437-20) [ More info ] $2.59 $2.08 3 In Stock.
#50	41575A10	HARNESS ASSY (1 required per assembly)
		84-41575A10 - Harness Assembly [ More info ] $189.49 Available to Order: Shipping delay up to 10 days.
#51	41575A11	HARNESS ASSEMBLY EXTENSION (1 required per assembly)
		84-41575A11 - Harness Assembly [ More info ] $171.49 Available to Order: Shipping delay up to 10 days.
#52	863180	BRACKET-RESERVOIR (1 required per assembly)
		863180 - Bracket - Reservoir [ More info ] $8.20 Available to Order: Shipping delay up to 10 days.
#53	862268T1	TUBE EXHAUST (1 required per assembly)
		862268T 1 - Exhaust Tube [ More info ] $277.49 $66.54 2 In Stock.
#54	862268T2	TUBE EXHAUST (1 required per assembly)
		862268T 2 - Exhaust Tube [ More info ] $287.99 Available to Order: Shipping delay up to 10 days.
#55	41802	SEAL RUBBER EXHAUST (1 required per assembly)
		41802 - Rubber Seal [ More info ] $15.99 5 In Stock.
#56	8M0062666	HOSE (96.00 INCHES BULK) WATER INLET (1 required per assembly) — Replaces: 86334379, 865672079
		32-8M0062666 - Water Hose Bulk -96" [ More info ] $220.99 $218.15 Available to Order: Shipping delay up to 10 days.
#57	8M0204643	SCREW (4 required per assembly) — Replaces: 14883
#58	35048	LOCKWASHER @5 (4 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
