Parts for 25 HP EFI Jet 3 Cyl 4-Stroke Mercury Outboard Motor Camshaft / Oil Pump

Revise Search: Outboard > 4-Stroke Mercury Outboard > 25 HP EFI Jet 3 Cyl > 0R165086 - 1R162636 - USA > Camshaft / Oil Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

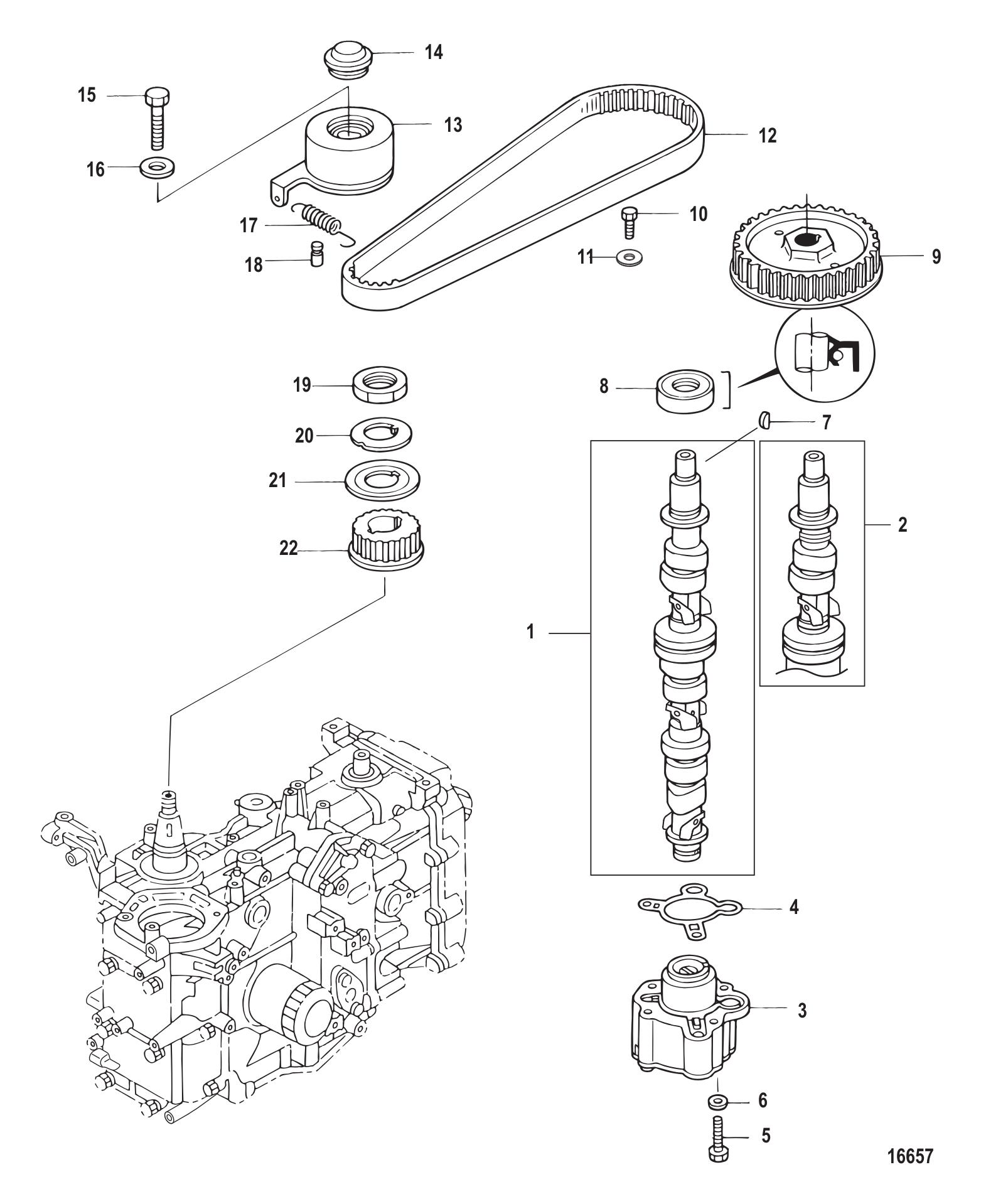

Camshaft / Oil Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	889246T30	PH 30 4S 30 Horsepower [0R122289] THRU [0R685370] (1 required per assembly) — Replaces: 898103T33, 898103A87
		889246T30 - Powerhead 30 4S [ More info ] $1,671.45 Available to Order: Shipping delay up to 10 days.
#-	8M0145940	PH 30HP 4S 30 Horsepower [0R685371] & Up (1 required per assembly) — Replaces: 8M0123819, 8M0138735
		8M0145940 - 8M0145940 - PH 30HP 4S [ More info ] Unavailable Replaced by -8M0187786
		8M0187786 - SHORT BLOCK [ More info ] Unavailable
#-	898103T34	PH 25 4S 25 Horsepower [0R685370] & Below (1 required per assembly)
		898103T34 - Powerhead 25 4S [ More info ] Unavailable
#-	8M0145939	LGBL 4S 25HP 25 Horsepower [0R685371] & Up (1 required per assembly) — Replaces: 8M0123817, 8M0138733
		8M0145939 - LGBL 4S 25HP [ More info ] Unavailable
		8M0187784 - SHORT BLOCK [ More info ] Unavailable
#-	8M0079064	GASKET SET (1 required per assembly) — Replaces: 898101A06
		278M0079064 - Gasket Set [ More info ] Unavailable
#1	8M0170570	CAMSHAFT ASSY 30 Horsepower [0R1222289] & Up (1 required per assembly) — Replaces: 898101T21, 898103A83
		4008M0170570 - CAMSHAFT ASSY [ More info ] $339.49 Available to Order: Shipping delay up to 10 days.
#2	898103A85	CAMSHAFT ASSY 25 Horsepower [0R122289] & Up (1 required per assembly) — Replaces: 898101T22
		402-898103A85 - CamShaft Assembly [ More info ] Unavailable
		400-8M0170568 - CAMSHAFT ASSEMBLY [ More info ] Unavailable
#3	8M0117630	OIL PUMP (1 required per assembly) — Replaces: 834967T04
		8M0117630 - OIL Pump [ More info ] $201.49 Available to Order: Shipping delay up to 10 days.
#4	853523002	GASKET (1 required per assembly)
		27-853523002 - Oil Pump Gasket [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#5	168308	BOLT (3 required per assembly)
		10-16830 8 - Bolt [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#6	16826	WASHER (3 required per assembly) — Replaces: 895106, 879194338
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#7	95229	KEY (1 required per assembly)
		28-95229 - Key [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#8	825455001	OIL SEAL (1 required per assembly)
		26-825455001 - Oil Seal [ More info ] $15.29 1 In Stock.
#9	834973001	GEAR-DRIVEN (1 required per assembly)
		43-834973001 - Driven Gear [ More info ] $106.99 Available to Order: Shipping delay up to 10 days.
#10	803858001	BOLT (1 required per assembly)
		10-803858001 - Bolt [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#11	895118	WASHER (1 required per assembly)
		12-895118 - Washer [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#12	895120001	REF SOB 13-03 [OR406653] & Below (1 required per assembly)
		57-895120001 - Timing Belt [ More info ] Unavailable
#12	8M0072670	TIMING BELT [OR406654] & Up (1 required per assembly)
		578M0072670 - Timing Belt [ More info ] $152.49 Available to Order: Shipping delay up to 10 days.
#13	895265	REF SOB 13-03 [OR406653] & Below (1 required per assembly)
		895265 - Belt Tensioner [ More info ] Unavailable
#14	895266	COVER [OR406653] & Below (1 required per assembly)
		895266 - Cover [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#15	879194259	SCREW [OR406653] & Below (1 required per assembly) — Replaces: 898101011
		10-879194259 - Screw [ More info ] $4.90 Available to Order: Shipping delay up to 10 days.
#16	879194340	WASHER [OR406653] & Below (1 required per assembly) — Replaces: 895141
		12-879194340 - Washer [ More info ] $5.09 1 In Stock.
#17	8M0072670	TIMING BELT [OR406653] & Below (1 required per assembly) — Replaces: 815093002
#18	8M0072670	TIMING BELT [OR406653] & Below (1 required per assembly) — Replaces: 851845001
#19	855679002	NUT (1 required per assembly)
		11-855679002 - Nut [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#20	823032001	LOCKWASHER (1 required per assembly)
		13-823032001 - LockWasher [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#21	895119001	PLATE (1 required per assembly)
		895119001 - Plate [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#22	834955T02	PULLEY-DRIVE (1 required per assembly)
		834955T02 - Pulley - Drive [ More info ] $104.49 Available to Order: Shipping delay up to 10 days.
