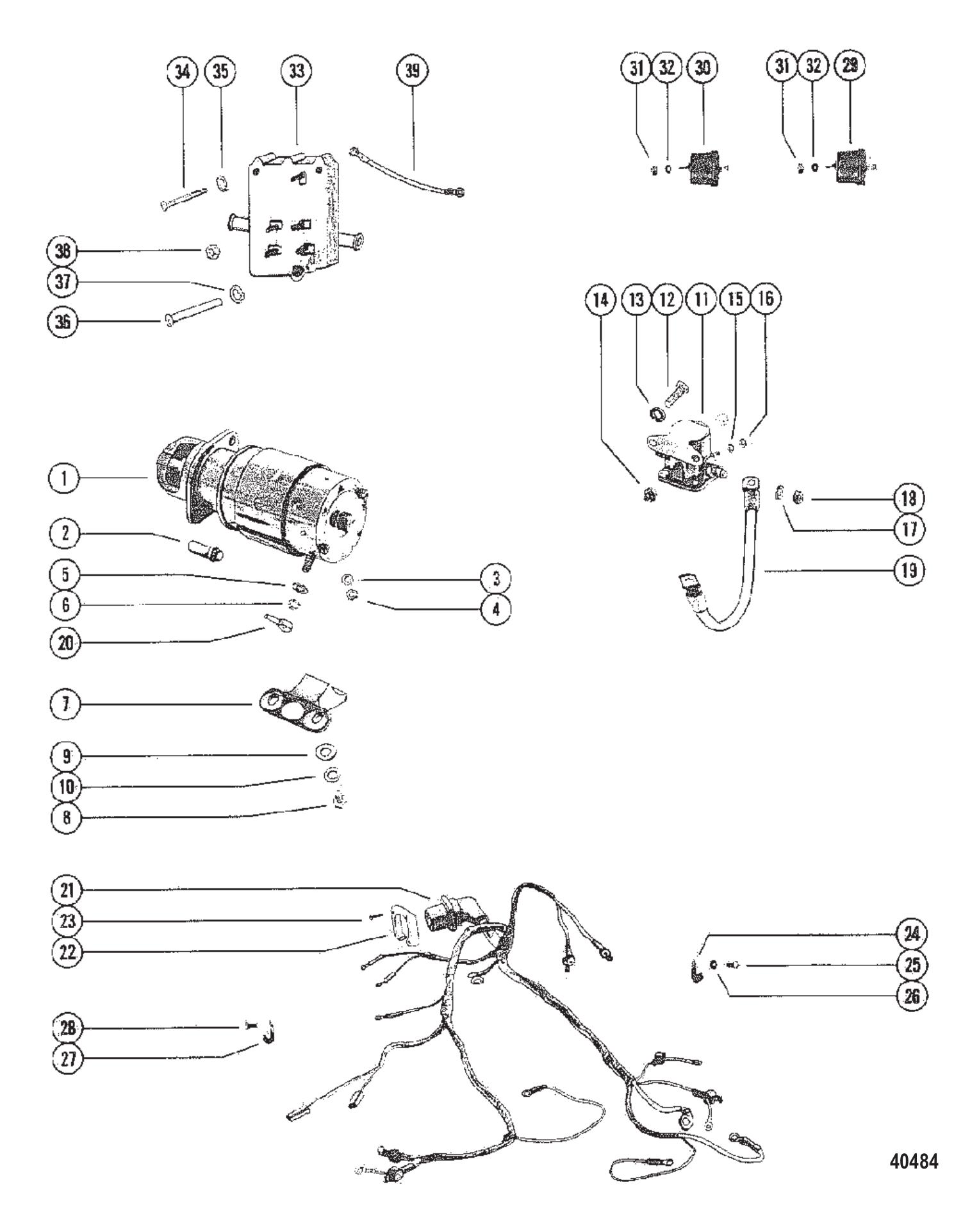

Parts for 470 (2 BBL.) Mercury 224 I / L4 3.7L (224 Cu In) L4 Mercury MerCruiser Engines - Gas Starter Motor & Wiring Harness
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 94227A2 | WIRE KT-RESISTANC (1 required per assembly) |
  |
|
84-94227A 2 - Resistance Wire Kit [ More info ]
|
| #1 | 72550R2 | STARTER ASY-REMAN (MCM) (1 required per assembly) — Replaces: 72550A1, 72550A2 |
  |
|
50-72550R 2 - Starter Assembly - Remanufactured [ More info ] Unavailable |
| #1 | 88671A2 | STARTER ASSY (INBOARD) (1 required per assembly) — Replaces: 88671A1 |
  |
|
50-88671A 2 - Starter Assembly, NLA [ More info ] Unavailable |
| #2 | 72875 | SCREW (1.5 IN.) STARTER MOTOR ATTACHING (2 required per assembly) |
  |
|
10-72875 - Screw, NLA [ More info ] Unavailable |
| #3 | 34931 | WASHER (1 required per assembly) |
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #4 | 23161 | NUT @5 (1 required per assembly) |
  |
|
11-23161 - Nut (3/8X24) [ More info ]
|
| #5 | 8M0204647 | LOCKWASHER @5 STARTER MOTOR TERMINAL (1 required per assembly) — Replaces: 26993 |
  |
|
138M0204647 - LOCKWASHER, Priced Individually [ More info ]
|
| #6 | 29250 | NUT (.312-24) STARTER MOTOR TERMINAL (1 required per assembly) |
  |
|
11-29250 - Nut (5/16-24) [ More info ]
|
| #7 | 70398A1 | BRACE ASSY STARTER MOTOR TO CYLINDER BLOCK (1 required per assembly) — Replaces: 70398 |
  |
|
70398A 1 - BRACE ASSY,NLA [ More info ] Unavailable |
| #8 | 21077 | SCREW (.375-16 X .88) STARTER MOTOR BRACE TO CYLINDER BLOCK (2 required per assembly) |
  |
|
10-21077 - Screw, NLA [ More info ]
|
| #9 | 34931 | WASHER (2 required per assembly) |
| #10 | 35048 | LOCKWASHER @5 (2 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #11 | 65057T1 | SOLENOID ASSY (2 required per assembly) — Replaces: 65057A1 |
  |
|
65057T 1 - Solenoid Assembly [ More info ]
|
  |
|
18-5802 - Solenoid 65057A1 [ More info ]
|
  |
|
SW981 - Solenoid [ More info ]
|
| #12 | 28635 | SCREW (.250-20 X .620) STAINLESS STEEL SOLENOID TO CYLINDER BLOCK (2 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #13 | 26992 | LOCKWASHER @5 (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #14 | 269011 | BUMPER @5 (1 required per assembly) — Replaces: 26901 |
  |
|
26901 1 - Bumper [ More info ]
|
| #15 | 26996 | LOCKWASHER (#10) STAINLESS STEEL SOLENOID TERMINAL (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #16 | 68219 | NUT (#10-32) STAINLESS STEEL SOLENOID TERMINAL (2 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #17 | 8M0204647 | LOCKWASHER @5 SOLENOID TERMINAL (2 required per assembly) — Replaces: 26993 |
| #18 | 22053 | NUT (.312-24) SOLENOID TERMINAL (2 required per assembly) — Replaces: 20083 |
  |
|
11-22053 - Nut (5/16x24) [ More info ]
|
| #19 | 77042 | CABLE SOLENOID TO STARTER (1 required per assembly) |
  |
|
847704 2 - Cable, NLA [ More info ] Unavailable |
| #20 | 79695T | BOOT INSULATOR (BLACK) STARTER STUD (1 required per assembly) — Replaces: 79695 |
  |
|
85-79695T - Insulator Boot [ More info ]
|
| #21 | 86675A2 | HARNESS ASSEMBLY (MCM) [5873488] & Below (1 required per assembly) |
  |
|
84-86675A 2 - Wiring Harness, NLA [ More info ] Unavailable |
| #21 | 93178A1 | HARNESS ASSEMBLY (MCM) [5873489] & Up (1 required per assembly) |
  |
|
84-93178A 1 - Engine Harness, NLA [ More info ]
|
| #21 | 89231A1 | HARNESS ASSEMBLY (INBOARD) (1 required per assembly) |
  |
|
84-89231A 1 - Harness Assembly, NLA [ More info ] Unavailable |
| #22 | 26079A2 | PLATE KIT WIRE HARNESS MOUNT HARNESS ATTACHING (1 required per assembly) — Replaces: 26079 |
  |
|
26079A 2 - Plate Kit [ More info ]
|
| #23 | 46718 | SCREW (#8-32 X 3/4) PLATE TO BRACKET (4 required per assembly) |
  |
|
10-46718 - Screw, NLA [ More info ]
|
| #24 | 642351 | J CLIP WIRING HARNESS (3 required per assembly) |
  |
|
54-64235 1 - Clip - Priced Individually [ More info ]
|
  |
|
54-8M0024808 - J-CLIP [ More info ] Unavailable |
| #25 | 98253 | SCREW (.250-20 X .500) WIRING HARNESS CLAMP TO MANIFOLD (1 required per assembly) — Replaces: 20031 |
  |
|
10-98253 - Screw [ More info ]
|
| #26 | 26992 | LOCKWASHER @5 (1 required per assembly) |
| #27 | 73668 | J CLIP (1 required per assembly) |
  |
|
54-73668 - J Clip [ More info ]
|
| #28 | 98260 | SCREW (.375-16 X .620) CLIP TO INTAKE MANIFOLD (1 required per assembly) — Replaces: 26801 |
  |
|
10-98260 - Screw [ More info ]
|
| #29 | 815425 | SENDER ASSY (1 required per assembly) — Replaces: 34623, 90806 |
  |
815425 - Sender [ More info ] Unavailable |
|
  |
815425T - Sender [ More info ] Unavailable |
|
  |
|
8M0068784 - Sender Assembly [ More info ]
|
  |
|
18-5899 - Sender, 982650, 815425T [ More info ]
|
  |
|
75-24301 - Mercruiser and OMC Oil Pressure Sender [ More info ]
|
| #30 | 805605A1 | SWITCH ASSEMBLY OIL PRESSURE (INBOARD) (1 required per assembly) — Replaces: 38559 |
  |
|
87-805605A 1 - Switch Kit [ More info ]
|
| #31 | 68219 | NUT (#10-32) STAINLESS STEEL SWITCH & SENDING UNIT TERMINAL (2 required per assembly) |
| #32 | 26996 | LOCKWASHER (#10) STAINLESS STEEL SWITCH & SENDING UNIT TERMINAL (2 required per assembly) |
| #33 | 99502A12 | VOLTAGE REGULATOR (1 required per assembly) — Replaces: 99502A8 |
  |
|
99502A12 - Voltage Regulator [ More info ] Unavailable |
  |
|
18-99421 - Mercuiser Voltage Regulator 194-9502 [ More info ]
|
| #34 | 98255 | SCREW (.250-20 X 2.25) VOLTAGE REGULATOR ATTACHING (2 required per assembly) — Replaces: 27337 |
  |
|
10-98255 - Screw, NLA [ More info ]
|
| #35 | 26992 | LOCKWASHER (.250) STAINLESS STEEL VOLTAGE REGULATOR SCREW (2 required per assembly) |
| #36 | 34354 | SCREW (.375-16 X 1.50) VOLTAGE REGULATOR ATTACHING (1 required per assembly) — Replaces: 28464 |
  |
|
10-34354 - Screw - Priced Individually [ More info ]
|
| #37 | 58643 | LOCKWASHER (1 required per assembly) |
  |
|
13-58643 - LockWasher [ More info ]
|
| #38 | 68219 | NUT @5 (5 required per assembly) |
| #39 | 92700A1 | WIRE ASSEMBLY JUMPER VOLTAGE REGULATOR (1 required per assembly) |
  |
|
84-92700A 1 - Wire Assembly, NLA [ More info ] Unavailable |
