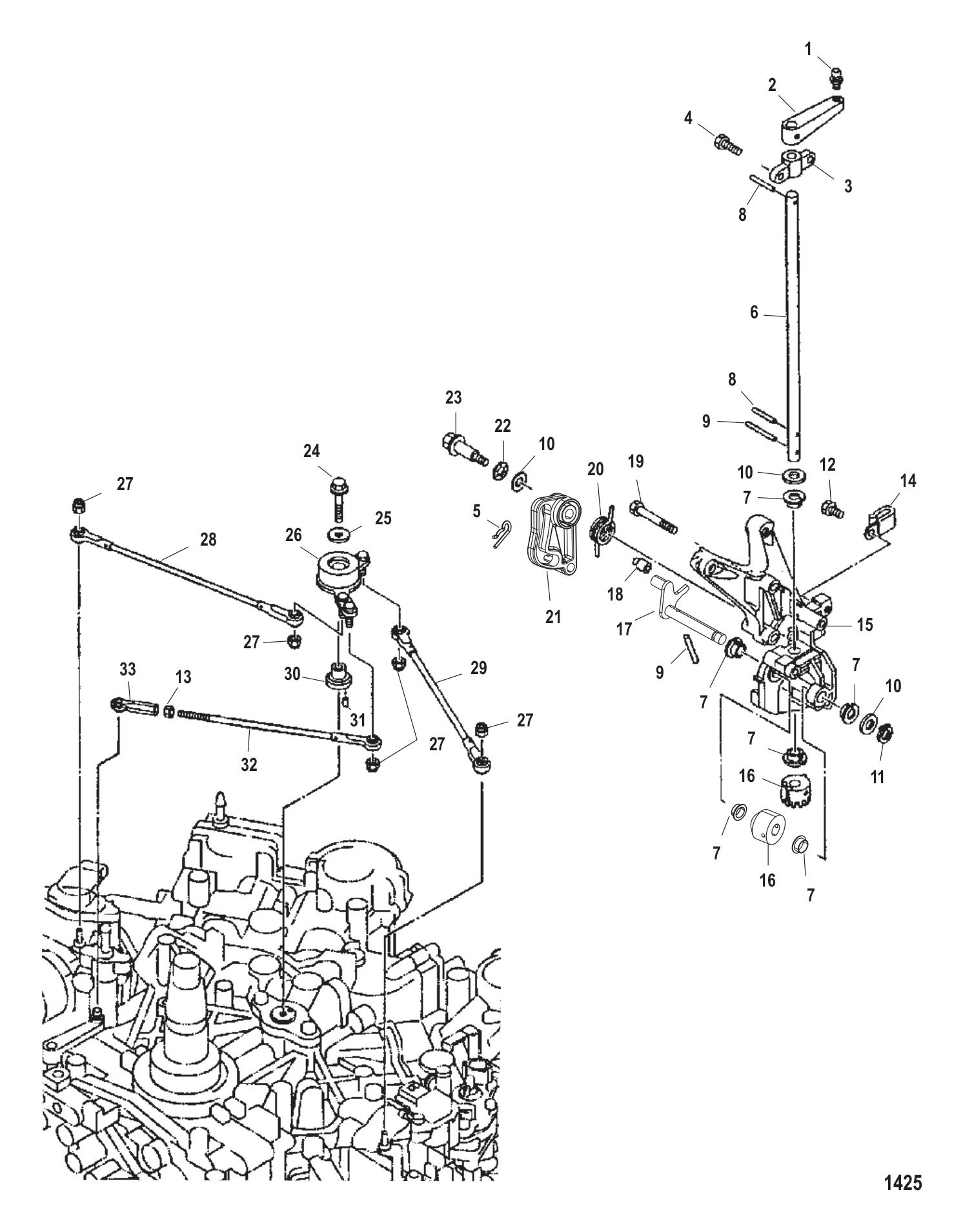

Parts for 225 HP EFI 4-Stroke Mercury Outboard Motor Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 84305M | BALL JOINT (1 required per assembly) |
  |
|
84305M - Ball Joint [ More info ]
|
| #2 | 888387 | LEVER-MAGNETO (1 required per assembly) |
  |
|
888387 - Lever - Magneto [ More info ]
|
| #3 | 83537M | BRACKET (1 required per assembly) |
  |
|
83537M - Bracket [ More info ]
|
| #4 | 8257021 | BOLT (2 required per assembly) |
  |
|
10-825702 1 - Bolt [ More info ]
|
| #5 | 82053M | PIN-COTTER @2 (1 required per assembly) |
  |
|
18-82053M - Cotter Pin - Priced Individually [ More info ]
|
| #6 | 888386 | SHAFT (1 required per assembly) |
  |
|
888386 - Shaft [ More info ] Unavailable |
| #7 | 892661A02 | BUSHING KIT (1 required per assembly) |
  |
|
23-892661A02 - Bushing Kit [ More info ]
|
| #8 | 82149M | PIN (18.5 MM) (2 required per assembly) |
  |
|
17-82149M - Pin, (18.5 Mm) [ More info ] Unavailable |
| #9 | 82151M | PIN (2 required per assembly) |
  |
|
17-82151M - Pin -roll [ More info ]
|
| #10 | 84974M | WASHER (3 required per assembly) |
  |
|
12-84974M - Washer [ More info ] Unavailable |
| #11 | 888383 | CIRCLIP (1 required per assembly) |
  |
|
53-888383 - Circlip [ More info ]
|
| #12 | 8255012 | BOLT (2 required per assembly) |
  |
|
10-825501 2 - Bolt [ More info ]
|
| #13 | 82388M | NUT @2 (1 required per assembly) |
  |
|
11-82388M - Nut, (M5) [ More info ]
|
| #14 | 8145521 | CLAMP (2 required per assembly) |
  |
|
54-814552 1 - Clamp [ More info ]
|
| #15 | 888388T | BRACKET (1 required per assembly) |
  |
|
888388T - Bracket [ More info ] Unavailable |
| #16 | 888384 | GEAR (2 required per assembly) |
  |
|
43-888384 - Gear [ More info ]
|
| #17 | 888452 | LEVER-TH. CONTROL (1 required per assembly) |
  |
|
888452 - Throttle Control Lever [ More info ] Unavailable |
| #18 | 8813321 | BUSHING (1 required per assembly) |
  |
|
23-881332 1 - Bushing [ More info ]
|
| #19 | 887827 | BOLT @5 (5 required per assembly) |
  |
|
10-887827 - Bolt - Priced Individually [ More info ]
|
| #20 | 804343 | SPRING (1 required per assembly) |
  |
|
24-804343 - Spring, NLA [ More info ] Unavailable |
| #21 | 888179 | LEVER TH. CONTROL (1 required per assembly) |
  |
|
888179 - Throttle Control Lever [ More info ] Unavailable |
| #22 | 81868M | WASHER-WAVE @2 (1 required per assembly) |
  |
|
13-81868M - Wave Washer - Priced Individually [ More info ] Unavailable |
| #23 | 888389 | BOLT (1 required per assembly) |
  |
|
10-888389 - Bolt [ More info ]
|
| #24 | 11561M | BOLT (1 required per assembly) |
  |
|
10-11561M - Bolt [ More info ]
|
| #25 | 94524M | WASHER (1 required per assembly) |
  |
|
12-94524M - Washer [ More info ]
|
| #26 | 888601 | ARM-ACCELERATOR (1 required per assembly) |
  |
|
888601 - Arm - Accelerator [ More info ] Unavailable |
| #27 | 888604 | NUT @5 (5 required per assembly) |
  |
|
11-888604 - Nut - Priced Individually [ More info ]
|
| #28 | 888603002 | LINK (1 required per assembly) — Replaces: 888603 |
  |
|
888603002 - Link [ More info ]
|
| #29 | 888603003 | ROD (1 required per assembly) — Replaces: 8886031 |
  |
|
888603003 - Rod [ More info ] Unavailable |
| #30 | 888602 | BUSHING (1 required per assembly) |
  |
|
23-888602 - Bushing [ More info ] Unavailable |
| #31 | 82144M | PIN-ROLL (1 required per assembly) |
  |
|
17-82144M - Pin, Roll [ More info ]
|
| #32 | 888600001 | LINK ROD (1 required per assembly) — Replaces: 888600 |
  |
|
888600001 - Link Rod [ More info ]
|
| #33 | 84100M | JOINT (1 required per assembly) |
  |
|
|
