Parts for 140 GM 181 I / L4 3.0L (181 Cu In) L4 GM MerCruiser Engines - Gas Carburetor (Rochester)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 3.0L (181 Cu In) L4 GM > 140 GM 181 I / L4 > 1982-1986 6229718 - 0B450800 > Carburetor (Rochester)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

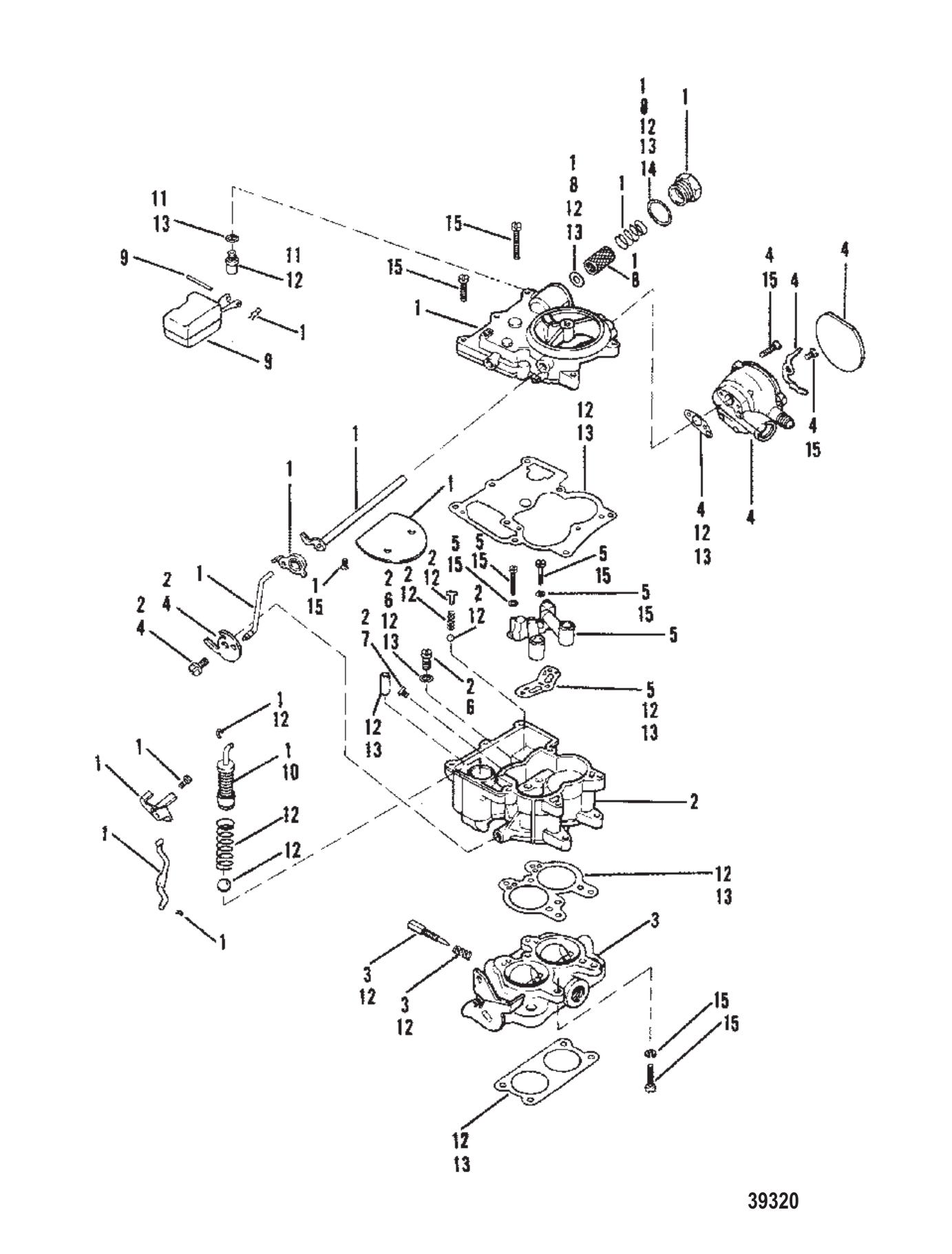

Carburetor (Rochester)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	818621R02	CARBURETOR-REMAN (1 required per assembly) — Replaces: 8480A2, 8186211
		1347-818621R02 - Carburetor - Reman [ More info ] Unavailable
#1	8874	AIR HORN KIT (1 required per assembly)
		1397-8874 - AIR HORN KIT,NLA [ More info ] Unavailable
#2	8875	FLOAT BOWL KIT (1 required per assembly)
		1397-8875 - Float Bowl, NLA [ More info ] Unavailable
#3	8876	THORTTLE BODY KIT (1 required per assembly)
		1397-8876 - Throttle Bo, NLA [ More info ] Unavailable
#4	8877	CHOKE KIT (1 required per assembly)
		1397-8877 - Choke Housing Assembly, NLA [ More info ] Unavailable
#5	8878	VENTURI CLUSTER KIT (1 required per assembly)
		1397-8878 - VENTURI CLUSTER,NLA [ More info ] Unavailable
#6	8882	PISTON KIT (1 required per assembly)
		1397-8882 - Power Piston, NLA [ More info ] $8.00 $6.78 5 In Stock.
#7	3827	JET (1 required per assembly)
		1397-3827 - Jet, NLA [ More info ] Unavailable
#8	8767Q	FILTER-FUEL @2 (1 required per assembly) — Replaces: 8767
		1397-8767Q - Fuel Filter - Priced Individually [ More info ] Unavailable
		18-7869 - Fuel Filter Assembly [ More info ] $9.99 $9.94 4 In Stock.
#9	8768	FLOAT KIT (1 required per assembly) — Replaces: 8879
		1397-8768 - Float & Baffle Kit, NLA [ More info ] Unavailable
#10	823427A1	REPAIR KT-2BARREL (1 required per assembly) — Replaces: 8880
		823427A 1 - Carburetor Repair Kit - Rochester 2 Barrel [ More info ] $37.49 In Stock
		18-7746 - Carburetor Kit, 823427A1 [ More info ] $34.61 3 In Stock.
		18-7070 - Carburetor Kit 823427A1 [ More info ] $32.29 2 In Stock.
		1300-00143 - Carburetor Repair Kit [ More info ] $31.99 $28.50 4 In Stock.
#11	8881	NEEDLE AND SEAT KIT (1 required per assembly)
		1397-8881 - Needle And Seat Kit [ More info ] Unavailable
#12	823427A1	REPAIR KT-2BARREL (1 required per assembly) — Replaces: 8872, 3464
#13	823427A1	REPAIR KT-2BARREL (1 required per assembly) — Replaces: 3464
#14	8327	GASKET FUEL FILTER (1 required per assembly)
		1397-8327 - Inlet Filter Nut Gasket [ More info ] $4.30 10+ In Stock.
#15	8883	SCREW KIT (1 required per assembly)
		1397-8883 - Screw Kit, NLA [ More info ] $8.00 $6.78 1 In Stock.
