Parts for 225 HP EFI 4-Stroke Mercury Outboard Motor Cylinder Head

Revise Search: Outboard > 4-Stroke Mercury Outboard > 225 HP EFI > 0T653945 & Up - USA > Cylinder Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

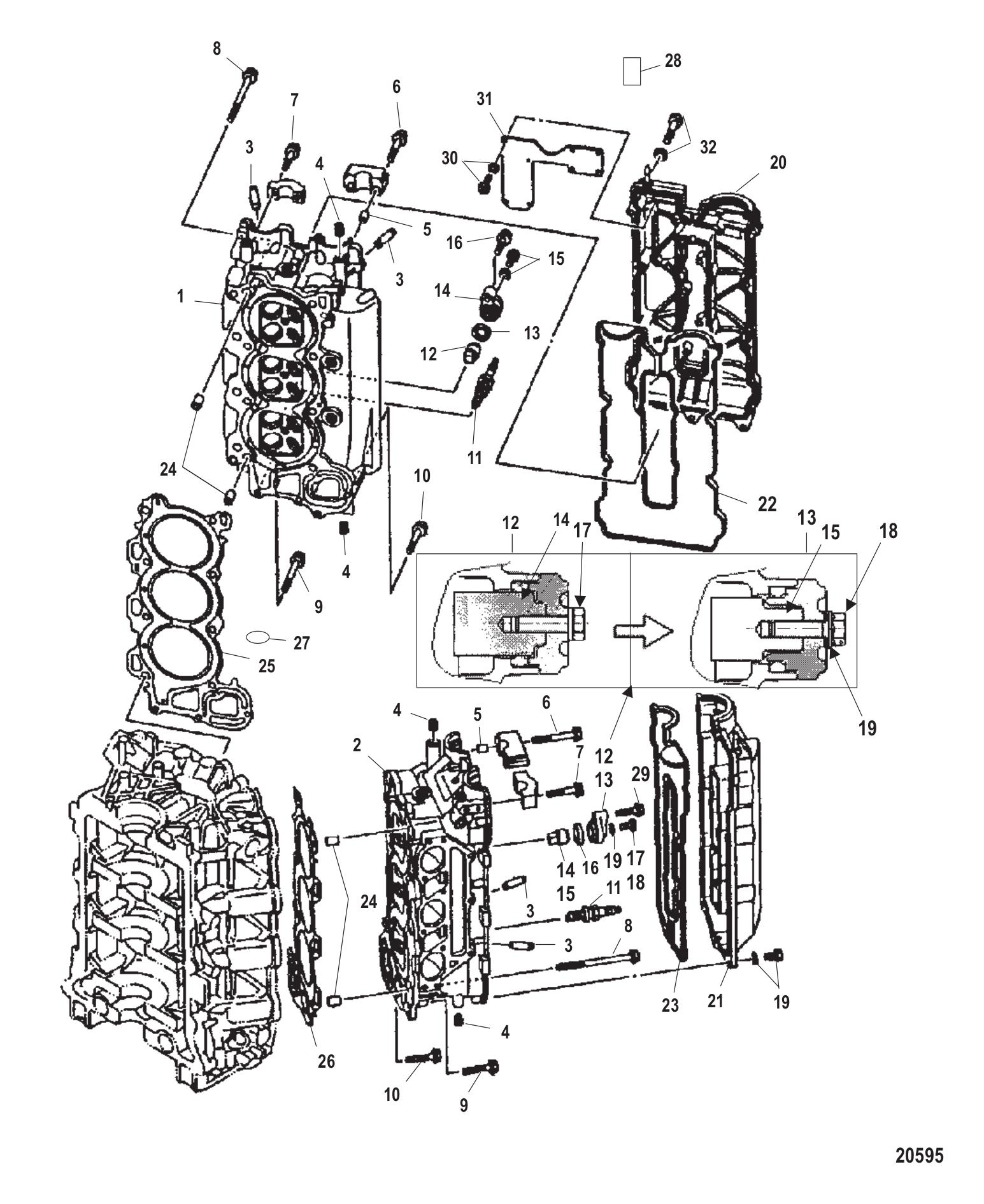

Cylinder Head

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	887844T05	CYLINDER HEAD (Starboard) [1B055687] & Below (1 required per assembly) — Replaces: 887844T1, 887844T04
		900-887844T05 - Cylinder Head [ More info ] Unavailable
		900-887844T06 - Cylinder Head [ More info ] Unavailable
		900-887844T07 - Cylinder Head [ More info ] $900.00 $762.30 2 In Stock.
#-	887844T07	HEAD-CYLINDER (Starboard) [1B227000] & Up (1 required per assembly) — Replaces: 887844T05, 887844T06
#-	887845T05	CYLINDER HEAD (Port) [1B055687] & Below (1 required per assembly) — Replaces: 887845T1, 887845T04
		900-887845T05 - Cylinder Head [ More info ] Unavailable
		900-887845T06 - Cylinder Head [ More info ] Unavailable
		900-887845T07 - Cylinder Head [ More info ] Unavailable
#-	887845T07	HEAD-CYLINDER (Port) [1B227000] & Up (1 required per assembly) — Replaces: 887845T05, 887845T06
#-	885225T06	PH 225 4S [1B055687] & Below (1 required per assembly) — Replaces: 885225T03, 885225T05
		885225T06 - PH 225 4S [ More info ] Unavailable
		885225T07 - PH 225 HP 4S [ More info ] Unavailable
#-	885225T07	PH 225 HP 4S [1B227000] & Up (1 required per assembly) — Replaces: 885225T05, 885225T06
#-	887810A03	GASKET SET [0T807875] & Below (1 required per assembly)
		27-887810A03 - Powerhead Gasket Set [ More info ] $249.99 $211.73 10+ In Stock.
#-	887810A04	GASKET SET [0T807876] THRU [1B055687] (1 required per assembly)
		27-887810A04 - Powerhead Gasket Set [ More info ] $1,043.99 $818.45 2 In Stock.
#-	887810A05	GASKET SET [1B055688] & Up (1 required per assembly)
		27-887810A05 - Gasket Set [ More info ] Unavailable
#1	887844T03	CYLINDER HEAD [1B055688] & Up (1 required per assembly) — Replaces: 887844T2
		900-887844T03 - Cylinder Head [ More info ] Unavailable
#2	887845T03	CYLINDER HEAD [1B055688] & Up (1 required per assembly) — Replaces: 887845T2
		900-887845T03 - Cylinder Head [ More info ] $1,708.50 Available to Order: Shipping delay up to 10 days.
#3	887846	GUIDE (24 required per assembly)
		887846 - Guide [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#4	804111	PLUG (10 required per assembly)
		19-804111 - Plug, NLA [ More info ] Unavailable
#5	804113	PIN DOWEL (4 required per assembly)
		17-804113 - Pin -Dowel [ More info ] Unavailable
#6	804112	BOLT (M7 X 48) (4 required per assembly)
		10-804112 - Bolt [ More info ] $1.10 $0.94 1 In Stock.
#7	804114	BOLT (M7 X 37) (32 required per assembly)
		10-804114 - Bolt [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#8	887849	BOLT @5 (16 required per assembly)
		10-887849 - Bolt - Priced Individually [ More info ] Unavailable
#9	881312	BOLT (4 required per assembly)
		10-881312 - Bolt [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#10	887850	BOLT @2 (2 required per assembly)
		10-887850 - Bolt - Priced Individually [ More info ] $2.50 $2.13 2 In Stock.
#11	859495Q	PG LFR5A-11 @10 (6 required per assembly) — Replaces: 859495
		33-859495Q - Spark Plug LFR5A-11 - Priced Individually [ More info ] Unavailable
		LFR5A-11 - NGK Spark Plug, 6376 [ More info ] $12.34 10+ In Stock.
#12	887847A01	COVER KIT (Use with Design I Anode) (4 required per assembly) — Replaces: 887847
		887847A01 - Cover Anode [ More info ] Unavailable
		804079001 - Ord 887847A01, NLA [ More info ] $20.00 1 In Stock.
#13	887847A01	COVER KIT (Use with Design II Anode) (4 required per assembly)
#14	887847A01	COVER KIT (Design I) [1B055688] & Up (4 required per assembly) — Replaces: 804079, 804079001
#15	804079002	ANODE (INCLUDED WITH RERERENCE #13) (Design II) (4 required per assembly)
		97804079002 - Anode [ More info ] Unavailable
#16	804086	GROMMET (INCLUDED WITH RERERENCE #13) (4 required per assembly)
		25-804086 - Grommet [ More info ] Unavailable
#17	8524741	BOLT (Use with Design I Anode) (4 required per assembly)
		10-852474 1 - Bolt [ More info ] $1.25 $1.06 2 In Stock.
#18	84830M	BOLT (INCLUDED WITH RERERENCE #13) (Use with Design II Anode) (4 required per assembly)
		10-84830M - Bolt [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#19	95610	GASKET (INCLUDED WITH RERERENCE #13) (Use with Design II Anode) (1 required per assembly)
		27-95610 - Gasket [ More info ] $11.49 3 In Stock.
#20	887851T	COVER (STARBOARD) (1 required per assembly)
		887851T - Cover [ More info ] Unavailable
#21	887854T	COVER (PORT) (1 required per assembly)
		887854T - Cover [ More info ] $70.00 $59.29 9 In Stock.
#22	887853	GASKET (STARBOARD) (1 required per assembly)
		27-887853 - Cylinder Head Gasket [ More info ] $43.10 7 In Stock.
#23	887855	GASKET (PORT) (1 required per assembly)
		27-887855 - Cylinder Head Gasket [ More info ] $39.99 $33.86 7 In Stock.
#24	8M0070515	DOWEL PIN (4 required per assembly) — Replaces: 804116
		23-8M0070515 - Dowel Pin [ More info ] $2.11 $1.79 2 In Stock.
#25	887848002	GASKET (STARBOARD) (1 required per assembly) — Replaces: 887848
		27-887848002 - Gasket [ More info ] $223.99 $53.73 2 In Stock.
		27-8M6010318 - HEAD GSKT STBD [ More info ] In Stock
#26	887848003	GASKET (PORT) (1 required per assembly) — Replaces: 8878481
		27-887848003 - Gasket [ More info ] $210.49 $111.01 2 In Stock.
#27	888262001	GROMMET WATER SHUTTER (2 required per assembly)
		25-888262001 - Grommet - Priced Individually [ More info ] Unavailable
#28	NSS	NOT SOLD SEPARATE DECAL-ENGINE OIL/VALVE CLEARANCE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#29	881431	BOLT (4 required per assembly)
		10-881431 - Bolt [ More info ] $4.60 $3.68 4 In Stock.
#30	804120	SCREW (8 required per assembly)
		10-804120 - Screw [ More info ] $1.00 $0.85 2 In Stock.
#31	887852	PLATE (1 required per assembly)
		887852 - Plate [ More info ] $5.00 $4.24 2 In Stock.
#32	858530	BOLT (28 required per assembly)
		10-858530 - Bolt [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
