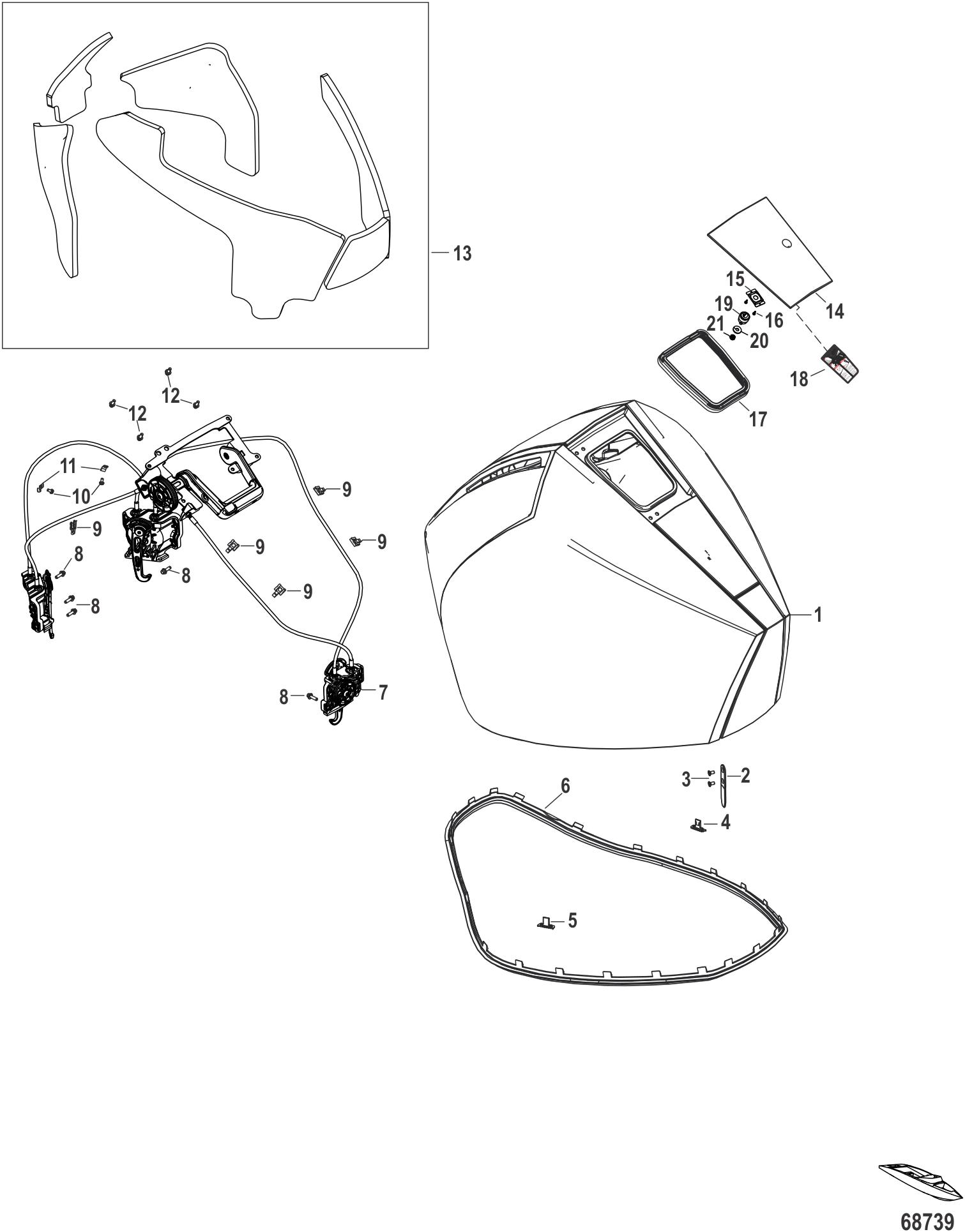

Parts for 225 HP 4.6L V8 Seapro 4-Stroke Mercury Outboard Motor Top Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0182323 | COWL TOP BLACK (1 required per assembly) — Replaces: 8M0142172 |
  |
|
100-8M0182323 - 100-8M0182323 - COWL TOP BLACK [ More info ] Unavailable Replaced by -8M0231240 |
  |
|
100-8M0231240 - COWL TOP BLACK [ More info ] Unavailable |
| #1 | 8M0182324 | COWL TOP CLD FSN (1 required per assembly) — Replaces: 8M0142174 |
  |
|
100-8M0182324 - 100-8M0182324 - COWL TOP CLD FSN [ More info ] Unavailable Replaced by -8M0231244 |
  |
|
100-8M0231244 - COWL TOP CLD FSN [ More info ] Unavailable |
| #1 | 8M0182325 | COWL TOP WRM FSN (1 required per assembly) — Replaces: 8M0142175 |
  |
|
100-8M0182325 - 100-8M0182325 - COWL TOP WRM FSN [ More info ] Unavailable Replaced by -8M0231245 |
  |
|
100-8M0231245 - COWL TOP WRM FSN [ More info ] Unavailable |
| #1 | 8M0182326 | COWL TOP PRL FSN (1 required per assembly) — Replaces: 8M0142176 |
  |
|
100-8M0182326 - 100-8M0182326 - COWL TOP PRL FSN [ More info ] Unavailable Replaced by -8M0231246 |
  |
|
100-8M0231246 - COWL TOP PRL FSN [ More info ] Unavailable |
| #1 | 8M0182328 | COWL TOP SEAPRO SeaPro (1 required per assembly) — Replaces: 8M0142177 |
  |
|
100-8M0182328 - 100-8M0182328 - COWL TOP SEAPRO [ More info ] Unavailable Replaced by -8M0231247 |
  |
|
100-8M0231247 - COWL TOP SEAPRO [ More info ] Unavailable |
| #2 | 8M0142904 | ALIGNMENT LEG (4 required per assembly) |
  |
8M0142904 - ALINGMENT LEG [ More info ] Unavailable |
|
  |
|
8M0240715 - ALIGNMENT LEG KIT [ More info ] Unavailable |
| #3 | NSS | NOT SOLD SEPARATE SCREW (8 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 8M0142916 | BUMPER PORT (1 required per assembly) |
  |
|
8M0142916 - BUMPER PORT [ More info ]
|
| #5 | 8M0142915 | BUMPER STARBOARD (1 required per assembly) |
  |
|
8M0142915 - BUMPER [ More info ]
|
| #6 | 8M0182085 | SEAL TOP COWL (1 required per assembly) — Replaces: 8M0142906 |
  |
|
8M0182085 - 8M0182085 - SEAL TOP COWL [ More info ] Unavailable Replaced by -8M0242486 |
  |
|
8M0242486 - SEAL TOP COWL [ More info ] Unavailable |
| #7 | 8M0183790 | LATCH ASSEMBLY (1 required per assembly) — Replaces: 8M0142242 |
  |
|
8M0183790 - 8M0183790 - LATCH ASSEMBLY [ More info ] Unavailable Replaced by -8M0232582 |
  |
|
8M0232582 - LATCH CWL ASY V8 [ More info ] Unavailable |
| #8 | 8M0103806 | SCREW (M6 X 20 MM) STAINLESS STEEL (10 required per assembly) |
  |
|
108M0103806 - Screw - Priced Individually [ More info ]
|
| #9 | 8M0142903 | CLIP (7 required per assembly) |
  |
|
548M0142903 - Cable Clip [ More info ]
|
| #10 | 8M0142955 | SCREW (M5 X 0.8) (2 required per assembly) |
  |
|
108M0142955 - Screw [ More info ]
|
| #11 | 8M0142954 | CLIP (2 required per assembly) |
  |
|
548M0142954 - Cable Clip [ More info ]
|
| #12 | 88552514 | SCREW (M6 X 14 MM) STAINLESS STEEL (6 required per assembly) |
  |
|
10-885525 14 - Screw [ More info ]
|
| #13 | 8M0142956 | SOUND BLANKET KIT (1 required per assembly) |
  |
|
8M0142956 - Sound Blanket [ More info ]
|
| #14 | 8M0157771 | DOOR ASSEMBLY BLACK (1 required per assembly) — Replaces: 8M0142238 |
  |
|
1008M0157771 - DOOR ASSY BLACK [ More info ]
|
| #14 | 8M0157772 | DOOR ASSEMBLY COLD FUSION (1 required per assembly) — Replaces: 8M0142239 |
  |
|
1008M0157772 - DOOR ASSY COLD [ More info ]
|
| #14 | 8M0157773 | DOOR ASSY WARM (1 required per assembly) — Replaces: 8M0142240 |
  |
|
100-8M0157773 - DOOR ASSY WARM [ More info ] Unavailable |
| #14 | 8M0142241 | DOOR ASSEMBLY PEARL FUSION (1 required per assembly) |
  |
|
1008M0142241 - DOOR ASSY PEARL [ More info ]
|
| #15 | 8M0142913 | KEEPER ASSEMBLY (1 required per assembly) |
  |
|
8M0142913 - KEEPER ASSEMBLY [ More info ]
|
| #16 | NSS | NOT SOLD SEPARATE SCREW (2 required per assembly) |
| #17 | 8M0142908 | SEAL DOOR (1 required per assembly) |
  |
|
25-8M0142908 - SEAL DOOR [ More info ] Unavailable |
| #18 | 8M0148533 | DECAL LATCH POSITION (1 required per assembly) |
  |
|
378M0148533 - Decal LATCH POS [ More info ]
|
| #19 | 8M0142907 | LOCK PUSH (1 required per assembly) |
  |
|
8M0142907 - LOCK PUSH [ More info ]
|
| #20 | 8M0142914 | SHIM SET LATCH (1 required per assembly) |
  |
|
158M0142914 - Shim [ More info ]
|
| #21 | 401386 | NUT (M6) STAINLESS STEEL (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
