Parts for 200 HP 4.6L V8 Pro XS 4-Stroke Mercury Outboard Motor Adapter Plate

Revise Search: Outboard > 4-Stroke Mercury Outboard > 200 HP 4.6L V8 Pro XS > 2B529482 & Up - USA > Adapter Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

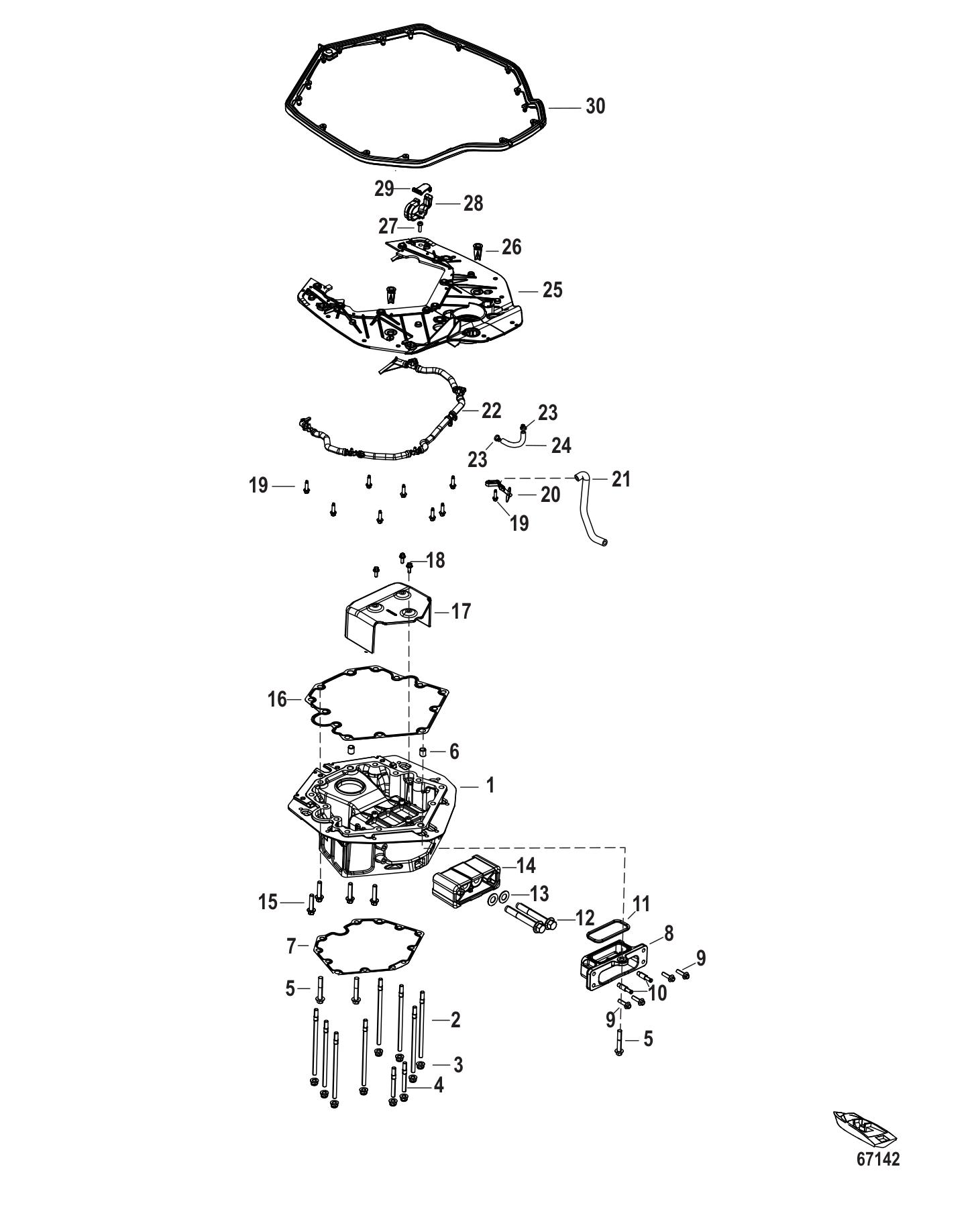

Adapter Plate

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0149551	PWRHD GASKET SET (1 required per assembly)
		8M0149551 - Powerhead Gasket Set [ More info ] $330.49 Available to Order: Shipping delay up to 10 days.
#1	8M0173537	ADAPTER PLATE (1 required per assembly) — Replaces: 8M0142705
		8M0173537 - Adapter Plate [ More info ] $392.49 Available to Order: Shipping delay up to 10 days.
		8M0240952 - 8M0240952 - ADAPTER PLATE [ More info ] Unavailable Replaced by -8M0245487
		8M0245487 - ADAPTER PLATE [ More info ] Unavailable
#2	8M0142744	STUD (8 required per assembly)
		168M0142744 - Stud [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#3	8M0142743	NUT (10 required per assembly)
		118M0142743 - NUT [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#4	8M0158595	STUD (2 required per assembly) — Replaces: 8M0142746, 8M0149603
		168M0158595 - STUD [ More info ] $13.99 Available to Order: Shipping delay up to 10 days.
#5	8M0069690	SCREW (3 required per assembly)
		108M0069690 - Screw [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#6	821327	PIN-DOWEL (2 required per assembly)
		17-821327 - Pin -Dowel [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#7	8M0142275	GASKET Adapter Plate to Driveshaft Housing (1 required per assembly)
		278M0142275 - Gasket [ More info ] $28.09 Available to Order: Shipping delay up to 10 days.
#8	8M0142742	BRACKET MOUNT Steering Arm (1 required per assembly)
		8M0142742 - Bracket MOUNT [ More info ] Unavailable
		8M0239528 - BRACKET MOUNT [ More info ] Unavailable
#9	4010730	SCREW @5 (4 required per assembly)
		10-40107 30 - Screw , Priced Individually [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
		10-8M0231451 - SCREW @5 [ More info ] Unavailable
#10	8M0038205	FITTING-STRAIGHT (2 required per assembly)
		228M0038205 - Fitting - Straight [ More info ] $18.09 Available to Order: Shipping delay up to 10 days.
#11	8M0142745	SEAL BRACKET (1 required per assembly)
		268M0142745 - Seal Bracket [ More info ] $1.90 1 In Stock.
#12	8M0154651	SCREW (2 required per assembly) — Replaces: 8M0142981
		108M0154651 - SCREW [ More info ] Unavailable
		10-8M0230598 - SCREW [ More info ] Unavailable
#13	8M0142711	WASHER (2 required per assembly)
		128M0142711 - Washer [ More info ] Unavailable
		12-8M0224254 - WASHER [ More info ] Unavailable
#14	8M0142706	MOUNT UPPER (1 required per assembly)
		8M0142706 - MOUNT UPPER [ More info ] $349.99 Available to Order: Shipping delay up to 10 days.
#15	8M0103823	SCREW @2 (4 required per assembly)
		108M0103823 - Screw - Priced Individually [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#16	8M0142274	GASKET Adapter Plate to Cylinder Block (1 required per assembly)
		278M0142274 - Gasket [ More info ] Unavailable
		278M0205773 - GASKET-ADAPTER [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#17	8M0142982	SHIELD MOUNT OIL (1 required per assembly)
		8M0142982 - SHIELD MOUNT OIL [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#18	8M0103805	SCREW @2 (3 required per assembly)
		108M0103805 - Screw (M6 x 16MM) Stain [ More info ] $2.49 4 In Stock.
#19	8M0142708	SCREW (9 required per assembly)
		108M0142708 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#20	8M0142748	FITTING TELL TALE Tell Tale (1 required per assembly)
		8M0142748 - Fitting TELL TALE [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#21	8M0142619	HOSE Tell Tale to FSM (1 required per assembly)
		328M0142619 - Hose [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#22	8M0146171	SPRAYER HOSE ASSY (1 required per assembly)
		8M0146171 - SPRAYER Hose [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#23	816311T	TIE STRAP @100 (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#24	8M0142618	HOSE (1 required per assembly)
		328M0142618 - Hose [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#25	8M0142707	CHAP PLATE (1 required per assembly)
		8M0142707 - Chap Plate [ More info ] $173.99 Available to Order: Shipping delay up to 10 days.
#26	8M0142710	DRAIN COWL (2 required per assembly)
		8M0142710 - DRAIN COWL [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#27	8M0142830	SCREW (1 required per assembly)
		108M0142830 - Screw [ More info ] $0.60 Available to Order: Shipping delay up to 10 days.
#28	8M0142831	LATCH BOTTOM (1 required per assembly)
		8M0142831 - LATCH BOTTOM [ More info ] $2.09 Available to Order: Shipping delay up to 10 days.
#29	8M0142832	LATCH TOP (1 required per assembly)
		8M0142832 - LATCH TOP [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#30	8M0142917	SEAL ADAPTER PL (1 required per assembly)
		8M0142917 - Seal Adapter PL [ More info ] $51.49 Available to Order: Shipping delay up to 10 days.
