Parts for 200 HP 3.4L V6 Seapro 4-Stroke Mercury Outboard Motor Camshaft Cover

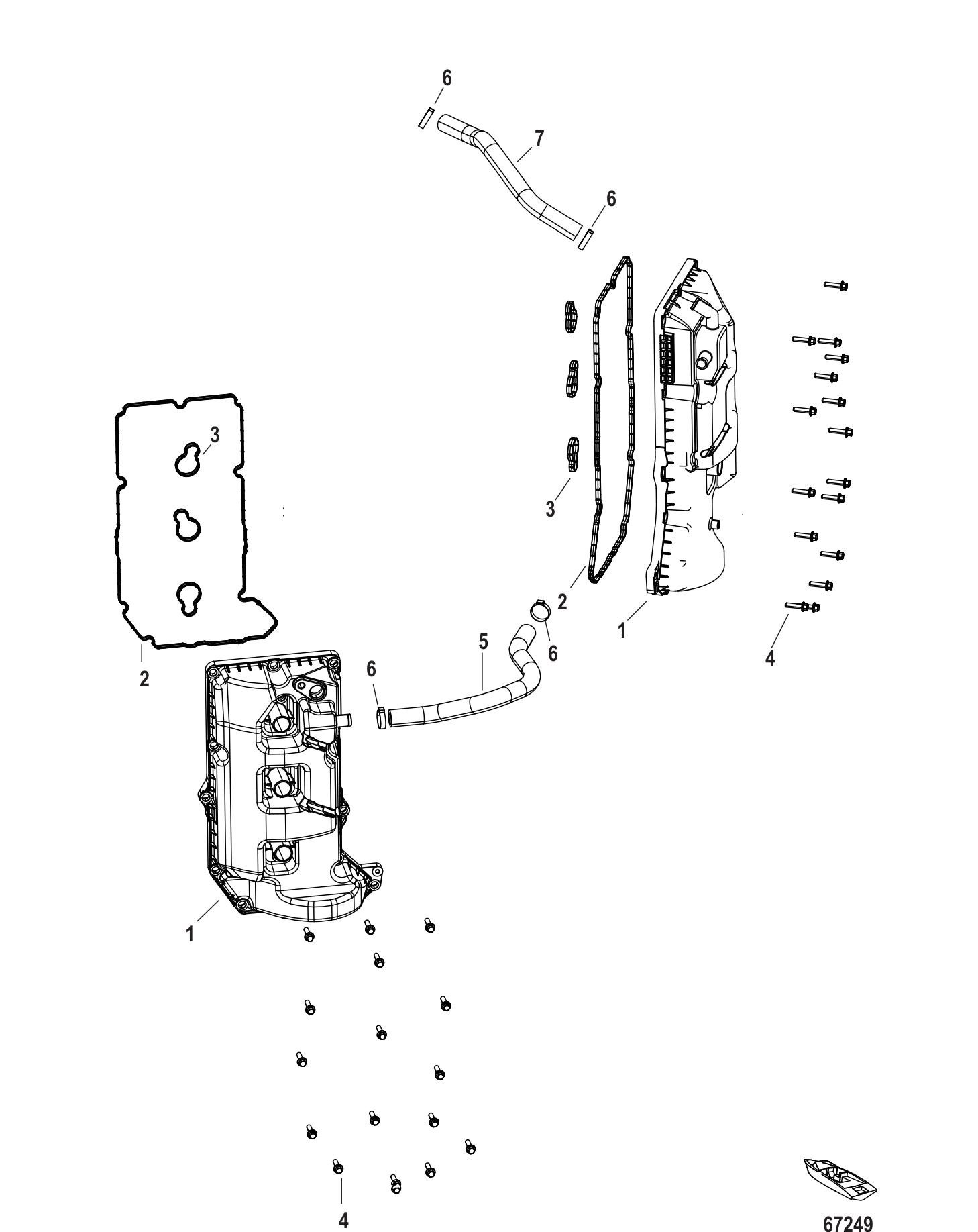

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0142971 | PWRHD GASKET SET (1 required per assembly) |
  |
|
8M0142971 - Powerhead Gasket Set [ More info ]
|
| #1 | 8M0142287 | CAMSHAFT COVER (1 required per assembly) |
  |
|
8M0142287 - Camshaft Cover [ More info ]
|
| #1 | 8M0142286 | CAMSHAFT COVER (1 required per assembly) |
  |
|
8M0142286 - Camshaft Cover [ More info ]
|
| #2 | 8M0142289 | SEAL CAMSHAFT COVER, STARBOARD (1 required per assembly) |
  |
|
258M0142289 - Seal CAM Cover [ More info ]
|
| #2 | 8M0142288 | SEAL CAMSHAFT COVER, PORT (1 required per assembly) |
  |
|
258M0142288 - Seal CAM Cover [ More info ]
|
| #3 | 8M0142285 | SEAL SPARK PLUG (6 required per assembly) |
  |
|
258M0142285 - Seal SPARK PLUG [ More info ]
|
| #4 | 8M0204721 | SCREW @2 (32 required per assembly) — Replaces: 8M0022324 |
  |
108M0204721 - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
108M0230977 - SCREW [ More info ]
|
| #5 | 8M0142472 | HOSE BREATHER (1 required per assembly) |
  |
|
328M0142472 - Breather Hose [ More info ]
|
| #6 | 855228 | CLAMP @5 (4 required per assembly) |
  |
|
54-855228 - Clamp [ More info ]
|
| #7 | 8M0142473 | HOSE BREATHER (1 required per assembly) |
  |
|
328M0142473 - Breather Hose [ More info ]
|
