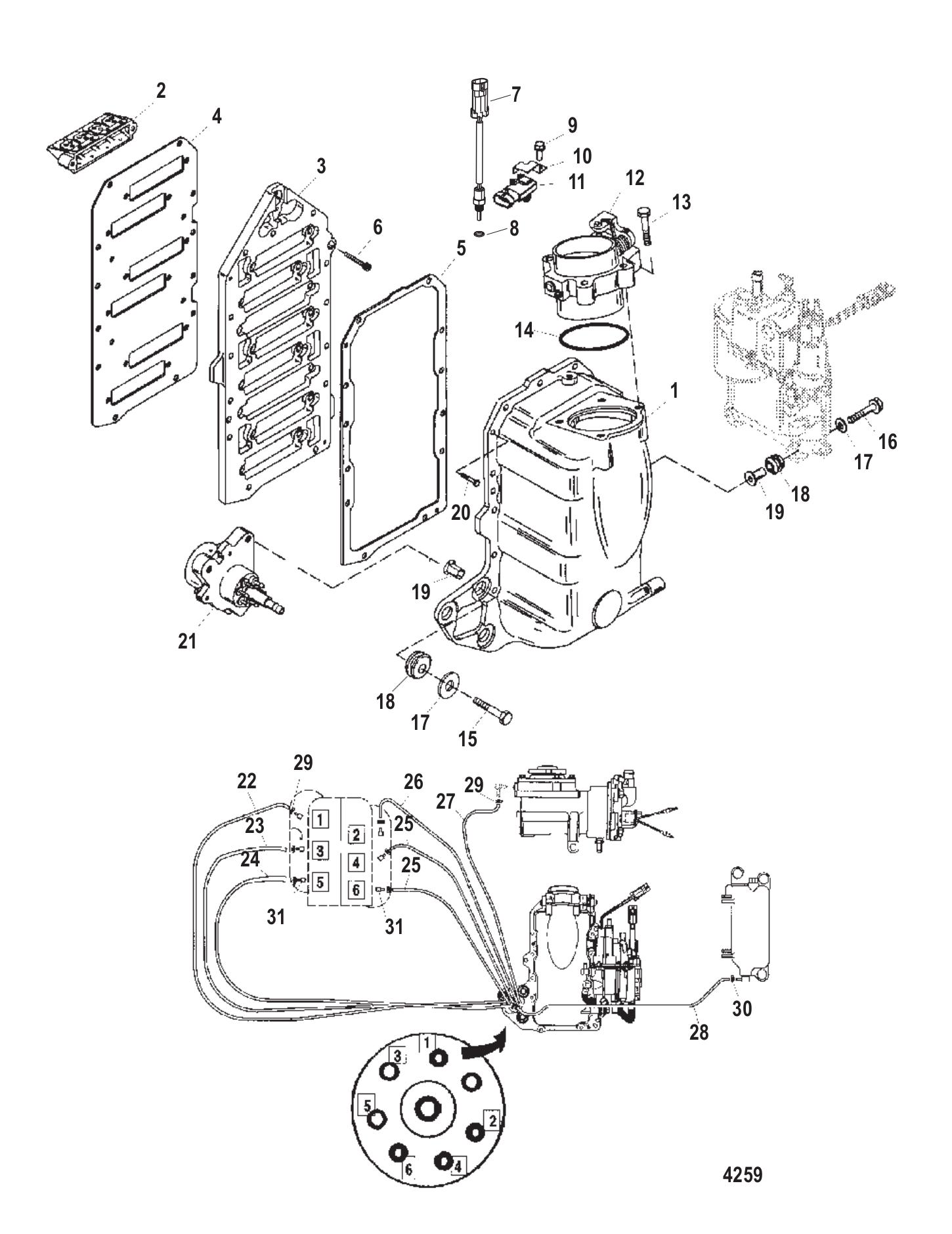

Parts for Mercury 200 DFI M2 Jet Drive (Powerhead) Air Handler Components (Design II)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0165982 | PH SJ 200 DFI (1 required per assembly) — Replaces: 858961A19 |
  |
|
8008M0165982 - PH SJ 200 DFI [ More info ] Unavailable |
| #- | 883298A1 | GASKET/SEAL SET POWERHEAD - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown (1 required per assembly) |
  |
|
27-883298A 1 - Powerhead Gasket Set [ More info ]
|
| #1 | 855633T33 | AIR HANDLER ASSEMBLY COMPLETE - Design II [0E418534] THRU [0E433351] (1 required per assembly) — Replaces: 855633T26 |
  |
|
855633T33 - Air Handler Assembly C [ More info ]
|
| #2 | 855952T3 | REED BLOCK ASSEMBLY (6 required per assembly) |
  |
|
855952T 3 - Reed Block Assembly [ More info ]
|
| #3 | 855420A1 | ADAPTER PLATE KIT (1 required per assembly) |
  |
|
855420A 1 - Adaptor Plate Kit [ More info ]
|
| #4 | 146973 | GASKET ADAPTOR PLATE TO BLOCK (1 required per assembly) |
  |
|
27-14697 3 - Gasket [ More info ]
|
| #5 | 8500581 | GASKET AIR HANDLER TO ADAPTOR PLATE (1 required per assembly) |
  |
|
27-850058 1 - Gasket [ More info ]
|
| #6 | 55715 | SCREW (.250-20 X .880) (12 required per assembly) |
  |
|
10-55715 - Screw - Priced Individually [ More info ]
|
| #7 | 8M0148668 | SENSOR ASSEMBLY (1 required per assembly) — Replaces: 885342001, 885342002 |
  |
|
8M0148668 - Temperature Sensor [ More info ]
|
| #8 | 896699 | O-RING (1.78 MM X .08 MM) (1 required per assembly) — Replaces: 888814 |
  |
|
25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ]
|
| #9 | 1993716 | SCREW (M6 X 16) (1 required per assembly) |
  |
|
10-19937 16 - Screw [ More info ]
|
| #10 | 884522 | BRACKET MAP SENSOR (1 required per assembly) |
  |
|
884522 - Bracket [ More info ]
|
| #11 | 854445 | SENSOR MAP (1 required per assembly) |
  |
|
854445 - MAP Sensor Manifold Absolute Pressure [ More info ]
|
| #12 | 855422A1 | THROTTLE BODY KIT (1 required per assembly) |
  |
|
855422A 1 - Throttle Body Kit [ More info ] Unavailable |
| #13 | 82130040 | SCREW (M6 X 40) (4 required per assembly) |
  |
|
10-821300 40 - Screw [ More info ]
|
| #14 | 855423 | O-RING (1 required per assembly) |
  |
|
25-855423 - O-Ring [ More info ]
|
| #15 | 81893430 | SCREW (M8 X 30) (3 required per assembly) |
  |
|
10-818934 30 - Screw - Priced Individually [ More info ]
|
| #16 | 81893435 | SCREW (M8 X 35) (3 required per assembly) |
  |
|
10-818934 35 - Screw [ More info ]
|
  |
|
108M0103814 - Screw (M8 x 35 MM) [ More info ]
|
| #17 | 817274 | WASHER (.344 X 1.00 X .063) STAINLESS STEEL (6 required per assembly) |
  |
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #18 | 855362001 | GROMMET (6 required per assembly) — Replaces: 855362 |
  |
|
25-855362001 - Grommet, Coolant Reservoir [ More info ]
|
| #19 | 855364 | BUSHING (6 required per assembly) |
  |
|
23-855364 - Bushing [ More info ]
|
| #20 | 883942 | SCREW (M4 X 16) (2 required per assembly) |
  |
|
10-883942 - Screw [ More info ]
|
| #21 | 8M0101629 | PUMP ASSEMBLY OIL (1 required per assembly) — Replaces: 857149T2, 857149T05 |
  |
8M0101629 - Oil Pump Assembly [ More info ] Unavailable |
|
  |
8M0128080 - Oil Pump [ More info ] Unavailable |
|
  |
|
8M0185614 - OIL PUMP [ More info ]
|
| #22 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 24.00 INCHES (1 required per assembly) — Replaces: 85606065 |
  |
|
328M0054152 - Tubing-39 Inch [ More info ]
|
| #23 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 18.50 INCHES (1 required per assembly) — Replaces: 85606065 |
| #24 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 15.50 INCHES (1 required per assembly) — Replaces: 85606065 |
| #25 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 24.50 INCHES (2 required per assembly) — Replaces: 85606065 |
| #26 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 27.00 INCHES (1 required per assembly) — Replaces: 85606065 |
| #27 | 8M0054213 | HOSE CUT 32.00 INCHES (1 required per assembly) — Replaces: 85583466 |
  |
|
328M0054213 - Hose -40 Inch [ More info ]
|
| #28 | 892830053 | HOSE (24.00 INCHES BRAIDED) (1 required per assembly) |
  |
|
32-892830053 - Hose -24 Inch [ More info ]
|
| #29 | 69355 | TIE STRAP @100 (AR required per assembly) |
  |
|
69355 - Tie Strap - Priced Individually [ More info ]
|
  |
|
8M0214940 - TIE STRAP [ More info ]
|
| #30 | 816311T | TIE STRAP @100 (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #31 | 858805 | CHECK VALVE (6 required per assembly) |
  |
|
21-858805 - Check Valve [ More info ]
|
