Parts for 20 HP EFI 2 Cyl 4-Stroke Mercury Outboard Motor Crankshaft, Pistons & Connecting Rods

Revise Search: Outboard > 4-Stroke Mercury Outboard > 20 HP EFI 2 Cyl > 0R833820 - 1R162636 > Crankshaft, Pistons & Connecting Rods

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

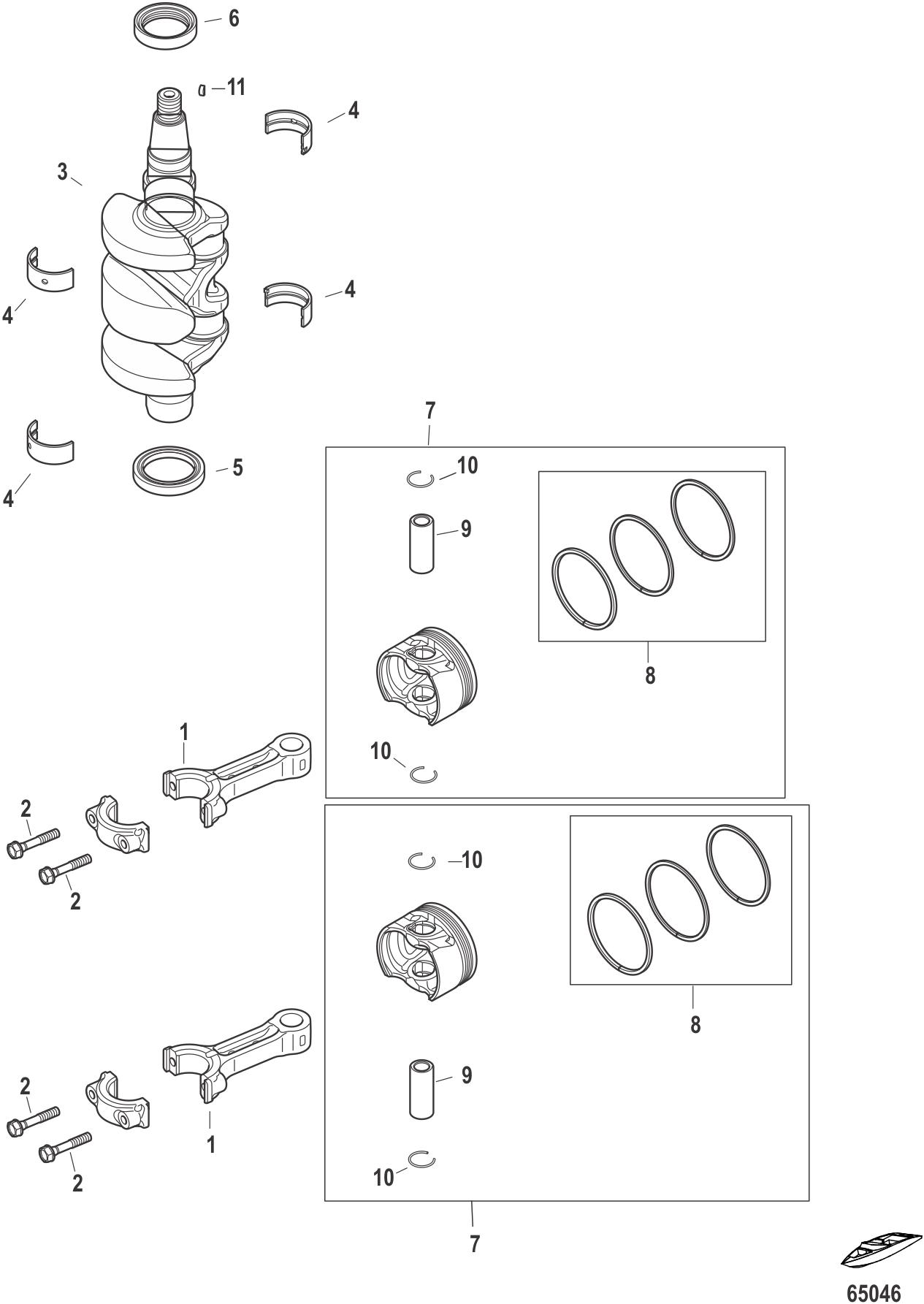

Crankshaft, Pistons & Connecting Rods

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0136159	PISTON (0.5 MM) (2 required per assembly)
		7008M0136159 - Piston [ More info ] $128.49 Available to Order: Shipping delay up to 10 days.
#-	8M0136161	PISTON RING ASSEMBLY OVERSIZED (0.5 MM) (2 required per assembly)
		398M0136161 - Piston Ring [ More info ] $25.79 Available to Order: Shipping delay up to 10 days.
#-	8M0134438	POWERHEAD GASKET (1 required per assembly)
		278M0134438 - Powerhead Gasket [ More info ] $107.49 Available to Order: Shipping delay up to 10 days.
#1	8M0134430	CONNECTING ROD (2 required per assembly)
		6008M0134430 - Connecting Rod [ More info ] $69.49 Available to Order: Shipping delay up to 10 days.
#2	8M0135582	BOLT CONNECTING ROD (2 required per assembly)
		108M0135582 - Bolt Connecting Rod [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#3	8M0134431	CRANKSHAFT (1 required per assembly)
		4008M0134431 - CrankShaft [ More info ] $411.99 Available to Order: Shipping delay up to 10 days.
#4	8M0135577	BEARING THRUST Blue (AR required per assembly)
		8M0135577 - Thrust Bearing [ More info ] $12.09 Available to Order: Shipping delay up to 10 days.
#4	8M0135578	BEARING THRUST Red (AR required per assembly)
		8M0135578 - Thrust Bearing [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#5	855681005	OIL SEAL Lower (1 required per assembly)
		26-855681005 - Oil Seal [ More info ] $17.99 Available to Order: Shipping delay up to 10 days.
#6	898103114	SEAL-OIL Upper (1 required per assembly)
		26-898103114 - Oil Seal [ More info ] $27.99 Available to Order: Shipping delay up to 10 days.
#7	8M0134428	PISTON ASSY (2 required per assembly)
		7008M0134428 - Piston [ More info ] $87.49 Available to Order: Shipping delay up to 10 days.
#8	8M0134429	PISTON RING ASSEMBLY (2 required per assembly)
		398M0134429 - Piston Ring Set [ More info ] $22.89 Available to Order: Shipping delay up to 10 days.
#9	8M0135581	PIN PISTON (2 required per assembly)
		418M0135581 - Piston Pin [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#10	160573	E RING (2 required per assembly)
		53-16057 3 - E Ring [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#11	825666001	KEY-MAGNETO (1 required per assembly)
		28-825666001 - Key - Magneto [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
