Parts for 2 HP Carb 4-Stroke Mercury Outboard Motor Oil Pan Serial # 0R318095 & Below

Revise Search: Outboard > 4-Stroke Mercury Outboard > 2 HP Carb > 0R131842 & Up > Oil Pan Serial # 0R318095 & Below

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

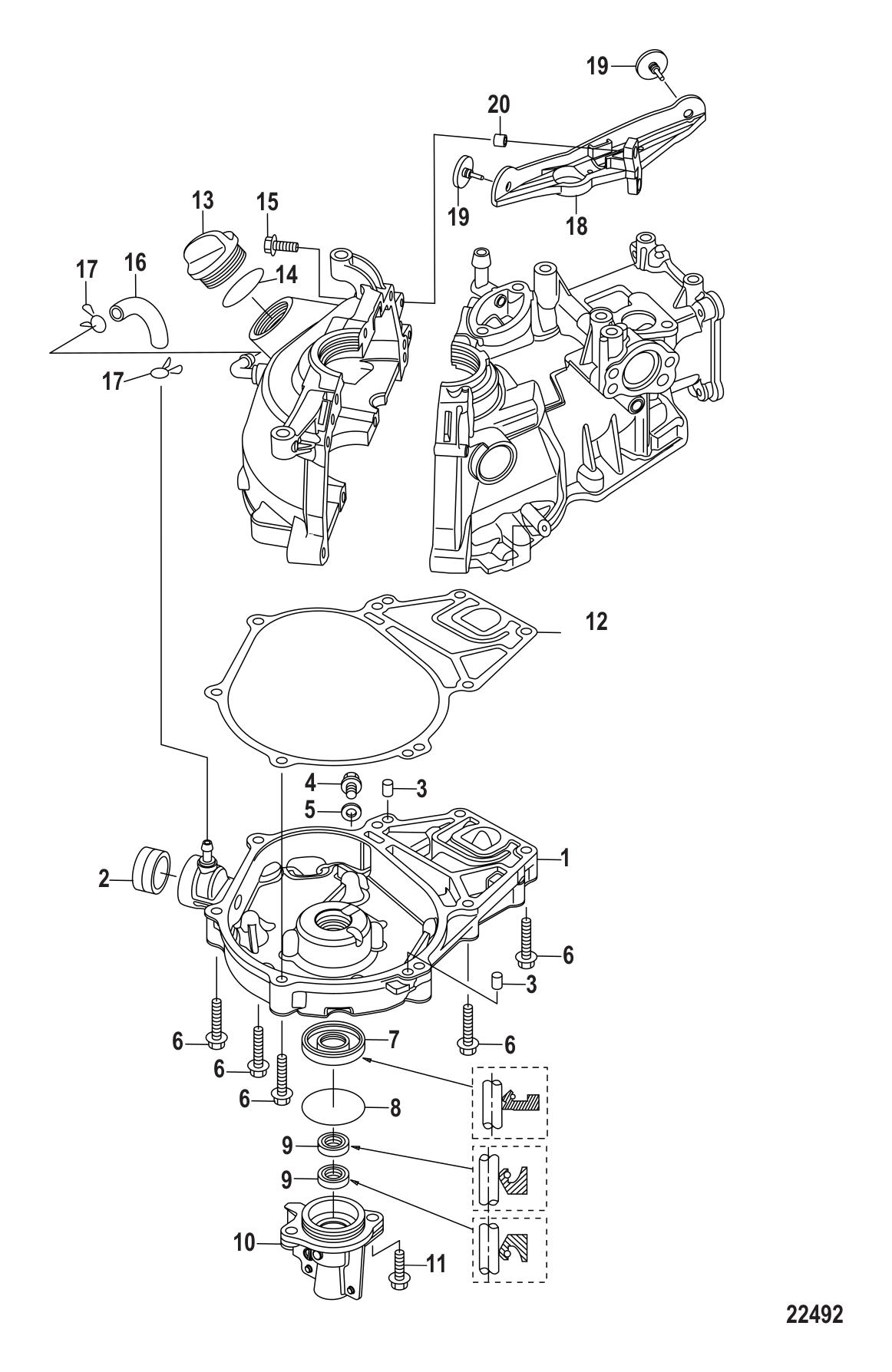

Oil Pan Serial # 0R318095 & Below

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	898103A67	GASKET SET-PH (1 required per assembly)
		27-898103A67 - Powerhead Gasket Set [ More info ] $124.49 Available to Order: Shipping delay up to 10 days.
#-	898103T72	SHORT BLOCK (1 required per assembly)
		898103T72 - Short Block [ More info ] Unavailable
#1	898103T54	OIL PAN (1 required per assembly)
		898103T54 - Oil Pan [ More info ] Unavailable
#2	898101294	DIPSTICK (1 required per assembly)
		898101294 - Dipstick [ More info ] $19.49 Available to Order: Shipping delay up to 10 days.
#3	16119	DOWEL PIN (3 required per assembly)
		17-16119 - Dowel Pin [ More info ] $8.19 $6.56 3 In Stock.
#4	803509021	BOLT-DRAIN (1 required per assembly) — Replaces: 8035096
		10-803509021 - Bolt - Drain [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#5	8035161	WASHER @5 (1 required per assembly)
		12-803516 1 - Washer [ More info ] $3.79 5 In Stock.
#6	850879001	BOLT (8 required per assembly)
		10-850879001 - Bolt [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#7	898101285	OIL SEAL (1 required per assembly)
		26-898101285 - Oil Seal [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#8	825057003	ORING (1 required per assembly)
		25-825057003 - O-Ring [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#9	898101298	OIL SEAL (2 required per assembly)
		26-898101298 - Oil Seal [ More info ] $25.89 Available to Order: Shipping delay up to 10 days.
#10	898103T55	HEAD (1 required per assembly)
		898103T55 - Head [ More info ] $52.49 Available to Order: Shipping delay up to 10 days.
#11	167051	BOLT (2 required per assembly)
		10-16705 1 - Bolt [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#12	898101297	GASKET (1 required per assembly)
		27-898101297 - Oil Pan Gasket [ More info ] $39.49 Available to Order: Shipping delay up to 10 days.
#13	859578A02	CAP (1 required per assembly)
		859578A02 - Cap [ More info ] Unavailable
		368M0135589 - CAP OIL FILL [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#14	803513007	ORING (1 required per assembly)
		25-803513007 - O-ring, Oil Filler Cap [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#15	167051	BOLT (2 required per assembly)
#16	898101281	HOSE (1 required per assembly)
		32-898101281 - Hose [ More info ] Unavailable
#17	95395	CLIP (2 required per assembly)
		54-95395 - Clip [ More info ] $3.09 1 In Stock.
#18	898101299	BRACKET (1 required per assembly)
		898101299 - Bracket [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#19	898101300	DAMPER (2 required per assembly)
		898101300 - Damper [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#20	952868	COLLAR (2 required per assembly)
		23-95286 8 - Collar [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
