Parts for 175 HP 3.4L V6 Pro XS 4-Stroke Mercury Outboard Motor Cylinder Block

Revise Search: Outboard > 4-Stroke Mercury Outboard > 175 HP 3.4L V6 Pro XS > 2B529482 & Up - USA > Cylinder Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

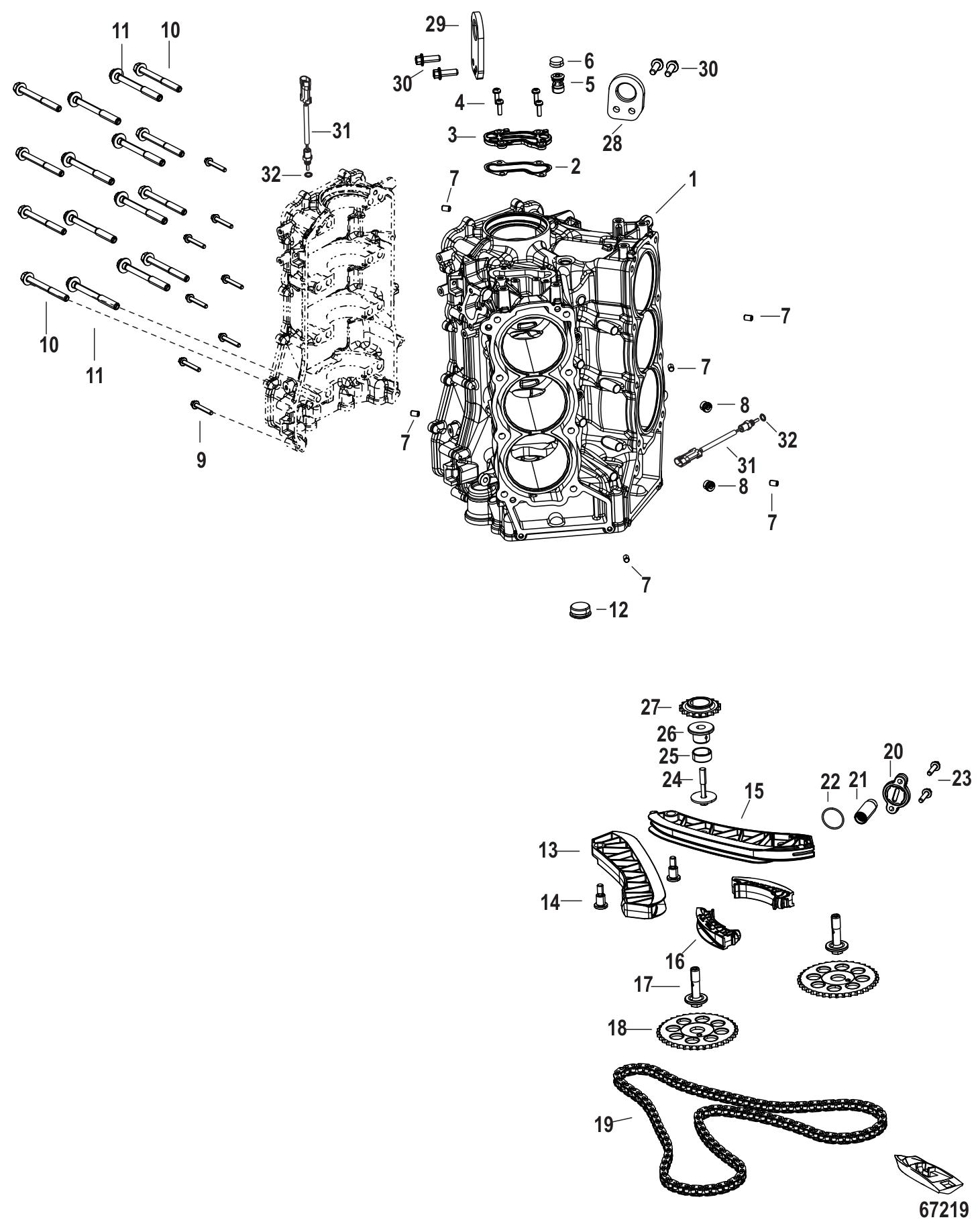

Cylinder Block

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0142278	LONG BLOCK V6 (1 required per assembly)
		618M0142278 - LONG BLOCK V6 [ More info ] Unavailable
#-	8M0142971	PWRHD GASKET SET (1 required per assembly)
		8M0142971 - Powerhead Gasket Set [ More info ] $345.49 Available to Order: Shipping delay up to 10 days.
#1	8M0142343	CYLINDER BLOCK (1 required per assembly)
		8008M0142343 - Cylinder Block [ More info ] Unavailable
		800-8M0208897 - CYLINDER BLOCK [ More info ] Unavailable
#2	8M0142348	GASKET COVER PLATE (1 required per assembly)
		278M0142348 - Gasket Cover PLT [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#3	8M0142349	COVER (1 required per assembly)
		10008M0142349 - Cover CYLDR BLK [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#4	8M0080651	SCREW (M6 X 20) (4 required per assembly)
		108M0080651 - Screw [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#5	8M0142352	PLUG 18 MM (1 required per assembly)
		198M0142352 - PLUG 18 MM [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#6	8M0142353	O-RING (0.614 X 0.070) (1 required per assembly)
		258M0142353 - ORING [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#7	893540	PIN DOWEL, 8X12 LONG (6 required per assembly)
		17-893540 - Dowel Pin [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#8	8M0087447	PLUG (10MM) (2 required per assembly)
		198M0087447 - Plug (10MM) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#9	8M0103809	SCREW (M6 X 40 MM) STAINLESS STEEL (8 required per assembly)
		108M0103809 - Screw - Priced Individually [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#10	8M0168893	SCREW M10 X 96 (8 required per assembly) — Replaces: 8M0142347
		10-8M0168893 - SCREW [ More info ] Unavailable
#11	8M0142346	SCREW (M11 X 107 MM) 12 POINT HEX HEAD (8 required per assembly)
		108M0142346 - Screw [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#12	8M0087454	PLUG (30 MM) (1 required per assembly)
		198M0087454 - PLUG - 30 MM [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#13	8M0142393	GUIDE CAM DRIVE (1 required per assembly)
		8M0142393 - Guide CAM DRIVE [ More info ] $21.59 Available to Order: Shipping delay up to 10 days.
#14	8M0086569	SCREW (1 required per assembly)
		108M0086569 - Screw [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#15	8M0142392	GUIDE MOVEABLE (1 required per assembly)
		8M0142392 - Guide MOVEABLE [ More info ] $22.59 Available to Order: Shipping delay up to 10 days.
#16	8M0142400	GUIDE SHORT SPAN (2 required per assembly)
		108M0142400 - Guide SHORT SPAN [ More info ] Unavailable
#17	8M0142395	BOLT M12 (2 required per assembly)
		108M0142395 - Bolt M12 [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#18	8M0142390	SPROKET CAMSHAFT (2 required per assembly)
		8M0142390 - SPROKET Camshaft [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#19	8M0142399	CHAIN CAM DRIVE (1 required per assembly)
		108M0142399 - CHAIN CAM DRIVE [ More info ] Unavailable
#20	8M0064752	END CAP, CAM TENS (1 required per assembly)
		11008M0064752 - End Cap, Cam TENS [ More info ] $18.69 Available to Order: Shipping delay up to 10 days.
#21	8M0142394	TENSIONER ASSEMBLY TIMING CHAIN (1 required per assembly)
		8M0142394 - TENSIONER [ More info ] Unavailable
		8M0220226 - 8M0220226 - TENSIONER ASSY [ More info ] Unavailable Replaced by -8M0231253
		8M0231253 - TENSIONER ASSY [ More info ] Unavailable
#22	898836	O-RING BROWN (1 required per assembly)
		25-898836 - O-ring, Brown, Tensioner Cap [ More info ] $3.70 2 In Stock.
		25-8M0237361 - O-RING [ More info ] Unavailable
#23	8M0103807	SCREW @2 (2 required per assembly)
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#24	8M0142398	SCREW M8 X 45 (1 required per assembly)
		108M0142398 - Screw M8 X 45 [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#25	8M0142397	BUSHING IDLER (1 required per assembly)
		238M0142397 - Bushing IDLER [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#26	8M0142396	JOURNAL IDLER (1 required per assembly)
		8M0142396 - JOURNAL IDLER [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#27	8M0142391	SPROCKET IDLER (1 required per assembly)
		8M0142391 - Sprocket IDLER [ More info ] $29.59 Available to Order: Shipping delay up to 10 days.
#28	8M0142448	LIFTING EYE STBD (1 required per assembly)
		8M0142448 - LIFTING EYE STBD [ More info ] $12.59 Available to Order: Shipping delay up to 10 days.
#29	8M0142600	LIFTING EYE PORT (1 required per assembly)
		8M0142600 - LIFTING EYE PORT [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#30	8M0103821	SCREW (4 required per assembly)
		108M0103821 - Screw [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#31	8M0142542	SENSOR TEMPERATUR (2 required per assembly)
		8M0142542 - Sensor TEMPERATUR [ More info ] Unavailable
		8M0205787 - Temperature Sensor [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#32	896699	O-RING (1.78 MM X .08 MM) (2 required per assembly)
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
