Parts for 150 HP EFI Seapro 4-Stroke Mercury Outboard Motor Gear Housing, Propeller Shaft, Counter 2B172249 - 2B205521

Revise Search: Outboard > 4-Stroke Mercury Outboard > 150 HP EFI Seapro > 2B139139 & Up > Gear Housing, Propeller Shaft, Counter 2B172249 - 2B205521

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

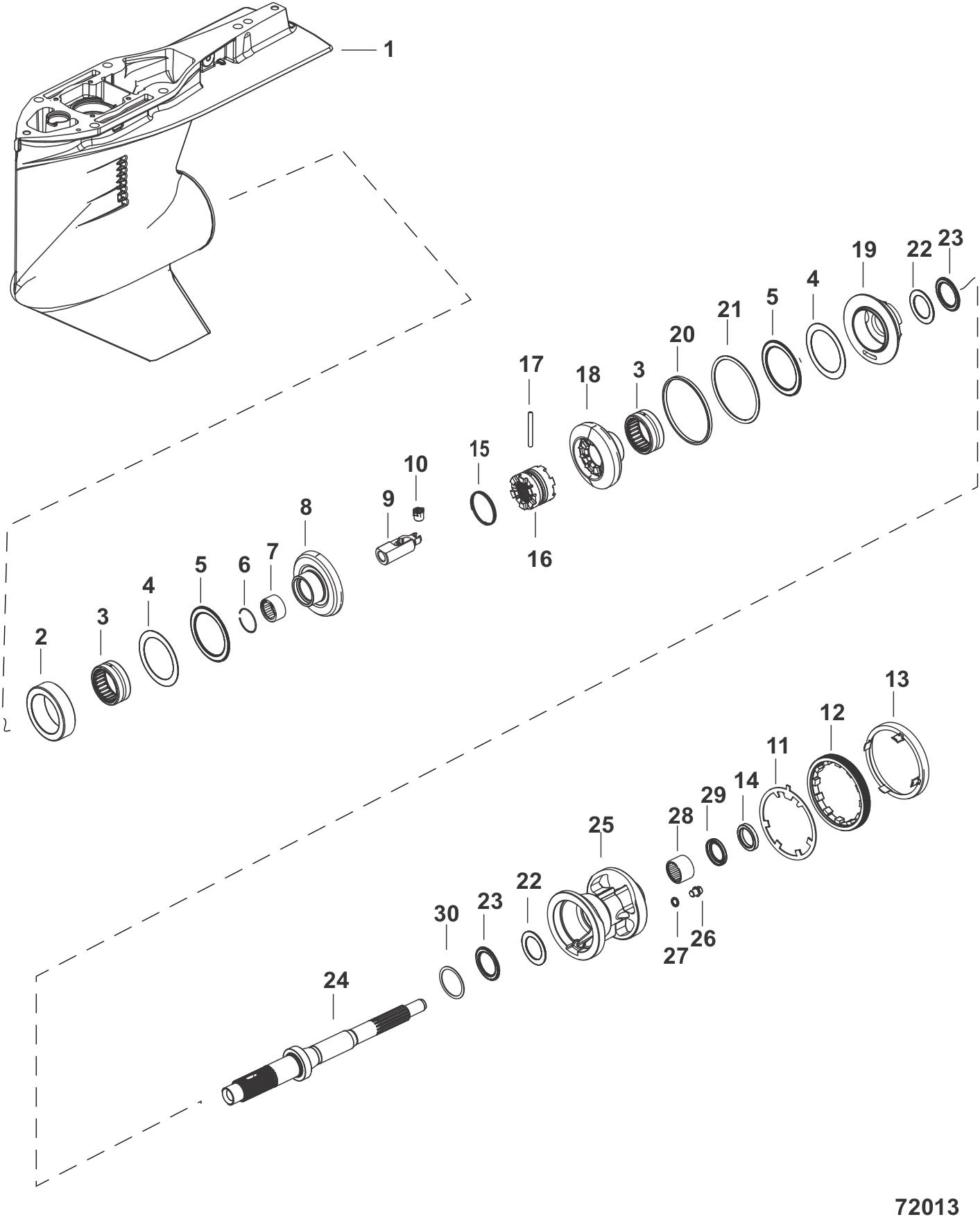

Gear Housing, Propeller Shaft, Counter 2B172249 - 2B205521

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0107156	G/C CXL (1 required per assembly) — Replaces: 8M0061029
		16008M0107156 - G/C CXL [ More info ] Unavailable
#1	8M0057747	GEAR HOUSING BASIC (1 required per assembly)
		16008M0057747 - Gearcase Basic [ More info ] $1,971.49 Available to Order: Shipping delay up to 10 days.
#2	8M0031508	ADAPTER REVERSE GEAR (1 required per assembly)
		8M0031508 - Reverse Gear Adapter [ More info ] $57.99 Available to Order: Shipping delay up to 10 days.
#3	814653T	BEARING ASSEMBLY NEEDLE ROLLERS (2 required per assembly) — Replaces: 814653001
		31-814653T - Bearing - Needle Rollers [ More info ] $103.99 $24.96 10+ In Stock.
#4	815481	THRUST WASHER (2 required per assembly)
		12-815481 - Thrust Washer [ More info ] $24.09 $23.12 10 In Stock.
#5	815480	BEARING THRUST (2 required per assembly)
		31-815480 - Thrust Bearing [ More info ] $32.49 $7.81 10+ In Stock.
#6	8M0071554	RING RETAINING (1 required per assembly) — Replaces: 8M0031506
		538M0071554 - Retaining Ring [ More info ] $2.99 1 In Stock.
#7	8M0057742	BEARING NEEDLE (1 required per assembly)
		318M0057742 - Needle Bearing [ More info ] $13.49 Available to Order: Shipping delay up to 10 days.
#8	8M0065074	GEAR REVERSE, 25T, LEFT HAND (1 required per assembly)
		438M0065074 - Reverse Gear, LH [ More info ] Unavailable
#9	8M0031018	FOLLOWER CAM (LH) (1 required per assembly)
		8M0031018 - FOLLOWER-CAM-LH [ More info ] $78.49 Available to Order: Shipping delay up to 10 days.
#10	8M0077490	CAM SHIFT (1 required per assembly)
		8M0077490 - CAM-SHIFT [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#11	8M0030784	WASHER KEYED (1 required per assembly)
		8M0030784 - Washer-KeyED (CP) [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#12	8M0168885	RETAINER BEARING (1 required per assembly) — Replaces: 8M0030785, 8M0141332
		538M0168885 - Retainer BEARING [ More info ] $55.49 Available to Order: Shipping delay up to 10 days.
#13	8M0187255	SLEEVE @5 (1 required per assembly) — Replaces: 8M0054695
		23-8M0187255 - Sleeve Note: Priced Individually [ More info ] $7.89 5 In Stock.
#14	8M0204670	SEAL @5 (1 required per assembly) — Replaces: 76868
		26-8M0204670 - Gearcase Seal, Priced Individually [ More info ] $19.19 5 In Stock.
#15	8M0047945	SPRING RETAINING (1 required per assembly)
		248M0047945 - Spring-Cross Pin [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#16	NSS	NOT SOLD SEPARATE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#17	8M0045759	PIN CROSS (1 required per assembly)
		178M0045759 - Pin-CROSS [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#18	8M0065268	GEAR SET FORWARD, 25T, LEFT HAND (1 required per assembly)
		438M0065268 - Forward Gear, LH [ More info ] $485.99 Available to Order: Shipping delay up to 10 days.
#19	8M0031509	BEARING ADAPTER FORWARD GEAR (1 required per assembly)
		8M0031509 - Bearing Adaptor [ More info ] $97.49 Available to Order: Shipping delay up to 10 days.
#20	8M0038346	SHIM 5.316 (AR required per assembly)
		238M0038346 - Spacer,Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038347	SHIM 5.366 (AR required per assembly)
		238M0038347 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038348	SHIM 5.416 (AR required per assembly)
		238M0038348 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038349	SHIM 5.466 (AR required per assembly)
		238M0038349 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038350	SHIM 5.516 (AR required per assembly)
		238M0038350 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038351	SHIM 5.566 (AR required per assembly)
		238M0038351 - Spacer, Shim [ More info ] $30.79 Available to Order: Shipping delay up to 10 days.
#20	8M0038352	SHIM 5.616 (AR required per assembly)
		238M0038352 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038353	SHIM 5.666 (AR required per assembly)
		238M0038353 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038354	SHIM 5.716 (AR required per assembly)
		238M0038354 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038355	SHIM 5.766 (AR required per assembly)
		238M0038355 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#20	8M0038356	SHIM 5.816 (AR required per assembly)
		238M0038356 - Spacer, Shim [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#21	8M0030845	O-RING 3.975X.210 (1 required per assembly)
		258M0030845 - O-Ring,3.975X.210 [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#22	18448	THRUST WASHER (2 required per assembly)
		12-18448 - Thrust Washer [ More info ] $10.19 $2.05 7 In Stock.
#23	15842	BEARING THRUST (2 required per assembly)
		31-15842 - Thrust Bearing [ More info ] $42.07 10+ In Stock.
#24	8M0073789	SHAFT-PROP LH (1 required per assembly) — Replaces: 8M0061835
		448M0073789 - Prop Shaft LH [ More info ] $407.14 Available to Order: Shipping delay up to 10 days.
#25	8M0031510	BEARING CARRIER COUNTER (1 required per assembly)
		8M0031510 - Bearing Carrier [ More info ] $283.49 Available to Order: Shipping delay up to 10 days.
#26	880717A01	SCREW/SEAL KIT .38 INCH LONG (1 required per assembly)
		10-880717A01 - Screw/Seal Kit [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#26	8M0077071	SCREW/SEAL KIT .75 INCH LONG (1 required per assembly)
		108M0077071 - Screw/Seal Kit [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#27	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 7 In Stock.
#28	30956T	BEARING NEEDLE (1 required per assembly)
		31-30956T - Roller Bearing [ More info ] $19.49 4 In Stock.
#29	14077	SEAL OIL (1 required per assembly)
		26-14077 - Seal [ More info ] $19.49 5 In Stock.
		18-2077 - Seal 26-14077 [ More info ] $18.06 1 In Stock.
#30	8M0076745	WASHER/SHIM SET (1 required per assembly)
		158M0076745 - Washer/Shim Set [ More info ] $394.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050423	WASHER .020 (AR required per assembly)
		12-8M0050423 - Shim-.020 , Priced Individually [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050424	WASHER .022 (AR required per assembly)
		12-8M0050424 - Shim-.022 , Priced Individually [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050425	WASHER .024 (AR required per assembly)
		12-8M0050425 - Shim-.024 , Priced Individually [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050427	WASHER .026 (AR required per assembly)
		12-8M0050427 - Shim-.026 , Priced Individually [ More info ] $30.19 Available to Order: Shipping delay up to 10 days.
#30	8M0050428	WASHER .028 (AR required per assembly)
		12-8M0050428 - Shim-.028 , Priced Individually [ More info ] $31.59 Available to Order: Shipping delay up to 10 days.
#30	8M0050429	WASHER .030 (AR required per assembly)
		12-8M0050429 - Shim-.030 , Priced Individually [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#30	8M0050430	WASHER .032 (AR required per assembly)
		12-8M0050430 - Shim-.032 , Priced Individually [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#30	8M0050431	WASHER .034 (AR required per assembly)
		12-8M0050431 - Shim-.034 , Priced Individually [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050432	WASHER .036 (AR required per assembly)
		12-8M0050432 - Shim-.036 , Priced Individually [ More info ] $26.19 Available to Order: Shipping delay up to 10 days.
#30	8M0050433	WASHER .038 (AR required per assembly)
		12-8M0050433 - Shim-.038 , Priced Individually [ More info ] $25.79 Available to Order: Shipping delay up to 10 days.
#30	8M0050434	WASHER .040 (AR required per assembly)
		12-8M0050434 - Shim-.040 , Priced Individually [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#30	8M0050435	WASHER .042 (AR required per assembly)
		12-8M0050435 - Shim-.042 , Priced Individually [ More info ] $30.29 Available to Order: Shipping delay up to 10 days.
#30	8M0050436	WASHER .044 (AR required per assembly)
		12-8M0050436 - Shim-.044 , Priced Individually [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050437	WASHER .046 (AR required per assembly)
		12-8M0050437 - Shim-.046 , Priced Individually [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050438	WASHER .048 (AR required per assembly)
		12-8M0050438 - Shim-.048 , Priced Individually [ More info ] $26.79 Available to Order: Shipping delay up to 10 days.
#30	8M0050439	WASHER .050 (AR required per assembly)
		12-8M0050439 - Shim-.050 , Priced Individually [ More info ] $26.89 Available to Order: Shipping delay up to 10 days.
