Parts for 150 HP EFI Pro XS 4-Stroke Mercury Outboard Motor Lower Cowl

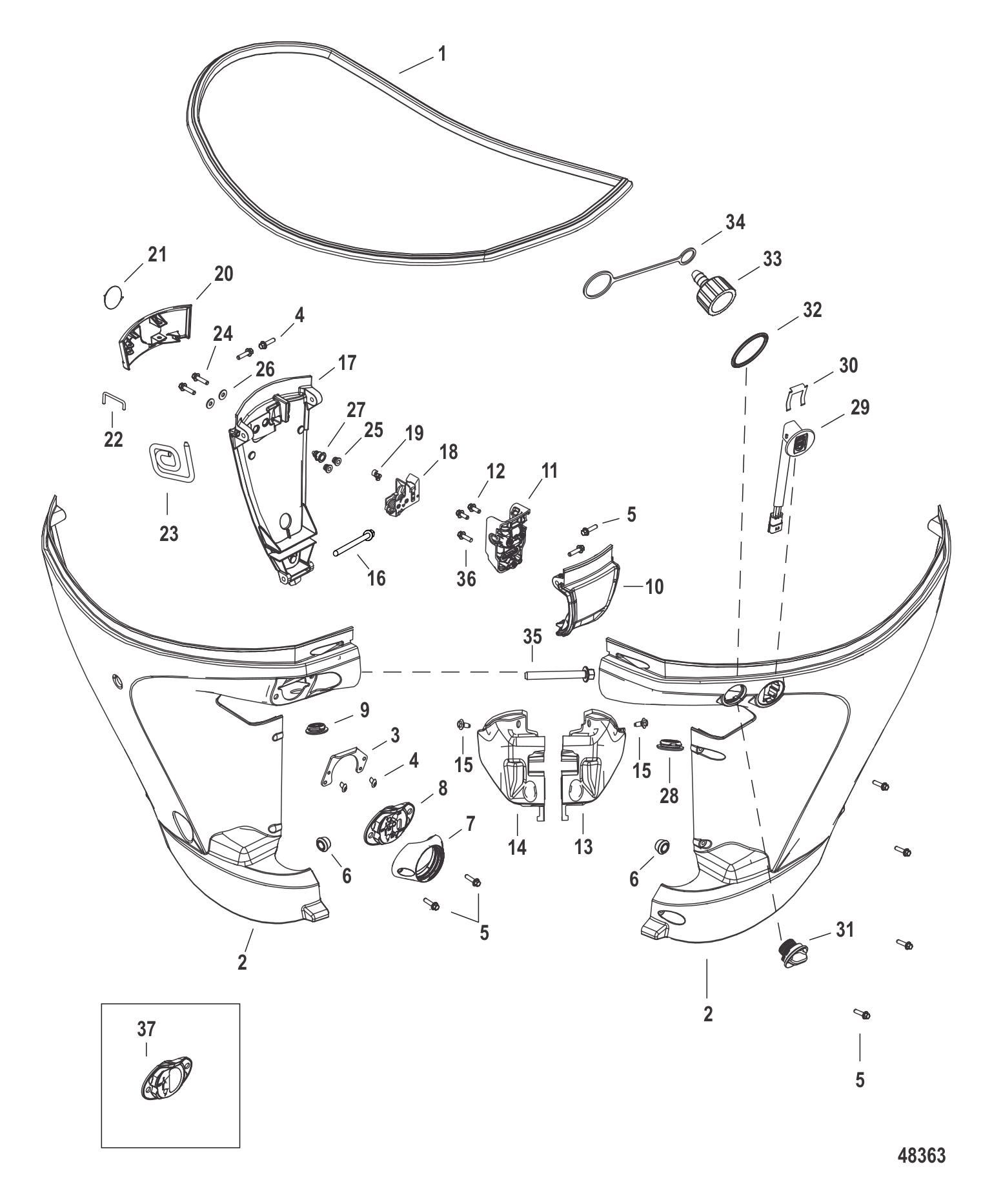

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0144428 | PANEL-REAR ASSY (1 required per assembly) |
  |
|
8M0144428 - PANEL-REAR ASSY [ More info ]
|
  |
|
100-8M0245390 - LOWER REAR COWL [ More info ] Unavailable |
| #1 | 8M0109220 | SEAL - TOP COWL (1 required per assembly) |
  |
|
8M0109220 - Seal - Top Cowl [ More info ]
|
| #2 | 8M0057756 | CHAP ASSEMBLY Non-Decaled (1 required per assembly) |
  |
|
1008M0057756 - CHAP Assembly [ More info ]
|
  |
|
100-8M0245382 - COWL PAIR BLACK [ More info ] Unavailable |
| #3 | 8M0047717 | PLATE INGRESS MOUNTING (1 required per assembly) |
  |
|
8M0047717 - Ingress Plate MT [ More info ]
|
| #4 | 8M0047718 | SCREW (M5 X 8MM) (2 required per assembly) |
  |
|
108M0047718 - Screw-35X8MM [ More info ]
|
| #5 | 8M0204721 | SCREW @2 (8 required per assembly) — Replaces: 8M0022324 |
  |
108M0204721 - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
108M0230977 - SCREW [ More info ]
|
| #6 | 8M0142713 | CAP SUPPORT (2 required per assembly) |
  |
|
8M0142713 - CAP Support [ More info ]
|
| #7 | 8M0204727 | ADAPTOR-RIG HOSE (1 required per assembly) — Replaces: 8M0057348 |
  |
|
8M0204727 - ADAPTOR-RIG HOSE [ More info ] Unavailable |
| #8 | 8M0204729 | GROMMET INGRESS (1 required per assembly) — Replaces: 8M0061055 |
  |
|
8M0204729 - GROMMET INGRESS [ More info ] Unavailable |
| #9 | 8M0048006 | GROMMET-TRIM WIRE (1 required per assembly) |
  |
|
258M0048006 - Grommet-Trim Wire [ More info ]
|
| #10 | 8M0057758 | LOWER COWL FRONT (1 required per assembly) |
  |
|
1008M0057758 - Lower Cowl Front [ More info ]
|
| #11 | 8M0047810 | RETAINER-TOP COWL (1 required per assembly) |
  |
|
8M0047810 - Retainer-Top Cowl [ More info ]
|
| #12 | 8M0103805 | SCREW @2 (3 required per assembly) |
  |
|
108M0103805 - Screw (M6 x 16MM) Stain [ More info ]
|
| #13 | 8M0093776 | COVER-UPPER MOUNT (1 required per assembly) |
  |
|
1008M0093776 - Cover-UPPER MOUNT [ More info ]
|
| #14 | 8M0093777 | COVER-UPPER MOUNT (1 required per assembly) |
  |
|
1008M0093777 - Cover-UPPER MOUNT [ More info ]
|
| #15 | 892073002 | SCREW @4 (2 required per assembly) |
  |
10-892073002 - Screw [ More info ] Unavailable |
|
  |
|
108M0230980 - SCREW (108M0230980) [ More info ]
|
| #16 | 8M0071078 | SCREW (1 required per assembly) |
  |
108M0071078 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0230974 - SCREW [ More info ] Unavailable |
| #17 | 8M0034063 | PANEL, REAR (1 required per assembly) |
  |
|
8M0034063 - Rear Panel [ More info ] Unavailable |
| #18 | 8M0041031 | REAR LATCH ASSEMBLY (1 required per assembly) |
  |
|
8M0041031 - Rear Latch Assembly [ More info ]
|
| #19 | 8M0006054 | RETAINER (1 required per assembly) |
  |
|
8M0006054 - Retainer [ More info ]
|
| #20 | 8M0047782 | HANDLE LATCH (1 required per assembly) |
  |
|
8M0047782 - Latch Handle [ More info ]
|
| #21 | 8M0043700 | M-ICON RED, 39MM (1 required per assembly) |
  |
|
378M0043700 - M-ICON - RED [ More info ]
|
  |
|
37-8M0188626 - DECAL [ More info ] Unavailable |
| #22 | 8M0031367 | LATCH LINK REAR (1 required per assembly) |
  |
|
8M0031367 - REAR Latch Link [ More info ]
|
| #23 | 8M0034065 | PIN HANDLE (1 required per assembly) |
  |
|
178M0034065 - Pin-Handle [ More info ]
|
| #24 | 8M0103807 | SCREW (M6 X 25 MM) STAINLESS STEEL (2 required per assembly) |
  |
|
108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ]
|
| #25 | 8M0047796 | BUSHING (2 required per assembly) |
  |
|
238M0047796 - Bushing [ More info ]
|
| #26 | 4002316 | WASHER (6.60 X 17.0 X 1.5SS) (2 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
  |
|
128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ]
|
| #27 | 8M0056980 | SEAL REAR LATCH (1 required per assembly) |
  |
|
8M0056980 - Seal-REAR Latch [ More info ]
|
| #28 | 8M0048008 | GROMMET-TRIM WIRE (1 required per assembly) |
  |
|
258M0048008 - Grommet-Trim Wire [ More info ]
|
| #29 | 8M0037225 | TRIM-SWITCH (1 required per assembly) |
  |
878M0037225 - Trim Switch [ More info ] Unavailable |
|
  |
|
87-8M0235190 - TRIM SWITCH [ More info ] Unavailable |
| #30 | 8M0032848 | RETAINER (1 required per assembly) |
  |
|
8M0032848 - Retainer [ More info ]
|
| #31 | 888958001 | PLUG (1 required per assembly) |
  |
22-888958001 - Plug [ More info ] Unavailable |
|
  |
|
8M0215105 - PLUG [ More info ] Unavailable |
| #32 | 8M0047301 | SEAL-FLUSH PLUG (1 required per assembly) |
  |
8M0047301 - Seal-Flush Plug [ More info ] Unavailable |
|
  |
|
25-8M0219168 - SEAL FLUSH PLUG [ More info ] Unavailable |
| #33 | 885361A01 | FITTING ASY FLUSH (1 required per assembly) |
  |
|
22-885361A01 - Fitting Assembly Flush [ More info ]
|
| #34 | 889823001 | TETHER (1 required per assembly) |
  |
889823001 - Tether [ More info ] Unavailable |
|
  |
|
8M0224266 - TETHER,FLUSH PLUG [ More info ] Unavailable |
| #35 | 88552550 | SCREW @2 (1 required per assembly) |
  |
|
10-885525 50 - Screw - Priced Individually [ More info ]
|
| #36 | 8M0103806 | SCREW @2 (1 required per assembly) |
  |
|
108M0103806 - Screw - Priced Individually [ More info ]
|
| #37 | 8M0062583 | RIGGING TUBE GROM Rigging Tube (Accessory) (1 required per assembly) |
  |
|
8M0062583 - Grommet [ More info ]
|
