Parts for 150 HP EFI 4-Stroke Mercury Outboard Motor Transom Bracket

Revise Search: Outboard > 4-Stroke Mercury Outboard > 150 HP EFI > 1B905505 & Up > Transom Bracket

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Transom Bracket

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0007470	KNOB (1 required per assembly)
		8M0007470 - Knob [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#2	8M0021914	PIN (1 required per assembly)
		17-8M0021914 - Pin , (.125 X 30 Mm) [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#3	830900	SPRING (1 required per assembly)
		24-830900 - Spring, Compression [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#4	8M0054598	BEARING TILT LOCK (2 required per assembly)
		238M0054598 - Tilt Lock Bearing [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#5	826135	NUT (1 required per assembly)
		11-826135 - Nut (1.0-14) [ More info ] $26.03 10+ In Stock.
#6	45711	O RING @5 (1 required per assembly)
		25-45711 - Valve Cover O-Ring, Priced Individually [ More info ] $1.80 8 In Stock.
#7	826125A1	TILT TUBE KIT (1 required per assembly)
		826125A 1 - Tilt Tube Kit [ More info ] $294.39 1 In Stock.
#8	8M0057721	TRANSOM BKT, PORT (1 required per assembly)
		14008M0057721 - Transom Bracket, PORT [ More info ] $692.49 Available to Order: Shipping delay up to 10 days.
#9	893709	PIN-GROOVED (1 required per assembly)
		17-893709 - Pin -grooved [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#10	830899	SPRING (1 required per assembly)
		24-830899 - Spring, Tension, Tilt Lock [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#11	8M0088801	LEVER-TILT LOCK (1 required per assembly) — Replaces: 8M0034841
		8M0088801 - Tilt Lock Lever [ More info ] $40.99 Available to Order: Shipping delay up to 10 days.
#12	8M0062746	CABLE ASSEMBLY (2 required per assembly)
		8M0062746 - Cable Assembly [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#13	4000325	SCREW (2 required per assembly)
		10-40003 25 - Screw [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#14	8M0084612	WASHER (1 required per assembly) — Replaces: 8M0056607
		128M0084612 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#15	8M0051768	CLAMP (1 required per assembly)
		548M0051768 - Clamp [ More info ] $0.30 Available to Order: Shipping delay up to 10 days.
#16	8M0061365	TRANSOM BKT, STBD (1 required per assembly)
		14008M0061365 - Transom Bracket, Stbd [ More info ] $692.49 Available to Order: Shipping delay up to 10 days.
#17	8M0204730	SCREW (2 required per assembly) — Replaces: 8M0071543
		10-8M0204730 - SCREW [ More info ] Unavailable
#18	8M0204665	WASHER @10 (4 required per assembly) — Replaces: 54012
		12-8M0204665 - WASHER Note: Priced Individually [ More info ] $3.59 10+ In Stock.
#19	8M0204648	WASHER @5 (2 required per assembly) — Replaces: 28421
		12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#20	82671117	NUT (1 required per assembly)
		11-826711 17 - Nut, (.500-20) [ More info ] $8.99 10+ In Stock.
#21	8M0057591	WASHER, TILT TUBE (2 required per assembly)
		128M0057591 - Washer, Tilt Tube [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#22	8M0041013	SCREW @5 (2 required per assembly)
		108M0041013 - Screw , Priced Individually [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#23	8M0054606	WASHER-31.69X9.01 (2 required per assembly)
		128M0054606 - Washer-31.69X9.01 [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#24	8M0050046	CABLE ASSEMBLY (1 required per assembly)
		8M0050046 - Cable Assembly [ More info ] $5.19 5 In Stock.
#25	4010610	SCREW (1 required per assembly)
		10-40106 10 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#26	826164	NUT @2 (1 required per assembly)
		11-826164 - Nut (7/8-14) [ More info ] Unavailable
		11-8M0231351 - NUT @2 [ More info ] Unavailable

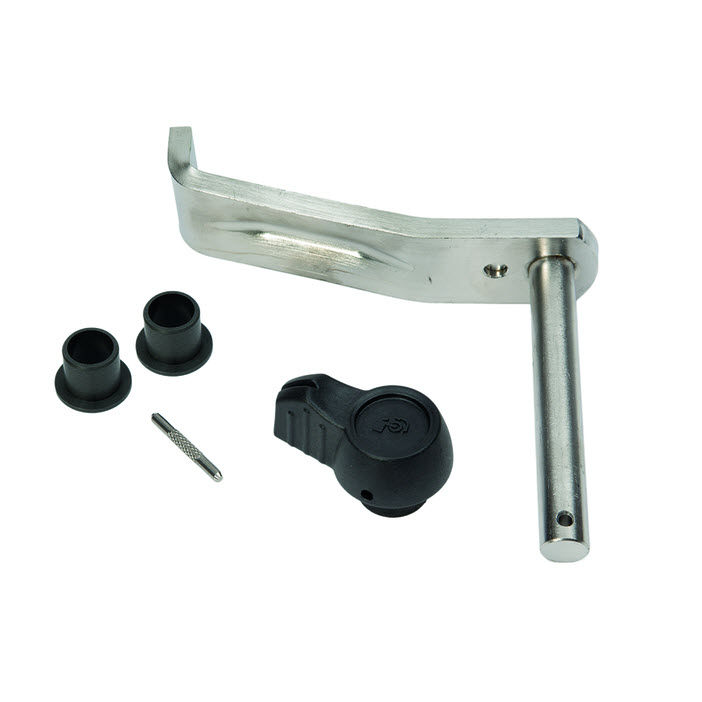

#27	8M0072610	TILT LOCK LEVER (1 required per assembly)
		8M0072610 - Tilt Lock Lever [ More info ] $108.99 Available to Order: Shipping delay up to 10 days.
#28	8M0054598	BEARING TILT LOCK .05 INCH ID FLG (1 required per assembly)
#29	8M0021914	PIN (.125 X 30 MM) (1 required per assembly)
#30	8M0007470	KNOB (1 required per assembly)
#31	8M0059532	TILT LIMIT MODULE (1 required per assembly)
		8M0059532 - Tilt Limit Module [ More info ] $101.17 Available to Order: Shipping delay up to 10 days.
#32	816311T	TIE STRAP (8.00 INCHES) (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#33	13541	PLUG MALE (1 required per assembly)
		13541 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#34	8M0059091	BEARING, TILT PIN (2 required per assembly)
		238M0059091 - Bearing, Tilt Pin [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
