Parts for 15 HP Carb 2 Cyl 4-Stroke Mercury Outboard Motor Cylinder Block

Revise Search: Outboard > 4-Stroke Mercury Outboard > 15 HP Carb 2 Cyl > 0R235949 - 0R833819 > Cylinder Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

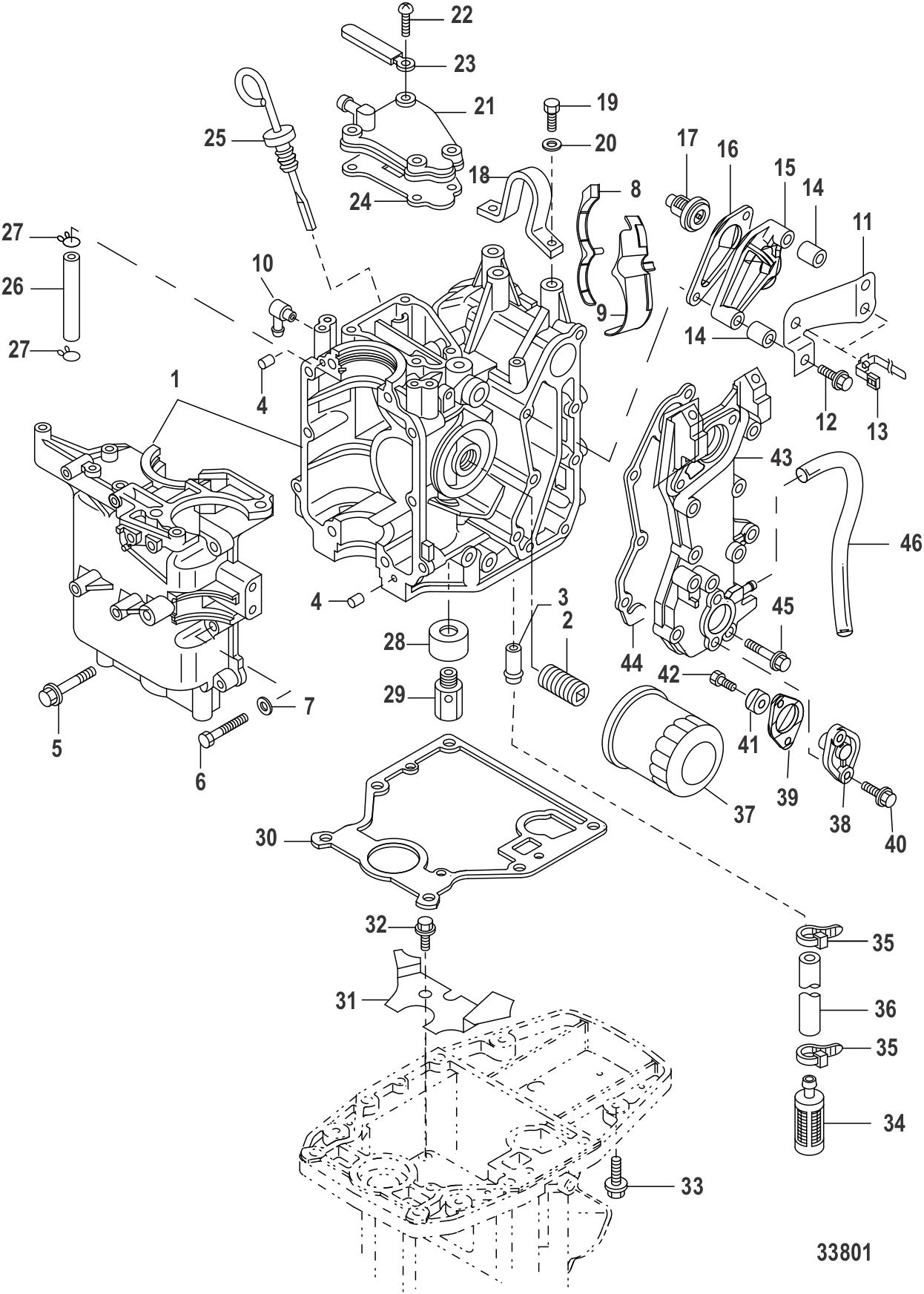

Cylinder Block

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0145938	SHORT BLOCK (1 required per assembly) — Replaces: 895274T08, 8M0099416
		8M0145938 - SHORT BLOCK [ More info ] Unavailable
#-	803663A08	GASKET SET (1 required per assembly)
		27-803663A08 - Powerhead Gasket Set [ More info ] $264.49 Available to Order: Shipping delay up to 10 days.
#1	879147T59	CYLINDER BLOCK (1 required per assembly)
		803-879147T59 - Cylinder Block [ More info ] $818.99 Available to Order: Shipping delay up to 10 days.
#2	855677004	BOLT OIL FILTER (1 required per assembly)
		10-855677004 - Bolt [ More info ] $12.79 Available to Order: Shipping delay up to 10 days.
#3	822644001	FITTING NIPPLE (1 required per assembly)
		22-822644001- Nipple [ More info ] $8.39 1 In Stock.
#4	16119	PIN DOWEL (2 required per assembly)
		17-16119 - Dowel Pin [ More info ] $8.19 $6.56 3 In Stock.
#5	855677005	BOLT (4 required per assembly) — Replaces: 855677001
		10-855677005 - Bolt - Priced Individually [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#6	166985	BOLT (6 required per assembly)
		10-16698 5 - Bolt [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#7	16826	WASHER STAINLESS STEEL (6 required per assembly) — Replaces: 879194338
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#8	898103162	INSERT WATER JACKET STARBOARD (WHITE) (1 required per assembly)
		898103162 - Insert- Stbd [ More info ] $15.99 Available to Order: Shipping delay up to 10 days.
#8	8M0093610	INSERT WATER JACKET STARBOARD (BLACK) (1 required per assembly)
		8M0093610 - INSERT - Starboard [ More info ] $17.99 Available to Order: Shipping delay up to 10 days.
#9	898103163	INSERT WATER JACKET PORT (WHITE) (1 required per assembly)
		898103163 - Insert- Port [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#9	8M0093611	INSERT WATER JACKET PORT (BLACK) (1 required per assembly)
		8M0093611 - INSERT-PORT [ More info ] $17.99 Available to Order: Shipping delay up to 10 days.
#10	NSS	NOT SOLD SEPARATE Fitting (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#11	898101968	BRACKET (1 required per assembly)
		898101968 - Bracket [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#12	879194268	BOLT (2 required per assembly)
		10-879194268 - Bolt [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#13	898101949	CLAMP (2 required per assembly)
		54-898101949 - Clamp [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#14	95286029	COLLAR (2 required per assembly)
		23-95286029 - Collar [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#15	8537052	CAP (1 required per assembly)
		853705 2 - Cap [ More info ] $23.39 Available to Order: Shipping delay up to 10 days.
#16	853702005	GASKET THERMOSTAT CAP (1 required per assembly)
		27-853702005 - New part # is 278M0214960 [ More info ] Unavailable
		278M0214960 - Gasket [ More info ] $5.90 6 In Stock.
#17	8M0119207	THERMOSTAT (1 required per assembly) — Replaces: 855676002
		8M0119207 - Thermostat [ More info ] $82.49 4 In Stock.
		18-43175 - Thermostat, 130 Degrees, 855676002 [ More info ] $66.99 $63.00 4 In Stock.
		75-75018 - Thermostat Kit 5041185 [ More info ] $39.99 $30.59 2 In Stock.
#18	855550003	LIFTING EYE (1 required per assembly) — Replaces: 855550002
		855550003 - Lifting Eye [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#19	879194293	BOLT @2 (2 required per assembly)
		10-879194293 - BOLT NLA [ More info ] Unavailable
#20	879194342	WASHER (2 required per assembly)
		12-879194342 - Washer [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#21	803511001	CAP (1 required per assembly)
		803511001 - Cap [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#22	895136003	SCREW (4 required per assembly)
		10-895136003 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#23	8M0130961	CLAMP (1 required per assembly) — Replaces: 95306
		548M0130961 - Clamp [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#24	803508020	GASKET BREATHER CHAMBER COVER (1 required per assembly)
		27-803508020 - Breather Cover Gasket [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#25	898101966	DIPSTICK (1 required per assembly)
		898101966 - Dipstick [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#26	8M0057113	HOSE (1 required per assembly) — Replaces: 851848032, 879194470
		328M0057113 - Hose [ More info ] $27.79 Available to Order: Shipping delay up to 10 days.
#27	95395	CLIP (2 required per assembly)
		54-95395 - Clip [ More info ] $3.09 1 In Stock.
#28	834954004	COVER-PLUNGER (1 required per assembly)
		834954004 - Cover [ More info ] $9.09 Available to Order: Shipping delay up to 10 days.
#29	898101142	PLUNGER (1 required per assembly)
		898101142 - Plunger [ More info ] $64.49 Available to Order: Shipping delay up to 10 days.
#30	835427T05	GASKET OIL PAN (1 required per assembly)
		27-835427T05 - Oil Pan Gasket [ More info ] $62.99 Available to Order: Shipping delay up to 10 days.
#31	898101967	PLATE-GUIDE (1 required per assembly)
		898101967 - Guide Plate [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#32	8230427	BOLT (1 required per assembly)
		10-823042 7 - Bolt [ More info ] $4.09 $2.30 10+ In Stock.
#33	898103228	BOLT @3 (6 required per assembly) — Replaces: 879194192
		10898103228 - Bolt [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#34	895152003	STRAINER (1 required per assembly)
		35-895152003 - Strainer [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#35	816311T	TIE STRAP @100 (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#36	8M0057116	HOSE (1 required per assembly) — Replaces: 895153011
		328M0057116 - Hose [ More info ] Unavailable
		32-8M0206070 - HOSE [ More info ] Unavailable
#37	8M0162831	FILTER ASSY OIL (1 required per assembly) — Replaces: 822626K03
		35-8M0162832 [ More info ] Unavailable
		35-8M0162832 - Oil Filter [ More info ] $17.39 5 In Stock.
#38	895151001	PLUG-ANODE (1 required per assembly)
		97-895151001 - Plug-Anode [ More info ] $23.29 Available to Order: Shipping delay up to 10 days.
#39	895150001	GASKET ANODE CAP (1 required per assembly)
		27-895150001 - Anode Cap Gasket [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#40	898101953	BOLT @2 (2 required per assembly)
		10-898101953 - Bolt - Priced Individually [ More info ] $6.09 1 In Stock.
#41	823912	ANODE(ALUM) (1 required per assembly)
		97-823912 - Trim Tab Anode [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#42	16832	BOLT (1 required per assembly)
		10-16832 - Bolt [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#43	898103159	COVER-EXHAUST (1 required per assembly)
		898103159 - Exhaust Cover [ More info ] $172.49 Available to Order: Shipping delay up to 10 days.
#44	803663016	GASKET EXHAUST COVER (1 required per assembly)
		27-803663016 - Exhaust Cover Gasket [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#45	825009026	BOLT @3 (5 required per assembly)
		10-825009026 - Bolt [ More info ] $2.59 2 In Stock.
#46	8M0057113	TUBING TELL-TALE (1 required per assembly) — Replaces: 851848003, 879194470
