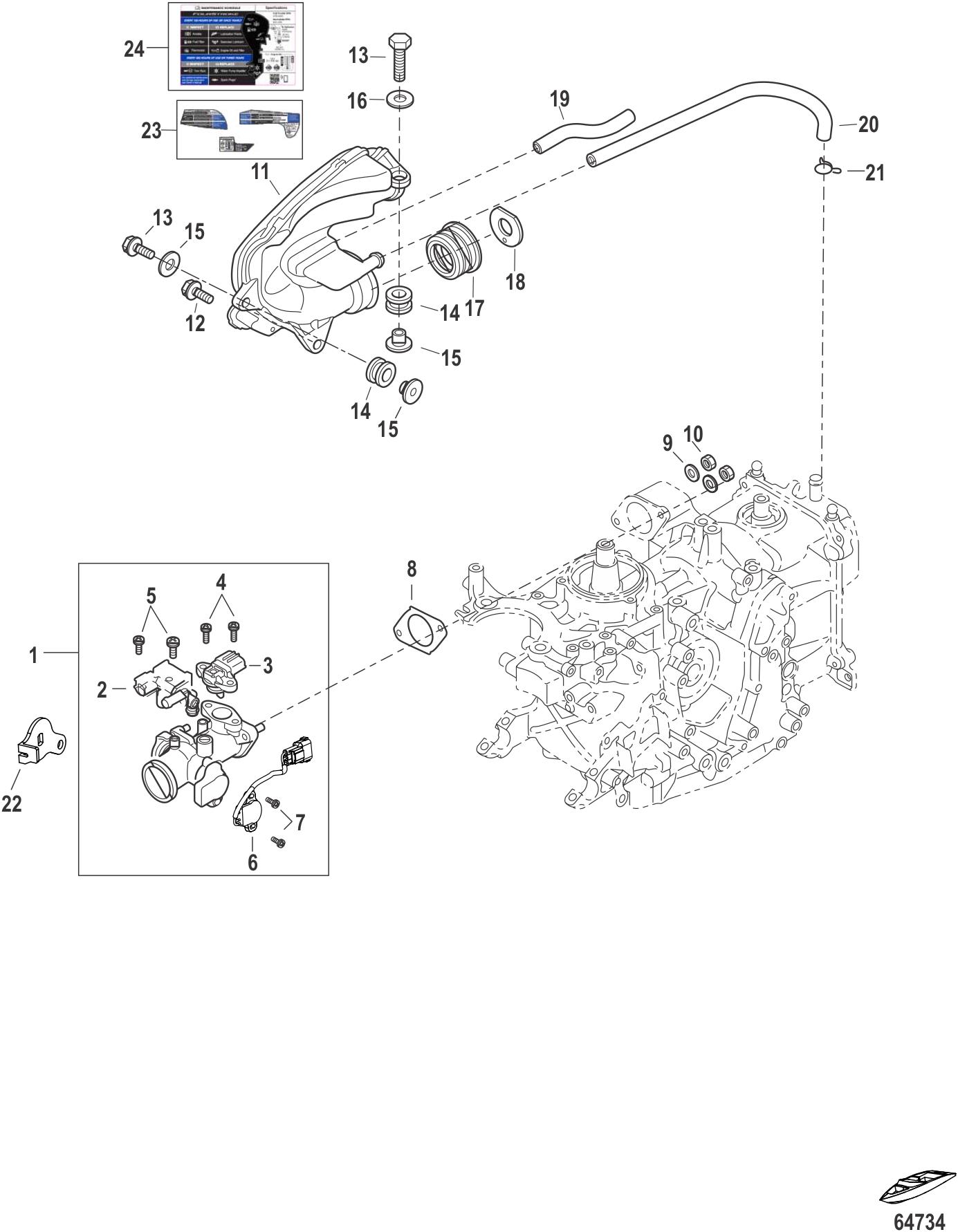

Parts for 15 HP EFI 2 Cyl 4-Stroke Mercury Outboard Motor Intake Manifold
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0134438 | POWERHEAD GASKET (1 required per assembly) |
  |
|
278M0134438 - Powerhead Gasket [ More info ]
|
| #1 | 8M0134461 | THROTTLE BODY (1 required per assembly) |
  |
|
8M0134461 - Throttle Body [ More info ]
|
| #2 | 8M0132241 | SOLENOID IAC (1 required per assembly) |
  |
|
238M0132241 - IAC [ More info ]
|
| #3 | 8M0132303 | SENSOR TMAP (1 required per assembly) |
  |
|
8M0132303 - TMAP [ More info ]
|
| #4 | 855544024 | BOLT (2 required per assembly) |
  |
|
10-855544024 - SCREW [ More info ] Unavailable |
| #5 | 8M0139039 | SCREW (2 required per assembly) |
  |
|
108M0139039 - Screw [ More info ]
|
| #6 | 8M0153615 | THROTTLE POSITION (1 required per assembly) — Replaces: 8M0132180 |
  |
|
8M0153615 - THROTTLE POSITION [ More info ] Unavailable |
| #7 | 8M0153617 | SCREW (2 required per assembly) |
  |
|
10-8M0153617 - SCREW [ More info ] Unavailable |
| #8 | 898101981 | GASKET (1 required per assembly) |
  |
|
27-898101981 - Carburetor Gasket [ More info ]
|
| #9 | 16826 | WASHER (2 required per assembly) |
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #10 | 400212 | NUT (2 required per assembly) |
  |
|
11-40021 2 - Nut [ More info ]
|
| #11 | 8M0134462 | INTAKE SILENCER (1 required per assembly) |
  |
|
8M0134462 - Intake Silencer [ More info ]
|
| #12 | 8M0102279 | BOLT (1 required per assembly) |
  |
|
108M0102279 - Bolt [ More info ]
|
| #13 | 8248324 | SCREW @5 (2 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
| #14 | 8M0135593 | MOUNT RUBBER (2 required per assembly) |
  |
|
238M0135593 - MOUNT RUBBER [ More info ]
|
| #15 | 8M0137298 | COLLAR (2 required per assembly) |
  |
|
238M0137298 - COLLAR [ More info ]
|
| #16 | 953921 | WASHER (2 required per assembly) |
  |
|
12-95392 1 - Washer [ More info ]
|
| #17 | 8M0173453 | GASKET 9.9 HP Only (1 required per assembly) |
  |
|
27-8M0173453 - GASKET [ More info ] Unavailable |
| #17 | 8M0137301 | GASKET (1 required per assembly) |
  |
|
278M0137301 - Gasket [ More info ]
|
| #18 | 8M0173451 | RESTRICTOR 9.9 HP Only (1 required per assembly) |
  |
|
8M0173451 - RESTRICTOR [ More info ] Unavailable |
| #18 | 8M0137303 | RESTRICTOR 10 Norway/15 HP Only (1 required per assembly) |
  |
|
8M0137303 - Restrictor [ More info ]
|
| #19 | 8M0139041 | HOSE (1 required per assembly) |
  |
|
328M0139041 - Hose [ More info ]
|
| #20 | 8M0136227 | BREATHER HOSE (1 required per assembly) |
  |
|
328M0136227 - BREATHER Hose [ More info ]
|
| #21 | 952245 | CLIP (1 required per assembly) |
  |
|
54-95224 5 - Clip [ More info ]
|
| #22 | 8M0137319 | STOPPER THROTTLE (1 required per assembly) |
  |
|
8M0137319 - Throttle Stopper [ More info ]
|
| #23 | 8M0137391 | DECAL MAINTENCE [1R081155] & Below (1 required per assembly) |
  |
|
378M0137391 - Decal MAINTENCE [ More info ]
|
| #23 | 8M0137392 | DECAL MAINTENANCE [1R081155] & Below (1 required per assembly) |
  |
378M0137392 - Decal MAINTENANCE [ More info ] Unavailable |
|
  |
|
8M0206083 - DECAL MAINTENANCE NLA [ More info ] Unavailable |
| #23 | 8M0137393 | DECAL MAINTENANCE [1R081155] & Below (1 required per assembly) |
  |
378M0137393 - Decal MAINTENANCE [ More info ] Unavailable |
|
  |
|
37-8M0206085 - DECAL MAINTENANCE [ More info ] Unavailable |
| #23 | 8M0137394 | DECAL MAINTENANCE [1R081155] & Below (1 required per assembly) |
  |
378M0137394 - Decal MAINTENANCE [ More info ] Unavailable |
|
  |
|
37-8M0206080 - DECAL MAINTENANCE [ More info ] Unavailable |
| #24 | 8M0206080 | DECAL SCHEDULE MAINTENANCE MERCURY AND JAPAN MODELS [1R081156] & Up (1 required per assembly) |
| #24 | 8M0206083 | DECAL MAINTENANCE [1R081156] & Up (1 required per assembly) |
| #24 | 8M0206085 | DECAL MAINTENANCE [1R081156] & Up (1 required per assembly) |
