Parts for 15 HP EFI 2 Cyl 4-Stroke Mercury Outboard Motor Gear Housing Driveshaft
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0163175 | GC 15-20 4S S (1 required per assembly) — Replaces: 8M0134483, 8M0163173 |
  |
|
1600-8M0163175 - 1600-8M0163175 - GC 15-20 4S S [ More info ] Unavailable Replaced by -8M0172923 |
  |
|
1600-8M0172923 - GC 15-20 4S S [ More info ] Unavailable |
| #- | 8M0163179 | GEARCASE LONG (1 required per assembly) — Replaces: 8M0134484, 8M0163177 |
  |
|
1600-8M0163179 - 1600-8M0163179 - GC 15-20 4S L [ More info ] Unavailable Replaced by -8M0172925 |
  |
|
1600-8M0172925 - GC 15-20 4S L [ More info ] Unavailable |
| #- | 8M0163183 | GEARCASE XLONG (1 required per assembly) — Replaces: 8M0134485, 8M0163181 |
  |
|
1600-8M0163183 - 1600-8M0163183 - GEARCASE XLONG [ More info ] Unavailable Replaced by -8M0172929 |
  |
|
1600-8M0172929 - GC 15-20 4S XL [ More info ] Unavailable |
| #- | 8M0135820 | GEARCASE SEAL KIT (1 required per assembly) |
  |
|
98-8M0135820 - GEARCASE SEAL KIT [ More info ] Unavailable |
| #- | 8M0135821 | REPAIR KIT W/P (1 required per assembly) |
  |
|
46-8M0135821 - Water Pump Repair Kit [ More info ]
|
| #- | 8M0137849 | WATER PUMP KIT CH (1 required per assembly) |
  |
|
8M0137849 - Water Pump Kit [ More info ]
|
| #1 | 8M0135572 | GEAR HOUSING BASIC (1 required per assembly) |
  |
|
16008M0135572 - BASIC Gearcase [ More info ]
|
| #2 | 898101991 | BEARING NEEDLE (1 required per assembly) |
  |
|
31-898101991 - Bearing - Needle [ More info ]
|
| #3 | 953683 | PLUG-OIL (2 required per assembly) |
  |
22-95368 3 - Oil Plug [ More info ] Unavailable |
|
  |
|
22-8M0229353 - PLUG [ More info ]
|
| #4 | 8M0082880 | SEAL KIT @3 (2 required per assembly) |
  |
|
8M0082880 - Seal - Priced Individually [ More info ]
|
  |
|
18-60103 - Gasket, Drain Plug 332600060M [ More info ]
|
| #5 | 803730002 | WATER STRAINER (2 required per assembly) |
  |
|
803730002 - Water Strainer [ More info ]
|
| #6 | 17635 | SCREW (1 required per assembly) |
  |
|
10-17635 - Screw [ More info ]
|
| #7 | 85372210 | NUT (1 required per assembly) |
  |
|
11-853722 10 - Nut [ More info ]
|
| #8 | 8M0137343 | BOLT (4 required per assembly) |
  |
|
108M0137343 - Bolt [ More info ]
|
| #9 | 8M0137344 | ANODE (1 required per assembly) |
  |
|
8M0137344 - Anode [ More info ] Unavailable |
| #10 | 167051 | BOLT (1 required per assembly) |
  |
|
10-16705 1 - Bolt [ More info ]
|
| #11 | 8537227 | NUT (1 required per assembly) |
  |
|
11-853722 7 - Nut [ More info ]
|
| #12 | 8M0090459 | CAM-CLUTCH (1 required per assembly) |
  |
|
8M0090459 - CAM-Clutch [ More info ]
|
| #13 | 16175 | PIN (1 required per assembly) |
  |
|
17-16175 - Pin, Clutch Cam [ More info ]
|
| #14 | 8M0175395 | SHIFT SHAFT KIT LOWER, SHORT AND LONG (1 required per assembly) — Replaces: 8M0134498, 8M0152398 |
  |
|
8M0175395 - SHIFT SHAFT SHORT [ More info ] Unavailable |
| #14 | 8M0175398 | SHIFT SHAFT KIT LOWER, XLONG (1 required per assembly) — Replaces: 8M0134499, 8M0152400 |
  |
|
8M0175398 - SHIFT SHAFT XLONG [ More info ]
|
| #15 | 8M0123271 | PIN (1 required per assembly) |
  |
|
178M0123271 - PIN [ More info ]
|
| #16 | 823042067 | SCREW (1 required per assembly) |
  |
|
10-823042067 - Screw [ More info ]
|
| #17 | 8M0135807 | STOPPER (1 required per assembly) |
  |
|
8M0135807 - Stopper [ More info ]
|
| #18 | 8M0135802 | PLATE (1 required per assembly) |
  |
|
8M0135802 - Plate [ More info ]
|
| #19 | 8M0135801 | SEAL WATER (1 required per assembly) |
  |
|
8M0135801 - Seal WATER [ More info ]
|
| #20 | 85372211 | NUT (1 required per assembly) |
  |
|
11-853722 11 - Nut, Pinion [ More info ]
|
| #21 | 879147T91 | GEAR-PINION (1 required per assembly) — Replaces: 8M0134489 |
  |
|
43-879147T91 - Pinion Gear [ More info ]
|
| #22 | 8M0163155 | DRIVESHAFT SHORT (1 required per assembly) — Replaces: 8M0134494 |
  |
|
458M0163155 - Drive Shaft SHORT [ More info ]
|
| #22 | 8M0163157 | DRIVESHORT LONG (1 required per assembly) — Replaces: 8M0134495 |
  |
|
458M0163157 - Drive Shaft-LONG [ More info ]
|
| #22 | 8M0134496 | DRIVESHAFT XLONG (1 required per assembly) |
  |
|
458M0134496 - Drive Shaft XLONG [ More info ]
|
| #23 | 8M0134497 | BALL BEARING (1 required per assembly) |
  |
|
308M0134497 - Ball Bearing [ More info ]
|
| #24 | 813276001 | SHIM (AR required per assembly) |
  |
|
15-813276001 - Shim [ More info ]
|
| #24 | 813276015 | SHIM (.15) (AR required per assembly) |
  |
|
15-813276015 - Shim (.15) [ More info ]
|
| #24 | 813276003 | SHIM (.3) (AR required per assembly) |
  |
|
15-813276003 - Shim (.3) [ More info ]
|
| #24 | 813276005 | SHIM (.5) (AR required per assembly) |
  |
|
15-813276005 - Shim (.5) [ More info ]
|

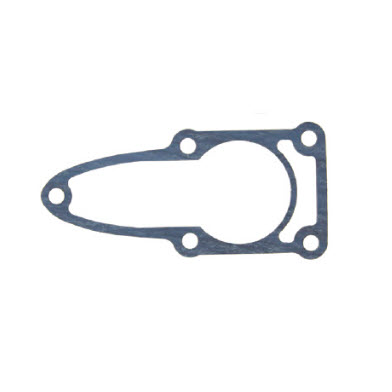

| #25 | 8M0135804 | GASKET (1 required per assembly) |
  |
|
278M0135804 - Gasket [ More info ]
|
| #26 | 803752 | OIL SEAL (1 required per assembly) |
  |
|
26-803752 - Oil Seal [ More info ]
|
| #27 | 8M0134493 | HOUSING WATER PUM (1 required per assembly) |
  |
|
8M0134493 - Housing WATER PUM [ More info ]
|
| #28 | 8M0137348 | O-RING (1 required per assembly) |
  |
|
258M0137348 - O-Ring [ More info ]
|
| #29 | 8M0135808 | STOPPER (1 required per assembly) |
  |
|
8M0135808 - Stopper [ More info ]
|
| #30 | 823042 | BOLT (1 required per assembly) |
  |
|
10-823042 - Bolt [ More info ]
|
| #31 | 8M0135806 | GASKET GUID PLATE (1 required per assembly) |
  |
|
278M0135806 - Gasket GUID Plate [ More info ]
|
| #32 | 8M0135805 | PLATE (1 required per assembly) |
  |
|
8M0135805 - Plate [ More info ]
|
| #33 | 8M0173418 | KEY (1 required per assembly) — Replaces: 8M0137347 |
  |
|
288M0173418 - KEY [ More info ]
|
| #34 | 8M0135803 | IMPELLER (1 required per assembly) |
  |
|
478M0135803 - Impeller [ More info ]
|
| #35 | 8M0172920 | PUMP CASE ASSY [0R985499] & Below (1 required per assembly) — Replaces: 803751 |
  |
|
8M0172920 - PUMP CASE ASSY [ More info ]
|
| #35 | 8M0172919 | LINER W/P [0R985500] & Up (1 required per assembly) |
  |
|
8M0172919 - LINER W/P [ More info ] Unavailable |
| #36 | 952188 | DOWEL PIN (2 required per assembly) |
  |
|
17-95218 8 - Dowel Pin [ More info ]
|
| #37 | 8M0172920 | PUMP CASE ASSY [0R985499] & Below (1 required per assembly) — Replaces: 8M0134492 |
| #37 | 8M0172916 | HSING WATER PUM [0R985500] & Up (1 required per assembly) |
  |
|
8M0172916 - HSING WATER PUM [ More info ] Unavailable |
| #38 | 8036674 | SEAL (1 required per assembly) |
  |
|
26-803667 4 - Seal [ More info ]
|
| #39 | 879194269 | BOLT (4 required per assembly) |
  |
|
10-879194269 - Bolt [ More info ]
|
