Parts for Bravo X Three MerCruiser Outdrive Units Driveshaft Housing & Drive Gears

Revise Search: Sterndrive > MerCruiser Outdrive Units > Bravo X Three > 0W250000 & Up > Driveshaft Housing & Drive Gears

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

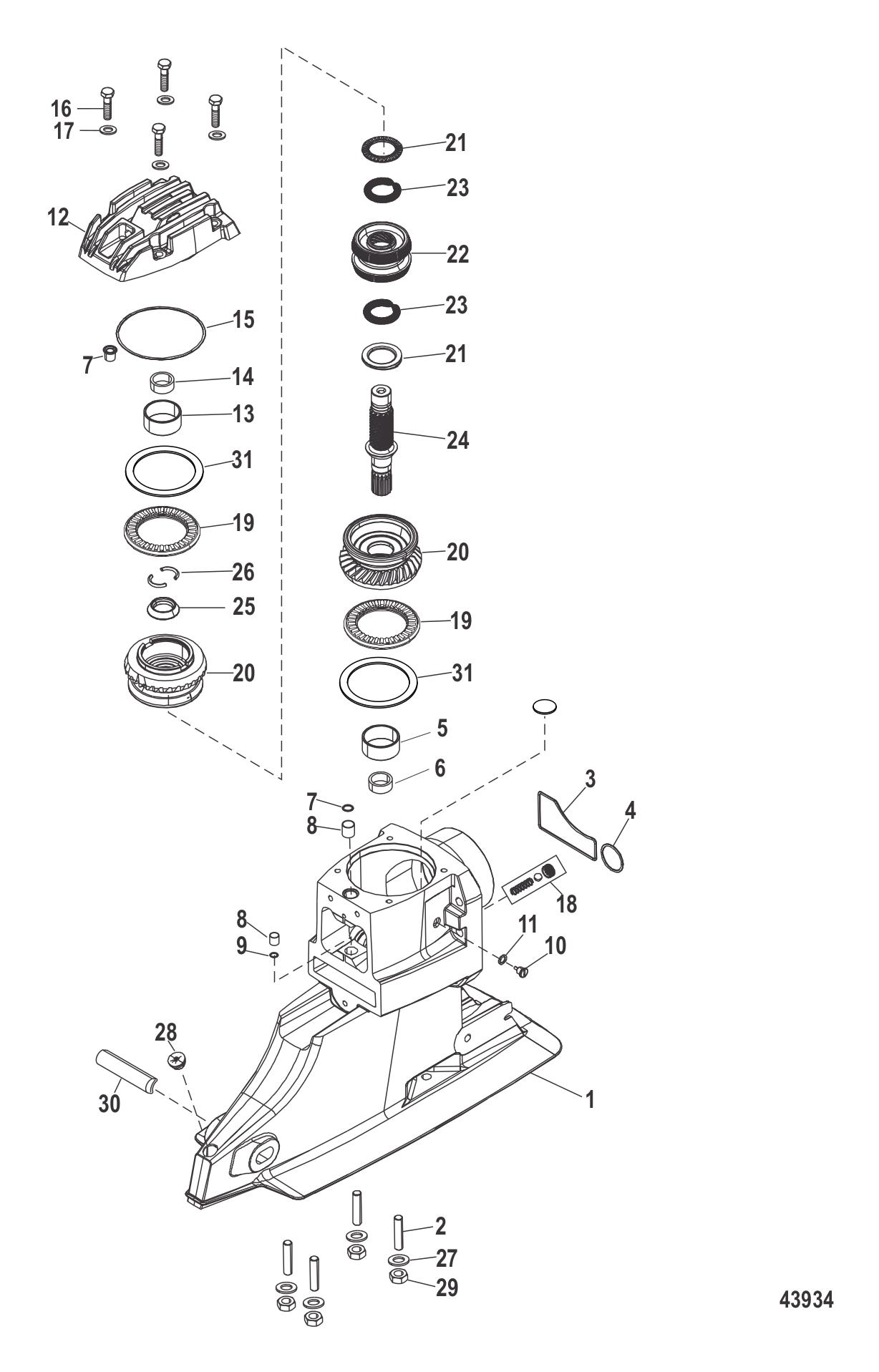

Driveshaft Housing & Drive Gears

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	865440H66	DSH BRAVO X 27/29 (Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)(Bravo-4S 1.81:1 Ratio) (1 required per assembly)
		1589-865440H66 - Dsh Bravo X 27/29 [ More info ] Unavailable
#-	866459J01	DSH BRV X SC27/29 (SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio) (1 required per assembly)
		1500-866459J01 - Dsh Brv X SC27/29 [ More info ] Unavailable
#-	865440H67	DSH BRAVO X 27/32 (Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio)(Bravo-4S 2.00:1 Ratio) (1 required per assembly)
		1589-865440H67 - Dsh Bravo X 27/32 [ More info ] Unavailable
#-	866459J02	DSH BRV X SC27/32 (SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio) (1 required per assembly)
		1500-866459J02 - Dsh Brv X SC27/32 [ More info ] Unavailable
#-	865440H68	DSH BRAVO X 23/30 (Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)(Bravo-4S 2.20:1 Ratio) (1 required per assembly)
		1589-865440H68 - Dsh Bravo X 23/30 [ More info ] Unavailable
#-	866459J03	DSH BRV X SC23/30 (SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio) (1 required per assembly)
		1500-866459J03 - Dsh Brv X SC23/30 [ More info ] Unavailable
#-	16709A2	SEAL KIT DRIVESHAFT HOUSING (1 required per assembly)
		26-16709A 2 - Seal Kit [ More info ] $140.49 $138.46 In Stock
		18-2643 - Seal Kit, 26-16709A2 [ More info ] $120.02 9 In Stock.
		26-02388 - Seal Kit 26-16709A 2 [ More info ] $94.99 $85.01 2 In Stock.
#1	865440H70	HOUSING DRIVESHAFT - BASIC BASIC (1 required per assembly)
		1589-865440H70 - Dsh Br X/Xr-Basic [ More info ] Unavailable
#1	866459J00	HOUSING DRIVESHAFT - BASIC (SEACORE) (1 required per assembly)
		1500-866459J00 - Dsh Brv X ScBasic [ More info ] Unavailable
#2	8M0133358	STUD (.437-14/.437-20 X 2.060) (4 required per assembly) — Replaces: 579203
		168M0133358 - Stud [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#3	16755Q1	SEAL (1 required per assembly)
		16755Q 1 - Install Kit - Priced Individually [ More info ] $12.39 Available to Order: Shipping delay up to 10 days.
		18-2615 - Bravo Gasket Set [ More info ] $7.44 10+ In Stock.
		18-2516-9 - Seal, 16755, 5 pack [ More info ] $43.07 In Stock
		16755T 1 - Install Kit - Priced Individually [ More info ] $13.59 3 In Stock.
		27-00609 - Bravo Mounting Kit 16755Q1 [ More info ] $7.69 $6.39 10+ In Stock.
#4	8M0204681	O RING @5 (1 required per assembly) — Replaces: 45710, 457101
		25-8M0204681 - O RING Note: Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#5	861791	RACE (1 required per assembly)
		31-861791 - Race - Bearing [ More info ] $73.99 $72.76 In Stock
#6	843240	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-843240 - Needle Bearing [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#7	865866	PLUG SHIFT SHAFT OIL SEAL (1 required per assembly)
		19-865866 - Plug [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#8	861209A1	BUSHING KIT (1 required per assembly)
		23-861209A 1 - Bushing Kit [ More info ] $40.49 In Stock
#9	127091	SEAL (1 required per assembly)
		0127091 - Retainer, Lens & Ind (127091) [ More info ] Unavailable
#10	8M0058389	SCREW KIT DRAIN (1 required per assembly) — Replaces: 67892A06
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 6 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#11	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 3 In Stock.
#12	865507A04	COVER ASSEMBLY TOP (1 required per assembly) — Replaces: 865507A02
		865507A04 - Cover Assembly [ More info ] $657.49 Available to Order: Shipping delay up to 10 days.
#12	866462A02	COVER ASSEMBLY TOP (SEACORE) (1 required per assembly)
		866462A02 - Cover Assembly [ More info ] $692.49 Available to Order: Shipping delay up to 10 days.
#13	861791	RACE (1 required per assembly)
#14	843240	BEARING ASSEMBLY ROLLER (1 required per assembly)
#15	97387	O-RING (1 required per assembly)
		25-97387 - O-Ring [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
		18-7449 - O-Ring 25-97387 [ More info ] $8.75 Available to Order: Shipping delay up to 10 days.
#16	58642	SCREW (.375-16 X 1.50) STAINLESS STEEL (4 required per assembly)
		10-58642 - Screw [ More info ] $4.29 $2.42 10+ In Stock.
#17	37828	WASHER (.390 X .625 X .062) STAINLESS STEEL (4 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#18	17997A1	SPRING KIT (1 required per assembly)
		24-17997A 1 - Spring Kit, Rubber [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
		18-2715 - Valve Kit, 24-17997A1 [ More info ] $9.99 $9.18 1 In Stock.
#19	861787	BEARING ASSEMBLY THRUST (2 required per assembly)
		31-861787 - Thrust Bearing [ More info ] $40.99 $40.75 In Stock
#20	887906A1	GEAR SET (29/27) (Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)(Bravo-4S 1.81:1 Ratio) (1 required per assembly)
		43-887906A 1 - Gear Set [ More info ] $1,953.99 Available to Order: Shipping delay up to 10 days.
#20	887903A1	GEAR SET (32/27) (Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio)(Bravo-4S2.00:1 Ratio) (1 required per assembly)
		43-887903A 1 - Gear Set 32/27 [ More info ] $2,070.99 In Stock
#20	887909A1	GEAR SET (30/23) (Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)(Bravo-4S 2.20:1 Ratio) (1 required per assembly)
		43-887909A 1 - Gear Set [ More info ] $2,470.99 Available to Order: Shipping delay up to 10 days.
#21	861792	BEARING THRUST (2 required per assembly)
		31-861792 - Bearing - Thrust [ More info ] $45.99 In Stock
#22	865344A01	CLUTCH ASSEMBLY (1 required per assembly)
		52-865344A01 - Clutch [ More info ] $573.49 In Stock
#23	93505	SPRING (2 required per assembly)
		24-93505 - Spring -orang - Priced Individually [ More info ] $8.79 10 In Stock.
#24	812773T	DRIVESHAFT UPPER (1 required per assembly)
		45-812773T - Drive Shaft [ More info ] $428.49 1 In Stock.
#25	86770	COLLAR THRUST (1 required per assembly)
		23-86770 - Collar [ More info ] $74.66 8 In Stock.
#26	8M0204675	KEEPER @2 (2 required per assembly) — Replaces: 97351
		8M0204675 - KEEPER @2 [ More info ] Unavailable
#27	861854	WASHER (.453 X .750 X .032) STAINLESS STEEL (4 required per assembly)
		12-861854 - Washer, (.453 X .750 X .032) Stainless Steel [ More info ] $4.19 7 In Stock.
#28	824928001	PLUG RUBBER (1 required per assembly) — Replaces: 824928
		19-824928001 - Plug [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#29	8M0143423	NUT NYLON (4 required per assembly) — Replaces: 35053
		11-8M0143423 - NUT, Priced Individually [ More info ] $9.49 1 In Stock.
#30	808006	INSERT TRIM ADJUSTMENT (1 required per assembly)
		808006 - Trim Adjustment Insert [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#31	864596058	SHIM/RACE (.0575/.0584 THICK) BROWN THRUST BEARING (A/R required per assembly)
		23-864596058 - Race - Thrust Bearing [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#31	864596059	SHIM/RACE (.0585/.0594 THICK) WHITE THRUST BEARING (A/R required per assembly)
		23-864596059 - Race - Thrust Bearing [ More info ] $41.31 2 In Stock.
#31	864596060	SHIM/RACE (.0595/.0604 THICK) ORANGE THRUST BEARING (A/R required per assembly)
		23-864596060 - Race - Thrust Bearing [ More info ] $42.41 3 In Stock.
#31	864596061	SHIM/RACE (.0605/.0614 THICK) GREEN THRUST BEARING (A/R required per assembly)
		23-864596061 - Race - Thrust Bearing [ More info ] $42.49 $40.48 2 In Stock.
#31	864596062	SHIM/RACE (.0615/.0624 THICK) YELLOW THRUST BEARING (A/R required per assembly)
		23-864596062 - Race - Thrust Bearing [ More info ] $41.49 Available to Order: Shipping delay up to 10 days.
#31	864596063	SHIM/RACE (.0625/.0634 THICK) RED THRUST BEARING (A/R required per assembly)
		23-864596063 - Race - Thrust Bearing [ More info ] $42.49 $40.48 5 In Stock.
#31	864596064	SHIM/RACE (.0635/.0644 THICK) LIGHT BLUE THRUST BEARING (A/R required per assembly)
		23-864596064 - Race - Thrust Bearing [ More info ] $40.49 $38.88 2 In Stock.
#31	864596065	SHIM/RACE (.0645/.0654 THICK) BLACK THRUST BEARING (A/R required per assembly)
		23-864596065 - Race - Thrust Bearing [ More info ] $40.49 Available to Order: Shipping delay up to 10 days.
#31	864596066	SHIM/RACE (.0655/.0664 THICK) PINK THRUST BEARING (A/R required per assembly)
		23-864596066 - Race - Thrust Bearing [ More info ] $40.49 Available to Order: Shipping delay up to 10 days.
