Parts for Bravo Two MerCruiser Outdrive Units Steering Actuator, Axius (Gen I) Sensors Screw In

Revise Search: Sterndrive > MerCruiser Outdrive Units > Bravo Two > 0W250000 & Up > Steering Actuator, Axius (Gen I) Sensors Screw In

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

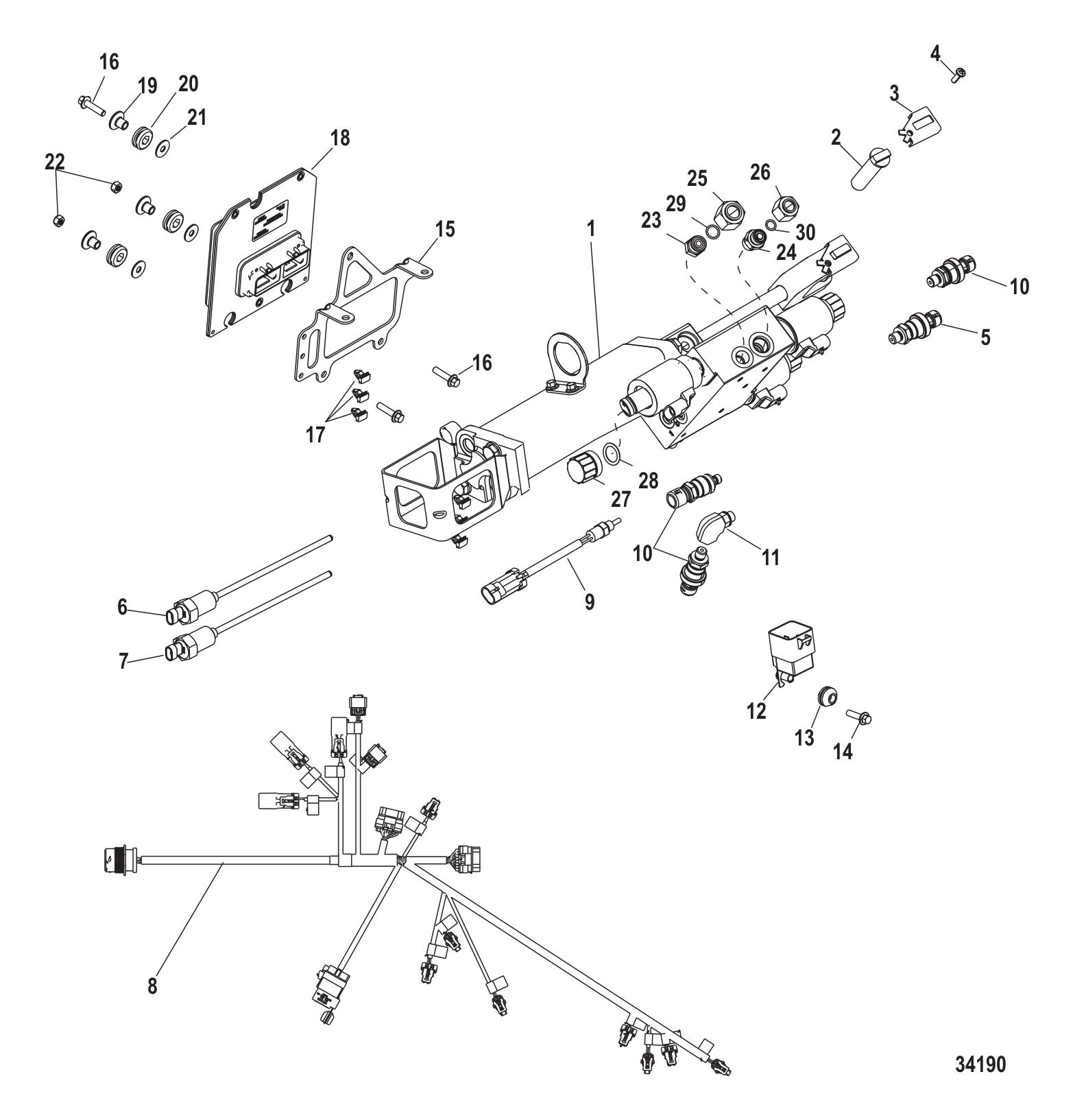

Steering Actuator, Axius (Gen I) Sensors Screw In

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	879172A19	DUST CAP KIT (Refer to Service Bulletin SMC-09-06) (1 required per assembly)
		879172A19 - DUST CAP Kit [ More info ] $70.75 Available to Order: Shipping delay up to 10 days.
#1	8M0057416	CYLINDER-STEERING PORT (Gas) (Refer to Service Bulletin SMC-09-06) (1 required per assembly) — Replaces: 8M2008525, 8M2016465, 8M2008524, 8M2016466
		8M0057416 - Steering Cylinder [ More info ] Unavailable
#1	8M0048425	ORD 8M0057413 STARBOARD (Diesel) (1 required per assembly) — Replaces: 8M2016016, 8M2016605
		8M0048425 - ORD 8M0057413 NLA [ More info ] Unavailable
#1	8M0048426	ORD 8M0057413 PORT (Diesel) (1 required per assembly) — Replaces: 8M2016017, 8M2016606
		8M0048426 - ORD 8M0057413 NLA [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE CLEVIS PIN (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	8M2010043	RETAINER (1 required per assembly)
		8M2010043 - Clevis Retainer [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#4	4000328	SCREW (M6 X 16) (1 required per assembly)
		10-40003 28 - Screw [ More info ] Unavailable
		10-8M0214928 - SCREW [ More info ] $4.09 1 In Stock.
#5	8M0007568	TRANSDUCER 500 PSI (1 required per assembly)
		8M0007568 - Transducer [ More info ] $266.49 Available to Order: Shipping delay up to 10 days.
#6	897345T14	SENSOR POSITION, SECONDARY-DECREASING (1 required per assembly)
		897345T14 - Position Sensor [ More info ] $854.99 Available to Order: Shipping delay up to 10 days.
#7	897345T15	SENSOR POSITION, PRIMARY-INCREASING (1 required per assembly)
		897345T15 - Position Sensor [ More info ] $819.99 Available to Order: Shipping delay up to 10 days.
#8	897345T13	HARNESS (1 required per assembly)
		84-897345T13 - Harness [ More info ] $556.49 Available to Order: Shipping delay up to 10 days.
#9	8M0142542	SENSOR TEMPERATURE (1 required per assembly) — Replaces: 8M0010146
		8M0142542 - Sensor TEMPERATUR [ More info ] Unavailable
		8M0205787 - Temperature Sensor [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#10	8M0007569	TRANSDUCER (3 required per assembly)
		8M0007569 - Transducer [ More info ] Unavailable
		8M6001284 - Transducer [ More info ] $331.99 Available to Order: Shipping delay up to 10 days.
#11	NSS	NOT SOLD SEPARATE ELBOW (1 required per assembly)
#12	NSS	NOT SOLD SEPARATE RELAY (1 required per assembly)
#13	NSS	NOT SOLD SEPARATE GROMMET (1 required per assembly)
#14	NSS	NOT SOLD SEPARATE SCREW (1 required per assembly)
#15	NSS	NOT SOLD SEPARATE BRACKET (1 required per assembly)
#16	NSS	NOT SOLD SEPARATE SCREW (3 required per assembly)
#17	804352	CLIP (3 required per assembly)
		54-804352 - Clip- Fuse Block [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#18	NSS	NOT SOLD SEPARATE THRUST VECTOR MODULE (1 required per assembly)
#19	856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#20	834985	GROMMET (3 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#21	65567	WASHER (.265 X .750 X .048) STAINLESS STEEL (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#22	NSS	NOT SOLD SEPARATE NUT (3 required per assembly)
#23	8M2007090	FITTING (-6) ORF TO ( -8) ORB, STRAIGHT (Gas) (1 required per assembly)
		22-8M2007090 - Fitting [ More info ] $57.49 Available to Order: Shipping delay up to 10 days.
#23	8M2008375	FITTING ADAPTER (-6ORF TO -8ORB), 90 DEGREE (Diesel) (1 required per assembly)
		22-8M2008375 - Fitting [ More info ] $93.49 Available to Order: Shipping delay up to 10 days.
#24	8M2015982	FITTING ADAPTER (-6ORF TO -8ORB) (1 required per assembly)
		22-8M2015982 - Fitting [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#25	8M2013299	CAP (1 required per assembly)
		19-8M2013299 - Cap [ More info ] $14.39 Available to Order: Shipping delay up to 10 days.
#26	8M2013298	CAP (1 required per assembly)
		19-8M2013298 - Cap [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#27	8M2013313	NUT (3 required per assembly)
		11-8M2013313 - Nut [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#28	8M2013312	O-RING (3 required per assembly)
		25-8M2013312 - O-Ring [ More info ] Unavailable
#29	8M2001117	O-RING (.489 X .070) (10 required per assembly)
		258M2001117 - O-Ring - Priced Individually [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
#30	8M2004603	O-RING (10 required per assembly)
		25-8M2004603 - O-Ring - Priced Individually [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
