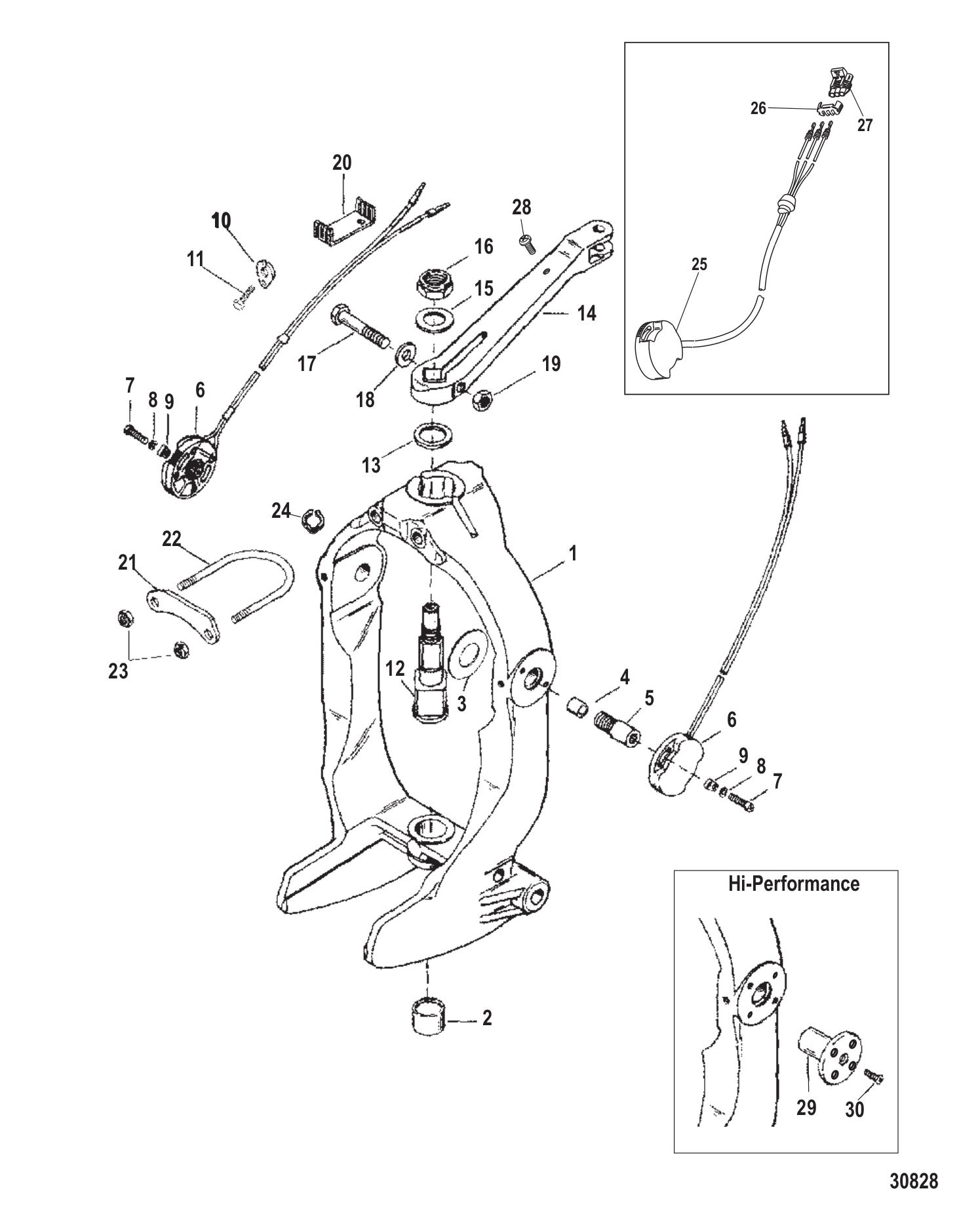

Gimbal Ring & Steering Lever

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	805130A6	SENDER ASSY-DUAL (1 required per assembly)
		805130A 6 - Sender Assembly - Dual [ More info ] $120.73 $115.92 5 In Stock.
#1	8M0062440	GIMBAL RING ASSY (1 required per assembly) — Replaces: 822374A4, 822374A14
		8M0062440 - Gimbal Ring Assembly [ More info ] $1,999.99 Available to Order: Shipping delay up to 10 days.
#1	822374A17	GIMBLE RING ASSY (High Performance With or WIthout Trim Sender) (1 required per assembly)
		822374A17 - Gimbal Ring Assembly [ More info ] $1,785.49 Available to Order: Shipping delay up to 10 days.
#2	847638	BUSHING (1 required per assembly)
		23-847638 - Bearing [ More info ] $57.49 In Stock
#3	41721	WASHER (2 required per assembly)
		12-41721 - Washer, For Use With Trim Senders [ More info ] $7.89 7 In Stock.
#4	847637	BUSHING (2 required per assembly)
		23-847637 - Bushing [ More info ] $31.29 1 In Stock.
#5	86801	SCREW (2 required per assembly)
		10-86801 - Screw [ More info ] $35.49 In Stock
		18-1706 - Screw, 10-86801 [ More info ] $30.49 In Stock
#6	805320A03	POWER TRIM SENDER (MAGNUM SERIES TRANSOM) (1 required per assembly) — Replaces: 805320A1
		805320A03 - Sender Kit - Alpha/Bravo [ More info ] $176.99 1 In Stock.
		18-7633 - Sender, Alpha and Bravo, 805320A03 [ More info ] $137.99 $136.66 10+ In Stock.
		TS001 - TILT TRIM SENDER [ More info ] $117.95 $103.82 In Stock
#7	37978	SCREW @5 (4 required per assembly)
		10-37978 - Screw - Priced Individually [ More info ] $3.39 8 In Stock.
#8	26996	LOCKWASHER @15 (4 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#9	57008	RETAINER @5 (4 required per assembly)
		57008 - Retainer [ More info ] $3.99 2 In Stock.
#10	12078	CLAMP (1 required per assembly)
		54-12078 - Clamp [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#11	28635	SCREW @5 (1 required per assembly)
		10-28635 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#12	98230A1	SHAFT ASSEMBLY (UPPER) (1 required per assembly)
		98230A 1 - Shaft - Upper [ More info ] $371.49 In Stock
		18-73131 - Shaft, Upper Swivel Gimbal Ring 98230A1 [ More info ] $484.99 $409.74 2 In Stock.
		45-02647 - Upper Gimbal Ring Shaft Kit Mercury Mercruiser 98230A1 [ More info ] $229.99 1 In Stock.
#13	98548	WASHER (1 required per assembly)
		12-98548 - Washer, (1.125 ) [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#14	866322A01	LEVER-STEERING (1 required per assembly) — Replaces: 98262A1, 98262A02
		866322A01 - Steering Lever [ More info ] $313.99 $301.99 In Stock
#15	85344	WASHER (1 required per assembly)
		12-85344 - Washer, (.750 Inside Diameter) [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#16	8M2014641	NUT @2 (1 required per assembly) — Replaces: 82671323
		11-8M2014641 - Nut - Priced Individually [ More info ] $17.89 10+ In Stock.
#17	807204	SCREW (1 required per assembly)
		10-807204 - Screw [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#18	861854	WASHER (1 required per assembly)
		12-861854 - Washer, (.453 X .750 X .032) Stainless Steel [ More info ] $4.19 7 In Stock.
#19	8M2008293	NUT (1 required per assembly) — Replaces: 98533
		11-8M2008293 - Nut, (.437-20) [ More info ] $1.20 1 In Stock.
#20	79146	RETAINER (1 required per assembly)
		79146 - Retainer [ More info ] $5.59 2 In Stock.
#21	816510T	BRACKET-CLAMP (1 required per assembly)
		816510T - Clamp Bracket [ More info ] $69.49 $66.48 4 In Stock.
#22	805164	BOLT-U (1 required per assembly)
		10-805164 - U-Bolt [ More info ] $37.49 In Stock
#23	862903	NUT (2 required per assembly)
		11-862903 - Nut, (.375-24) [ More info ] $3.59 10+ In Stock.
#24	818557	CLAMP (1 required per assembly)
		54-818557 - Clamp [ More info ] $7.99 10+ In Stock.
#25	8M0107462	SENDER KIT TRIM (SMARTCRAFT SERIES TRANSOM) (1 required per assembly) — Replaces: 863187A1
		8M0107462 - Trim Sender Kit [ More info ] $287.99 $276.49 In Stock
#26	831957	RETAINER (1 required per assembly)
		831957 - TPA-3 Wire [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#27	8307973	CONNECTOR (1 required per assembly)
		830797 3 - Connector Assembly [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#28	45742	SCREW (1 required per assembly)
		10-45742 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#28	8M0113176	SCREW @5 (1 required per assembly) — Replaces: 807754
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 1 In Stock.
#29	8219971	PIN (High Performance) (2 required per assembly)
		821997 1 - Pin [ More info ] $226.99 Available to Order: Shipping delay up to 10 days.
#30	840907	SCREW (High Performance) (8 required per assembly)
		10-840907 - Screw [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#NS	805134A4	ROTOR KIT (MAGNUM SERIES) (AR required per assembly)
		805134A 4 - Rotor Kit -Sender [ More info ] $45.23 8 In Stock.
