Parts for Bravo One MerCruiser Outdrive Units Universal Joint / Shifter Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 16709A2 | SEAL KIT (1 required per assembly) |
  |
|
26-16709A 2 - Seal Kit [ More info ]
|
  |
|
18-2643 - Seal Kit, 26-16709A2 [ More info ]
|
  |
|
26-02388 - Seal Kit 26-16709A 2 [ More info ]
|
| #1 | SEENOTE | SEE "DECAL SET CHART" FOR DECAL SET PART NUMBERS (1 required per assembly) |
  |
|
SEENOTE - [ More info ] Unavailable |
| #2 | SEENOTE | SEE "DECAL SET CHART" FOR DECAL SET PART NUMBERS (1 required per assembly) |
| #3 | 8M0157426 | COVER ASSY (1 required per assembly) — Replaces: 12717A1 |
  |
|
8M0157426 - Cover REAR BRAVO D/S HSG ZZ [ More info ]
|
| #4 | 12708 | SEAL (1 required per assembly) |
  |
|
|
  |
|
18-1240 - Seal, 12708 [ More info ]
|
| #5 | 8M0157700 | DETENT ASSEMBLY (1 required per assembly) — Replaces: 14497A2, 865711A02 |
  |
|
8M0157700 - Detent Assembly [ More info ]
|
| #6 | 8M0113180 | SCREW @2 (2 required per assembly) — Replaces: 98794 |
  |
|
10-8M0113180 - Mouting Screw AL/BRAV TOP Cover, priced individually [ More info ]
|
| #7 | 87158 | SCREW (1 required per assembly) |
  |
|
10-87158 - Screw [ More info ]
|
| #8 | 805261A1 | WEAR PAD KIT (1 required per assembly) |
  |
|
805261A 1 - Wear Pad Kit [ More info ]
|
| #9 | 12711 | SHAFT (1 required per assembly) |
  |
|
|
| #10 | 807375A1 | REF SMC 01-17 (Refer to Service Bulletin 2001-17 for replacement parts) [0K090999] & Below (1 required per assembly) |
  |
|
52-807375A 1 - Ord Gear Kit, NLA [ More info ] Unavailable |
| #10 | 806552A1 | YOKE & CAM ASSY [0K091000] & Up (1 required per assembly) |
  |
|
806552A 1 - Yoke & Cam Assembly [ More info ]
|
| #11 | N.S.S. | NOT SOLD SEPARATE YOKE-SHIFTER [0K090999] & Below (1 required per assembly) |
  |
|
N.S.S. - Not Sold Separate [ More info ] Unavailable |
| #11 | 806552 | YOKE SHIFTER [0K091000] & Up (1 required per assembly) |
  |
|
806552 - Shifter Yoke [ More info ]
|
| #12 | 805733 | SCREW (.250-28 X 1.00) (2 required per assembly) |
  |
|
10-805733 - Screw [ More info ]
|
| #13 | 12706 | SPACER (.194 X .375) (2 required per assembly) |
  |
|
23-12706 - Spacer - .194 X .375 [ More info ]
|
| #14 | 826709109 | NUT (.250-28) STAINLESS STEEL (2 required per assembly) — Replaces: 35045 |
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #15 | 38615 | SCREW @5 (Shift Lever) (1 required per assembly) |
  |
|
10-38615 - Screw - Priced Individually [ More info ]
|
| #15 | 805543 | SCREW (Shift Cam) (1 required per assembly) |
  |
|
10-805543 - Screw [ More info ]
|
| #16 | 8M0185784 | LINKAGE KIT-SHIFT (1 required per assembly) — Replaces: 861175A2 |
  |
|
8M0185784 - Shift Linkage Kit [ More info ]
|
| #17 | 8M0185784 | LINKAGE KIT-SHIFT (1 required per assembly) — Replaces: 12712, 861175A2 |
| #18 | 20583 | WASHER (1 required per assembly) |
  |
|
12-20583 - Washer - Priced Individually [ More info ]
|
| #19 | 26953 | COTTER PIN (1 required per assembly) |
  |
|
18-26953 - Cotter Pin - Priced Individually [ More info ]
|
| #20 | 86776 | LATCH (1 required per assembly) |
  |
|
|
| #21 | 864244A2 | U-JOINT ASSY. (STANDARD) (1 required per assembly) — Replaces: 12784A10 |
  |
|
864244A 2 - Universal Joint Assembly [ More info ]
|
  |
|
18-6401 - Universal Joint Assembly [ More info ]
|
  |
|
94-04820 - Drive Line and Universal Joint Assembly 864244A 2 [ More info ]
|
| #21 | 12784A19 | U JOINT ASSY (USE WITH BLACK TRAC) (1 required per assembly) |
  |
|
12784A19 - Universal Joint Assembly, NLA [ More info ] Unavailable |
| #22 | 59830A7 | YOKE ASSEMBLY (COUPLER END) (STANDARD) (1 required per assembly) |
  |
|
59830A 7 - Yoke Assembly [ More info ]
|
  |
|
18-2146 - Long Yoke, 59830A7 [ More info ]
|
  |
|
94-02421 - Long Yoke 59830A 7 [ More info ]
|
| #22 | 59830A8 | YOKE ASSEMBLY (COUPLER END) (USE WITH BLACK TRAC) (1 required per assembly) |
  |
|
59830A 8 - Yoke Assembly, NLA [ More info ] Unavailable |
| #23 | 8M0204650 | O-RING (2 required per assembly) — Replaces: 29845 |
  |
|
25-8M0204650 - O RING @3 Q=T [ More info ] Unavailable |
| #23 | 8M0204654 | O RING @10 (1 required per assembly) — Replaces: 35027 |
  |
|
25-8M0204654 - O RING @10 [ More info ] Unavailable |
| #24 | 393831 | SOCKET CENTER (1 required per assembly) — Replaces: 39383T |
  |
|
39383 1 - Yoke, Center Socket [ More info ]
|
  |
|
94-01440 - Center Yoke Socket 0912213 [ More info ]
|
| #25 | 75832T1 | CROSS AND BEARING (2 required per assembly) — Replaces: 758321 |
  |
|
75832T 1 - Cross & Bearing - Heavy Duty [ More info ]
|
  |
|
18-2174 - Universal Joint 75832A3 [ More info ]
|
  |
|
18-2104 - Universal Joint 75832A2 [ More info ]
|
  |
|
94-00801 - Universal Joint 75832T [ More info ]
|
| #26 | 12784 | YOKE GEAR END (1 required per assembly) |
  |
|
12784 - Yoke - Stub [ More info ]
|
  |
|
18-6400 - Yoke 12784 [ More info ]
|
  |
|
94-04821 - Yoke Bravo 12784 [ More info ]
|
| #27 | 8M0169062 | NUT (1 required per assembly) — Replaces: 92004 |
  |
|

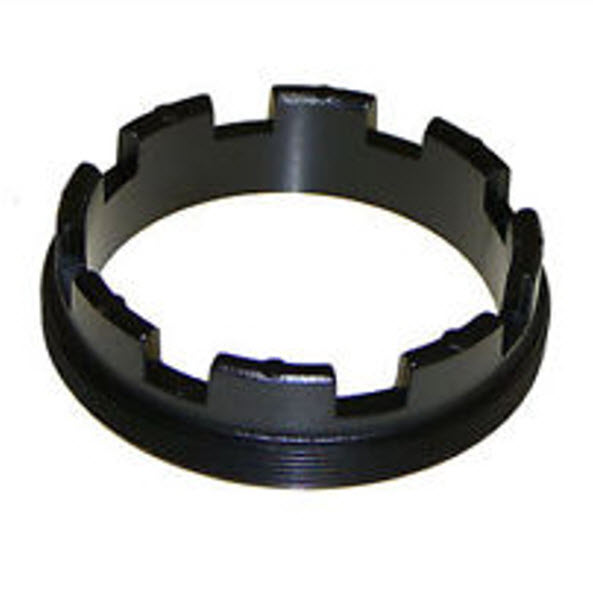

8M0169062 - Drive Shaft Housing Ring Nut [ More info ]
|
| #28 | 8M0171142 | CARRIER ASSY (1 required per assembly) — Replaces: 86779A1 |
  |
|
8M0171142 - CARRIER ASSY SEAL BRAVOS ZZ [ More info ]
|
| #29 | 807006 | SEAL OIL (1 required per assembly) |
  |
|
26-807006 - Seal [ More info ]
|
| #30 | 41613 | WASHER (1 required per assembly) |
  |
|
12-41613 - Washer [ More info ]
|
| #31 | 861844 | O RING (1 required per assembly) — Replaces: 97386 |
  |
25-861844 - O-Ring [ More info ] Unavailable |
|
  |
|
18-7961 - O-Ring 25-97386 [ More info ]
|
  |
|
25-8M0214974 - O-Ring [ More info ]
|
| #32 | 86780 | RING (1 required per assembly) |
  |
|
|
| #33 | 8M0103472 | BEARING ASSY (1 required per assembly) — Replaces: 86763A2 |
  |
|
31-8M0103472 - Bearing Assembly [ More info ]
|
| #34 | 826642T | GEAR PINION (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III) (SEE NOTE 2) (27 TEETH - MATES WITH 32 TOOTH DRIVE GEAR) (1 required per assembly) |
  |
|
43-826642T - Ref MCM SB2001-1, NLA [ More info ] Unavailable |
| #34 | 815661T | GEAR PINION (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III) (SEE NOTE 2) (27 TEETH - MATES WITH 29 TOOTH DRIVE GEAR) (1 required per assembly) |
  |
|
43-815661T - Ref MCM SB2001-1, NLA [ More info ]
|
| #34 | 818664 | GEAR PINION (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III) (SEE NOTE 2) (23 TEETH - MATES WITH 30 TOOTH DRIVE GEAR) (1 required per assembly) |
  |
|
43-818664 - Gear, Ref MCM SB2001-1, NLA [ More info ] Unavailable |
| #35 | 44539 | WASHER (1 required per assembly) |
  |
|
12-44539 - Washer [ More info ]
|
| #36 | 22339 | NUT @5 (1 required per assembly) — Replaces: 97522 |
  |
11-22339 - Nut (5/8x18) [ More info ] Unavailable |
|
  |
|
18-3713 - Nut, 11-22339 [ More info ]
|
  |
|
11-8M0214915 - NUT Note: Priced Individually [ More info ]
|
  |
|
11-01817 - Nut 11-22339 [ More info ]
|
| #37 | 821630Q1 | ANODE KIT(ALUM) (1 required per assembly) — Replaces: 821630A1 |
  |
|
97-821630Q 1 - Anode Kit -Drive Shaft Housing Bravo [ More info ]
|
  |
|
18-6240 - Anode, Magnesium, 821630 [ More info ]
|
  |
|
18-6094 - Anode, Zinc, 821630A1 [ More info ]
|
  |
|
97-821630T 1 - Aluminun Anode-Drive Shaft Housing Bravo [ More info ]
|
| #38 | 65210 | SCREW (.375-16 X 1.00) (2 required per assembly) |
  |
|
10-65210 - Screw - Priced Individually [ More info ]
|
| #39 | 35479 | LOCKWASHER (.375) (2 required per assembly) |
  |
|
13-35479 - LockWasher - Priced Individually [ More info ]
|
