Parts for Alpha One (Gen.II) MerCruiser Outdrive Units Oil Reservoir Components

Revise Search: Sterndrive > MerCruiser Outdrive Units > Alpha One (Gen.II) > 1996-1997 0F680000 - 0K999999 > Oil Reservoir Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

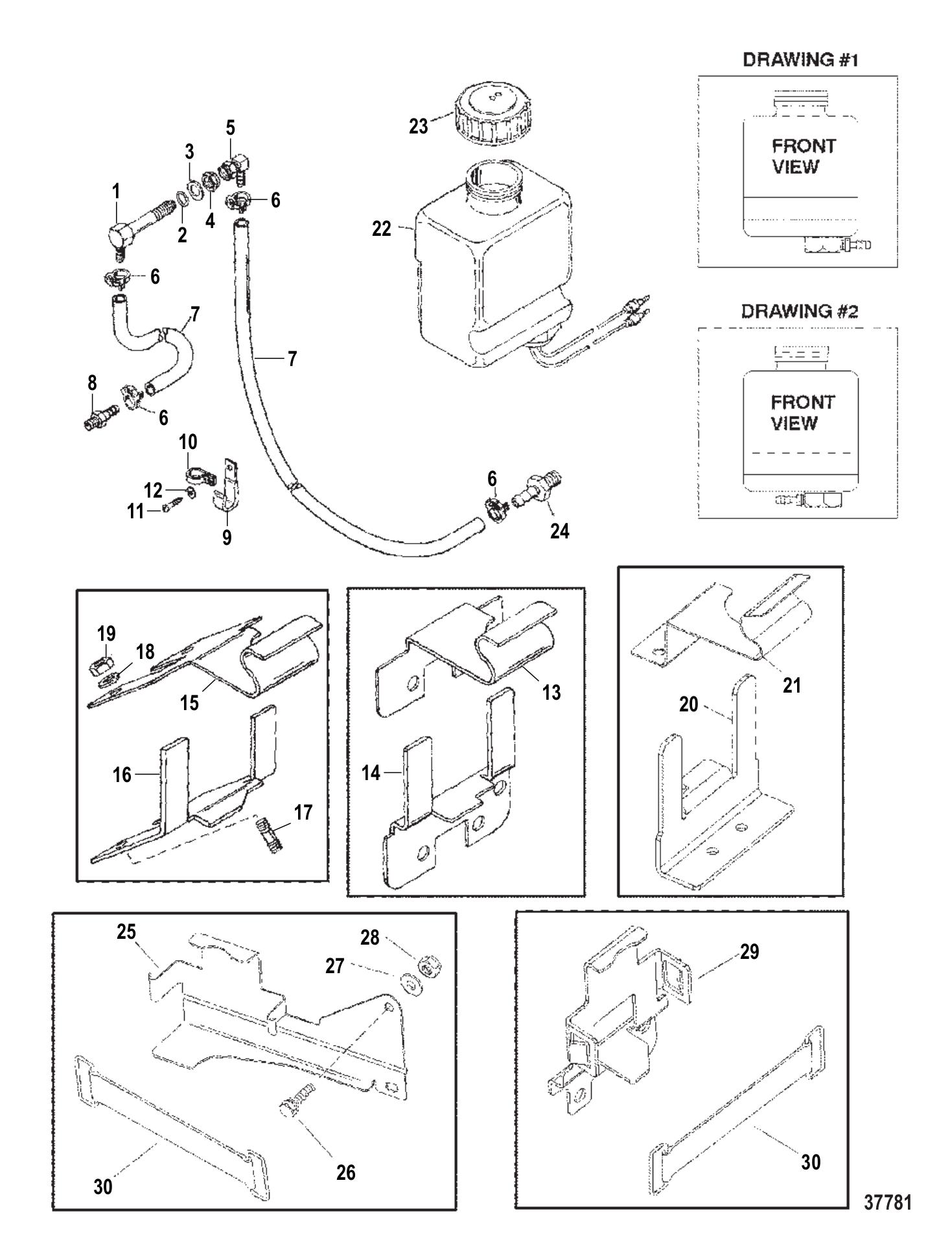

Oil Reservoir Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	18922	CONNECTOR (1 required per assembly)
		22-18922 - Connector [ More info ] $32.89 In Stock
#2	201951	O RING (1 required per assembly) — Replaces: 20195
		25-20195 1 - O-Ring [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
		18-7134-9 - O-Ring (PK5) 339543 [ More info ] $10.47 Available to Order: Shipping delay up to 10 days.
#3	861854	WASHER (1 required per assembly) — Replaces: 91964
		12-861854 - Washer, (.453 X .750 X .032) Stainless Steel [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#4	8M0143423	NUT (1 required per assembly) — Replaces: 35053
		11-8M0143423 - NUT, Priced Individually [ More info ] $9.49 1 In Stock.
#5	18923	FITTING (1 required per assembly)
		22-18923 - Fitting [ More info ] $27.59 6 In Stock.
#6	415825	CLAMP @5 (4 required per assembly)
		54-41582 5 - Clamp - Priced Individually [ More info ] $3.09 10+ In Stock.
#7	8M0040618	HOSE (2 required per assembly) — Replaces: 1940971, 8M0062600
		32-8M0040618 - Oil Reservoir Hose, 54 inch [ More info ] Unavailable
		32-8M0214996 - OIL RESERVIOR HOSE 54IN ZZ [ More info ] $30.79 4 In Stock.
#8	8M0180507	FITTING (1 required per assembly) — Replaces: 16739
		22-8M0180507 - Fitting [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#9	642351	CLIP @2 (1 required per assembly)
		54-64235 1 - Clip - Priced Individually [ More info ] $3.10 1 In Stock.
		54-8M0024808 - J-CLIP [ More info ] Unavailable
#10	23567	CLIP (1 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#11	60605	SCREW (1 required per assembly)
		10-60605 - Screw [ More info ] $1.10 $0.22 10+ In Stock.
#12	8M0084613	WASHER (1 required per assembly) — Replaces: 69205
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#13	860065A1	BRACKET KIT 3.0LX (1 required per assembly) — Replaces: 806293T
		860065A 1 - Bracket Kit [ More info ] $37.49 $36.72 In Stock
		806293T - Bracket [ More info ] $49.34 2 In Stock.
#14	860065A1	BRACKET KIT 3.0LX (1 required per assembly) — Replaces: 807024T
#15	806292T1	BRACKET 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM (1 required per assembly) — Replaces: 806292T
		806292T 1 - Bracket [ More info ] Unavailable
#16	807025T	BRACKET 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM (1 required per assembly)
		807025T - Bracket [ More info ] Unavailable
#17	8M2004610	STUD @5 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM (2 required per assembly) — Replaces: 805357
		16-8M2004610 - Stud [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#18	20553	WASHER @5 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM (2 required per assembly)
		12-20553 - Washer - Priced Individually [ More info ] $1.50 8 In Stock.
#19	32219	NUT @5 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM (2 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#20	806649T	BRACKET 5.7L (TBI)/5.7LX (TBI) (1 required per assembly)
		806649T - Bracket [ More info ] $16.00 $13.55 3 In Stock.
#21	806650T	BRACKET ASSY 350 MAG. (TBI)(GEN+)/262 MAG. (TBI)(GEN+) (1 required per assembly)
		806650T - Bracket, NLA [ More info ] Unavailable
#22	806193A51	MONITOR ASSY-LUBE (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1) (1 required per assembly) — Replaces: 806193A3, 806193A33
		806193A51 - Lube Monitor Assembly [ More info ] Unavailable
		8M0075708 - Lube Bottle [ More info ] $71.60 2 In Stock.
#22	806193A36	BOTTLE ASSY-OIL (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2) (1 required per assembly) — Replaces: 806193A13, 806193A30
		806193A36 - BOTTLE ASSY-OIL [ More info ] Unavailable
		806193A46 - Oil Bottle Assembly ZZ [ More info ] Unavailable
		8M0075709 - Oil Bottle Assembly [ More info ] $72.99 In Stock
#23	8067271	CAP DRIVE LUBE MONITOR (1 required per assembly) — Replaces: 808625
		36-806727 1 - Reservoir Cap [ More info ] $14.99 Available to Order: Shipping delay up to 10 days.
#24	808624	CONNECTOR (1 required per assembly)
		22-808624 - Connector [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#25	807839T1	BRACKET-RESERVIOR 4.3LX/4.3LXH/262 MAG. EFI (1 required per assembly) — Replaces: 807839T
		807839T 1 - Reservoir Bracket, NLA [ More info ] Unavailable
#26	657461	SCREW @5 4.3LX/4.3LXH/262 MAG. EFI (1 required per assembly)
		10-65746 1 - Screw [ More info ] $1.70 5 In Stock.
#27	69057	WASHER 4.3LX/4.3LXH/262 MAG. EFI (1 required per assembly)
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.80 2 In Stock.
#28	8267088	NUT @5 4.3LX/4.3LXH/262 MAG. EFI (1 required per assembly) — Replaces: 72008
		11-826708 8 - Nut [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#29	860065A1	BRACKET KIT OIL BOTTLE 3.0LX/5.7L/LX & 350 MAGNUM (CARB & EFI) (1 required per assembly)
#30	808023T	STRAP BRACKET (1 required per assembly)
		808023T - Retaining Strap [ More info ] $19.39 In Stock
