Parts for Alpha One (Gen.II) MerCruiser Outdrive Units Gimbal Ring & Steering Lever

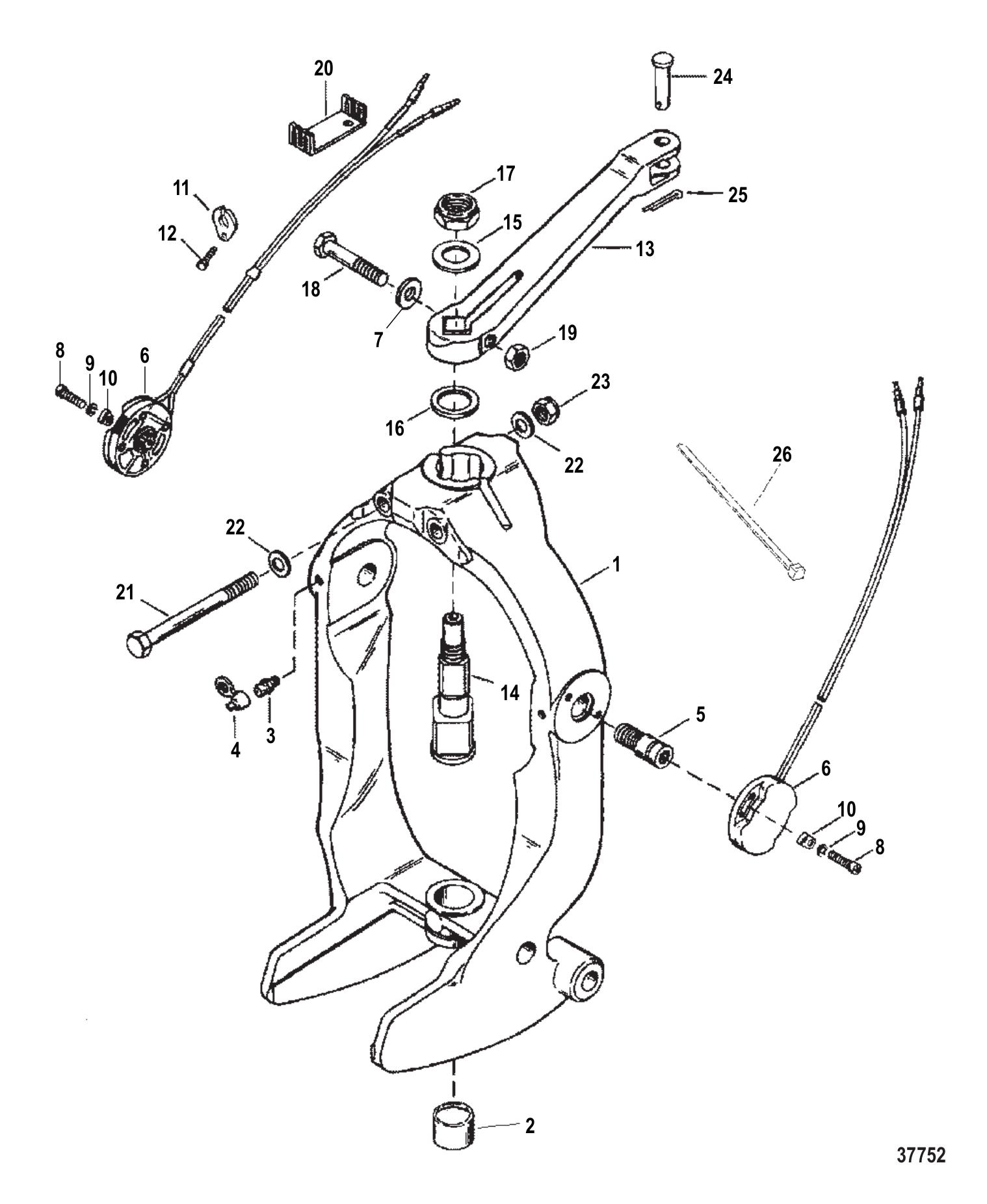

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 865328A01 | GIMBAL RING (1 required per assembly) — Replaces: 816461A2 |
  |
|
865328A01 - Gimbal Ring [ More info ]
|
| #2 | 847638 | BUSHING (1 required per assembly) — Replaces: 99352 |
  |
|
23-847638 - Bearing [ More info ]
|
| #3 | 8M0169589 | FITTING GREASE (1/4-28) (2 required per assembly) — Replaces: 74036 |
  |
|
228M0169589 - Fitting Note: Priced Individually [ More info ]
|
| #4 | 77633Q | CAP KT-5PACK@2 (2 required per assembly) — Replaces: 77633 |
  |
|
19-77633Q - Cap - Pack of 5 as shown [ More info ]
|
| #5 | 77123 | PIN-HINGE (2 required per assembly) |
  |
|
77123 - Hinge Pin [ More info ]
|
  |
|
18-1705 - Hinge Pin 77123 [ More info ]
|
| #6 | 805320A03 | SENDR KT-ALPH/BRV (1 required per assembly) — Replaces: 805320A1 |
  |
|
805320A03 - Sender Kit - Alpha/Bravo [ More info ]
|
  |
|
18-7633 - Sender, Alpha and Bravo, 805320A03 [ More info ]
|
  |
|
TS001 - TILT TRIM SENDER [ More info ]
|
| #7 | 861854 | WASHER (1 required per assembly) — Replaces: 91964 |
  |
|
12-861854 - Washer, (.453 X .750 X .032) Stainless Steel [ More info ]
|
| #8 | 37978 | SCREW @5 (4 required per assembly) |
  |
|
10-37978 - Screw - Priced Individually [ More info ]
|
| #9 | 26996 | LOCKWASHER @15 (4 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #10 | 57008 | RETAINER @5 (4 required per assembly) |
  |
|
57008 - Retainer [ More info ]
|
| #11 | 12078 | CLAMP (1 required per assembly) |
  |
|
54-12078 - Clamp [ More info ]
|
| #12 | 28635 | SCREW @5 (1 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #13 | 866322A01 | LEVER-STEERING (1 required per assembly) — Replaces: 98262A1, 98262A02 |
  |
|
866322A01 - Steering Lever [ More info ]
|
| #14 | 98230A1 | SHAFT-UPPER (1 required per assembly) |
  |
|
98230A 1 - Shaft - Upper [ More info ]
|
  |
|
18-73131 - Shaft, Upper Swivel Gimbal Ring 98230A1 [ More info ]
|
  |
|
45-02647 - Upper Gimbal Ring Shaft Kit Mercury Mercruiser 98230A1 [ More info ]
|
| #15 | 85344 | WASHER (1 required per assembly) |
  |
|
12-85344 - Washer, (.750 Inside Diameter) [ More info ]
|
| #16 | 98548 | WASHER (1 required per assembly) |
  |
|
12-98548 - Washer, (1.125 ) [ More info ]
|
| #17 | 8M2014641 | NUT @2 (1 required per assembly) — Replaces: 25599, 82671323 |
  |
|
11-8M2014641 - Nut - Priced Individually [ More info ]
|
| #18 | 807204 | SCREW (1 required per assembly) |
  |
|
10-807204 - Screw [ More info ]
|
| #19 | 8M2008293 | NUT (1 required per assembly) — Replaces: 98533 |
  |
|
11-8M2008293 - Nut, (.437-20) [ More info ]
|
| #20 | 79146 | RETAINER (1 required per assembly) |
  |
|
79146 - Retainer [ More info ]
|
| #21 | 90126 | SCREW (2 required per assembly) |
  |
|
10-90126 - Screw [ More info ]
|
| #22 | 34931 | WASHER (4 required per assembly) |
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #23 | 862903 | NUT (2 required per assembly) — Replaces: 134371 |
  |
|
11-862903 - Nut, (.375-24) [ More info ]
|
| #24 | 52798 | PIN-CLEVIS NON POWER STEERING (1 required per assembly) |
  |
|
17-52798 - Clevis Pin [ More info ]
|
| #25 | 46950 | PIN-COTTER NON POWER STEERING (1 required per assembly) |
  |
|
18-46950 - Cotter Pin [ More info ]
|
| #26 | 816311T | TIE STRAP @100 (AR required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
