Parts for Alpha One (Gen.II) MerCruiser Outdrive Units Driveshaft Housing & Driveshaft

Revise Search: Sterndrive > MerCruiser Outdrive Units > Alpha One (Gen.II) > 1996-1997 0F680000 - 0K999999 > Driveshaft Housing & Driveshaft

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

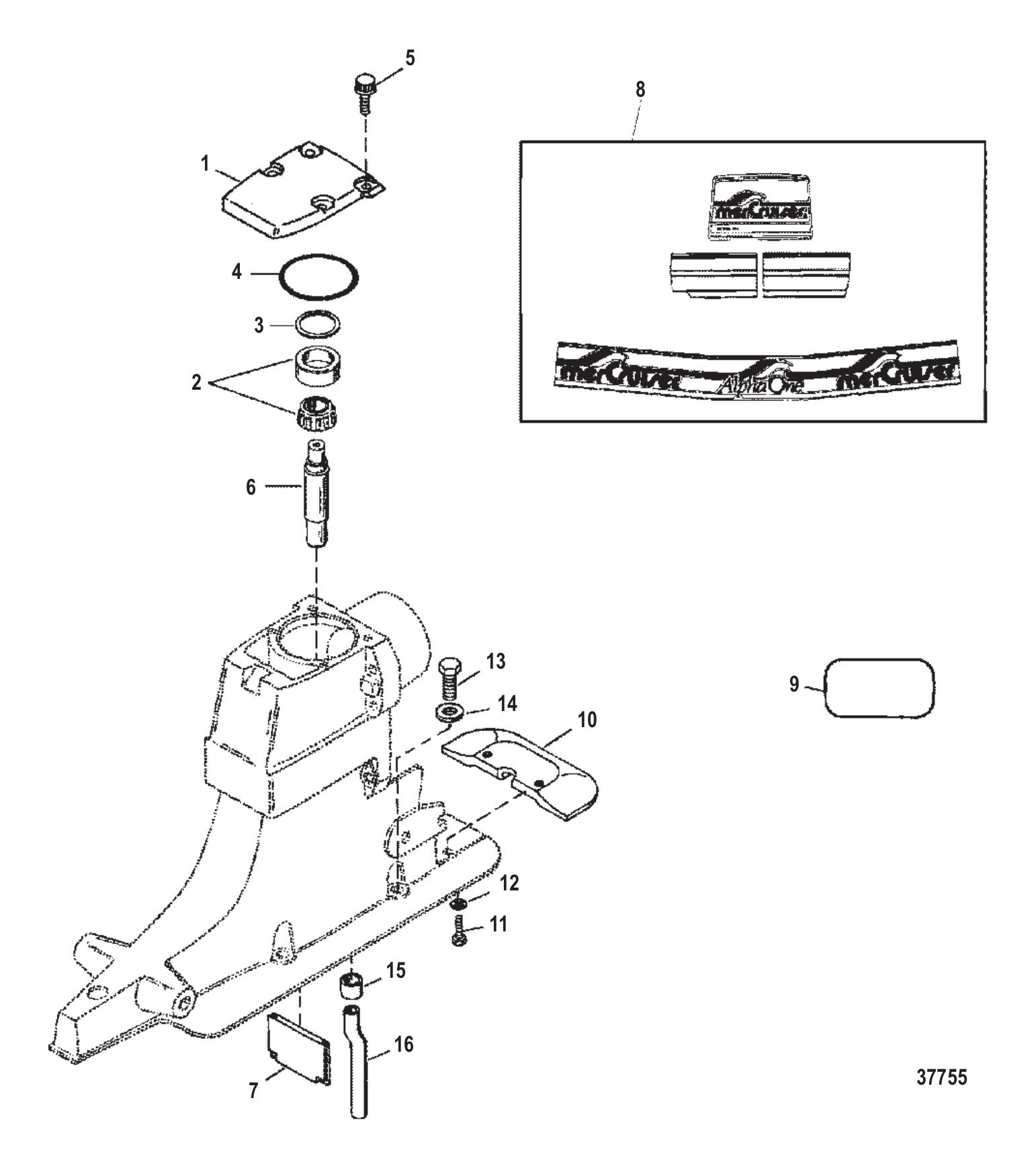

Driveshaft Housing & Driveshaft

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	88397A1	SEAL KIT (- required per assembly)
		26-88397A 1 - Seal Kit [ More info ] $50.49 In Stock
		18-2644 - Seal Kit, 26-88397A1 [ More info ] $43.62 10+ In Stock.
		26-03807 - Seal Kit 26-88397A 1 [ More info ] $38.99 $34.56 4 In Stock.
#1	828692A1	COVER ASSY-TOP (1 required per assembly)
		828692A 1 - Cover Assembly [ More info ] $299.99 $201.55 10+ In Stock.
		18-2382 - Cover, 828692A1 [ More info ] $247.14 In Stock
#2	32575T1	BEARING ASSEMBLY (1 required per assembly) — Replaces: 32575A1
		31-32575T 1 - Bearing [ More info ] $36.77 1 In Stock.
		18-1179 - Bearing, 31-32575T1 [ More info ] $15.24 1 In Stock.
#3	32563A1	SHIM SET (AR required per assembly)
		15-32563A 1 - Shim Set [ More info ] $13.59 $7.62 10+ In Stock.
#4	32546	O-RING (1 required per assembly)
		25-32546 - O-Ring - Priced Individually [ More info ] $4.09 2 In Stock.
		18-7161-9 - (PK5) O-Ring 25-32546 [ More info ] $17.05 4 In Stock.
#5	8M0113180	SCREW @2 (4 required per assembly) — Replaces: 98794
		10-8M0113180 - Mouting Screw AL/BRAV TOP Cover, priced individually [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#6	8M0161872	DRIVESHAFT-UPPER (1 required per assembly) — Replaces: 557961
		45-8M0161872 - Drive Shaft-UPPER [ More info ] $182.99 Available to Order: Shipping delay up to 10 days.
#7	815932	FILLER WALL (1 required per assembly)
		815932 - Filler Wall [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#8	817387A91	DECAL SET (1 required per assembly)
		37-817387A91 - Decal Set [ More info ] $252.99 Available to Order: Shipping delay up to 10 days.
#9	13722A11	DECAL SET (3.0LX) (1 required per assembly)
		37-13722A11 - Decal Set [ More info ] Unavailable
#9	13722A13	DECAL SET (4.3L/4.3LX/5.7L) (1 required per assembly)
		37-13722A13 - Decal Set [ More info ] $19.99 $16.92 7 In Stock.
#9	13722A14	DECAL SET (4.3LX/4.3LXH/262 MAG)(GEN +) (1 required per assembly)
		37-13722A14 - Decal Set [ More info ] Unavailable
#9	13722A15	DECAL SET (5.7L/LX CARB & EFI) (1 required per assembly)
		37-13722A15 - Decal Set,NLA [ More info ] Unavailable
#9	13722A16	DECAL SET (350 MAGNUM) (1 required per assembly)
		37-13722A16 - Decal Set, NLA [ More info ] Unavailable
#10	821629Q1	ANODE KIT(ALUM) (1 required per assembly) — Replaces: 821629A1
		97-821629Q 1 - Anode-Drive Shaft Housing - GEN II [ More info ] $32.89 10 In Stock.
		18-6099 - Anode, Magnesium, 821629 [ More info ] $47.19 2 In Stock.
		18-6080A - Anode, Aluminum, 18-6080A [ More info ] $38.89 $26.32 In Stock
		97-821629T 1 - Anode-Drive Shaft Housing - GEN II [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#11	28668	SCREW (.250-20 X .875) STAINLESS STEEL (2 required per assembly)
		10-28668 - Screw - Priced Individually [ More info ] $1.70 4 In Stock.
#12	78968	LOCKWASHER INTERNAL (.250) (2 required per assembly)
		13-78968 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#13	816601	SCREW (4 required per assembly)
		10-816601 - Screw [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#14	45176	WASHER @5 (4 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#15	88397	SEAL @2 (1 required per assembly)
		26-88397 - Seal - Priced Individually [ More info ] $5.79 5 In Stock.
#16	8M0171252	TUBE-WATER (1 required per assembly) — Replaces: 814384, 860220
		32-8M0171252 - Drive Shaft Housing Water Tube ZZ [ More info ] $25.09 In Stock
