Parts for 10 HP Carb 2 Cyl 4-Stroke Mercury Outboard Motor Tiller Handle Conversion Kit 20 HP Electric - 8M0051060
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0104198 | CONV. KIT-TILLER (1 required per assembly) — Replaces: 8M0051060 |
  |
|
8M0104198 - Tiller Conversion Kit [ More info ]
|
| #1 | NSS | NOT SOLD SEPARATE TILLER HANDLE ASSEMBLY (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | 8M0051374 | TILLER HANDLE (1 required per assembly) |
  |
|
8M0051374 - Tiller Handle [ More info ]
|
| #3 | 8M0051375 | PLUG CAP (1 required per assembly) |
  |
|
8M0051375 - Plug [ More info ]
|
| #4 | 8M0051377 | GRIP (1 required per assembly) |
  |
|
8M0051377 - Handle -Grip A [ More info ]
|
| #5 | 8M0051405 | SWITCH ASSEMBLY STOP (1 required per assembly) |
  |
|
8M0051405 - Switch Assembly [ More info ]
|
| #6 | 8M0051376 | GRIP RUBBER (1 required per assembly) |
  |
8M0051376 - Grip-Handle [ More info ] Unavailable |
|
  |
99589003 - Grip [ More info ] Unavailable |
|
  |
|
8M0221732 - Outer Grip [ More info ]
|
| #7 | 896853008 | DECAL TILLER HANDLE SHIFT-RABBIT (1 required per assembly) |
  |
|
37-896853008 - Decal - Throttle [ More info ]
|
| #8 | 8M0051379 | SHAFT THROTTLE (1 required per assembly) |
  |
|
8M0051379 - Shaft -Throttle [ More info ]
|
| #9 | 878608 | SCREW (#10-16 X .500) (1 required per assembly) |
  |
|
10-878608 - Screw [ More info ]
|
| #10 | 8M0108373 | WASHER (1 required per assembly) — Replaces: 16080 |
  |
|
128M0108373 - Washer [ More info ]
|
| #11 | 8M0051388 | COVER (1 required per assembly) |
  |
|
8M0051388 - Cover [ More info ]
|
| #12 | 8M0051386 | PULLEY (1 required per assembly) |
  |
|
8M0051386 - Pulley [ More info ]
|
| #13 | 8M0051387 | HOUSING (1 required per assembly) |
  |
|
8M0051387 - Housing [ More info ]
|
| #14 | 8M0051391 | CABLE THROTTLE (2 required per assembly) |
  |
|
8M0051391 - Throttle Cable [ More info ]
|
| #15 | 22740 | CLIP (1 required per assembly) |
  |
|
|
| #16 | 8M0051381 | SCREW (1 required per assembly) |
  |
|
10-8M0051381 - Screw [ More info ]
|
| #17 | 8M0051380 | BRACKET (1 required per assembly) |
  |
|
8M0051380 - Bracket [ More info ]
|
| #18 | 8M0051381 | SCREW (1 required per assembly) |
| #19 | 8M0204707 | SCREW @5 (1 required per assembly) — Replaces: 8M0051385, 4000330 |
  |
|
108M0204707 - SCREW Note: Priced Individually [ More info ]
|
| #20 | 8M0051382 | CLAMP FRICTION - THROTTLE (1 required per assembly) |
  |
|
8M0051382 - Clamp [ More info ]
|
| #21 | 8M0051384 | SPRING STAINLESS STEEL (1 required per assembly) |
  |
|
24-8M0051384 - Spring [ More info ]
|
| #22 | 8M0051383 | NUT (1 required per assembly) |
  |
|
8M0051383 - Knob [ More info ]
|
| #23 | 8M0051392 | HANDLE CARRYING (1 required per assembly) |
  |
|
8M0051392 - Carry Handle [ More info ]
|
| #24 | 8M0051400 | COVER (1 required per assembly) |
  |
|
8M0051400 - Cover [ More info ]
|
| #25 | 823042 | BOLT (1 required per assembly) — Replaces: 8M0051401, 879194263 |
  |
|
10-823042 - Bolt [ More info ]
|
| #26 | 8M0051402 | BOLT STAINLESS STEEL (1 required per assembly) |
  |
|
10-8M0051402 - Screw [ More info ]
|
| #27 | 892904006 | DECAL ( required per assembly) |
  |
|
37-892904006 - Decal [ More info ] Unavailable |
| #28 | 892395A01 | SWITCH ASSEMBLY STOP (1 required per assembly) — Replaces: 8M0051406 |
  |
|
87-892395A01 - Stop Switch [ More info ]
|
| #29 | 8M0032846 | RETAINER BRASS (1 required per assembly) — Replaces: 120441 |
  |
|
8M0032846 - Brass Retainer [ More info ]
|
| #30 | 8M0051403 | BUSHING PLASTIC (2 required per assembly) |
  |
|
23-8M0051403 - Bushing [ More info ]
|
| #31 | 8M0051393 | COVER (1 required per assembly) |
  |
|
8M0051393 - Cover [ More info ]
|
| #32 | 8M0204707 | SCREW @5 (1 required per assembly) — Replaces: 8M0051385, 4000330 |
| #33 | 8M0136037 | SCREW (2 required per assembly) — Replaces: 8M0051394 |
  |
|
108M0136037 - Screw [ More info ]
|
| #34 | 8M0051396 | LEVER TILLER LOCK - STAINLESS STEEL (1 required per assembly) |
  |
|
8M0051396 - Lock Lever [ More info ]
|
| #35 | 8M0051383 | NUT (1 required per assembly) |
| #36 | 8M0051397 | COLLAR STAINLESS STEEL (1 required per assembly) |
  |
|
8M0051397 - Collar [ More info ]
|
| #37 | 8M0051398 | SPRING STAINLESS STEEL (1 required per assembly) |
  |
|
24-8M0051398 - Spring [ More info ]
|
| #38 | 8M0051404 | WASHER RUBBER (2 required per assembly) |
  |
|
12-8M0051404 - Washer [ More info ]
|
| #39 | 8M0058362 | BOLT STEEL (2 required per assembly) — Replaces: 895140 |
  |
|
108M0058362 - Bolt [ More info ]
|
| #40 | 879194340 | WASHER (2 required per assembly) — Replaces: 895141 |
  |
|
12-879194340 - Washer [ More info ]
|
| #41 | NSS | NOT SOLD SEPARATE GEAR ASSEMBLY, THROTTLE ONLY (1 required per assembly) |
| #42 | 8M0102279 | BOLT (1 required per assembly) — Replaces: 879194266, 82304222 |
  |
|
108M0102279 - Bolt [ More info ]
|
| #43 | 895126004 | COLLAR STAINLESS STEEL (6.3 MM) (1 required per assembly) |
  |
|
23-895126004 - Collar [ More info ]
|
| #44 | 898103144 | OPENER THROTTLE (1 required per assembly) |
  |
|
898103144 - Opener- Throttle [ More info ]
|
| #45 | 953921 | WASHER STAINLESS STEEL (1 required per assembly) |
  |
|
12-95392 1 - Washer [ More info ]
|
| #46 | 895101401 | DRUM THROTTLE (1 required per assembly) |
  |
|
895101401 - Throttle Drum [ More info ]
|
| #47 | 879147T85 | BRACKET SHIFT LEVER (1 required per assembly) |
  |
|
879147T85 - Bracket [ More info ]
|
| #48 | 898103139 | KNOB (1 required per assembly) |
  |
|
898103139 - Knob [ More info ]
|
| #49 | 898103140 | GROMMET (1 required per assembly) |
  |
|
25-898103140 - Grommet [ More info ]
|
| #50 | 895161 | GEAR DRIVEN (1 required per assembly) |
  |
|
895161 - Driven Gear [ More info ]
|
| #51 | 898103141 | GEAR PLATE (1 required per assembly) |
  |
|
898103141 - Gear Plate [ More info ]
|
| #52 | 823042 | BOLT (1 required per assembly) — Replaces: 879194263 |
| #53 | 898103142 | GEAR DRIVE (1 required per assembly) |
  |
|
898103142 - Drive Gear [ More info ]
|
| #54 | 895162001 | COLLAR (1 required per assembly) — Replaces: 895162 |
  |
|
23-895162001 - Collar [ More info ]
|
| #55 | 16826 | WASHER STAINLESS STEEL (1 required per assembly) — Replaces: 879194338 |
  |
|
12-16826 - Washer, Stainless Steel [ More info ]
|
| #56 | 8537227 | NUT NYLON (1 required per assembly) |
  |
|
11-853722 7 - Nut [ More info ]
|
| #57 | 898103136 | SHIFT SHAFT ASSEMBLY (1 required per assembly) |
  |
|
898103136 - Shift Shaft [ More info ]
|
| #58 | 16085003 | PIN (1 required per assembly) |
  |
|
17-16085003 - Pin [ More info ]
|
| #59 | 813028003 | SPRING (1 required per assembly) |
  |
|
24-813028003 - Spring [ More info ]
|
| #60 | 879147T86 | COVER (1 required per assembly) |
  |
|
879147T86 - Cover [ More info ]
|
| #61 | 853709007 | GROMMET (1 required per assembly) |
  |
|
25-853709007 - Grommet, Shift Rod [ More info ]
|
| #62 | 898101953 | BOLT (3 required per assembly) |
  |
|
10-898101953 - Bolt - Priced Individually [ More info ]
|
| #63 | 8M0155127 | ROD CHOKE (1 required per assembly) — Replaces: 855565002 |
  |
|
8M0155127 - Choke Rod [ More info ]
|
| #64 | 851858005 | BUSHING (1 required per assembly) |
  |
23-851858005 - Bushing [ More info ] Unavailable |
|
  |
|
238M0231329 - Bushing [ More info ]
|
| #65 | 895124 | PUMP ASSEMBLY PRIMING (1 required per assembly) |
  |
|
895124 - Priming Pump [ More info ]
|
| #66 | 895177 | NUT (1 required per assembly) |
  |
|
|
| #67 | 898101964 | CLIP (2 required per assembly) |
  |
|
54-898101964 - Clip [ More info ]
|
| #68 | 879194473 | TUBING (1 required per assembly) — Replaces: 851848007 |
  |
|
32-879194473 - Hose [ More info ]
|
| #69 | 855562003 | LINK ROD (1 required per assembly) |
  |
|
855562003 - Choke Link Rod [ More info ]
|
| #70 | 855561010 | SNAP LINK ROD (1 required per assembly) |
  |
|
855561010 - Rod Link Snap [ More info ]
|
| #71 | 8M0129551 | CARBURETOR (1 required per assembly) — Replaces: 853720T20, 8M0109534 |
  |
|
13008M0129551 - Carburetor [ More info ] Unavailable |
| #72 | 898101981 | GASKET (2 required per assembly) |
  |
|

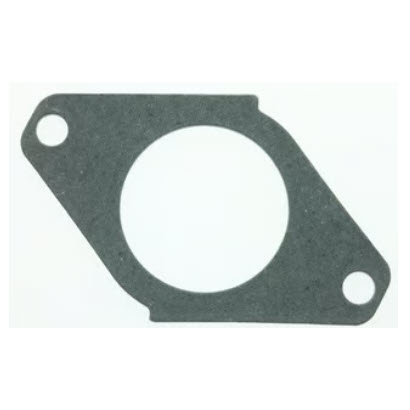

27-898101981 - Carburetor Gasket [ More info ]
|
| #73 | 859278004 | DECAL START (1 required per assembly) |
  |
|
37-859278004 - Decal Start [ More info ]
|
| #74 | 85372214 | CAP NUT (2 required per assembly) |
  |
|
11-853722 14 - Cap Nut [ More info ]
|
| #75 | 898101978 | DECAL WIRING DIAGRAM (1 required per assembly) |
  |
|
37-898101978 - Decal [ More info ]
|
| #76 | 17169 | CLAMP (1 required per assembly) |
  |
|
54-17169 - Clamp [ More info ]
|
| #77 | 898101963 | GROMMET (1 required per assembly) |
  |
|
25-898101963 - Grommet [ More info ]
|
| #78 | 859278003 | DECAL THROTTLE ONLY (1 required per assembly) |
  |
|
37-859278003 - Decal -Throttle [ More info ]
|
| #79 | 898101962 | GROMMET (1 required per assembly) |
  |
|
25-898101962 - Grommet [ More info ]
|
| #80 | 8M0127937 | SWITCH NEUTRAL (1 required per assembly) — Replaces: 171711, 804054001 |
  |
|
878M0127937 - Neutral Switch [ More info ]
|
| #81 | 898103154 | SHIFT ROD (1 required per assembly) |
  |
|
898103154 - Shift Rod [ More info ]
|
| #82 | 853820A02 | SWITCH ASSEMBLY START (1 required per assembly) |
  |
|
87-853820A02 - Start Button [ More info ]
|
| #83 | 8230427 | BOLT ASSEMBLY (M6 X 12) (1 required per assembly) |
  |
|
10-823042 7 - Bolt [ More info ]
|
| #84 | 953951 | CLAMP (3 required per assembly) |
  |
|
54-95395 1 - Clamp [ More info ]
|
| #85 | 15920Q54 | LANYARD ASSEMBLY (1 required per assembly) |
  |
|
15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable |
| #86 | 898103145 | ROD THROTTLE (1 required per assembly) |
  |
|
898103145 - Throttle Rod [ More info ]
|
