Parts for Mercury 120 (Powerhead) Starter Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8199683 | STARTER ASSY (1 required per assembly) — Replaces: 8199681, 8199682 |
  |
50-819968 3 - Starter [ More info ] Unavailable |
|
  |
50-819968 4 - Starter [ More info ] Unavailable |
|
  |
50-819968T 4 - Starter [ More info ] Unavailable |
|
  |
|
50-898265003 - Starter Motor [ More info ] Unavailable |
  |
|
18-5618 - Starter, 50-8199681 [ More info ]
|
  |
|
7325 - Starter, 50-819968 4 [ More info ]
|
| #2 | F15190 | BRUSH/SPRING KIT (1 required per assembly) |
  |
|
F15190 - Brush and Spring Kit [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|

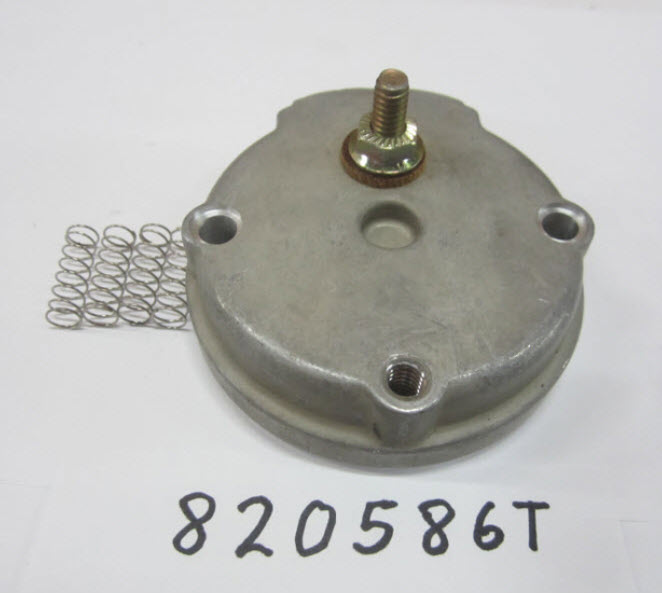

| #3 | 820586T | COMM CAP ASSY COMMUTATOR (1 required per assembly) — Replaces: 820586 |
  |
|
820586T - Comm Cap Assembly, NLA [ More info ] Unavailable |
| #4 | 57387 | BUSHING (1 required per assembly) — Replaces: F15159 |
  |
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #5 | F15158 | SCREW (2 required per assembly) |
  |
|
F15158 - Screw [ More info ] Unavailable |
| #6 | F15178 | THRU BOLT (2 required per assembly) |
  |
|
F15178 - Thru Bolt [ More info ] Unavailable |
| #7 | F15162 | NUT (2 required per assembly) |
  |
|
F15162 - Nut (1/4-20) NLA [ More info ]
|
| #8 | 820585 | ARMATURE (1 required per assembly) |
  |
|
820585 - Armature [ More info ]
|
| #9 | 8199682 | STARTER MOTOR ASSEMBLY DRIVE (1 required per assembly) — Replaces: 820584, 8199681 |
  |
50-819968 2 - Starter [ More info ] Unavailable |
|
| #10 | 37998 | WASHER (2 required per assembly) |
  |
|
12-37998 - Washer - Priced Individually [ More info ]
|
| #11 | 802640T | DRIVE ASSY (1 required per assembly) — Replaces: 820583, 802640 |
  |
|
802640T - Drive Assembly, NLA [ More info ]
|
  |
|
DV325 - Starter Drive, 802640T [ More info ]
|
| #13 | 820620 | DRIVE KIT (1 required per assembly) |
  |
|
820620 - Drive Retainer Kit [ More info ]
|
| #15 | 38933 | O-RING (2 required per assembly) |
  |
|
25-38933 - O-Ring, Lower Shift Control Shaft [ More info ]
|
  |
|
18-7120 - O-Ring 322598 [ More info ]
|
| #16 | 828451 | NUT (2 required per assembly) |
  |
|
11-828451 - Nut (.250-28) [ More info ]
|
| #17 | 26992 | LOCKWASHER @5 (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #18 | 93388A6 | CABLE ASSEMBLY (5.500 INCHES) STARTER LEAD (1 required per assembly) |
  |
|
84-93388A 6 - Cable Assembly [ More info ]
|
| #19 | F616675 | BRACKET STARTER MOUNT (1 required per assembly) |
  |
|
F616675 - Bracket [ More info ]
|
| #20 | 19923062 | SCREW (With Dri Loc) (1 required per assembly) |
  |
|
10-19923062 - Screw [ More info ]
|
| #21 | 19923062 | SCREW (With Dri Loc) (1 required per assembly) |
| #NS | 8272822 | DECAL-WARNING (High Voltage) (1 required per assembly) — Replaces: 825066 |
  |
|
37-827282 2 - Decal - Warning [ More info ]
|
| #NS | 881865 | DECAL-CAUTION (Start In Gear) (1 required per assembly) — Replaces: 825064 |
  |
|
37-881865 - Decal -Caution [ More info ]
|
