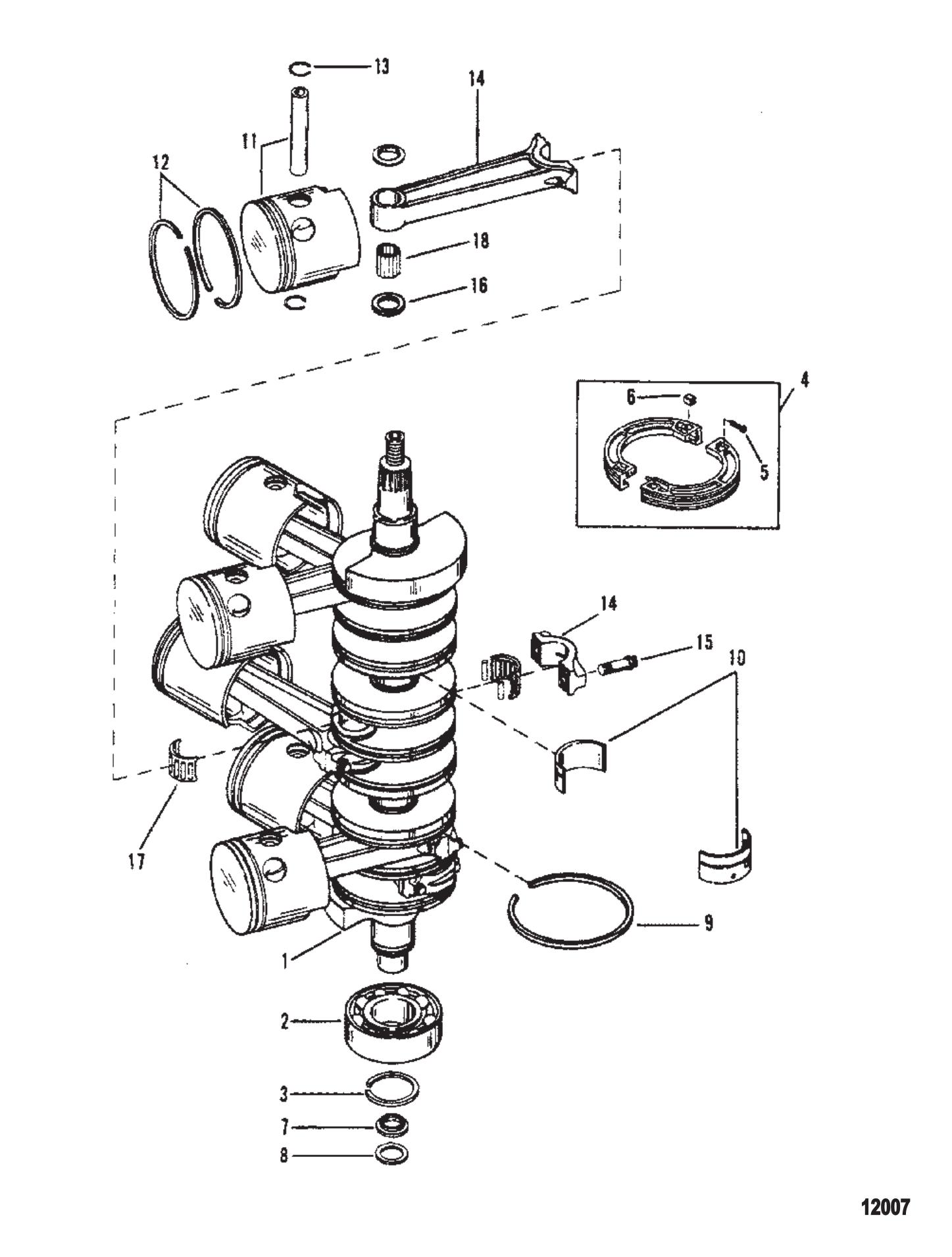

Parts for V-200 (Mag / EFI) 2-Stroke EFI Mercury Outboard Motor Crankshaft Pistons & Connecting Rods
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 815791A92 | GASKET SET (1 required per assembly) |
  |
|
27-815791A92 - Engine Gasket Set [ More info ]
|
| #1 | 9536T4 | CRANKSHAFT ASSY (1 required per assembly) — Replaces: 9536A4 |
  |
|
455-9536T 4 - CrankShaft Assembly [ More info ] Unavailable |
| #2 | 67923T | BEARING BALL LOWER (1 required per assembly) — Replaces: 67923 |
  |
|
30-67923T - Ball Bearing [ More info ]
|
| #3 | 67446 | RING (1 required per assembly) |
  |
|
53-67446 - Ring - Retaining [ More info ]
|
| #4 | 14513A09 | GEAR SEGMENT KIT DRIVE (1 required per assembly) — Replaces: 14513A2 |
  |
|
43-14513A09 - Drive Gear Assembly [ More info ]
|
| #5 | 813073 | SCREW (#6-32 X .620) SOCKET HEAD (2 required per assembly) |
  |
|
10-813073 - Screw [ More info ] Unavailable |
| #6 | 813134 | NUT (#6-32) SPECIAL (2 required per assembly) |
  |
|
11-813134 - Nut, (#6-32) [ More info ] Unavailable |
| #7 | 54196A6 | CARRIER ASSEMBLY (1 required per assembly) |
  |
|
54196A 6 - Carrier Assembly [ More info ]
|
| #8 | 65800 | PACKING (1 required per assembly) |
  |
|
|
| #9 | 67377T | RING SEALING SEALING - CRANKSHAFT (7 required per assembly) — Replaces: 67377 |
  |
|
39-67377T - Seal Ring - Priced Individually [ More info ]
|
| #10 | 16756A6 | BEARING KIT CRANKSHAFT (2 required per assembly) |
  |
|
31-16756A 6 - Bearing Kit [ More info ]
|
| #11 | 9738T9 | PISTON ASSEMBLY STANDARD STARBOARD - STANDARD [0G052595] & Up (3 required per assembly) — Replaces: 9738A9 |
  |
|
785-9738T 9 - Piston Assembly - Stbd [ More info ]
|
| #11 | 9738T10 | PISTON ASSEMBLY .015 OVERSIZE STARBOARD (.015 O.S.) [0G052595] & Up (AR required per assembly) — Replaces: 9738A8, 9738A10 |
  |
|
785-9738T10 - Piston - Stbd - .015 [ More info ]
|
| #11 | 9737T9 | PISTON ASSEMBLY STANDARD PORT STANDARD [0G052595] & Up (3 required per assembly) — Replaces: 9737A7, 9737A9 |
  |
|
785-9737T 9 - Piston Assembly - Port [ More info ]
|
| #11 | 9737A10 | PISTON ASSEMBLY .015 OVERSIZE PORT (.015 O.S.) [0G052595] & Up (AR required per assembly) — Replaces: 9737A8 |
  |
|
785-9737A10 - Piston - Port - .015 [ More info ] Unavailable |
| #12 | 815515A12 | RING SET PISTON STANDARD (1.50 MM) [0G052594] & Below (1 required per assembly) |
  |
|
39-815515A12 - Piston Rings 12 Pcs. [ More info ] Unavailable |
| #12 | 815268A4 | RING SET PISTON (.015 O.S.) (1.50 MM) [0G052594] & Below (AR required per assembly) |
  |
|
39-815268A 4 - Piston Ring 4 Pcs [ More info ]
|
| #12 | 822321A12 | RING KIT PISTON - STANDARD STANDARD (2MM) [0G052595] & Up (1 required per assembly) |
  |
|
39-822321A12 - Rings - Standard [ More info ]
|
  |
|
18-3982 - Piston Rings, 39-822321A12 [ More info ]
|
| #12 | 822321A1 | RING KIT PISTON - .015 OVERSIZE (.015 O.S.) (2MM) [0G052595] & Up (2 required per assembly) |
  |
|
39-822321A 1 - Rings - .015 [ More info ]
|
| #13 | 857196 | LOCK RING [0G052595] & Up (12 required per assembly) — Replaces: 52035 |
  |
|
53-857196 - Lock Ring - Priced Individually [ More info ]
|
| #14 | 818141A13 | CONN ROD ASSY (6 required per assembly) — Replaces: 818141A2 |
  |
|
644-818141A13 - Connecting Rod Kit [ More info ]
|
| #15 | 763491 | SCREW (.312-24 X .875) CONNECTING ROD (12 required per assembly) |
  |
|
0763491 - Speedometer Cap/Jumper (763491) [ More info ]
|
| #16 | 8M0012298 | THRUST WASHER NEEDLE LOCATING (12 required per assembly) — Replaces: 812876 |
  |
|
12-8M0012298 - Thrust Washer [ More info ]
|
| #17 | 8M0045428 | BEARING KIT (6 required per assembly) — Replaces: 17514A2 |
  |
|
31-8M0045428 - 31-8M0045428 - BEARING KIT [ More info ] Unavailable Replaced by -8M0234886 |
  |
|
18-1194 - Rod Bearing w/ Cage [ More info ]
|
  |
|
8M0234886 CAGE BEARING [ More info ]
|
| #18 | 8M0204691 | BRG-NEEDLE @200 PISTON END (174 required per assembly) — Replaces: 822553 |
  |
|
298M0204691 - Bearing needle [ More info ]
|
