Parts for 90 HP Carb 4-Stroke Mercury Outboard Motor Fuel Pump (Serial Number 0T408999 & Below)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 90 HP Carb > 0G960500 - 0T800999 - USA > Fuel Pump (Serial Number 0T408999 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

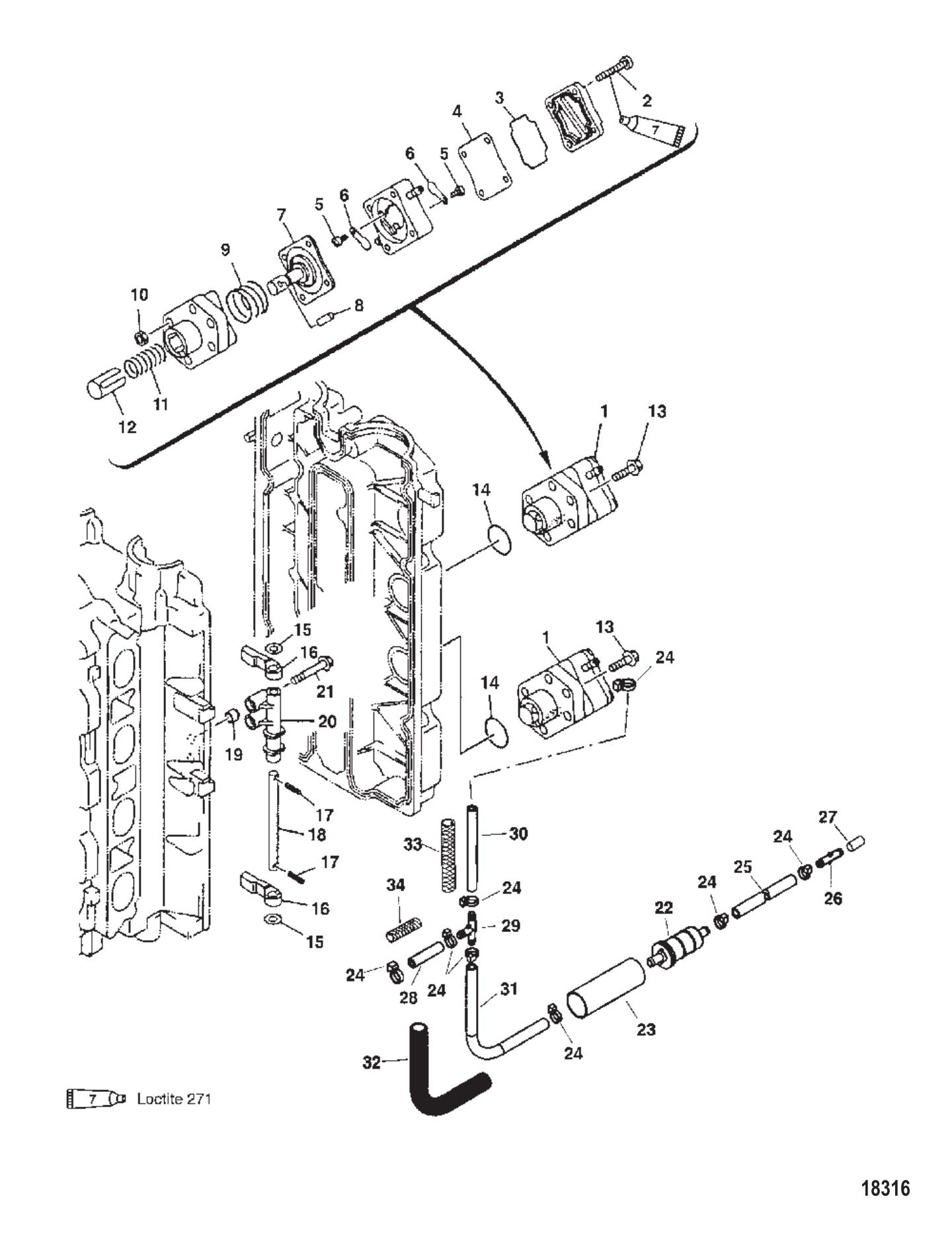

Fuel Pump (Serial Number 0T408999 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	804345A02	GASKET SET (1 required per assembly)
		27-804345A02 - Powerhead Gasket Set [ More info ] Unavailable
#1	804249T1	FUEL PUMP (2 required per assembly)
		804249T 1 - Fuel Pump [ More info ] $391.49 1 In Stock.
#2	809564	SCREW (M5 X 35) (4 required per assembly)
		10-809564 - Screw [ More info ] Unavailable
#3	809565	COVER (1 required per assembly)
		809565 - O-Ring [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#4	8095611	DIAPHRAGM (1 required per assembly)
		809561 1 - Diaphragm [ More info ] Unavailable
#5	804253	SCREW (2 required per assembly)
		10-804253 - Screw, NLA [ More info ] $1.50 $1.28 6 In Stock.
#6	41888M	CHECK VALVE (2 required per assembly)
		21-41888M - Check Valve [ More info ] $20.99 Available to Order: Shipping delay up to 10 days.
#7	804250	DIAPHRAGM (1 required per assembly)
		804250 - Diaphragm [ More info ] Unavailable
#8	804254	PIN (1 required per assembly)
		17-804254 - Pin, NLA [ More info ] $5.00 $4.24 10+ In Stock.
#9	809562	SPRING (1 required per assembly)
		24-809562 - Spring, NLA [ More info ] $3.33 $2.82 10+ In Stock.
#10	82388M	NUT (M5) (4 required per assembly)
		11-82388M - Nut, (M5) [ More info ] $8.79 1 In Stock.
#11	804252	SPRING (1 required per assembly)
		24-804252 - Spring,NLA [ More info ] $8.89 $7.53 2 In Stock.
#12	804251	PLUNGER (1 required per assembly)
		804251 - Guide Flange, NLA [ More info ] Unavailable
#13	804256	BOLT (4 required per assembly)
		10-804256 - Bolt, NLA [ More info ] $1.73 $1.46 10+ In Stock.
#14	8M0050719	O-RING (2 required per assembly) — Replaces: 804255
		25-8M0050719 - O-Ring [ More info ] $20.99 Available to Order: Shipping delay up to 10 days.
#15	84292M	WASHER @5 (2 required per assembly)
		12-84292M - Washer - Priced Individually [ More info ] $1.50 $1.28 10+ In Stock.
#16	804257	LEVER (1 required per assembly)
		804257 - Lever [ More info ] Unavailable
#17	82738M	PIN-ROLL (2 required per assembly) — Replaces: 804259
		17-82738M - Pin -roll, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#18	804258	SHAFT (1 required per assembly)
		804258 - Shaft [ More info ] $6.00 $5.08 10 In Stock.
#19	804113	PIN-DOWEL (2 required per assembly)
		17-804113 - Pin -Dowel [ More info ] Unavailable
#20	804260	BRACKET (1 required per assembly)
		804260 - Bracket [ More info ] $10.00 $8.47 10 In Stock.
#21	804112	BOLT (2 required per assembly)
		10-804112 - Bolt [ More info ] $1.10 $0.94 1 In Stock.
#22	877565T1	FILTER-FUEL (1 required per assembly)
		35-877565T 1 - Fuel Filter [ More info ] $23.69 In Stock
		18-7714 - Filter, 35-877565T1 [ More info ] $20.05 In Stock
#23	8775381	SLEEVE (1 required per assembly)
		877538 1 - Sleeve [ More info ] Unavailable
#24	816311T	TIE STRAP @100 (8 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#25	8M0108349	HOSE (70 INCHES BULK) (CUT TO 36 INCHES) (1 required per assembly) — Replaces: 830757130, 8M0047448
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#26	822769	CONNECTOR (1 required per assembly)
		22-822769 - Connector [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#27	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#28	8M0108355	HOSE (57 INCHES BULK) (CUT TO 2 INCHES) (1 required per assembly) — Replaces: 830756109, 8M0047428
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 1 In Stock.
#29	818993	CONNECTOR (1 required per assembly)
		22-818993 - Connector [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#30	8M0108355	HOSE (57 INCHES BULK) (CUT TO 4.75 INCHES) (1 required per assembly) — Replaces: 830756109, 8M0047428
#31	8M0108349	HOSE (70 INCHES BULK) (CUT TO 13.5 INCHES) (1 required per assembly) — Replaces: 830757130, 8M0047448
#32	828547633	CONDUIT (.620 INSIDE DIAMETER X 3.00 FEET BULK) (CUT TO 13 INCHES) (1 required per assembly)
		32-828547633 - Conduit (.620 Inside Di [ More info ] $14.19 Available to Order: Shipping delay up to 10 days.
#33	828547T	CONDUIT (1.00 INSIDE DIAMETER X 3.00 FEET BULK) (CUT TO 3.75 INCHES) (1 required per assembly)
		32-828547T - Conduit (1.00 Inside Di [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#34	828547T	CONDUIT (1.00 INSIDE DIAMETER X 3.00 FEET BULK) (CUT TO 1.25 INCHES) (1 required per assembly)
