Parts for 90 HP Carb 4-Stroke Mercury Outboard Motor Driveshaft Housing

Revise Search: Outboard > 4-Stroke Mercury Outboard > 90 HP Carb > 0G960500 - 0T800999 - USA > Driveshaft Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

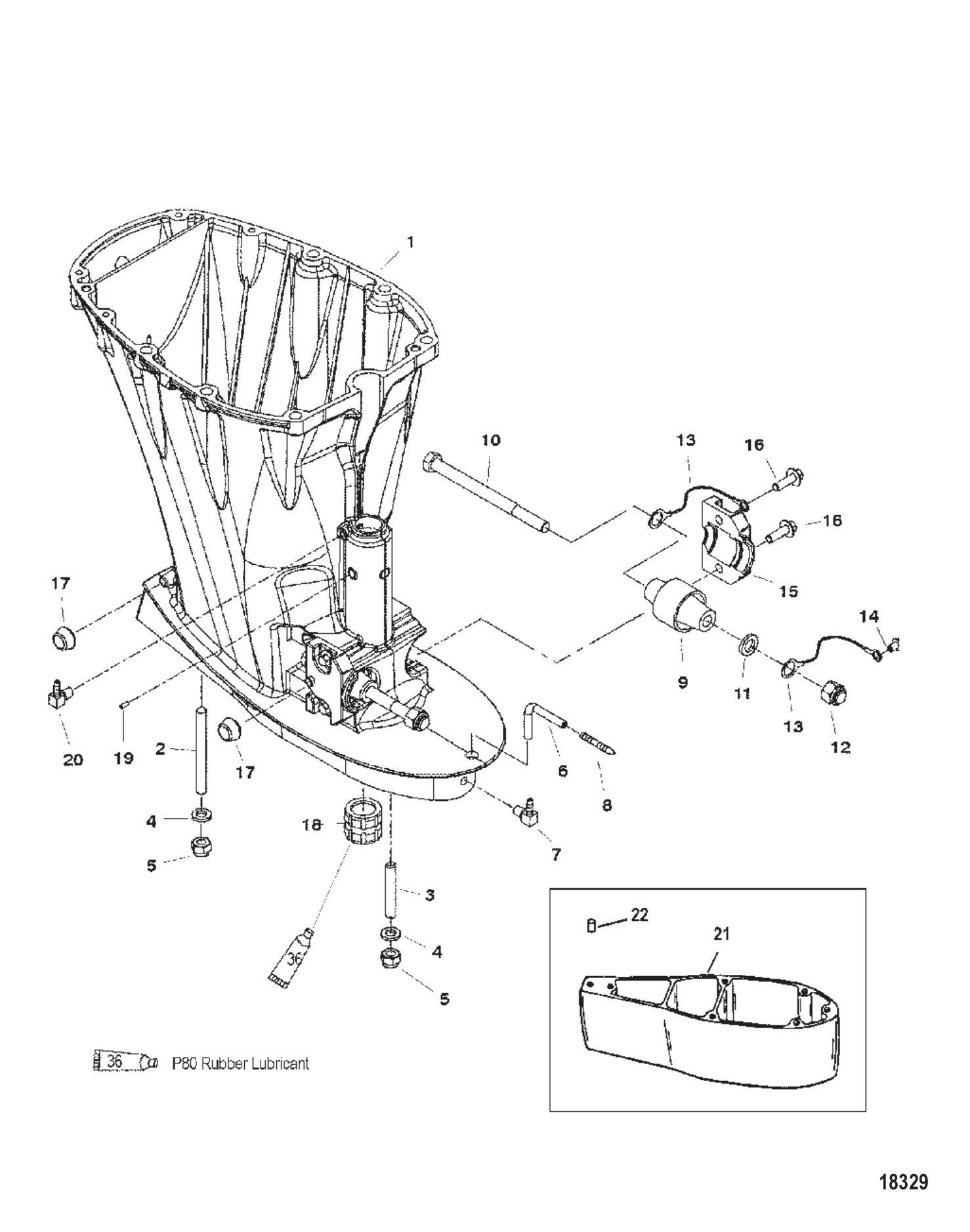

Driveshaft Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	858576T2	HOUSING DRVSHFT (1 required per assembly)
		1507-858576T 2 - Housing Drive Shaft [ More info ] $1,057.49 Available to Order: Shipping delay up to 10 days.
#2	903501	STUD (Long) (1 required per assembly)
		16-90350 1 - Stud [ More info ] $14.19 1 In Stock.
#2	9035015	STUD (X-Long) (1 required per assembly)
		16-90350 15 - Stud [ More info ] $27.31 10+ In Stock.
#3	9035012	STUD (Long) (4 required per assembly)
		16-90350 12 - Stud [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#3	8M0034462	STUD (X-Long) (4 required per assembly) — Replaces: 9035016
		16-8M0034462 - Stud [ More info ] $19.79 $15.84 10+ In Stock.
#4	856774	WASHER @5 (5 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#5	40140	NUT @2 (5 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.39 7 In Stock.
#6	85822A13	CONNECTOR (1 required per assembly)
		22-85822A13 - Connector [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
#7	433351	CONNECTOR 90 DEGREE - WITH VIBRASEAL (1 required per assembly) — Replaces: 43335
		0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable
#8	85822T	CONNECTOR STRAIGHT (1 required per assembly) — Replaces: 85822
		22-85822T - Speedometer Tube Connector [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#9	44343T1	MOUNT-LOWER (2 required per assembly)
		44343T 1 - Lower Mount [ More info ] $89.49 Available to Order: Shipping delay up to 10 days.
#10	898835001	SCREW (2 required per assembly) — Replaces: 42973
		10-898835001 - Screw [ More info ] $21.39 Available to Order: Shipping delay up to 10 days.
#11	30119	WASHER (2 required per assembly)
		12-30119 - Washer (7/8 X .1196) [ More info ] $2.69 1 In Stock.
#12	8M0204662	NUT (2 required per assembly) — Replaces: 43528
		11-8M0204662 - Nut [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#13	88238A10	CABLE ASSY (2 required per assembly)
		88238A10 - Cable Assembly [ More info ] $8.29 2 In Stock.
#14	41508	SCREW (1 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#15	858916T	CLAMP (2 required per assembly)
		858916T - Clamp [ More info ] $23.49 Available to Order: Shipping delay up to 10 days.
#16	4010725	SCREW (4 required per assembly)
		10-40107 25 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#17	8M0142713	CAP SUPPORT (4 required per assembly) — Replaces: 858745, 8M0039082
		8M0142713 - CAP Support [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#18	859550	BUSHING (1 required per assembly)
		23-859550 - Bushing [ More info ] $127.99 Available to Order: Shipping delay up to 10 days.
#19	24873	PIN-ROLL @3 (1 required per assembly)
		17-24873 - Pin, Roll - Flange [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#20	855622	ELBOW (1 required per assembly)
		22-855622 - Elbow [ More info ] $16.89 $16.16 3 In Stock.
#21	12092A3	SPACER KIT-XL-BLA (X-Long) (1 required per assembly)
		12092A 3 - Spacer - Drive Shaft Housing - XL - Black [ More info ] $382.99 $91.82 1 In Stock.
#22	8M0084244	PIN DOWEL (X-Long) (1 required per assembly) — Replaces: 43043
		178M0084244 - Pin - Dowel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#22	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (X-Long) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
