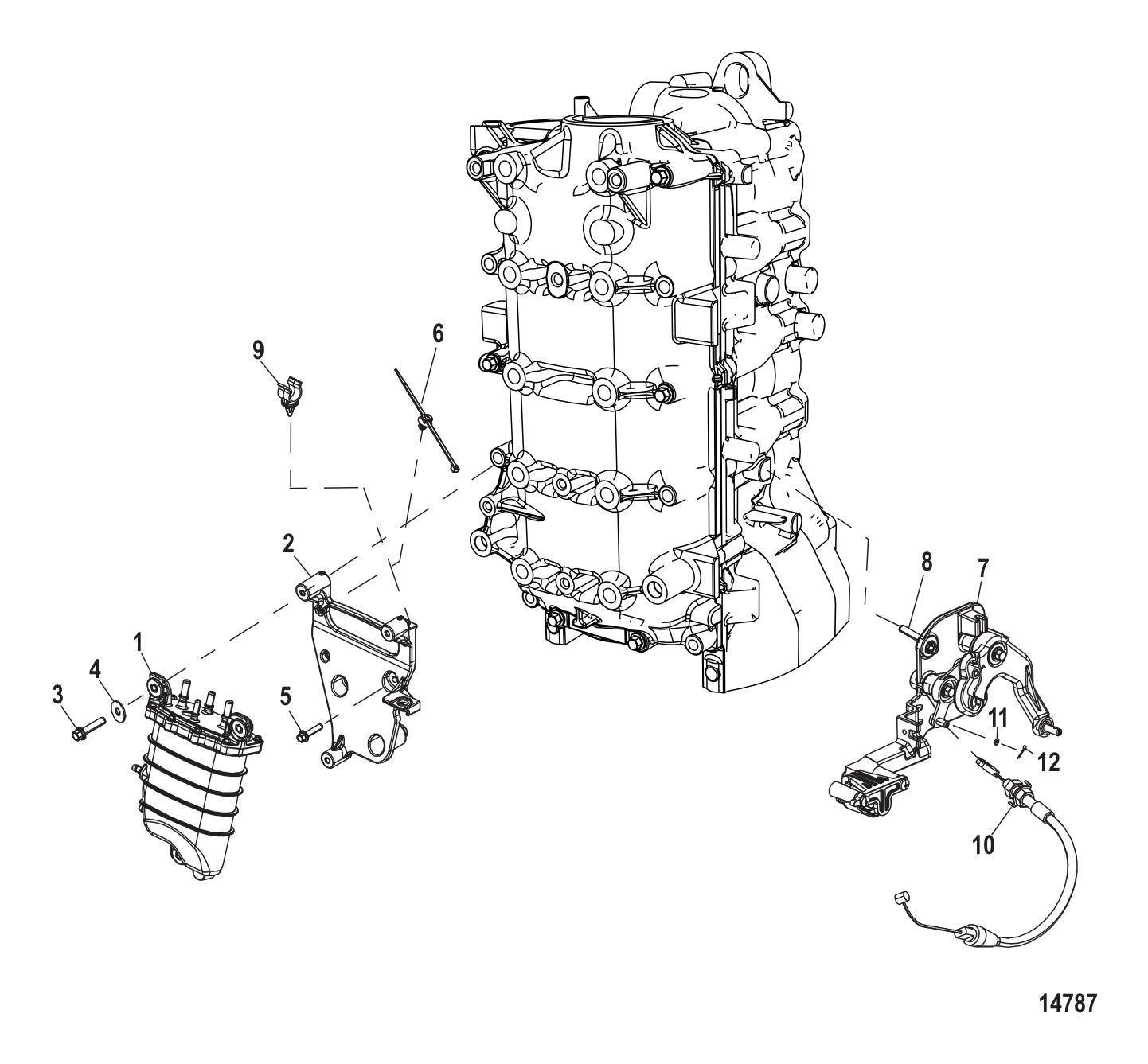

Parts for 80 HP EFI 4-Stroke Mercury Outboard Motor Fuel Supply Module Mounting
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0078553 | FUEL SUPPLY MOD See Fuel Supply Module Page For Service Parts Breakdown (1 required per assembly) — Replaces: 880133T08, 880133T09 |
  |
8M0078553 - Fuel Supply Module [ More info ] Unavailable |
|
  |
|
8M0130897 - Fuel Supply Module [ More info ]
|
| #2 | 897567T | BRACKET (1 required per assembly) |
  |
|
897567T - Bracket [ More info ]
|
| #3 | 8M0103814 | SCREW @2 (3 required per assembly) — Replaces: 88552635 |
  |
|
108M0103814 - Screw (M8 x 35 MM) [ More info ]
|
| #4 | 817274 | WASHER (3 required per assembly) |
  |
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #5 | 8M0103814 | SCREW @2 (3 required per assembly) — Replaces: 88552635 |
| #6 | 899145 | CLIP (2 required per assembly) |
  |
|
54-899145 - Clip [ More info ]
|
| #7 | 897763T03 | BRACKET ASSY [0P472785] & Up (1 required per assembly) — Replaces: 897763T01 |
  |
|
897763T03 - Bracket Assembly [ More info ]
|
| #8 | 88552620 | SCREW @3 (3 required per assembly) |
  |
|
10-885526 20 - Screw - Priced Individually [ More info ]
|
| #9 | 897559 | CLIP (1 required per assembly) |
  |
|
54-897559 - Clip [ More info ]
|
| #10 | 8M0005986 | CABLE-THROTTLE (1 required per assembly) |
  |
|
8M0005986 - Throttle Cable [ More info ]
|
| #11 | 35459 | WASHER (1 required per assembly) |
  |
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #12 | 210711 | COTTER PIN @2 (1 required per assembly) |
  |
|
0210711 [ More info ] Unavailable Replaced by 0210710 |
  |
|
[ More info ] Unavailable |
