Parts for 8 HP Carb (209Cc) 4-Stroke Mercury Outboard Motor Tiller Handle Conversion Kit 9.9 HP Electric 889246A86

Revise Search: Outboard > 4-Stroke Mercury Outboard > 8 HP Carb (209Cc) > 0R042475 & Up - USA > Tiller Handle Conversion Kit 9.9 HP Electric 889246A86

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

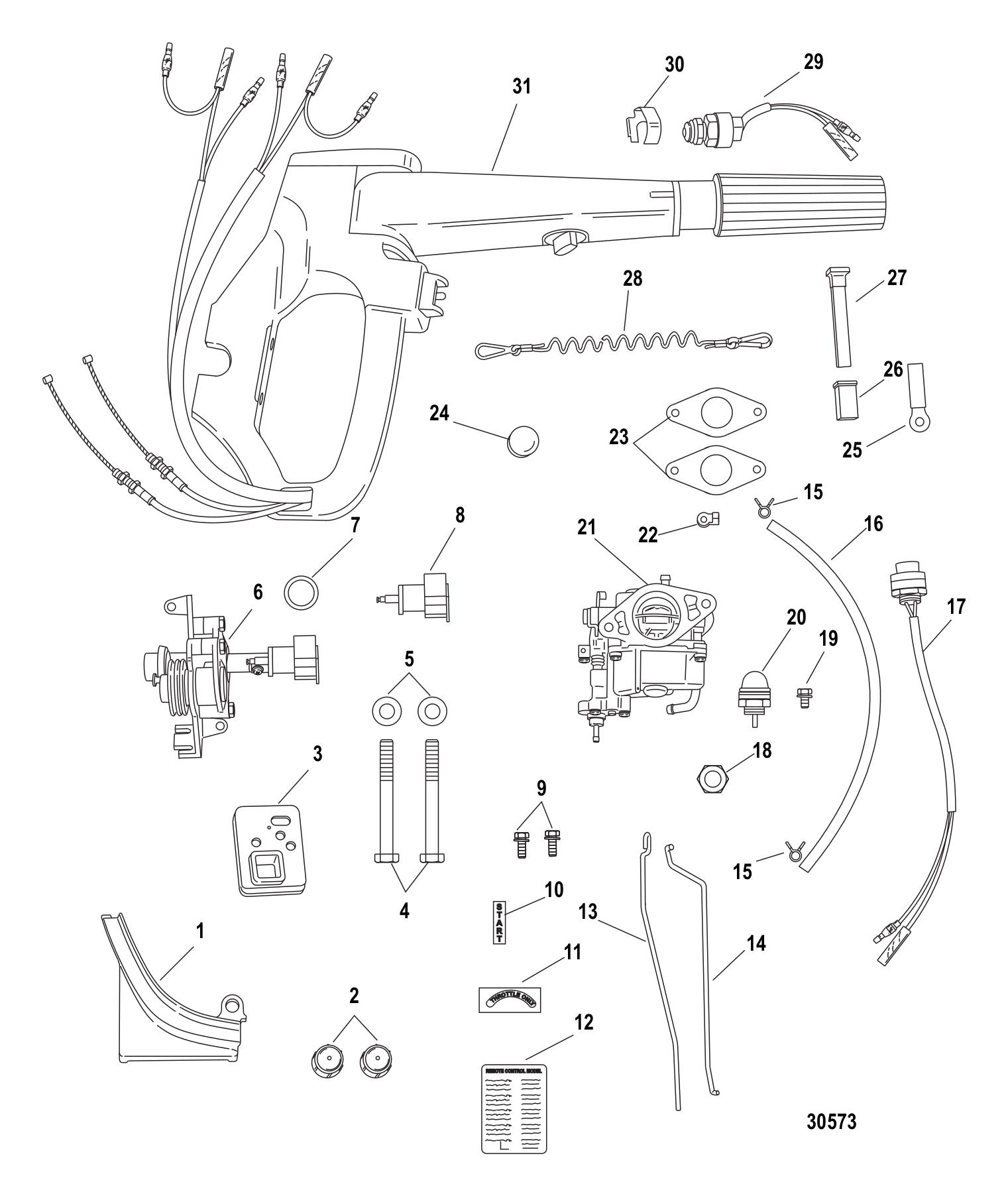

Tiller Handle Conversion Kit 9.9 HP Electric 889246A86

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0103838	CONV. KIT-TILLER EU 9.9 FourStroke (1 required per assembly) — Replaces: 889246A86, 8M0051064
		8M0103838 - Tiller Conversion Kit [ More info ] Unavailable
#1	895174	COVER (1 required per assembly)
		895174 - Shift Lever Bracket Cover [ More info ] $30.89 Available to Order: Shipping delay up to 10 days.
#2	85372214	CAP NUT (2 required per assembly)
		11-853722 14 - Cap Nut [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#3	895175001	GROMMET (1 required per assembly)
		25-895175001 - Grommet [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#4	8M0058362	BOLT STEEL (2 required per assembly) — Replaces: 895140
		108M0058362 - Bolt [ More info ] $12.39 Available to Order: Shipping delay up to 10 days.
#5	879194340	WASHER (2 required per assembly) — Replaces: 895141
		12-879194340 - Washer [ More info ] $5.09 1 In Stock.
#6	NSS	NOT SOLD SEPARATE THROTTLE ONLY ASSEMBLY (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#7	16219002	SEAL (1 required per assembly)
		26-16219002 - Seal Ring [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#8	802971001	SHIFT DETENT (1 required per assembly)
		802971001 - Shift Detent [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#9	8248324	SCREW (M6 X 16) (2 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#10	859278004	DECAL START (1 required per assembly)
		37-859278004 - Decal Start [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#11	859278003	DECAL THROTTLE ONLY (1 required per assembly)
		37-859278003 - Decal -Throttle [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#12	NSS	NOT SOLD SEPARATE WIRING DIAGRAM DECAL (1 required per assembly)
#13	803574002	ROD THROTTLE (1 required per assembly)
		803574002 - Throttle Rod [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#14	855561007	ROD CHOKE LINK (1 required per assembly)
		855561007 - Link Rod [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#15	95224	CLIP (2 required per assembly)
		54-95224 - Clip [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#16	879194473	TUBING (1 required per assembly) — Replaces: 851848007
		32-879194473 - Hose [ More info ] $14.99 1 In Stock.
#17	853820A02	SWITCH ASSEMBLY START (1 required per assembly)
		87-853820A02 - Start Button [ More info ] $28.39 Available to Order: Shipping delay up to 10 days.
#18	895177	NUT (1 required per assembly)
		11-895177 - Nut [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#19	8230427	BOLT ASSEMBLY (M6 X 12) (1 required per assembly) — Replaces: 82304234, 879194261
		10-823042 7 - Bolt [ More info ] $4.09 $2.30 10+ In Stock.
#20	895124	PUMP ASSEMBLY PRIMING (1 required per assembly)
		895124 - Priming Pump [ More info ] $34.05 6 In Stock.
#21	8M0167272	CARBURETOR (1 required per assembly) — Replaces: 895110T15, 8M0104462
		13008M0167272 - Carburetor Assembly [ More info ] Unavailable
		13008M0173875 - Carburetor Assembly [ More info ] Unavailable
		13008M0176126 - CARBURETOR ASSY [ More info ] $726.49 Available to Order: Shipping delay up to 10 days.
#22	16333	ROD SNAP (1 required per assembly)
		16333 - Rod Snap [ More info ] Unavailable
#23	835383001	GASKET (2 required per assembly)
		27-835383001 - Carb Gasket - Priced Individually [ More info ] $5.19 10 In Stock.
#24	162284	GROMMET (1 required per assembly)
		0162284 - Part (162284) [ More info ] Unavailable
#25	8M0130961	CLAMP (1 required per assembly) — Replaces: 95306
		548M0130961 - Clamp [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#26	851858005	BUSHING (1 required per assembly)
		23-851858005 - Bushing [ More info ] Unavailable
		238M0231329 - Bushing [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#27	8M0155127	ROD CHOKE (1 required per assembly) — Replaces: 855565001, 855565002
		8M0155127 - Choke Rod [ More info ] $13.79 Available to Order: Shipping delay up to 10 days.
#28	15920Q54	LANYARD ASSEMBLY (1 required per assembly)
		15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable
#29	8M0127937	SWITCH NEUTRAL (1 required per assembly) — Replaces: 803840, 804054001
		878M0127937 - Neutral Switch [ More info ] $73.99 Available to Order: Shipping delay up to 10 days.
#30	803841	ACTUATOR (1 required per assembly)
		803841 - Actuator [ More info ] $16.19 Available to Order: Shipping delay up to 10 days.
#31	NSS	NOT SOLD SEPARATE TILLER HANDLE ASSEMBLY (1 required per assembly)
