Parts for 8 HP Carb (209Cc) 4-Stroke Mercury Outboard Motor Recoil Starter

Revise Search: Outboard > 4-Stroke Mercury Outboard > 8 HP Carb (209Cc) > 0R042475 & Up - USA > Recoil Starter

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

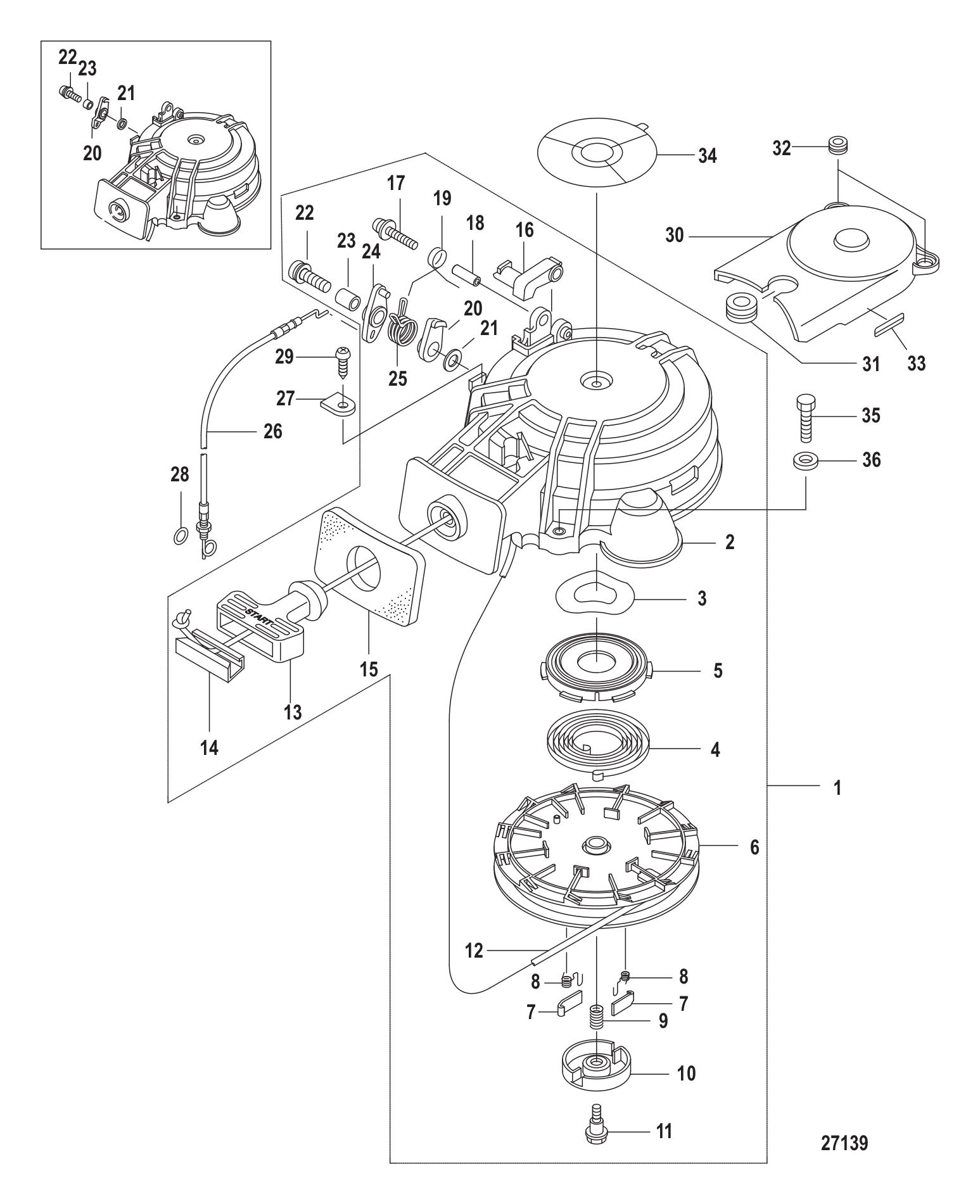

Recoil Starter

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	803716T07	RECOIL STARTER [0P490476] & Up (1 required per assembly) — Replaces: 803716T04, 803716T06
		803716T07 - Recoil Starter [ More info ] $197.99 Available to Order: Shipping delay up to 10 days.
#1	8M0138720	RECOIL STARTER [0R735515] & Up (1 required per assembly)
		8M0138720 - Recoil Starter [ More info ] $194.49 Available to Order: Shipping delay up to 10 days.
#2	803716T05	HOUSING STARTER [0P401000] & Up (1 required per assembly) — Replaces: 803716T03
		803716T05 - Housing Assembly [ More info ] $118.49 Available to Order: Shipping delay up to 10 days.
#3	895128	WAVE WASHER (1 required per assembly)
		13-895128 - Wave Washer [ More info ] $9.39 Available to Order: Shipping delay up to 10 days.
#4	804024T07	SPRING STARTER (1 required per assembly)
		24-804024T07 - Starter Spring [ More info ] $46.99 Available to Order: Shipping delay up to 10 days.
#5	895129	HOUSING STARTER SPRING (1 required per assembly)
		895129 - Starter Spring Housing [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#6	803717001	REEL (1 required per assembly)
		803717001 - Reel [ More info ] $56.99 Available to Order: Shipping delay up to 10 days.
#7	812635002	RATCHET (2 required per assembly)
		812635002 - Ratchet [ More info ] Unavailable
#8	812634003	SPRING RETURN (2 required per assembly)
		24-812634003 - Spring, Return [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#9	812636001	SPRING (1 required per assembly)
		24-812636001 - Spring [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#10	812638001	FRICTION PLATE (1 required per assembly)
		812638001 - Plate [ More info ] Unavailable
#11	812637001	BOLT (1 required per assembly)
		10-812637001 - Bolt [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#12	8M0110704	ROPE (1 required per assembly) — Replaces: 850057002, 850057Q02
		8M0110704 - Starter Rope [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#13	812640002	HANDLE STARTER ROPE (1 required per assembly)
		812640002 - Handle A [ More info ] $14.09 Available to Order: Shipping delay up to 10 days.
#14	8M0084137	ROPE ANCHOR (1 required per assembly) — Replaces: 853755001
		8M0084137 - Anchor [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#15	8M0138706	SEAL STARTER [0R735515] & Up (1 required per assembly) — Replaces: 803720001
		8M0138706 - Starter Seal [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#16	804031001	INTERLOCK STARTER (1 required per assembly)
		804031001 - Lock [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#17	8555449	SCREW ASSEMBLY (1 required per assembly)
		10-855544 9 - Screw [ More info ] $15.99 Available to Order: Shipping delay up to 10 days.
#18	895130	COLLAR (1 required per assembly)
		23-895130 - Collar [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#19	812645007	SPRING STARTER INTEROCK (1 required per assembly)
		24-812645007 - Spring, Starter Interock [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#20	895131A06	CABLE KIT-INTERLK STARTER INTERLOCK [0P490475] & Below (1 required per assembly) — Replaces: 803721002
		895131A06 - Cable, Starter Interlock [ More info ] $73.99 Available to Order: Shipping delay up to 10 days.
#20	803721003	CAM STARTER INTERLOCK [0P490476] & Up (1 required per assembly)
		803721003 - Cam [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#21	16826	WASHER STAINLESS STEEL (1 required per assembly) — Replaces: 895106, 879194338
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 1 In Stock.
#22	855544	SCREW ASSEMBLY [0P490475] & Below (1 required per assembly)
		10-855544 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#22	855544021	SCREW (M6 X 25 MM) [0P490476] & Up (1 required per assembly)
		10-855544021 - Screw [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#23	855545001	COLLAR [0P490475] & Below (1 required per assembly)
		23-855545001 - Collar [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#23	855545004	COLLAR [0P490476] & Up (1 required per assembly) — Replaces: 855545002
		23-855545004 - Collar [ More info ] $3.59 $2.88 2 In Stock.
#24	898101627	LEVER STARTER LOCK [0P490476] & Up (1 required per assembly)
		898101627 - Lever [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#25	898101628	SPRING [0P490476] & Up (1 required per assembly)
		24-898101628 - Spring [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#26	895131A06	CABLE KIT-INTERLK (1 required per assembly) — Replaces: 895131A01
#27	803762	CLAMP (1 required per assembly)
		803762 - Clamp [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#28	8M0085099	O-RING (1 required per assembly) — Replaces: 895132, 895132002
		258M0085099 - O-Ring [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#29	16257003	SCREW-TAPPING (1 required per assembly)
		10-16257003 - Screw -Tapping [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#30	895133	COVER (1 required per assembly)
		895133 - Cover [ More info ] $16.29 Available to Order: Shipping delay up to 10 days.
#31	881305001	GROMMET (1 required per assembly)
		25-881305001 - Grommet, Rubber [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#32	881305002	GROMMET @2 (2 required per assembly)
		25-881305002 - Grommet - Priced Individually [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#33	NSS	NOT SOLD SEPARATE DECAL-RESISTANCE SPARK PLUG (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#34	NSS	NOT SOLD SEPARATE DECAL-CAUTION (1 required per assembly)
#35	16166	BOLT-TH (3 required per assembly) — Replaces: 823042039, 879194250
		10-16166 - BOLT-TH [ More info ] Unavailable
		10-40003 30 - Screw - Priced Individually [ More info ] $2.77 10+ In Stock.
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#36	953921	WASHER (3 required per assembly) — Replaces: 895118002
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
