Parts for 8 HP Carb (209Cc) 4-Stroke Mercury Outboard Motor Camshaft & Oil Pump

Revise Search: Outboard > 4-Stroke Mercury Outboard > 8 HP Carb (209Cc) > 0P325500 & Up - Belgium > Camshaft & Oil Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

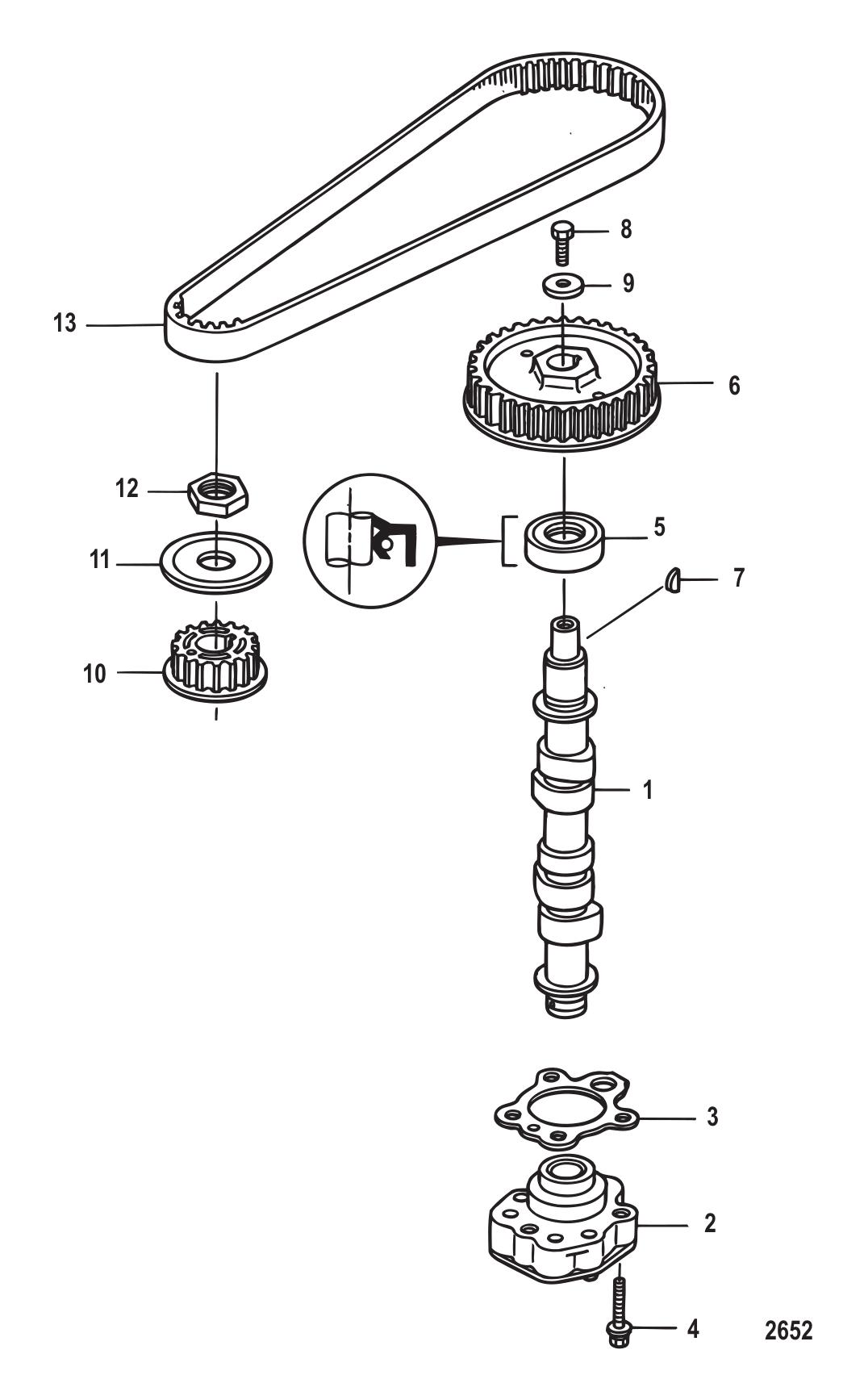

Camshaft & Oil Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	835427A04	GASKET SET (1 required per assembly)
		27-835427A04 - Powerhead Gasket Set [ More info ] $236.49 Available to Order: Shipping delay up to 10 days.
#-	8M0046065	PH 8.9.9.4S [0R139508] & Below (1 required per assembly) — Replaces: 895188T04, 895188T06
		8M0046065 - Powerhead 8.9.9.4S [ More info ] Unavailable
		8M0145937 - SHORT BLOCK [ More info ] Unavailable
#-	8M0145937	SHORT BLOCK [0R310615] & Up (1 required per assembly) — Replaces: 895188T06, 8M0046065
#-	835430T07	CYLINDER HEAD COM [0R139509] & Up (1 required per assembly) — Replaces: 835430T06
		900-835430T07 - Cylinder Head Com [ More info ] $1,112.49 Available to Order: Shipping delay up to 10 days.
#1	834956005	CAMSHAFT ASSY [0R139509] & Up (1 required per assembly) — Replaces: 834956001
		834956005 - CamShaft Assembly [ More info ] Unavailable
		400-8M0170577 - CAMSHAFT ASSY [ More info ] Unavailable
#2	834967T03	OIL PUMP (1 required per assembly)
		834967T03 - Oil Pump [ More info ] $113.32 1 In Stock.
#3	853523001	GASKET OIL PUMP (1 required per assembly)
		27-853523001 - Oil Pump Gasket [ More info ] Unavailable
		27-8M0229932 - GASKET [ More info ] Unavailable
#4	850879001	BOLT (3 required per assembly)
		10-850879001 - Bolt [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#5	825455001	OIL SEAL (1 required per assembly)
		26-825455001 - Oil Seal [ More info ] $15.29 1 In Stock.
#6	834973001	GEAR-DRIVEN (1 required per assembly)
		43-834973001 - Driven Gear [ More info ] $106.99 Available to Order: Shipping delay up to 10 days.
#7	95229	KEY (1 required per assembly)
		28-95229 - Key [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#8	803858001	BOLT (1 required per assembly)
		10-803858001 - Bolt [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#9	895118	WASHER (1 required per assembly)
		12-895118 - Washer [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#10	834955001	GEAR-DRIVE (1 required per assembly)
		43-834955001 - Drive Gear [ More info ] $84.99 Available to Order: Shipping delay up to 10 days.
#11	895119	GUIDE (1 required per assembly)
		895119 - Guide [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#12	855679001	NUT (1 required per assembly)
		11-855679001 - Nut [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
#13	895120	BELT (1 required per assembly)
		57-895120 - Belt [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
