Parts for V-150XRi (EFI) 2-Stroke EFI Mercury Outboard Motor Gear Housing Propshaft-1.87:1 Gear Ratio 4.75 Inch Dia

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > V-150XRi (EFI) > 0D082000 - 0G303045 - USA > Gear Housing Propshaft-1.87:1 Gear Ratio 4.75 Inch Dia

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

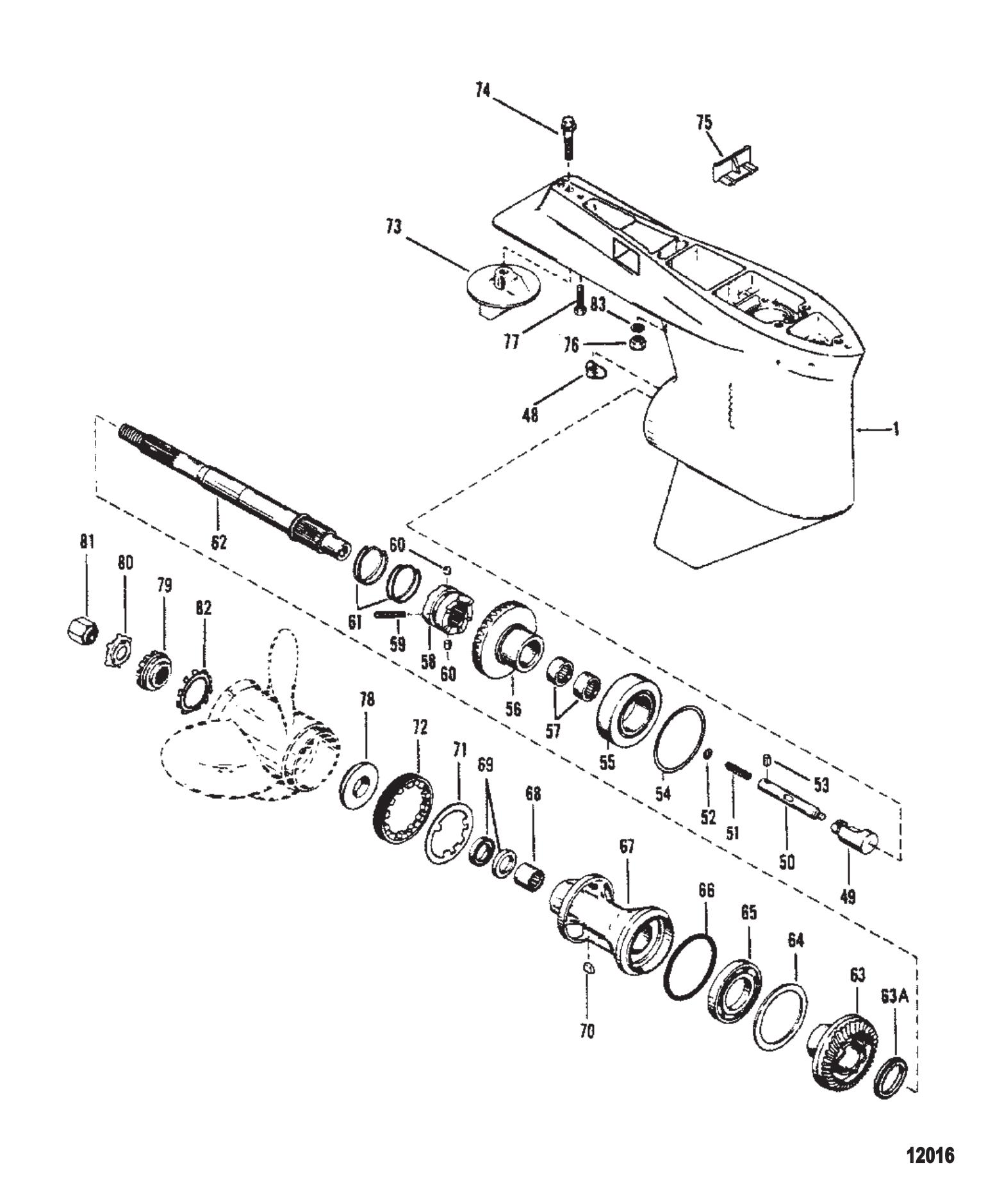

Gear Housing Propshaft-1.87:1 Gear Ratio 4.75 Inch Dia

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	815791A92	GASKET SET (1 required per assembly)
		27-815791A92 - Engine Gasket Set [ More info ] $207.49 1 In Stock.
		27-27673 - Gasket Set [ More info ] $164.99 $126.17 1 In Stock.
#-	89238A2	SEAL KIT (1 required per assembly)
		26-89238A 2 - Seal Kit [ More info ] $97.49 In Stock
		18-2655 - Seal Kit, 26-89238A2 [ More info ] $75.40 10+ In Stock.
		26-00288-1 - Lower Gearcase Seal Kit Mercury Mariner V6 [ More info ] $74.99 $57.34 1 In Stock.
#1	9148T47	GEAR HSG-BASIC-BL BASIC GRAY (Design II With Anodes) (1 required per assembly) — Replaces: 9148A11, 9148A47, 9148A48, 9148T48
		1647-9148T47 - Gear Housing - Basic, Black [ More info ] $1,782.99 Available to Order: Shipping delay up to 10 days.
		1647-9148T49 - Gear Housing - Basic, NLA [ More info ] $600.00 $508.20 2 In Stock.
#1	9148T48	GEAR HSG-BASIC-GR BASIC GRAY (Design I With Out Anodes) (1 required per assembly) — Replaces: 9148A12, 9148A48
		1647-9148T48 - Gear Housing-BASIC-GR [ More info ] Unavailable
#1	9148T49	GEAR HSG-BASIC-TR BASIC TRACKER (Design II With Anodes) (1 required per assembly) — Replaces: 9148A46, 9148A49
#48	789562	CAM-SHIFT (1 required per assembly) — Replaces: 78956
		78956 2 - Shift Cam [ More info ] $11.49 3 In Stock.
#49	89594A1	CAM/FOLLOWER KIT (1 required per assembly)
		89594A 1 - Cam/Follower Kit [ More info ] $234.99 Available to Order: Shipping delay up to 10 days.
#50	79911A1	ROD KIT-CLUTCH (1 required per assembly)
		79911A 1 - Clutch Rod Kit [ More info ] $186.49 Available to Order: Shipping delay up to 10 days.
#51	79910	SPRING (1 required per assembly)
		24-79910 - Spring, Compression [ More info ] $8.19 2 In Stock.
#52	78910	WASHER (AR required per assembly)
		12-78910 - Washer, Compression Spring [ More info ] $1.99 10+ In Stock.
#53	8M0084245	PIN - LOCATOR (1 required per assembly) — Replaces: 78906
		178M0084245 - Locator Pin [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#54	47397A1	SHIM SET (AR required per assembly)
		15-47397A 1 - Shim Set [ More info ] $16.79 $11.26 10+ In Stock.
		18-2285 - Shim 15-47397A1 [ More info ] $30.99 $27.04 In Stock
#55	78172A1	BEARING ASSY (1 required per assembly)
		31-78172A 1 - Tapered Roller Bearing [ More info ] $104.99 $55.22 3 In Stock.
#56	44104T2	GEAR SET (INCLUDES REVERSE GEAR) [G052417] & Below (1 required per assembly) — Replaces: 44104A2
		43-44104T 2 - Gear Set [ More info ] $1,153.49 1 In Stock.
		43-02946 - Gear Set 43-44104T2 [ More info ] $799.99 $713.64 In Stock
#56	44104A8	GEAR SET (DOES NOT INCLUDE REVERSE GEAR) [G052418] & Up (1 required per assembly)
		43-44104A 8 - Gear Set [ More info ] $718.49 2 In Stock.
#57	549281	BEARING ROLLER (1 required per assembly)
		31-54928 1 - Bearing [ More info ] $25.39 Available to Order: Shipping delay up to 10 days.
#58	8M0100493	CLUTCH KIT (1 required per assembly) — Replaces: 823174, 823174T
		52-8M0100493 - Clutch Kit [ More info ] $116.49 Available to Order: Shipping delay up to 10 days.
#59	8M0084243	PIN - CROSS (1 required per assembly) — Replaces: 78905
		178M0084243 - Pin - CROSS [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#60	78909	PIN-DETENT (2 required per assembly)
		17-78909 - Pin, Detent [ More info ] $19.19 $18.40 3 In Stock.
#61	78962	SPRING (2 required per assembly)
		24-78962 - Spring, Retaining - Cross Pin [ More info ] $11.49 6 In Stock.
#62	94148	PROPSHAFT (1 required per assembly)
		44-94148 - Prop Shaft [ More info ] $649.99 Available to Order: Shipping delay up to 10 days.
		18-2239 - Propeller Shaft, 44-94148 [ More info ] $609.99 $552.64 Available to Order: Shipping delay up to 10 days.
		92-206-05 - Propeller Shaft replaces 44-94148 [ More info ] $317.62 $317.62 Available to Order
#63	N.S.S	NOT SOLD SEPARATE (PART OF 43- 44104A 2) [G052417] & Below (1 required per assembly)
		N.S.S - NOT SOLD SEPARATE [ More info ] Unavailable
#63	824986A2	GEAR-REVERSE [G052418] & Up (1 required per assembly)
		43-824986A 2 - Reverse Gear [ More info ] $461.49 1 In Stock.
#64	681001	RING-THRUST (1 required per assembly)
		68100 1 - Ring - Thrust [ More info ] $18.79 $15.04 10+ In Stock.
#65	88957T	BEARING-BALL (1 required per assembly) — Replaces: 88957A1, 88957
		30-88957T - Ball Bearing [ More info ] $64.49 Available to Order: Shipping delay up to 10 days.
#66	31534	O RING @4 (1 required per assembly)
		25-31534 - O-Ring, Bearing Carrier [ More info ] Unavailable
		25-8M0214920 - Bell Housing O-Ring Note: Priced Individually [ More info ] $6.29 6 In Stock.
#67	43567T1	CARRIER ASSY (1 required per assembly) — Replaces: 43567A1
		43567T 1 - Carrier Assembly [ More info ] $311.49 Available to Order: Shipping delay up to 10 days.
#68	30956T	BEARING NEEDLE (1 required per assembly) — Replaces: 30956
		31-30956T - Roller Bearing [ More info ] $19.49 In Stock
#69	8M0204670	SEAL @5 (2 required per assembly) — Replaces: 76868
		26-8M0204670 - Gearcase Seal, Priced Individually [ More info ] $19.19 5 In Stock.
#70	30281	KEY @5 (1 required per assembly)
		28-30281 - Key - Priced Individually [ More info ] $2.99 9 In Stock.
#71	79447	WASHER-TAB @2 (1 required per assembly)
		14-79447 - Tab Washer - Priced Individually [ More info ] $13.69 10+ In Stock.
#72	8M2000347	RETAINER (1 required per assembly) — Replaces: 79448, 8M2011027
		8M2000347 - Retainer [ More info ] Unavailable
		8M0168577 - Bearing Carrier Retaining Nut [ More info ] $43.49 In Stock
#73	31640Q4	TRIM TAB (USE WITH GEAR HOUSING WITH OUT ANODES) (1 required per assembly) — Replaces: 316404
		97-31640Q4 - Anode/Trim Tab [ More info ] $18.69 8 In Stock.
		18-6241 - Trim Tab Anode, Magnesium, 31640 [ More info ] $24.39 $24.18 In Stock
		18-6011A - Trim Tab Anode, Aluminum [ More info ] $16.90 1 In Stock.
		18-6011 - Trim Tab, Zinc, 31640A1 [ More info ] $21.77 9 In Stock.
		97-31640T 4 - Trim Tab Anode [ More info ] $20.49 8 In Stock.
#73	31640T07	TRIM TAB (USE WITH GEAR HOUSING WITH ANODES) (1 required per assembly) — Replaces: 316405, 31640T5
		31640T07 - Trim Tab [ More info ] Unavailable
		8M0236553 - Trim Tab [ More info ] $27.56 6 In Stock.
#74	8M0204686	SCREW (1 required per assembly) — Replaces: 806327
		10-8M0204686 - Trim Tab Anode Screw, Outboard [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#75	8M0039169	FILLER BLOCK (1 required per assembly) — Replaces: 67891
		8M0039169 - Filler Block [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#76	8M0204653	NUT @10 (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (2 required per assembly) — Replaces: 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#77	65210	SCREW @3 (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (1 required per assembly)
		10-65210 - Screw - Priced Individually [ More info ] $2.89 3 In Stock.
#78	8354671	THRUST WASHER (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (1 required per assembly) — Replaces: 13171, 835467
		12-835467 1 - Thrust Washer [ More info ] $19.99 10+ In Stock.
		12-835467Q01 - Thrust Washer - Priced Individually [ More info ] $41.60 10 In Stock.
		18-4220 - Washer, 12-835467 1 [ More info ] $39.19 4 In Stock.
		12-835467K01 - Thrust Washer - Priced Individually [ More info ] $41.60 Available to Order: Shipping delay up to 10 days.
#79	31211Q03	WASHER @2 (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (1 required per assembly) — Replaces: 31211A2, 31211A3
		12-31211Q03 - Washer - Priced Individually [ More info ] $14.82 Available to Order: Shipping delay up to 10 days.
		18-3714 - Washer, 12-31211A2 [ More info ] $11.54 4 In Stock.
		12-31211K03 - Washer - Priced Individually [ More info ] $14.82 1 In Stock.
#80	816629Q	TAB WASHER @2 (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (1 required per assembly) — Replaces: 816629
		14-816629Q - Tab Washer - Priced Individually [ More info ] $6.04 10 In Stock.
		18-3200-9 - Washer, 14-816629, 10PK [ More info ] $78.72 4 In Stock.
		14-816629K - Tab Washer - Priced Individually [ More info ] $6.08 10+ In Stock.
#81	52707Q1	PROP NUT KIT@2 (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (1 required per assembly) — Replaces: 52707A1
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 3 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $24.71 10+ In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $15.31 In Stock
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 2 In Stock.
		11-00122 - Prop Nut Kit [ More info ] $13.99 $11.16 Available to Order: Shipping delay up to 10 days.
#82	423511	WASHER @2 (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (1 required per assembly)
		13-42351 1 - Washer - Priced Individually [ More info ] $3.05 10+ In Stock.
#83	45176	WASHER @5 (These Replacement Parts Are Not Included With Complete Gear Housing Replacement) (2 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#63A	824108	SPACER (1 required per assembly)
		23-824108 - Spacer - Thrust [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
