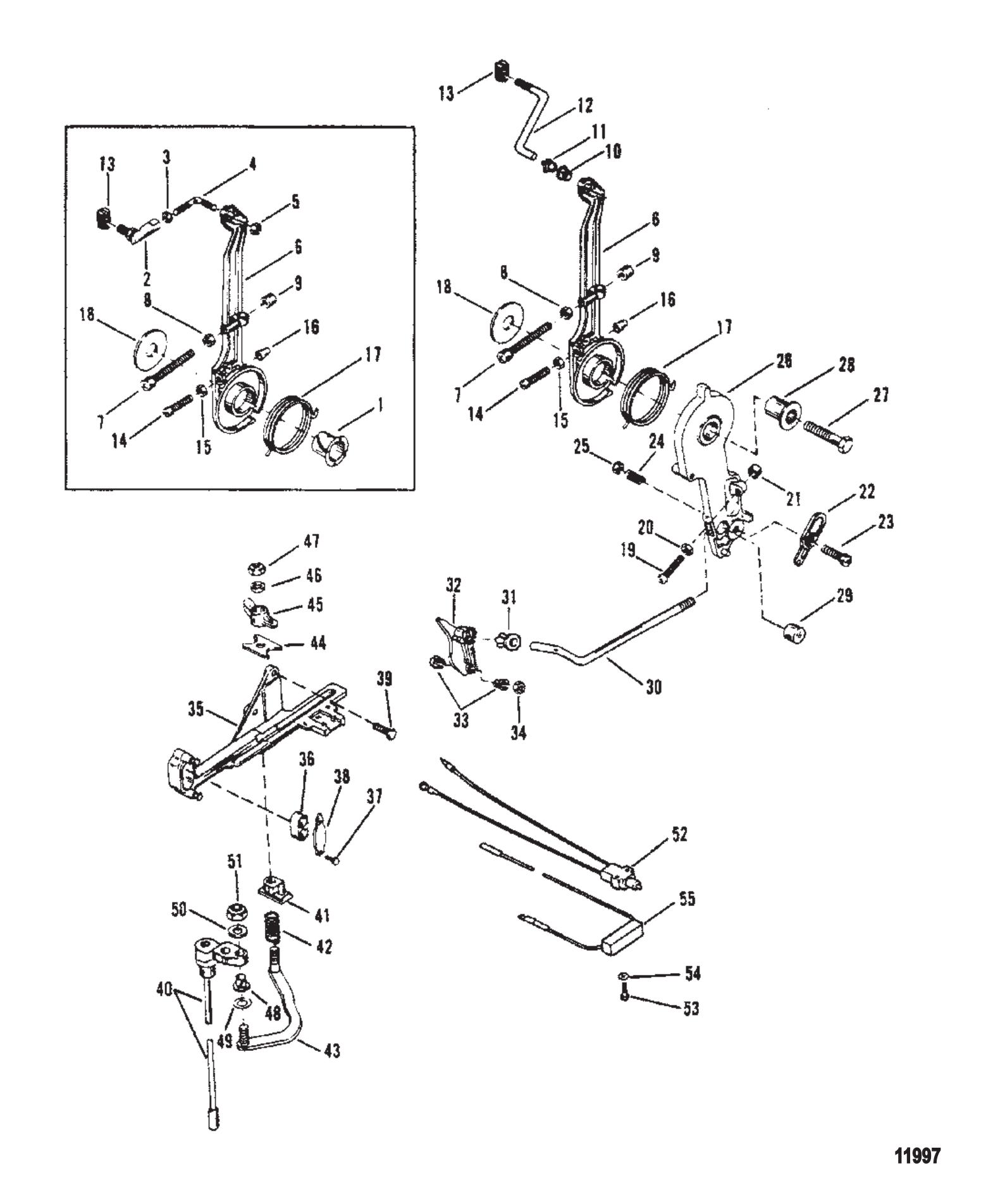

Parts for V-150 (Mag / EFI) 2-Stroke EFI Mercury Outboard Motor Throttle Lever & Shift Shaft
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 55171 | BUSHING (Design I) (1 required per assembly) |
  |
|
23-55171 - Bushing [ More info ] Unavailable |
| #2 | 62459T | BALL JOINT ASSY (Design I) (1 required per assembly) — Replaces: 62459 |
  |
|
62459T - Ball Joint Assembly [ More info ]
|
| #3 | 45076 | NUT @10 (Design I) (1 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #4 | 76035 | ROD-LINK (Design I) (1 required per assembly) |
  |
|
76035 - Link Rod [ More info ] Unavailable |
| #5 | 46438 | NUT @5 (Design I) (1 required per assembly) |
  |
|
11-46438 - Nut (#10-32) [ More info ]
|
| #6 | 41094A3 | LEVER ASSY (Design I) (1 required per assembly) |
  |
|
41094A 3 - Lever Assembly [ More info ]
|
| #6 | 823705A1 | LEVER KIT (Design II) (1 required per assembly) |
  |
|
823705A 1 - LEVER Spark Advan NLA [ More info ] Unavailable |
| #7 | 64022 | SCREW (.250-20 X 2.125) (1 required per assembly) |
  |
|
10-64022 - Screw [ More info ]
|
| #8 | 64015 | NUT (.250-20) (1 required per assembly) |
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #9 | 26852 | CAP NYLON (1 required per assembly) |
  |
|
26852 - Nylon Cap [ More info ]
|
| #10 | 93254 | SWIVEL BASE (Design II) (1 required per assembly) |
  |
|
93254 - Swivel Base [ More info ]
|
| #11 | 93421 | SWIVEL BALL (Design II) (1 required per assembly) |
  |
|
93421 - Swivel Ball [ More info ]
|
| #12 | 823706 | LINK (Design II) (1 required per assembly) |
  |
|
823706 - Link, NLA [ More info ]
|
| #13 | 74897T | PIVOT (1 required per assembly) — Replaces: 74897 |
  |
|
|
| #14 | 13627 | SCREW (1 required per assembly) |
  |
|
10-13627 - Screw [ More info ] Unavailable |
| #15 | 68219 | NUT @5 (1 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #16 | 48039 | CAP (1 required per assembly) |
  |
|
48039 - Nylon Cap [ More info ]
|
| #17 | 823235 | SPRING (1 required per assembly) |
  |
|
24-823235 - Spring [ More info ]
|
| #18 | 46765 | WASHER @5 (1 required per assembly) |
  |
|
12-46765 - Washer (1.50 X .390 X .120) [ More info ]
|
| #19 | 64022 | SCREW (1 required per assembly) |
| #20 | 64015 | NUT @3 (1 required per assembly) |
| #21 | 26852 | CAP (1 required per assembly) |
| #22 | 39483 | LATCH (1 required per assembly) |
  |
|
39483 - Latch [ More info ] Unavailable |
| #23 | 69026 | SCREW (1 required per assembly) |
  |
|
10-69026 - Screw [ More info ]
|
| #24 | 20099 | SPRING @5 (1 required per assembly) |
  |
|
24-20099 - Spring - Priced Individually [ More info ]
|
| #25 | 826709109 | NUT @5 (1 required per assembly) — Replaces: 35045 |
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #26 | 410952 | LEVER (1 required per assembly) — Replaces: 41095 |
  |
|
|
| #27 | 818165 | SCREW (1 required per assembly) |
  |
|
10-818165 - Screw [ More info ]
|
| #28 | 55164 | BUSHING (1 required per assembly) |
  |
|
23-55164 - Bushing [ More info ]
|
| #29 | 14638 | BARREL (1 required per assembly) |
  |
|
|
| #30 | 14634 | ROD-THROTTLE (1 required per assembly) |
  |
|
14634 - Throttle Rod [ More info ] Unavailable |
| #31 | 932481 | BUSHING (1 required per assembly) |
  |
23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable |
|
  |
|
23-8M0215006 - Bushing [ More info ]
|
| #32 | 8142392 | THROTTLE CAM (1 required per assembly) — Replaces: 8142391 |
  |
|
814239 2 - Throttle Cam [ More info ] Unavailable |
| #33 | 26856 | BUSHING (2 required per assembly) |
  |
|
23-26856 - Bushing [ More info ]
|
| #34 | 826709109 | NUT @5 (1 required per assembly) — Replaces: 35045 |
| #35 | 814283A2 | BRACKET ASSY (1 required per assembly) |
  |
|
814283A 2 - Bracket Assembly [ More info ]
|
| #36 | 39519 | CUP (1 required per assembly) |
  |
|
39519 - Cup [ More info ]
|
| #37 | 42975 | DRIVE SCREW (2 required per assembly) |
  |
|
10-42975 - Screw - Drive [ More info ]
|
| #38 | 98889 | LATCH (1 required per assembly) |
  |
|
|
| #39 | 53167T | SCREW @16 (3 required per assembly) — Replaces: 53167 |
  |
|
10-53167T - Screw - Priced Individually [ More info ]
|
| #40 | 79932A16 | SHAFT-SHIFT-LONG (Long) (1 required per assembly) — Replaces: 79932A11 |
  |
|
79932A16 - Shift Shaft - Long [ More info ]
|
| #40 | 79932A17 | SHAFT-SHIFT-XLONG (X-Long) (1 required per assembly) — Replaces: 79932A12 |
  |
|
79932A17 - Shift Shaft -XLong [ More info ]
|
| #41 | 814284 | GUIDE BLOCK (1 required per assembly) |
  |
|
814284 - Guide Block [ More info ]
|
| #42 | 20099 | SPRING @5 (1 required per assembly) |
| #43 | 67073A1 | LINK ASSY (1 required per assembly) |
  |
|
67073A 1 - Link Assembly [ More info ]
|
| #44 | 52100 | PLATE (1 required per assembly) |
  |
|
52100 - Wear Plate [ More info ]
|
| #45 | 8M0036768 | LATCH (1 required per assembly) — Replaces: 38279 |
  |
|
8M0036768 - Latch [ More info ]
|
| #46 | 35462 | WASHER @2 (1 required per assembly) |
  |
|
12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ]
|
| #47 | 826709109 | NUT @5 (1 required per assembly) — Replaces: 35045 |
| #48 | 26600 | BUSHING (1 required per assembly) |
  |
|
23-26600 - Bushing, NLA [ More info ] Unavailable |
| #49 | 29720 | WASHER-WAVE @5 (1 required per assembly) |
  |
|
13-29720 - Wave Washer - Priced Individually [ More info ]
|
| #50 | 35462 | WASHER @2 (1 required per assembly) |
| #51 | 826709109 | NUT @5 (1 required per assembly) — Replaces: 35045 |
| #52 | 814281A1 | SWITCH ASSY (150/175) (1 required per assembly) |
  |
|
87-814281A 1 - Switch, NLA [ More info ] Unavailable |
| #53 | 77478 | SCREW (#6-32 X .875) (150/175) (2 required per assembly) |
  |
|
10-77478 - Screw [ More info ]
|
| #54 | 27882 | WASHER (150/175) (2 required per assembly) |
  |
|
12-27882 - Washer - Priced Individually [ More info ]
|
| #55 | 17461A3 | MODULE (150/175) (1 required per assembly) |
  |
|
17461A 3 - Module [ More info ]
|
