Parts for 6 HP Carb 4-Stroke Mercury Outboard Motor Oil Pan

Revise Search: Outboard > 4-Stroke Mercury Outboard > 6 HP Carb > 0P073456 - 0P400999 - Belgium > Oil Pan

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

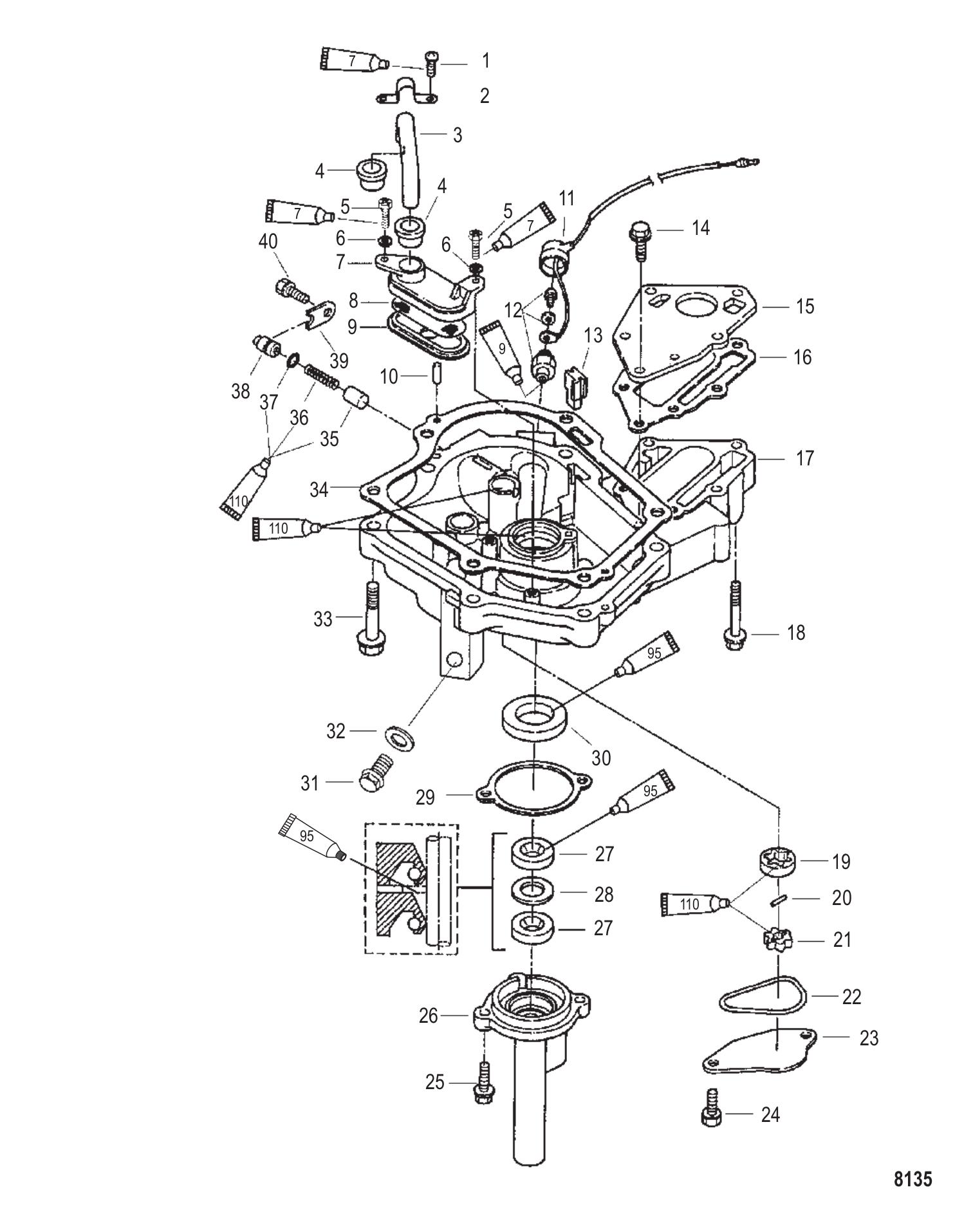

Oil Pan

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0114820	POWERHEAD GASKET [0R057258] & Below (1 required per assembly) — Replaces: 803508A99
		27-8M0114820 - Powerhead Gasket Set [ More info ] $115.99 Available to Order: Shipping delay up to 10 days.
#-	803508A05	GASKET SET [0R057259] & Up (1 required per assembly)
		27-803508A05 - Powerhead Gasket Set [ More info ] $103.49 Available to Order: Shipping delay up to 10 days.
#1	82303110	SCREW (1 required per assembly)
		10-823031 10 - Screw, NLA [ More info ] $1.50 $0.30 10+ In Stock.
#2	803543	CLAMP (1 required per assembly)
		54-803543 - Clamp [ More info ] $2.79 $2.24 1 In Stock.
#3	952237	TUBING (1 required per assembly)
		32-95223 7 - Tubing, NLA [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#4	8035202	SEAL (2 required per assembly)
		26-803520 2 - Seal [ More info ] $7.79 $6.24 10+ In Stock.
#5	855558	BOLT (2 required per assembly)
		10-855558 - Bolt [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#6	160721	WASHER (2 required per assembly)
		12-16072 1 - Washer [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#7	803540	HOUSING (1 required per assembly)
		803540 - Strainer Housing [ More info ] $6.69 $5.36 3 In Stock.
#8	803542	STRAINER (1 required per assembly)
		803542 - Strainer, NLA [ More info ] $4.59 $3.68 10+ In Stock.
#9	803541	CUP (1 required per assembly)
		803541 - Cup, NLA [ More info ] $7.09 $5.68 10+ In Stock.
#10	16119	DOWEL PIN (2 required per assembly)
		17-16119 - Dowel Pin [ More info ] $8.19 $6.56 3 In Stock.
#11	803539	LEAD WIRE (1 required per assembly)
		84-803539 - Lead Wire [ More info ] $16.39 Available to Order: Shipping delay up to 10 days.
#12	8M0163139	SWITCH OIL (1 required per assembly) — Replaces: 803538
		87-8M0163139 - Switch OIL [ More info ] $45.49 Available to Order: Shipping delay up to 10 days.
#13	8035135	GROMMET (1 required per assembly)
		25-803513 5 - Grommet, NLA [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#14	810755007	BOLT (3 required per assembly) — Replaces: 168305
		10-810755007 - Bolt [ More info ] $3.60 Available to Order: Shipping delay up to 10 days.
#15	803532001	EXHAUST PLATE (1 required per assembly) — Replaces: 803532
		803532001 - Exhaust Plate [ More info ] $28.39 Available to Order: Shipping delay up to 10 days.
#16	803508015	GASKET (1 required per assembly) — Replaces: 8035088
		27-803508015 - Exhaust Plate Gasket [ More info ] $10.09 Available to Order: Shipping delay up to 10 days.
#17	803531T	PAN-OIL [0R057259] & Up (1 required per assembly) — Replaces: 803531T01
		803531T - Oil Pan [ More info ] Unavailable
		8M0227775 - 8M0227775 - OIL PAN [ More info ] Unavailable Replaced by -8M0227936
		8M0227936 - OIL PAN [ More info ] Unavailable
#18	168306	BOLT (3 required per assembly)
		10-16830 6 - Bolt, NLA [ More info ] $1.70 $0.34 10+ In Stock.
#19	8035331	ROTOR (1 required per assembly)
		803533 1 - Rotor [ More info ] $15.49 $12.40 10 In Stock.
#20	162563	PIN-CARB FLOAT (1 required per assembly)
		17-16256 3 - Carburetor Float Pin [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#21	803533	ROTOR (1 required per assembly)
		803533 - Rotor [ More info ] $13.49 $10.80 10 In Stock.
#22	8035134	O RING [0R057258] & Below (1 required per assembly)
		25-803513 4 - O-Ring [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#22	803513010	O RING [0R057259] & Up (1 required per assembly)
		25-803513010 - O-Ring [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#23	803534	COVER (1 required per assembly)
		803534 - Cover [ More info ] $6.79 1 In Stock.
#24	168287	BOLT (2 required per assembly)
		10-16828 7 - Bolt, NLA [ More info ] $3.29 $0.66 10+ In Stock.
#25	167051	BOLT (2 required per assembly)
		10-16705 1 - Bolt [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#26	8150162	HOUSING (1 required per assembly)
		815016 2 - Housing [ More info ] $63.49 Available to Order: Shipping delay up to 10 days.
#27	8M0101649	SEAL (2 required per assembly) — Replaces: 16703
		26-8M0101649 - Seal [ More info ] $12.49 1 In Stock.
#28	815018	SPACER (1 required per assembly)
		23-815018 - Spacer [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#29	8M0152378	GASKET CRANKCASE (1 required per assembly) — Replaces: 16704
		27-8M0152378 - Gasket Crankcase [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#30	8M0101648	SEAL (1 required per assembly) — Replaces: 8537077
		26-8M0101648 - Seal [ More info ] $13.19 Available to Order: Shipping delay up to 10 days.
#31	803509021	BOLT-DRAIN (1 required per assembly) — Replaces: 8035096
		10-803509021 - Bolt - Drain [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#32	8035161	WASHER @5 (1 required per assembly)
		12-803516 1 - Washer [ More info ] $3.79 5 In Stock.
#33	8150685	BOLT (6 required per assembly)
		10-815068 5 - Bolt, NLA [ More info ] $2.29 $0.46 10+ In Stock.
#34	803508014	GASKET (1 required per assembly) — Replaces: 8035087
		27-803508014 - Oil Pan Gasket [ More info ] $30.69 Available to Order: Shipping delay up to 10 days.
#35	803535	PLUNGER (1 required per assembly)
		803535 - Plunger [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#36	8035541	SPRING (1 required per assembly)
		24-803554 1 - Spring [ More info ] $3.69 $2.96 4 In Stock.
#37	168231	O RING (1 required per assembly)
		25-16823 1 - O-Ring [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#38	803536	SEAT (1 required per assembly)
		803536 - Seat [ More info ] $5.89 $4.72 3 In Stock.
#39	803537	COVER (1 required per assembly)
		803537 - Cover [ More info ] $1.70 $1.36 9 In Stock.
#40	168287	BOLT (1 required per assembly)
