Parts for 6 HP Carb 4-Stroke Mercury Outboard Motor Cowling

Revise Search: Outboard > 4-Stroke Mercury Outboard > 6 HP Carb > 0P073456 - 0P400999 - Belgium > Cowling

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

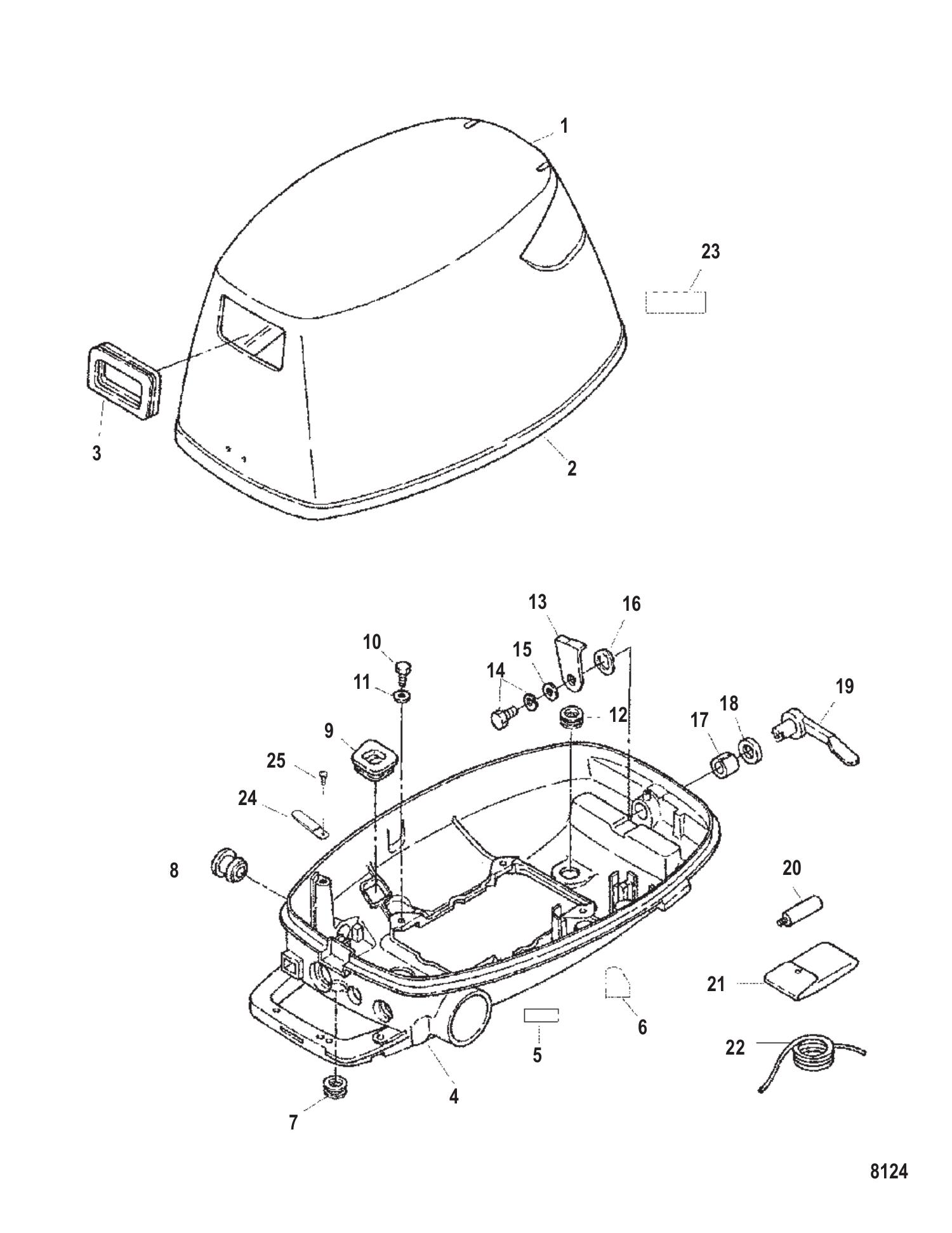

Cowling

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8240877	DECAL (1 required per assembly)
		37-824087 7 - Decal [ More info ] $2.50 Available to Order: Shipping delay up to 10 days.
#1	803580T1	COWL-TOP-BLACK (Black) (1 required per assembly)
		114-803580T 1 - Cowl - Top - Black [ More info ] $383.49 Available to Order: Shipping delay up to 10 days.
#1	803580T2	COWL-TOP-SILVER (Silver) (1 required per assembly)
		114-803580T 2 - Top Cowl, Silver [ More info ] $287.49 Available to Order: Shipping delay up to 10 days.
#1	803580T4	TOP COWL-BLACK (Black)(Use With Integral Fuel Tank) (1 required per assembly)
		114-803580T 4 - Top Cowl - Black [ More info ] $378.99 Available to Order: Shipping delay up to 10 days.
#1	803580T5	TOP COWL-SILVER (Silver)(Use With Integral Fuel Tank) (1 required per assembly)
		114-803580T 5 - Top Cowl, Silver [ More info ] $281.99 Available to Order: Shipping delay up to 10 days.
#2	8107512	SEAL (1 required per assembly)
		810751 2 - Seal [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#3	162282	SEAL RUBBER (1 required per assembly)
		0162282 - Part (162282) [ More info ] Unavailable
#4	803578T02	BOTTOM COWL (1 required per assembly) — Replaces: 803578T
		4000-803578T02 - Bottom Cowl [ More info ] $372.49 Available to Order: Shipping delay up to 10 days.
#4	803578T1	BOTTOM COWL (Use With Integral Fuel Tank) (1 required per assembly)
		4000-803578T 1 - Bottom Cowl [ More info ] $319.49 Available to Order: Shipping delay up to 10 days.
#5	8156931	DECAL FUEL LEVER REMOTE FUEL SHUT-OFF (Use With Integral Fuel Tank) (1 required per assembly)
		37-815693 1 - Decal - Fuel Lever [ More info ] Unavailable
#6	879706	DECAL (Use With Integral Fuel Tank) (1 required per assembly)
		37-879706 - Decal [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#7	16226	GROMMET (1 required per assembly)
		25-16226 - Grommet [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#8	16225	GROMMET (1 required per assembly)
		25-16225 - Grommet, Throttle Lever,NLA [ More info ] $1.67 $1.42 6 In Stock.
#9	16231	GROMMET (1 required per assembly)
		25-16231 - Grommet, Starter Lock Rod [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#10	16832	BOLT (4 required per assembly)
		10-16832 - Bolt [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#11	16826	WASHER (4 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#12	953871	GROMMET (1 required per assembly)
		25-95387 1 - Grommet [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#13	803579	COVER HOOK (1 required per assembly)
		803579 - Cover Hook [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#14	8230427	BOLT (1 required per assembly) — Replaces: 162111, 8M0088179
		10-823042 7 - Bolt [ More info ] $4.09 $2.30 10+ In Stock.
#15	953921	WASHER (1 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#16	16221	WASHER-WAVE (1 required per assembly)
		13-16221 - Wave Washer [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#17	16220	BUSHING (1 required per assembly)
		23-16220 - Bushing [ More info ] $6.79 1 In Stock.
#18	16219	SEAL (1 required per assembly)
		26-16219 - Seal [ More info ] $6.19 Available to Order: Shipping delay up to 10 days.
#19	162181	HOOK LEVER-BLACK (1 required per assembly)
		0162181 - L/P 131.45 [ More info ] Unavailable
#20	16841Q02	FLUSHING KT @2 (1 required per assembly) — Replaces: 16841A2
		16841Q02 - Flushing Kit - Priced Individually [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#21	8M0168899	TOOL KIT (1 required per assembly) — Replaces: 803581
		918M0168899 - TOOL KIT [ More info ] $13.29 Available to Order: Shipping delay up to 10 days.
#22	16230	ROPE-SAFETY (1 required per assembly)
		50-16230 - Rope -safety [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#23	85698518	REF SOB 09-18 (1999) (1 required per assembly)
		37-856985 18 - REF OB SB 09-18 [ More info ] Unavailable
#23	804651A00	REF SOB 09-18 (2000) (1 required per assembly)
		37-804651A00 - REF OB SB 09-18,NLA [ More info ] Unavailable
#23	804651A01	REF SOB 09-18 (2001) (1 required per assembly)
		37-804651A01 - REF OB SB 09-18,NLA [ More info ] Unavailable
#23	804651A02	REF SOB 09-18 (2002) (1 required per assembly)
		37-804651A02 - REF OB SB 09-18,NLA [ More info ] Unavailable
#23	804651A03	REF SOB 09-18 (2003) (1 required per assembly)
		37-804651A03 - REF OB SB 09-18,NLA [ More info ] Unavailable
#23	804651A04	REF SOB 09-18 (2004) (1 required per assembly)
		37-804651A04 - REF OB SB 09-18,NLA [ More info ] Unavailable
#23	804651A05	REF SOB 09-18 (2005) (1 required per assembly)
		37-804651A05 - REF OB SB 09-18,NLA [ More info ] Unavailable
#24	813275	CLAMP (1 required per assembly)
		54-813275 - Clamp [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#25	16827	SCREW (1 required per assembly)
		10-16827 - Screw [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
