Parts for 50 HP EFI 4 Cyl 4-Stroke Mercury Outboard Motor Electrical Components

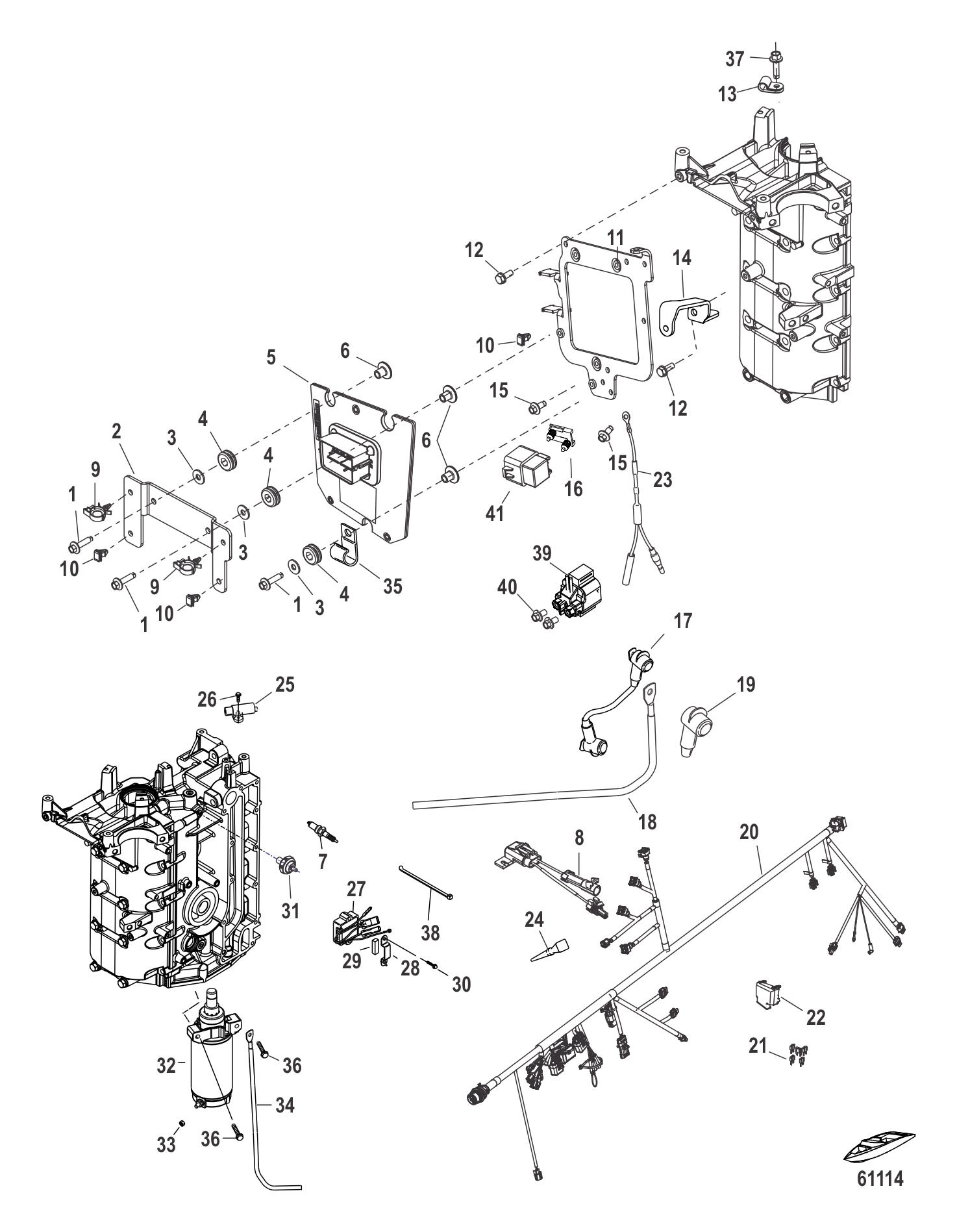

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8272822 | DECAL WARNING HIGH VOLTAGE (1 required per assembly) |
  |
|
37-827282 2 - Decal - Warning [ More info ]
|
| #- | 893678T03 | GREEN PH ASY-4CYL(NO CYL HEAD) (Does not include cylinder head) (1 required per assembly) |
  |
|
61893678T03 - GREEN PH ASY-4CYL(No Cy [ More info ] Unavailable |
| #1 | 82129125 | SCREW (3 required per assembly) |
  |
|
10-821291 25 - Screw [ More info ] Unavailable |
| #2 | 893774002 | BRACKET (1 required per assembly) |
  |
|
893774002 - Bracket [ More info ]
|
| #3 | 4002316 | WASHER @5 (3 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
  |
|
128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ]
|
| #4 | 834985 | GROMMET @5 (3 required per assembly) |
  |
|
25-834985 - Grommet [ More info ]
|
  |
|
25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ]
|
| #5 | 8M0168148 | ECM-35HP FS JET (1 required per assembly) |
  |
|
77-8M0168148 - ECM-35HP FS JET [ More info ] Unavailable |
| #5 | 8M0168142 | ECM-40HP 4CYL REC (1 required per assembly) — Replaces: 8M0120422 |
  |
|
77-8M0168142 - 77-8M0168142 - ECM-40HP 4CYL REC [ More info ] Unavailable Replaced by -8M0222173 |
  |
|
77-8M0222173 - ECM 40HP 4CYL REC [ More info ] Unavailable |
| #5 | 8M0168143 | ECM-40HP 4CYL JET (1 required per assembly) — Replaces: 8M0120423 |
  |
778M0168143 - ECM-40HP 4CYL JET [ More info ] Unavailable |
|
  |
|
77-8M0222174 - ECM 40HP 4CYL JET [ More info ] Unavailable |
| #5 | 8M0120418 | ECM (1 required per assembly) |
  |
788M0120418 - ECM [ More info ] Unavailable |
|
  |
|
77-8M0168140 - 77-8M0168140 - ECM-40HP 4CYL SP [ More info ] Unavailable Replaced by -8M0222177 |
  |
|
77-8M0222177 - ECM 40HP 4CYL SEA [ More info ] Unavailable |
| #5 | 8M0168141 | ECM-50HP 4CYL REC (1 required per assembly) — Replaces: 8M0120421 |
  |
778M0168141 - ECM-50HP 4CYL REC [ More info ] Unavailable |
|
  |
|
77-8M0222175 - ECM 50HP 4CYL REC [ More info ] Unavailable |
| #5 | 8M0168149 | ECM-60HP 4CYL REC (1 required per assembly) — Replaces: 8M0120419 |
  |
778M0168149 - ECM-60HP 4CYL REC [ More info ] Unavailable |
|
  |
|
77-8M0222176 - ECM 60HP 4CYL REC [ More info ] Unavailable |
| #5 | 8M0168139 | ECM-60HP 4CYL SP (1 required per assembly) — Replaces: 8M0120417 |
  |
778M0168139 - ECM-60HP 4CYL SP [ More info ] Unavailable |
|
  |
|
77-8M0222178 - ECM 60HP 4CYL SEA [ More info ] Unavailable |
| #6 | 856954 | BUSHING (3 required per assembly) |
  |
|
23-856954 - Bushing [ More info ]
|
| #7 | 883323001 | SP RA8HC @4 (4 required per assembly) |
  |
|
33-883323001 - Spark Plug - RA8HC - Priced Individually [ More info ] Unavailable |
  |
|
RA8HC - Champion Spark Plug ( #810) [ More info ]
|
| #8 | 897940T01 | HARNESS-FUSE (1 required per assembly) |
  |
|
84-897940T01 - Fuse Harness [ More info ]
|
| #9 | 858954 | CLIP (2 required per assembly) |
  |
|
54-858954 - Clip [ More info ]
|
| #10 | 879962 | CLIP PART OF ELECTRICAL HARNESS (3 required per assembly) |
  |
|
54-879962 - Clip [ More info ]
|
| #11 | 8M0118185 | PLATE - ECM (1 required per assembly) |
  |
|
8M0118185 - PLATE [ More info ] Unavailable |
| #12 | 8248324 | SCREW @5 (3 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
| #13 | 24836 | CLIP @5 (1 required per assembly) |
  |
|
54-24836 - Clip - Priced Individually [ More info ]
|
| #14 | 8M0107175 | BRACE (1 required per assembly) |
  |
|
8M0107175 - BRACE [ More info ]
|
| #15 | 82129114 | SCREW (2 required per assembly) |
  |
|
10-821291 14 - Screw [ More info ]
|
| #16 | 8M6001733 | CLIP-RELAY DBL (1 required per assembly) |
  |
|
8M6001733 - Clip-RELAY DBL [ More info ]
|
| #17 | 93388A16 | CABLE (1 required per assembly) |
  |
|
84-93388A16 - Cable [ More info ]
|
| #18 | 88439A9 | CABLE ASSY-POS (1 required per assembly) |
  |
|
84-88439A 9 - Battery Cable, Positive [ More info ]
|
| #19 | 880786 | BOOT (RED) (1 required per assembly) |
  |
|
85-880786 - Boot (red) [ More info ]
|
| #20 | 8M0120118 | HARNESS ASSEMBLY (1 required per assembly) — Replaces: 8M0118192 |
  |
|
848M0120118 - Harness [ More info ]
|
| #21 | 832969T20 | FUSE MINI - YELLOW - 20 AMPERE (3 required per assembly) |
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| #21 | 832969T25 | FUSE MINI - CLEAR - 25 AMPERE (1 required per assembly) |
  |
|
88-832969T25 - Fuse -Clear-25 AMP [ More info ]
|
| #21 | 832969T05 | FUSE MINI - TAN - 5 AMPERE (1 required per assembly) |
  |
|
88-832969T05 - Fuse -TAN-5 AMP [ More info ]
|
| #21 | 832969T15 | FUSE MINI - BLUE - 15 AMPERE (1 required per assembly) |
  |
|
88-832969T15 - Fuse -Blue-15AMP [ More info ]
|
| #22 | 8M0045270 | COVER (1 required per assembly) |
  |
|
8M0045270 - Cover [ More info ]
|
| #23 | 883834T01 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
84-883834T01 - Harness [ More info ]
|
| #24 | 13541 | PLUG (1 required per assembly) |
  |
|
|
| #25 | 8M0082988 | SENSOR ASSY (1 required per assembly) |
  |
|
8M0082988 - Sensor Assembly [ More info ]
|
| #26 | 40011107 | SCREW @5 (2 required per assembly) |
  |
|
10-40011107 - SCREW [ More info ]
|
| #27 | 893640T01 | VOLTAGE REGULATOR (1 required per assembly) |
  |
|
893640T01 - Voltage Regulator [ More info ]
|
  |
|
18-5732-1 - Voltage Regulator 893640T01 [ More info ]
|
| #28 | 893771 | BRACKET (1 required per assembly) |
  |
|
893771 - Bracket [ More info ]
|
| #29 | 8308971 | PAD-FOAM (1 required per assembly) |
  |
|
830897 1 - Pad -foam [ More info ]
|
| #30 | 8248329 | SCREW (2 required per assembly) |
  |
|
10-824832 9 - Screw [ More info ]
|
| #31 | 8M0098207 | SWITCH-PRESSURE (1 required per assembly) |
  |
|
87-8M0098207 - Pressure Switch [ More info ]
|
| #32 | 893888T | STARTER MOTOR (1 required per assembly) |
  |
|
50-893888T - Starter Motor [ More info ]
|
  |
|
18-6435 - Starter, 50-888161T [ More info ]
|
  |
|
5360 - Outboard Starter [ More info ]
|
| #33 | 94330 | NUT @2 (1 required per assembly) |
  |
|
11-94330 - Nut, Brass (1/4-20) [ More info ]
|
| #34 | 88439A4 | CABLE ASSY-NEG (1 required per assembly) |
  |
|
84-88439A 4 - Cable Assembly -neg [ More info ]
|
| #35 | 8M0024808 | J CLIP (1 required per assembly) — Replaces: 65292 |
  |
|
54-8M0024808 - J-CLIP [ More info ] Unavailable |
| #36 | 40011153 | SCREW (3 required per assembly) |
  |
|
10-40011153 - Screw [ More info ]
|
| #37 | 82239312 | SCREW (1 required per assembly) |
  |
|
10-822393 12 - SCREW (M5 x 12) [ More info ]
|
| #38 | 816311T | TIE STRAP @100 (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #39 | 8M0098898 | RELAY ASSY (1 required per assembly) |
  |
|
89-8M0098898 - Relay Assembly [ More info ]
|
| #40 | 8M0085874 | SCREW (2 required per assembly) |
  |
|
108M0085874 - Screw - Priced Individually [ More info ]
|
| #41 | 882751A1 | RELAY ASSY-TRIM (1 required per assembly) |
  |
|
882751A 1 - Relay - 8M0207773 [ More info ] Unavailable |
  |
|
18-5849 - Relay, 882751A1 [ More info ]
|
  |
|
300-01562 - Power Trim Relay, 882751A1 [ More info ]
|
  |
|
|
