Parts for 2.5 L S3000 2-Stroke EFI Mercury Outboard Motor Transom Bracket Assembly

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 2.5 L S3000 > 0D181027 & Up - USA > Transom Bracket Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Transom Bracket Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	11241A18	BAG ASY-ENGINE MT (1 required per assembly)
		56-11241A18 - Bag Assembly - Engine Mt [ More info ] $94.74 Available to Order: Shipping delay up to 10 days.
#-	46196	SCREW (.437-20 X 4.00) (2 required per assembly)
		10-46196 - Screw [ More info ] Unavailable
#-	70832	SCREW (.437-20 X 5.00) (4 required per assembly)
		10-70832 - Screw [ More info ] $19.99 $16.92 10+ In Stock.
#-	44163	WASHER (.450 X 1.75 X .12) (6 required per assembly)
		12-44163 - Washer, (.450 X 1.75 X .12) [ More info ] $3.79 10+ In Stock.
#-	45176	WASHER (.453 X .812 X .105) STAINLESS STEEL (12 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#-	8M0204653	NUT @10 (6 required per assembly) — Replaces: 82671015, 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#1	8476631	BRACKET (1 required per assembly)
		847663 1 - Bracket [ More info ] $2,371.06 Available to Order: Shipping delay up to 10 days.
#2	44133	PIN-TRIM (2 required per assembly)
		17-44133 - Pin - Trim [ More info ] $277.57 Available to Order: Shipping delay up to 10 days.
#3	822106T01	TILT TUBE ASSY (1 required per assembly) — Replaces: 822106, 822106A1
		822106T01 - Tilt Tube Assembly [ More info ] Unavailable
#4	82671327	NUT (2 required per assembly) — Replaces: 34862, 859133
		11-826713 27 - Nut [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#5	21158A2	SHIM KIT (1 required per assembly)
		15-21158A 2 - Shim Kit [ More info ] $144.84 Available to Order: Shipping delay up to 10 days.

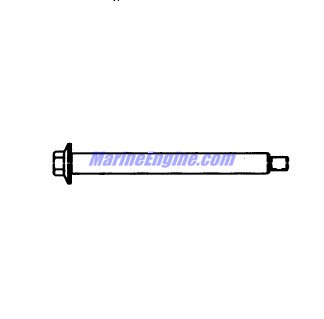

#6	822075	PIN-TRIM (1 required per assembly)
		822075 - Pin - Trim [ More info ] Unavailable
#7	59378	WASHER (1 required per assembly)
		12-59378 - Washer, NLA [ More info ] $2.69 $2.16 2 In Stock.
#8	822076	RETAINER (1 required per assembly)
		822076 - Retainer [ More info ] $36.57 Available to Order: Shipping delay up to 10 days.
#9	82671317	NUT @5 (1 required per assembly) — Replaces: 20220
		11-826713 17 - Nut, (.500-20) [ More info ] $3.79 $3.04 10+ In Stock.
#10	69059	FITTING-GR @2 (2 required per assembly)
		22-69059 - Fitting, Grease - Priced Individually [ More info ] $7.02 10+ In Stock.
