Parts for 2.5 L S3000 2-Stroke EFI Mercury Outboard Motor Throttle Linkage

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 2.5 L S3000 > 0D181027 & Up - USA > Throttle Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Throttle Linkage

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	848039A68	P/H ASY-S3/CHAMP (1 required per assembly) — Replaces: 848039A44, 848039A56
		61-848039A68 - P/H ASY-S3/CHAMP [ More info ] Unavailable
		61-848039A84 - Pwd Assembly 2.5 Race [ More info ] Unavailable
#1	74897T	PIVOT DESIGN I (1 required per assembly) — Replaces: 74897
		74897T - Pivot [ More info ] $12.89 Available to Order: Shipping delay up to 10 days.
#2	849036	LINK ROD DESIGN I (1 required per assembly)
		849036 - Link Rod [ More info ] $37.68 Available to Order: Shipping delay up to 10 days.
#3	68219	NUT @5 DESIGN I (2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#4	964561	BRACKET-TIMING DESIGN I (1 required per assembly)
		96456 1 - Bracket-TIMING,NLA [ More info ] Unavailable
#5	822836	WASHER DESIGN I (2 required per assembly)
		12-822836 - Washer, (.445 X .805 X .108) [ More info ] Unavailable
#6	72094	SCREW DESIGN I (1 required per assembly)
		10-72094 - Screw [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#7	74897T	PIVOT DESIGN II (1 required per assembly) — Replaces: 74897
#8	849036	LINK ROD DESIGN II (1 required per assembly)
#9	68219	NUT @5 DESIGN II (2 required per assembly)
#10	89302	WASHER @5 DESIGN II (2 required per assembly)
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#11	8489742	BRACKET DESIGN II (1 required per assembly) — Replaces: 8489741
		848974 2 - Bracket [ More info ] $264.84 Available to Order: Shipping delay up to 10 days.
#12	8M0204690	WASHER DESIGN II (3 required per assembly) — Replaces: 814806
		12-8M0204690 - WASHER [ More info ] Unavailable
#13	53576	SCREW @5 DESIGN II (3 required per assembly)
		10-53576 - Screw - Priced Individually [ More info ] $1.60 1 In Stock.
#14	78441	LEVER-SPARK ADV (1 required per assembly)
		78441 - Spark Advance Lever [ More info ] Unavailable
#15	64022	SCREW (1 required per assembly)
		10-64022 - Screw [ More info ] $3.69 $2.96 9 In Stock.
#16	64015	NUT @3 (1 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#17	26852	CAP (1 required per assembly)
		26852 - Nylon Cap [ More info ] $3.99 4 In Stock.
#18	55171	BUSHING (1 required per assembly)
		23-55171 - Bushing [ More info ] Unavailable
#19	68784	SPRING (1 required per assembly)
		24-68784 - Spring, Throttle And Spark Advance Lever [ More info ] $70.99 $68.16 4 In Stock.
#20	55164	BUSHING (1 required per assembly)
		23-55164 - Bushing [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.

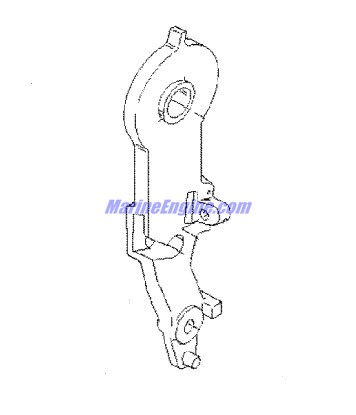

#21	77837	LEVER (1 required per assembly)
		77837 - Lever [ More info ] Unavailable
#22	39483	LATCH (1 required per assembly)
		39483 - Latch [ More info ] Unavailable
#23	20099	SPRING @5 (1 required per assembly)
		24-20099 - Spring - Priced Individually [ More info ] $5.49 10+ In Stock.
#24	69026	SCREW (1 required per assembly)
		10-69026 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#25	826709109	NUT @5 (1 required per assembly) — Replaces: 35045
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#26	64022	SCREW (1 required per assembly)
#27	64015	NUT @3 (1 required per assembly)
#28	26852	CAP (1 required per assembly)
#29	46765	WASHER @5 (1 required per assembly)
		12-46765 - Washer (1.50 X .390 X .120) [ More info ] $11.39 10+ In Stock.
#30	818165	SCREW (1 required per assembly)
		10-818165 - Screw [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#31	60572	BARREL (1 required per assembly)
		60572 - Barrel [ More info ] $8.37 1 In Stock.
		8M0221994 - BARREL FITTING [ More info ] Unavailable
#32	75275	CLAMP (1 required per assembly)
		54-75275 - Clamp [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#33	91821	SPRING (LIGHT) (1 required per assembly)
		24-91821 - Spring, Throttle Return [ More info ] Unavailable
#33	848470	SPRING (HEAVY) (1 required per assembly)
		24-848470 - Spring [ More info ] $68.64 Available to Order: Shipping delay up to 10 days.
#34	146692	BRACKET (1 required per assembly)
		14669 2 - Bracket, NLA [ More info ] Unavailable
#35	16813	CUP-BARREL RETAIN (1 required per assembly)
		16813 - CUP-BARREL RETAIN [ More info ] Unavailable
#36	16814	LATCH (1 required per assembly)
		16814 - Latch [ More info ] $22.29 Available to Order: Shipping delay up to 10 days.
#37	8M0034426	STUD (2 required per assembly) — Replaces: 18101
		16-8M0034426 - Stud [ More info ] $28.69 Available to Order: Shipping delay up to 10 days.
#38	73288	WASHER (2 required per assembly)
		12-73288 - Washer, (.220 X .500 X .030) Stainless Steel [ More info ] $1.50 2 In Stock.
#39	18102	NUT (2 required per assembly)
		11-18102 - Nut, (#12-24) [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#40	62958	SCREW (2 required per assembly)
		10-62958 - Screw [ More info ] Unavailable
#41	60147	SCREW (1 required per assembly)
		10-60147 - Screw [ More info ] $3.03 Available to Order: Shipping delay up to 10 days.
#42	54457	J CLIP (1 required per assembly)
		54-54457 - J Clip [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
