Parts for 2.5 L S3000 2-Stroke EFI Mercury Outboard Motor Driveshaft Housing

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > 2.5 L S3000 > 0D181027 & Up - USA > Driveshaft Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

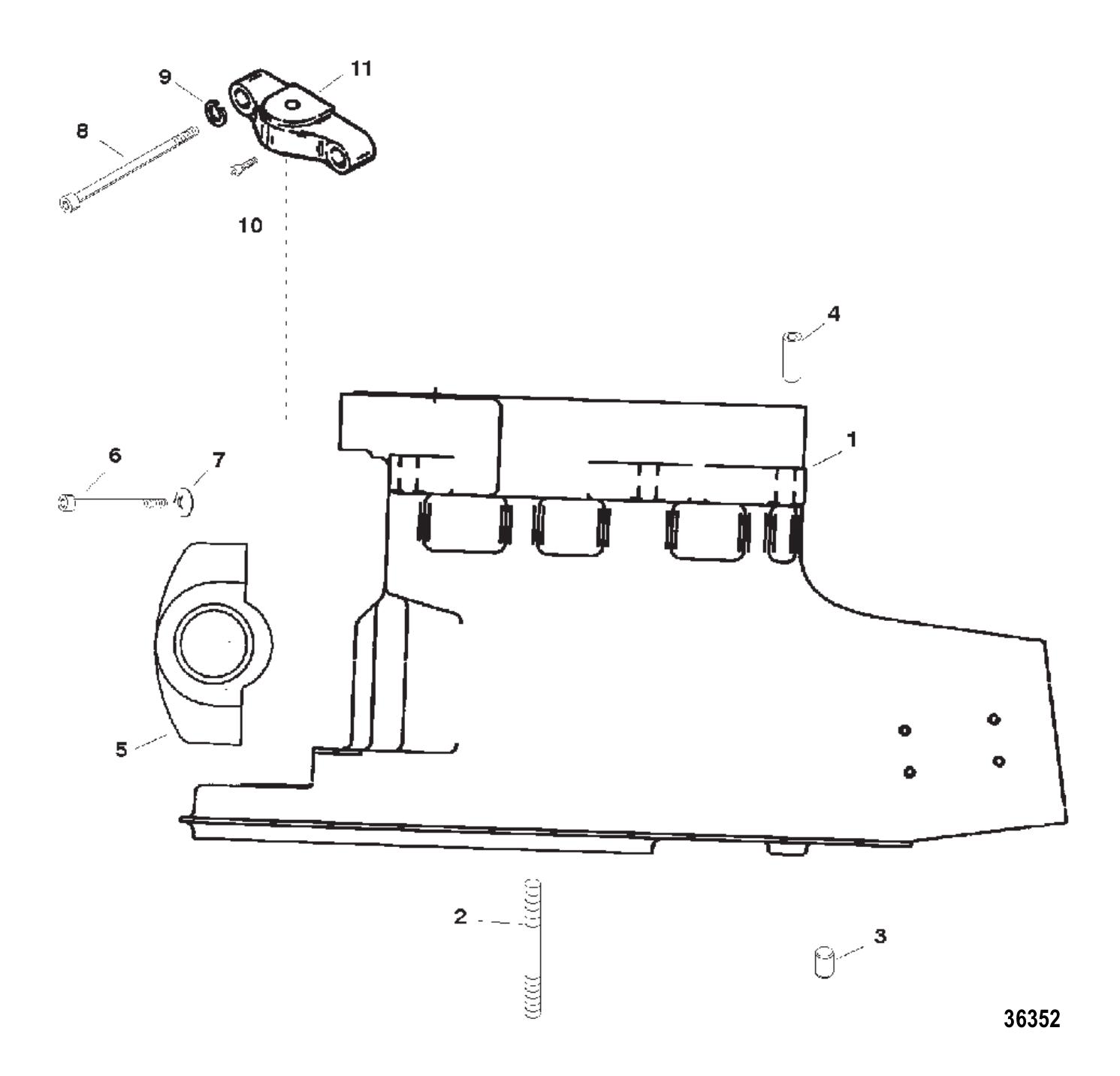

Driveshaft Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0050993	DRIVESHAFT HOUSNG (1 required per assembly) — Replaces: 821986A5
		3526-8M0050993 - Drive Shaft Housing [ More info ] Unavailable
#2	822118	STUD (.437 X 2.500) (8 required per assembly)
		16-822118 - Stud [ More info ] Unavailable
#3	822107	PIN DOWEL (2 required per assembly)
		17-822107 - Pin -Dowel [ More info ] Unavailable
#4	165411	SLEEVE (2 required per assembly)
		23-16541 1 - Sleeve [ More info ] $163.09 Available to Order: Shipping delay up to 10 days.
#5	822006T01	YOKE BLACK (1 required per assembly) — Replaces: 822006A1
		822006T01 - Yoke Assembly [ More info ] $383.84 Available to Order: Shipping delay up to 10 days.
#6	995241	SCREW (.437-14 X 2.00) (2 required per assembly)
		10-99524 1 - Screw [ More info ] Unavailable
#7	326481	WASHER (.450 X .690 X .090) (2 required per assembly)
		[ More info ] Unavailable
#8	8221231	SCREW (.562 X 2.500) (2 required per assembly)
		10-822123 1 - Screw [ More info ] $68.89 Available to Order: Shipping delay up to 10 days.
#9	180451	WASHER (2 required per assembly)
		12-18045 1 - Washer [ More info ] $19.53 Available to Order: Shipping delay up to 10 days.
#10	8221241	SCREW (.375 X 2.00) (1 required per assembly)
		10-822124 1 - Screw [ More info ] $79.70 Available to Order: Shipping delay up to 10 days.
#11	8M0051215	YOKE BLACK (NOT PART OF DRIVESHAFT HOUSING) (2 required per assembly) — Replaces: 8221221
		8M0051215 - Yoke [ More info ] $444.97 Available to Order: Shipping delay up to 10 days.
